Cable cutter ISO 1000V 280 mm
(Product No.: K-9536.280)
The image displays a black pipe wrench with a red handle. It features a curved edge and a large, round cutout. The wrench is designed to grip and turn pipes.
The image shows a large, black cable cutter with red and yellow handles. The cutter has a round opening on the left side and a lever mechanism in the center.
Mobile Preview: The image displays a black pipe wrench with a red handle. It features a curved edge and a large, round cutout. The wrench is designed to grip and turn pipes.
Mobile Preview: The image shows a large, black cable cutter with red and yellow handles. The cutter has a round opening on the left side and a lever mechanism in the center.
Notice / Inquire

Cable cutter ISO 1000V 280 mm

dpvlink:
9013
Tags:
Type of pliers:
Cable shears
Length :
280 mm
tested according to VDE standard:
yes
Properties:
Further product information

at short notice at short notice
291,45 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

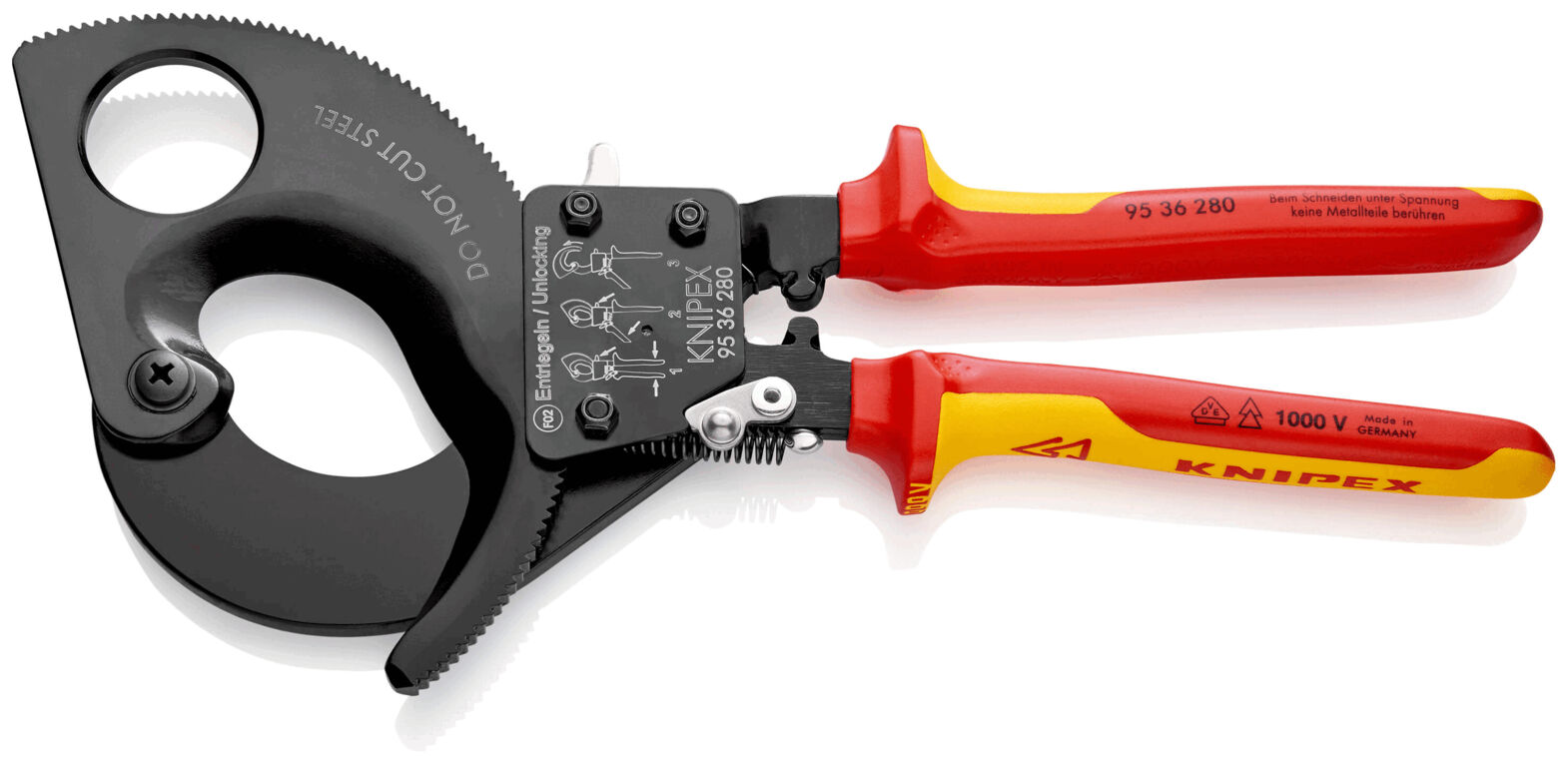

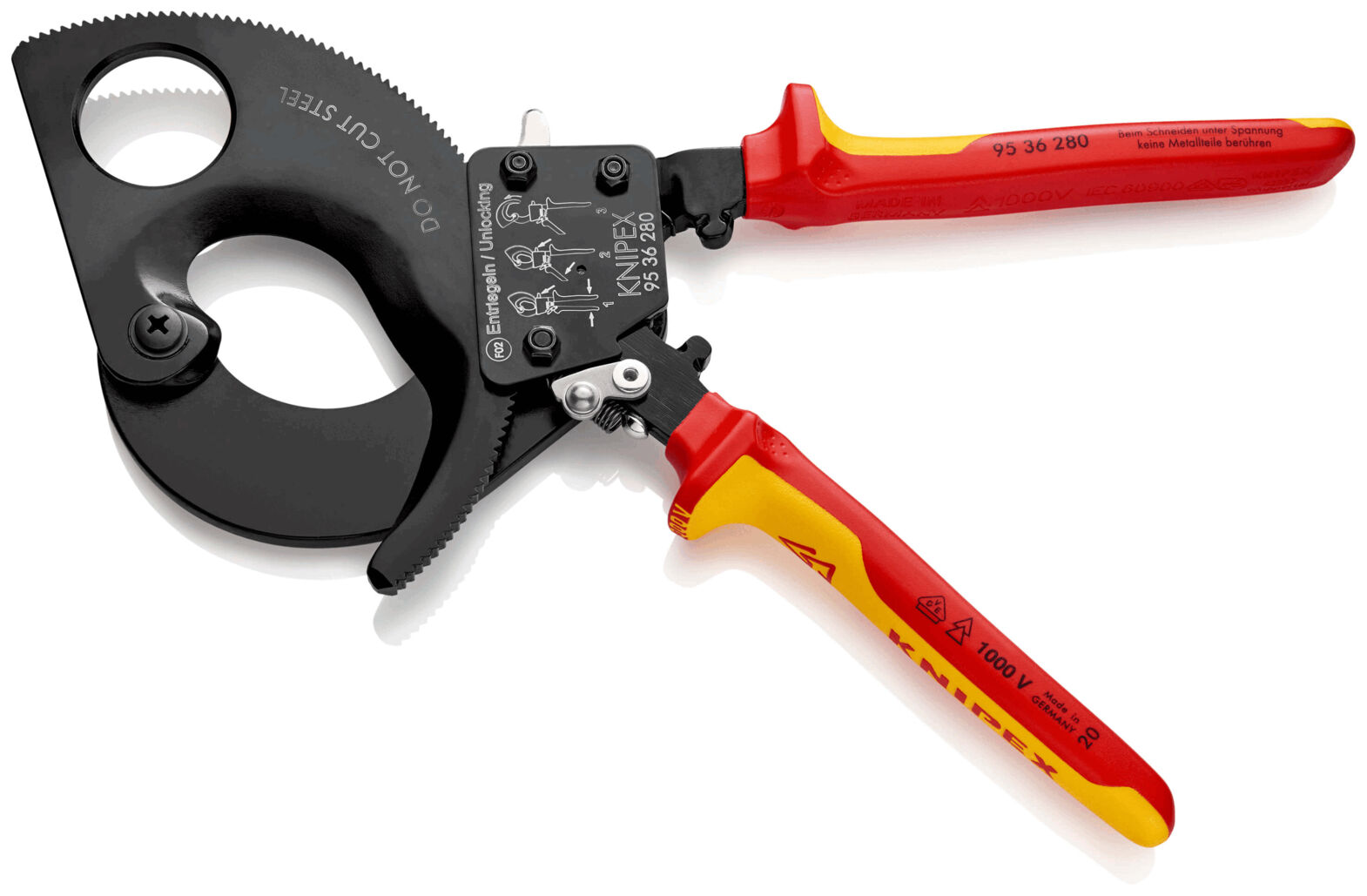

Cable cutter ISO 1000V 280 mm

The KNIPEX ISO 1000V 280 mm cable cutters are specifically designed for cutting Cu and Al cables, both single and multi-strand, and provide an efficient solution for working under voltage up to 1000 volts. These VDE-tested tools are characterized by a compact design and low weight, making them ideal for use even in confined spaces.
The cable cutters are not suitable for use with steel wire, wire ropes, or highly flexible conductors, but can effectively cut Al conductors up to 4 x 150 mm² sector cables. The hardened cutting edges with precision grinding ensure smooth, clean cuts without crushing, supported by a two-speed planetary gear drive that facilitates cutting.
The handling of the scissors is possible with one hand due to the ratchet principle, while the integrated pinch protection prevents pinch injuries. The tools are made of high-quality chrome-plated tool steel and meet strict VDE standards, underscoring their safety and reliability.
Type of pliers
Type of pliers
Cable shears
Length
Length
280 mm
tested according to VDE standard
tested according to VDE standard
yes
Material
Material
Tool steel
Surface
Surface
chromed
ESD
ESD
no
Head shape
Head shape
Ratchet
Pictograms
VDE
The VDE mark indicates that electrical products comply with the requirements of IEC 60900. It ensures the highest safety and quality standards for devices designed for use at voltages up to 1000 V AC (alternating current) and 1500 V DC (direct current).

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 480
Complete Catalog 2023 - 2024

Product Family

Cable cutter ISO 1000V

The VDE-tested cable cuttin gpliers, which is equipped with the ratchet principle, impresses with its low weight and compact design. They are suitable for cutting copper and aluminum cables, solid and stranded. However, they are not suitable for steel wire, wire ropes and fine-stranded conductors. They cut smoothly and cleanly and can be operated with one hand thanks to the ratchet principle.

  • Low power requirement due to very high transmission ratio
  • Not suitable for steel wire, wire ropes and fine-stranded (highly flexible) conductors
  • Hardened cutting edges with precision grinding
  • Cuts smoothly and cleanly without crushing
  • Two-speed gear rim drive for easy cutting
  • Pinch protection prevents crushing injuries


Article image
Article description
Type of pliers
Length
tested according to VDE standard
Price
Compare

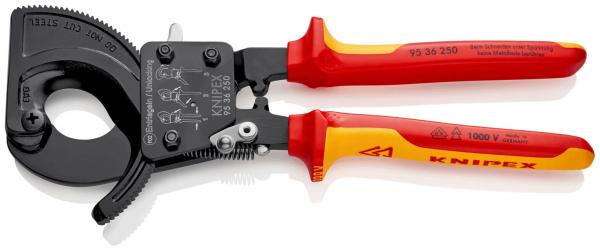

K-9536.250 - Cable cutter ISO 1000V 250 mm
K-9536.250
Cable cutter ISO 1000V 250 mm
Cable shears
250 mm
yes
219,20 EUR
K-9536.280 - Cable cutter ISO 1000V 280 mm
K-9536.280
Cable cutter ISO 1000V 280 mm
Cable shears
280 mm
yes
291,45 EUR
