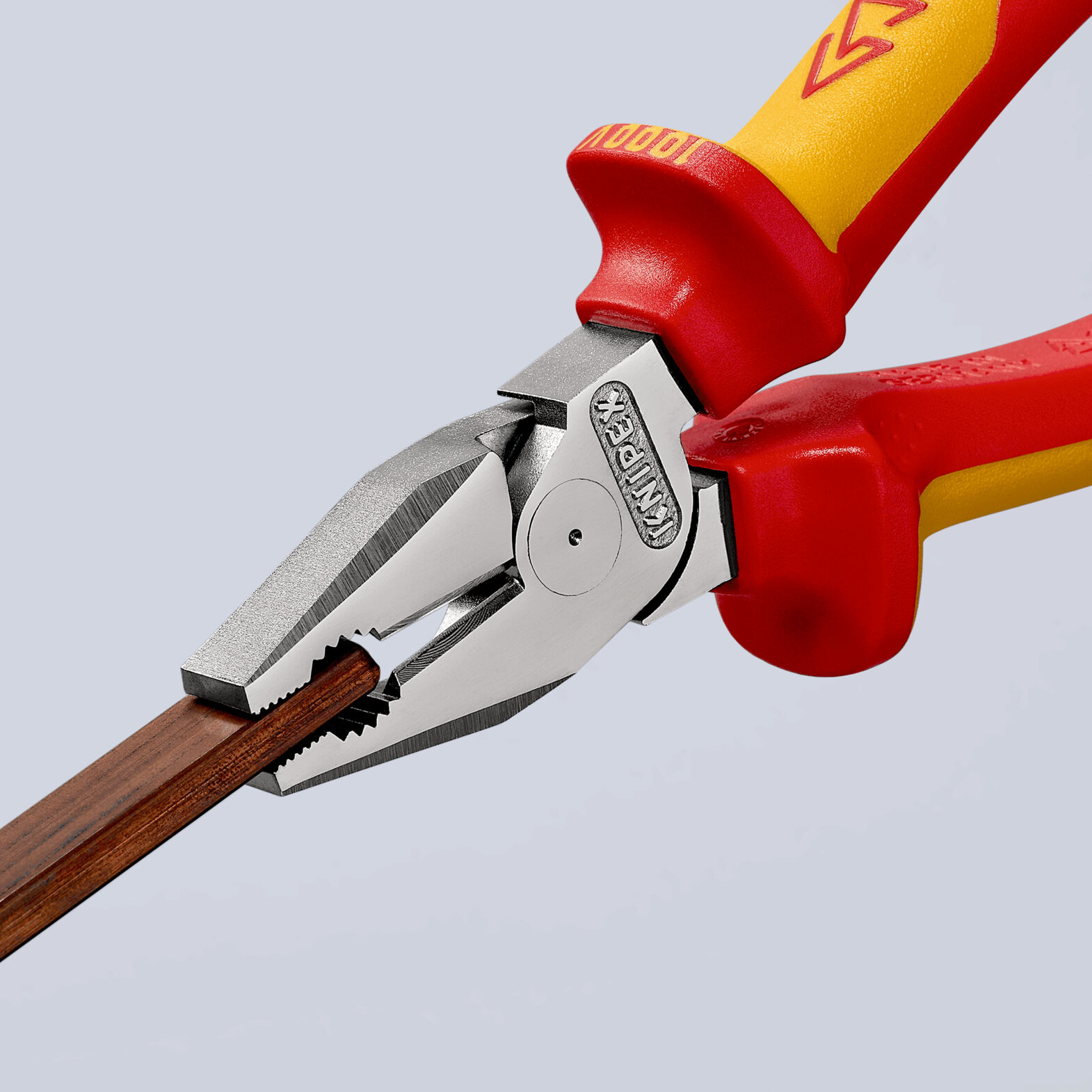

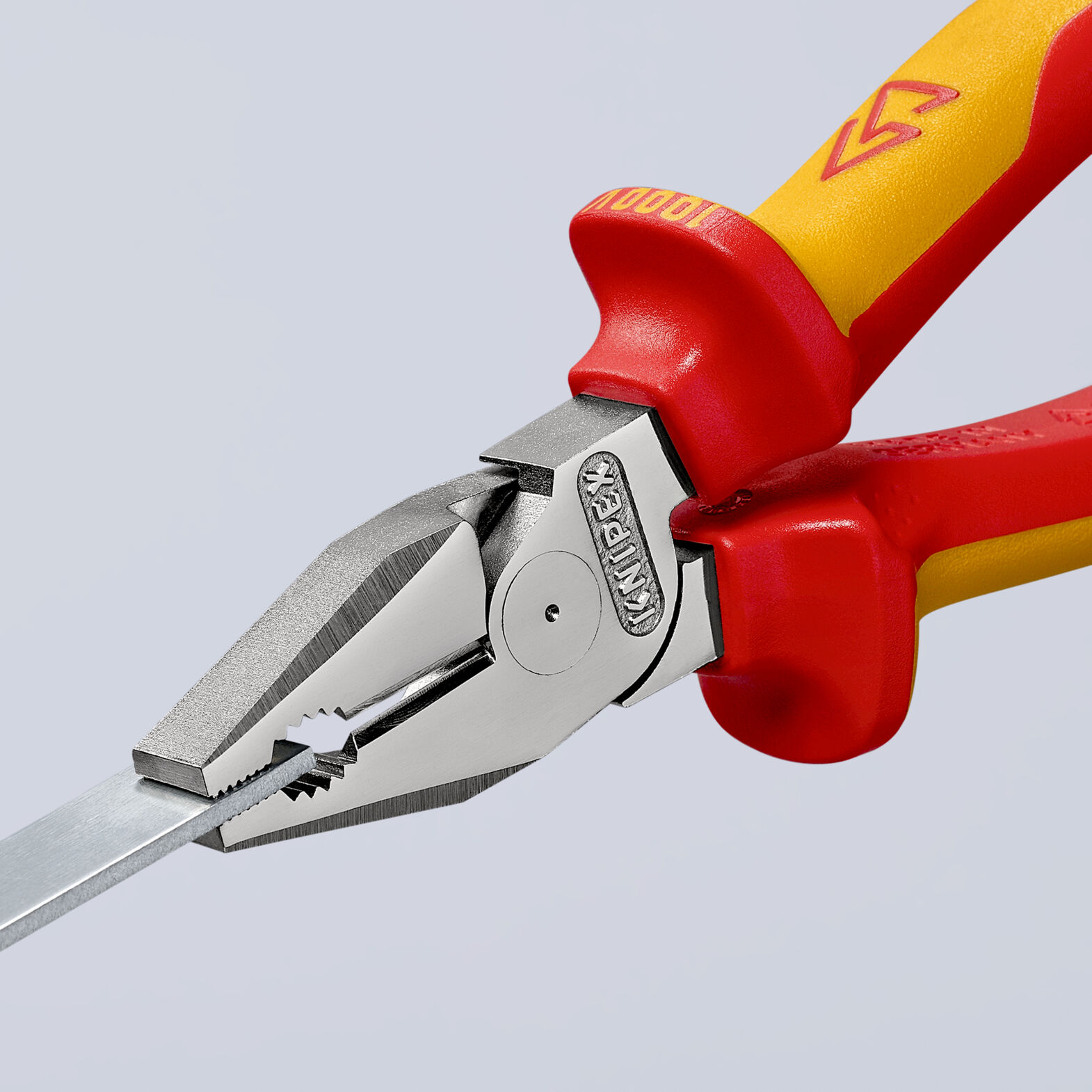

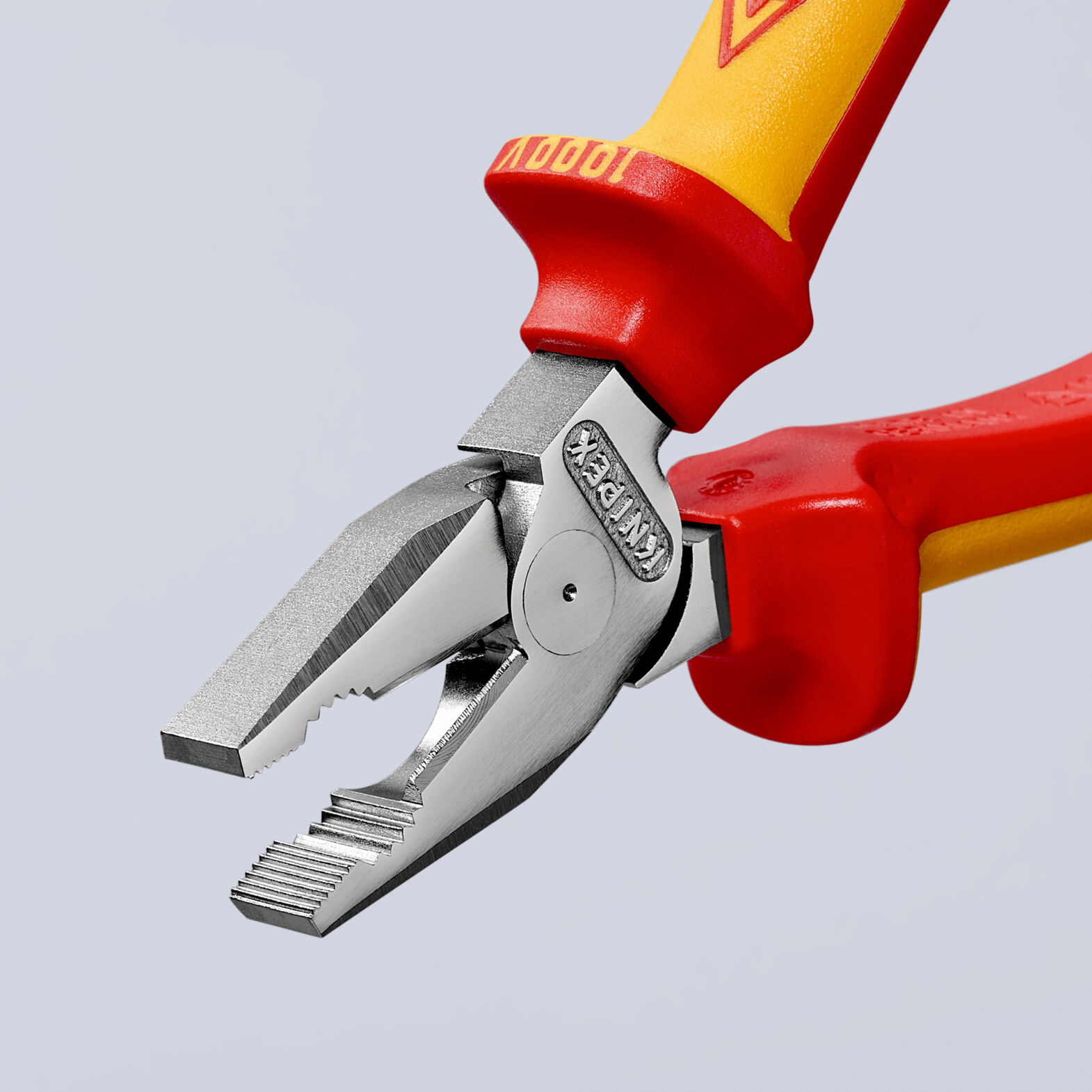

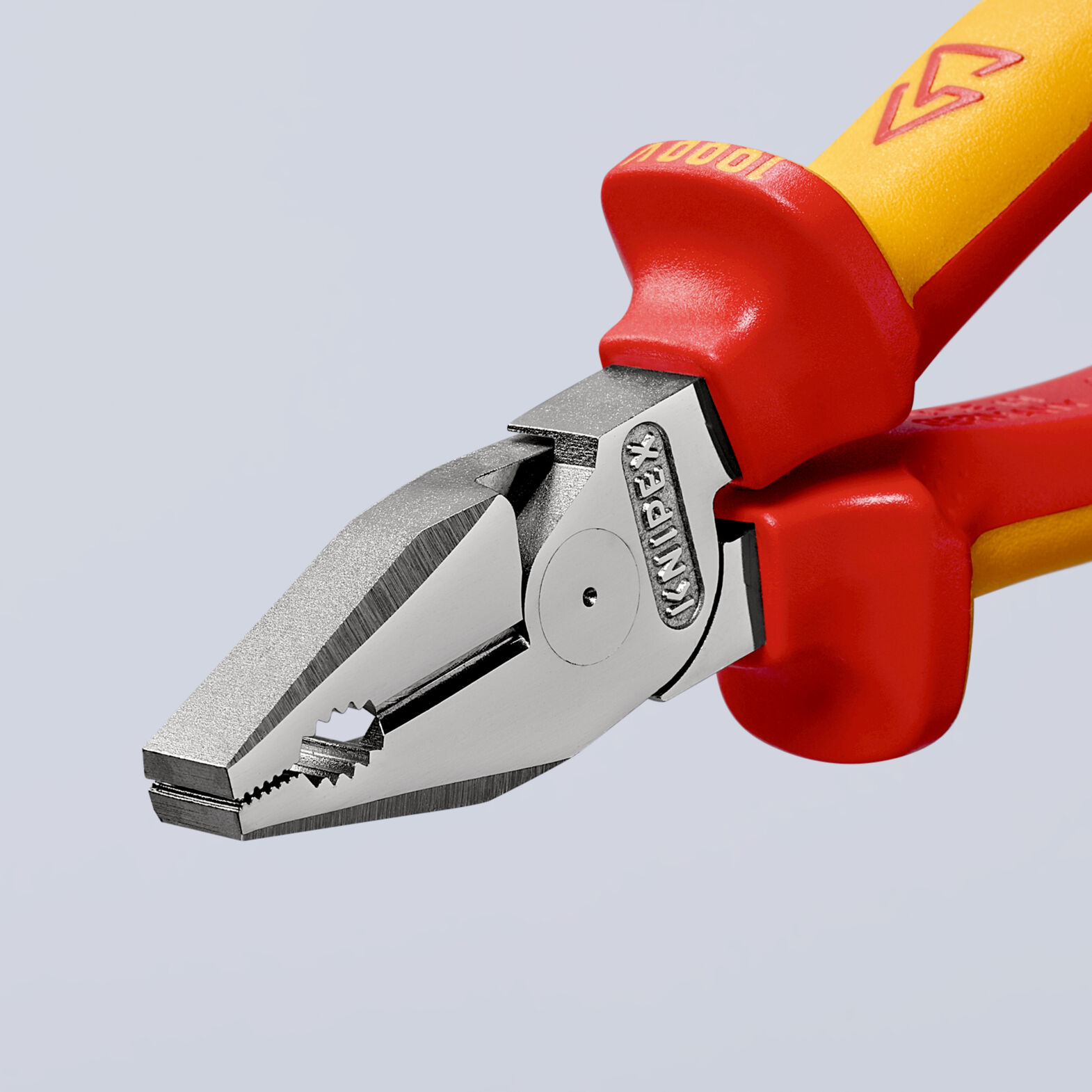

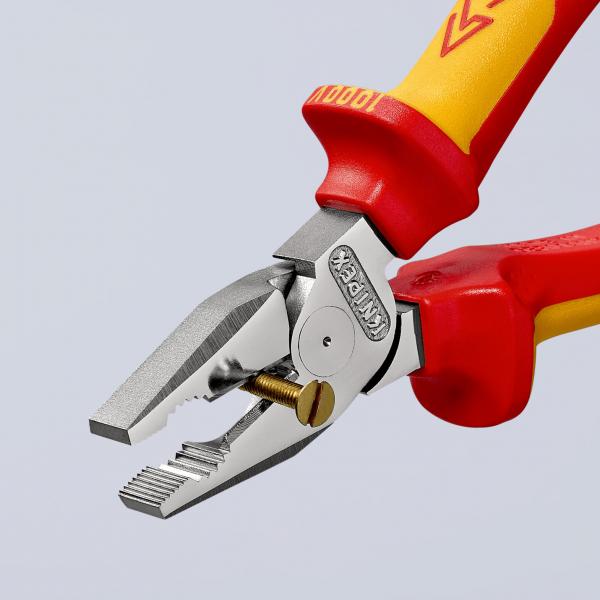

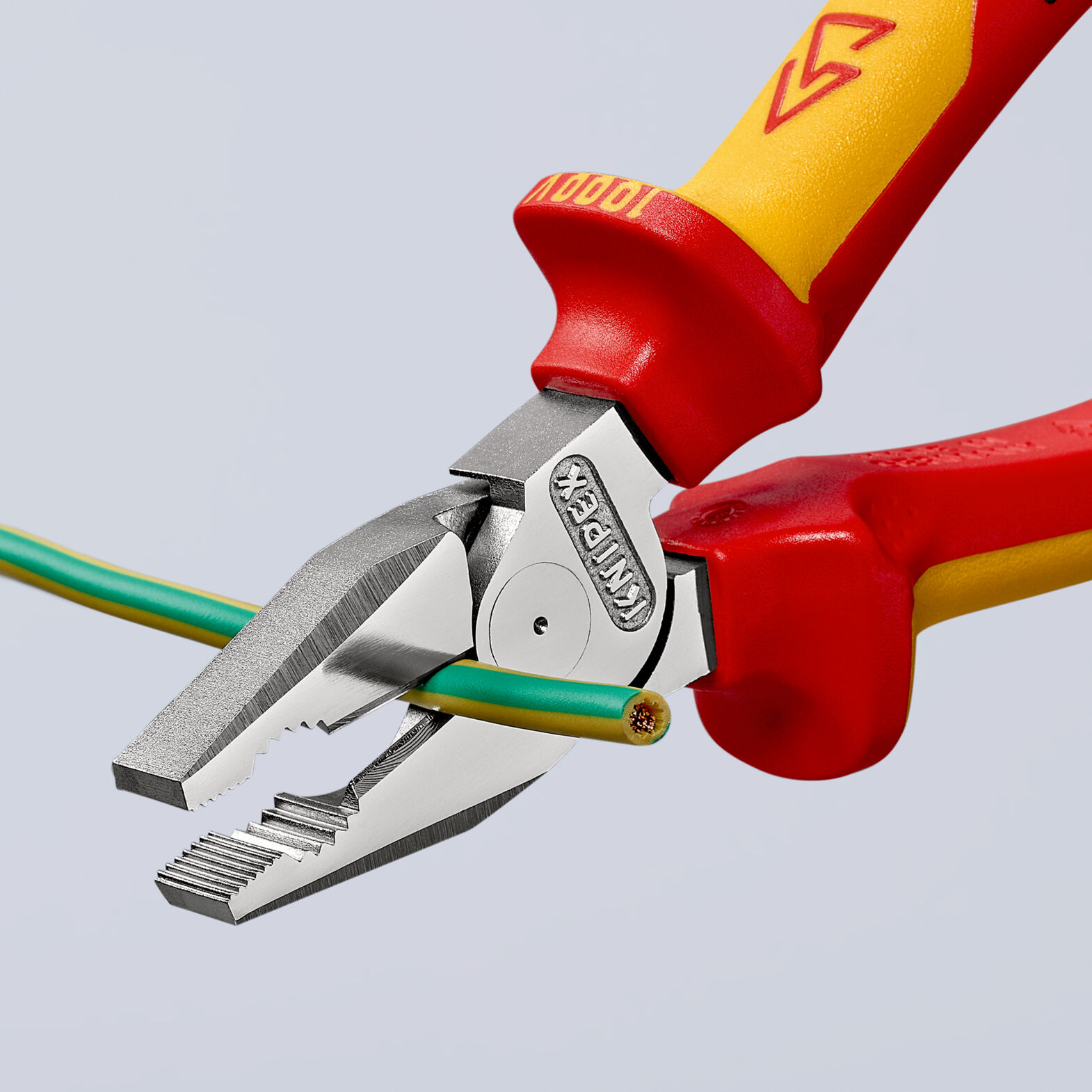

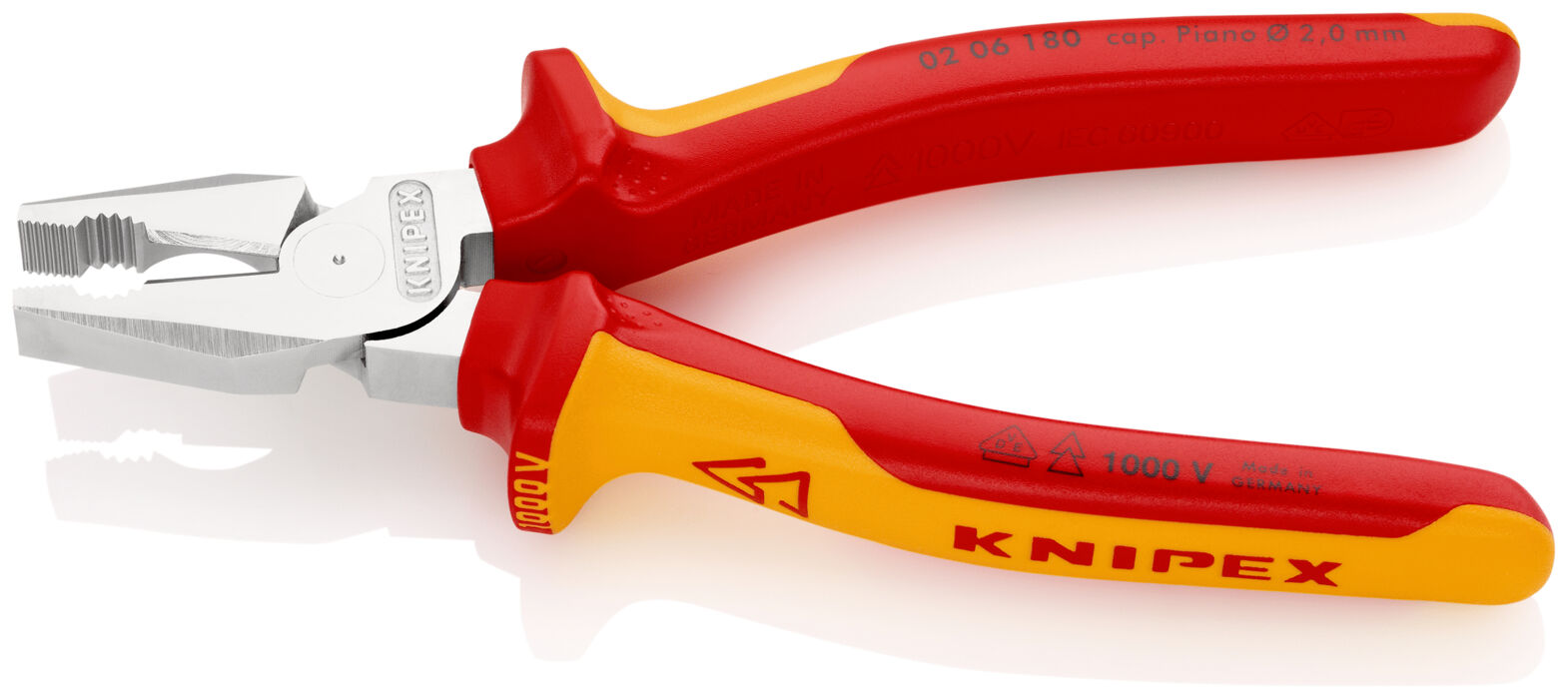

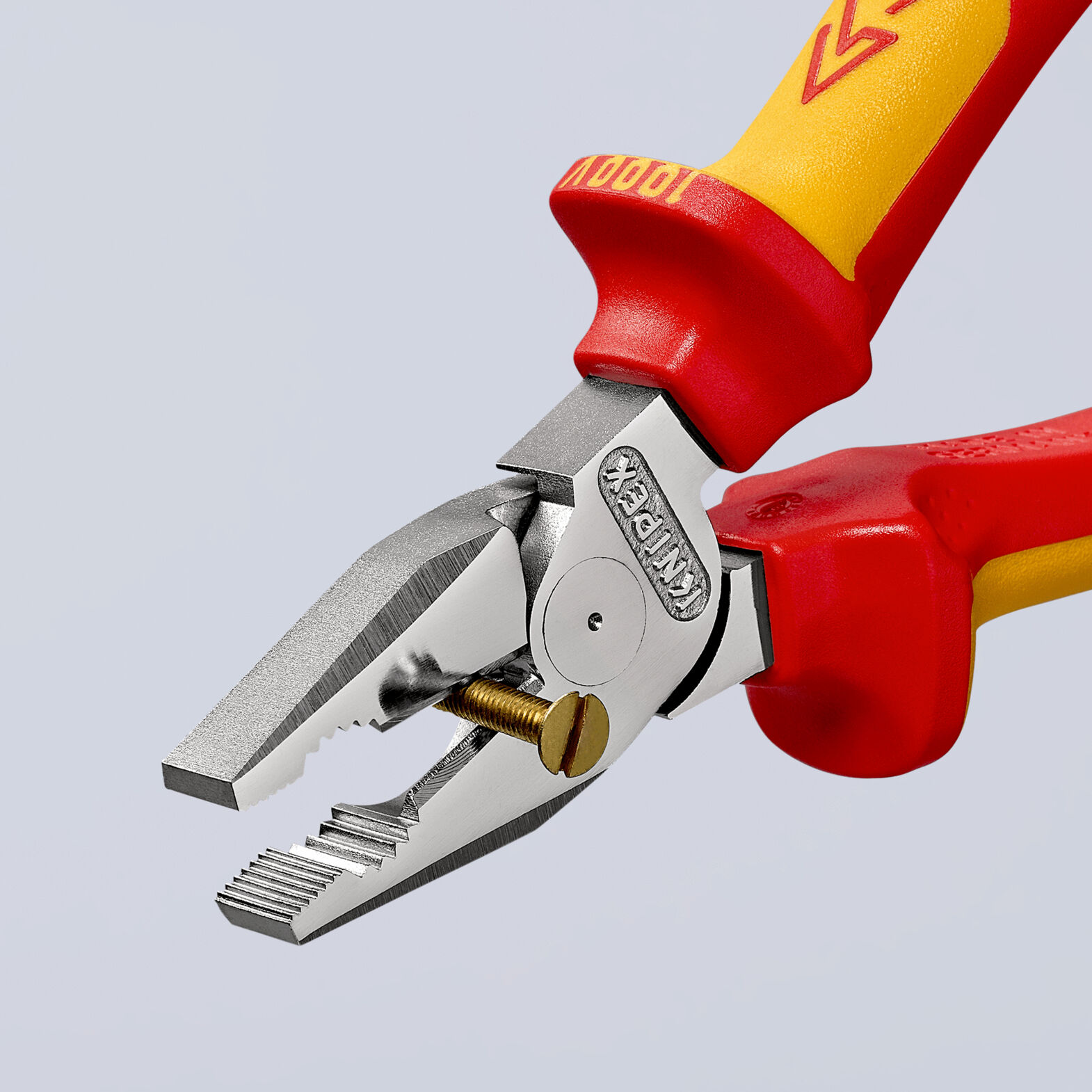

The handles are insulated and comply with DIN EN 60900 IEC 60900, making them suitable for working under voltage up to 1000V. The grooved gripping surface and special gripping zones for flat and round material make the pliers extremely versatile. A precise, minimal gap between the gripping jaws ensures optimal function of the edges, facilitating gripping, bending, and pulling.
The combination pliers are not ESD-safe and therefore not suitable for electrostatically sensitive applications.
Details
- Max Ø hard Max Ø hard
- 2.5 mm
- Max Ø Piano Max Ø Piano
- 2.0 mm
- Length [mm] Length [mm]
- 180 mm
- Gripping surface Gripping surface
- serrated
- Material Material
- Tool steel
- Surface Surface
- chromed
- ESD ESD
- no
- Version Version
- VDE
- Type of pliers Type of pliers
- Combination pliers
- Version Version
- with cutting edge
- Handle property Handle property
- insulated
Knipex insulated tools are made of high-quality materials according to the regulations of national and international standards. In compliance with the prescribed safety measures for working under voltage, e.g. DIN VDE 0105, EN 50110, IEC 60364, they offer maximum protection when working under voltage up to AC 1000V (alternating curring) and DC 1500V (direct current).

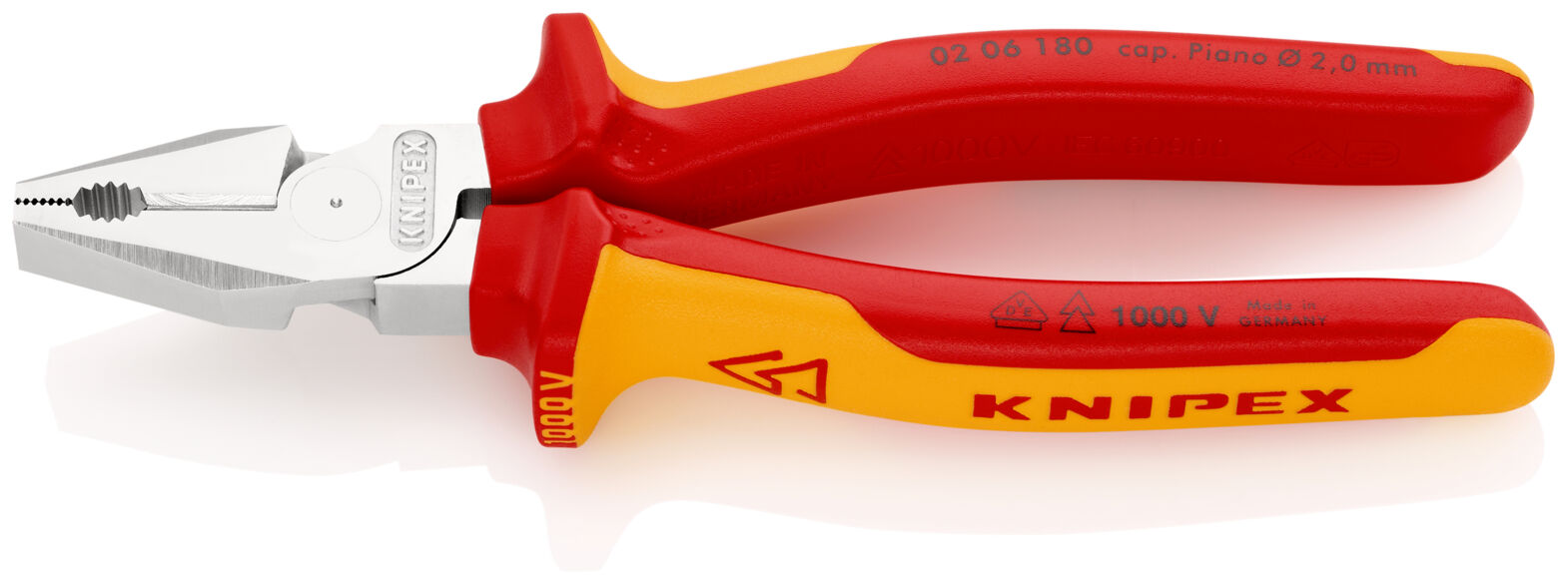

Knipex pliers with the two-colored multi-component handle insulation (red/yellow) meet the requirements of VDE 0682 part 201 and the corresponding international standards (e.g. EN 60900 or IEC 60900). The VDE / GS symbol shows that the requirement is confirmed by an inspecting authority committed to neutrality.
Knipex pliers comply with the highest requirements concerning performance, ergonomics, and service life.
Due to a special selection of the used steels and the careful and high-quality processing, the Knipex pliers achieve an optimal durability and service life. Innovative ideas always offer forward-looking solutions for an easy, effective and safe working.
The cutting shapes and cutting performance:
With mini bevel (facet)

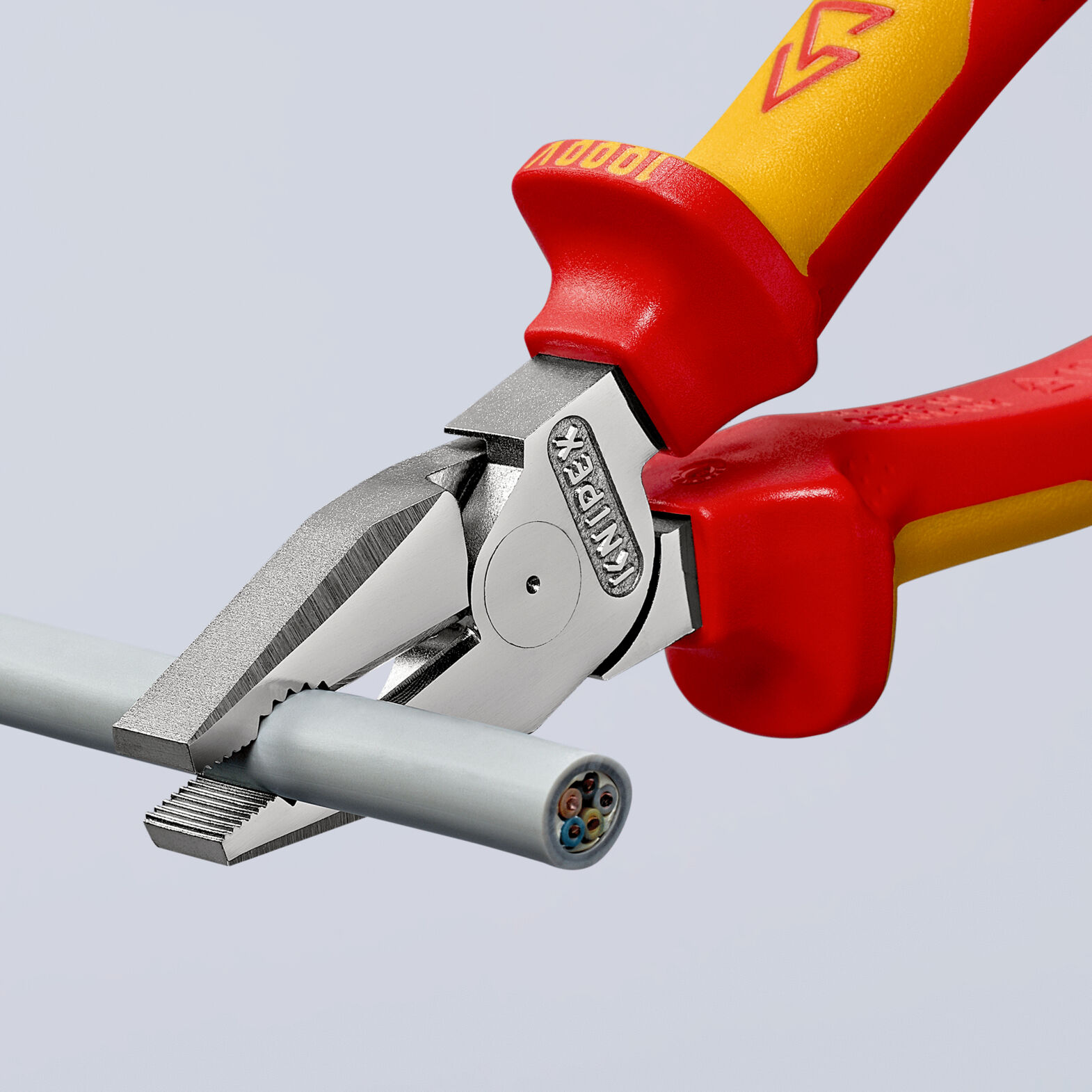

Nearly flush cut. Fine cutting edges. Suitable for soft steel wire, copper wire and cable.
With small bevel (facet)

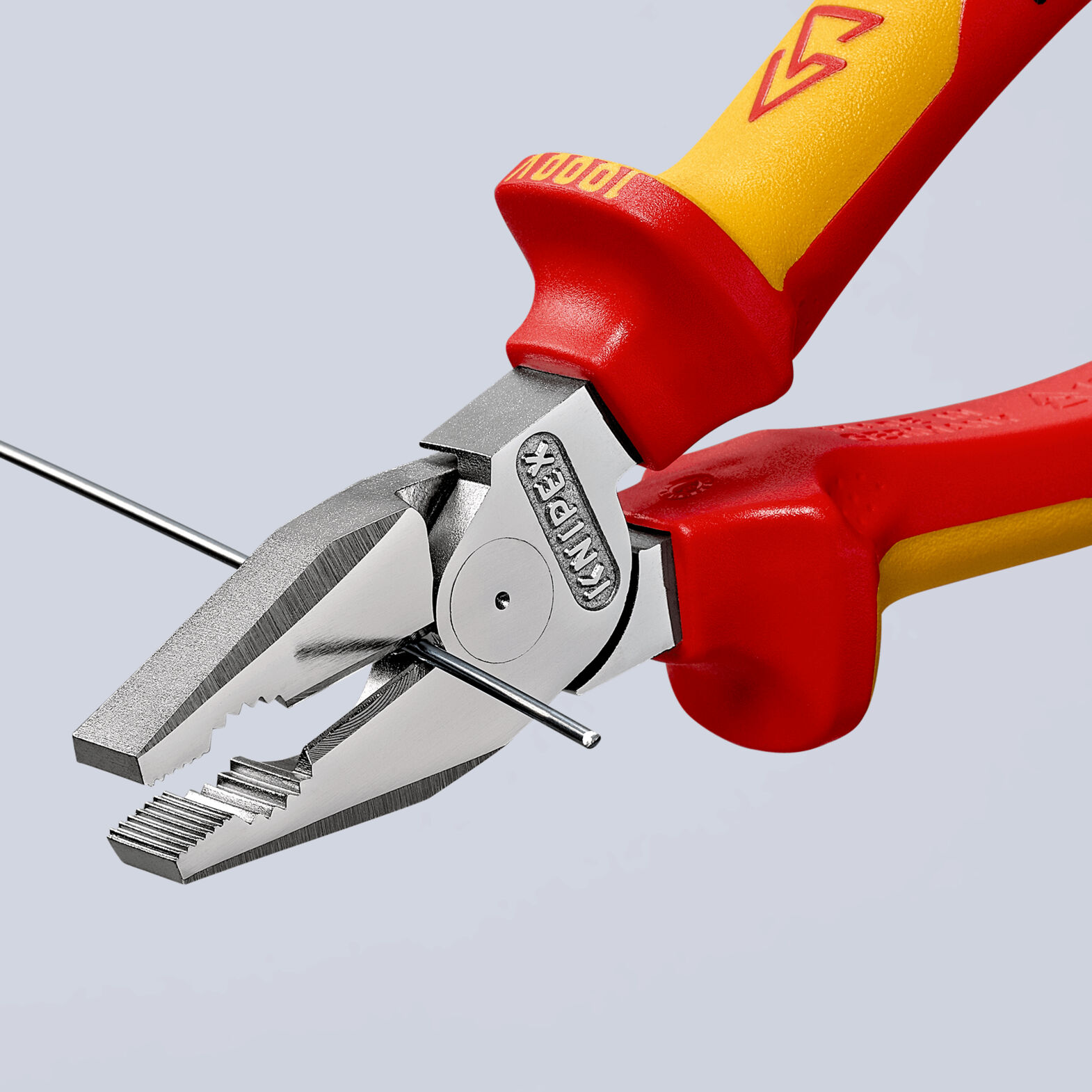

Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.
Without bevel flush (facet)
Flush cut for soft materials.
