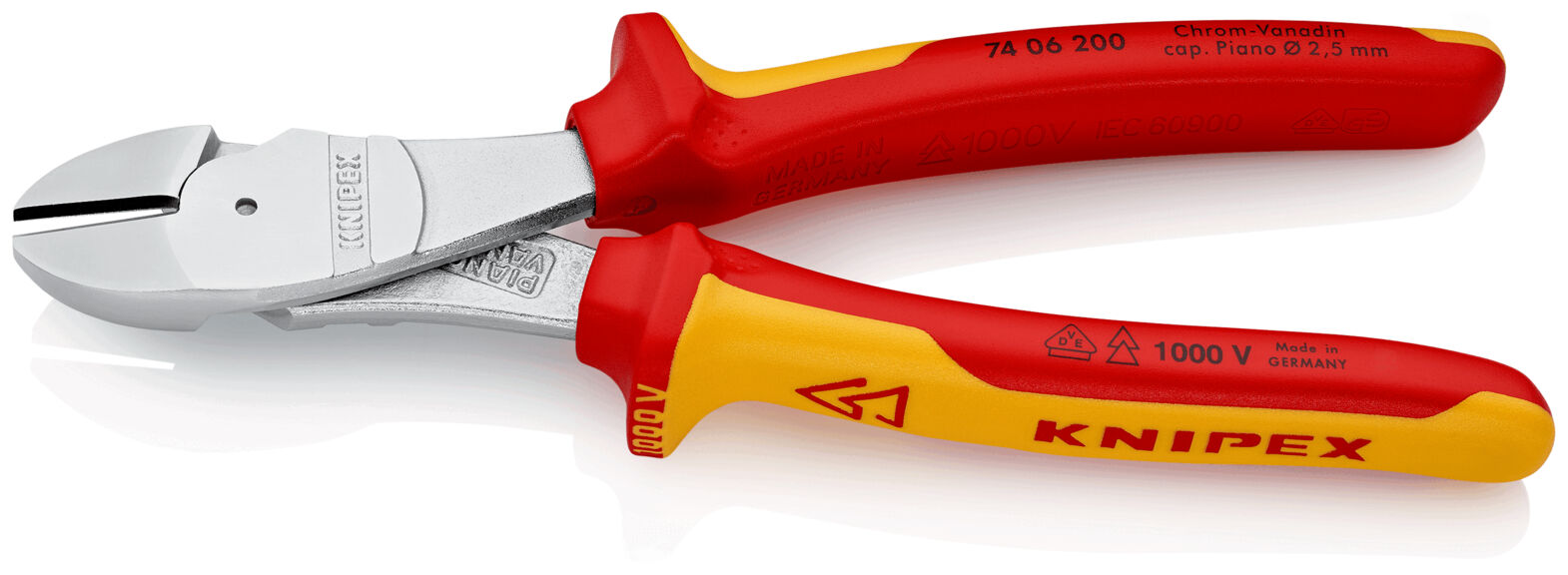

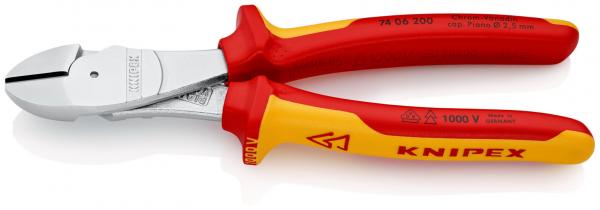

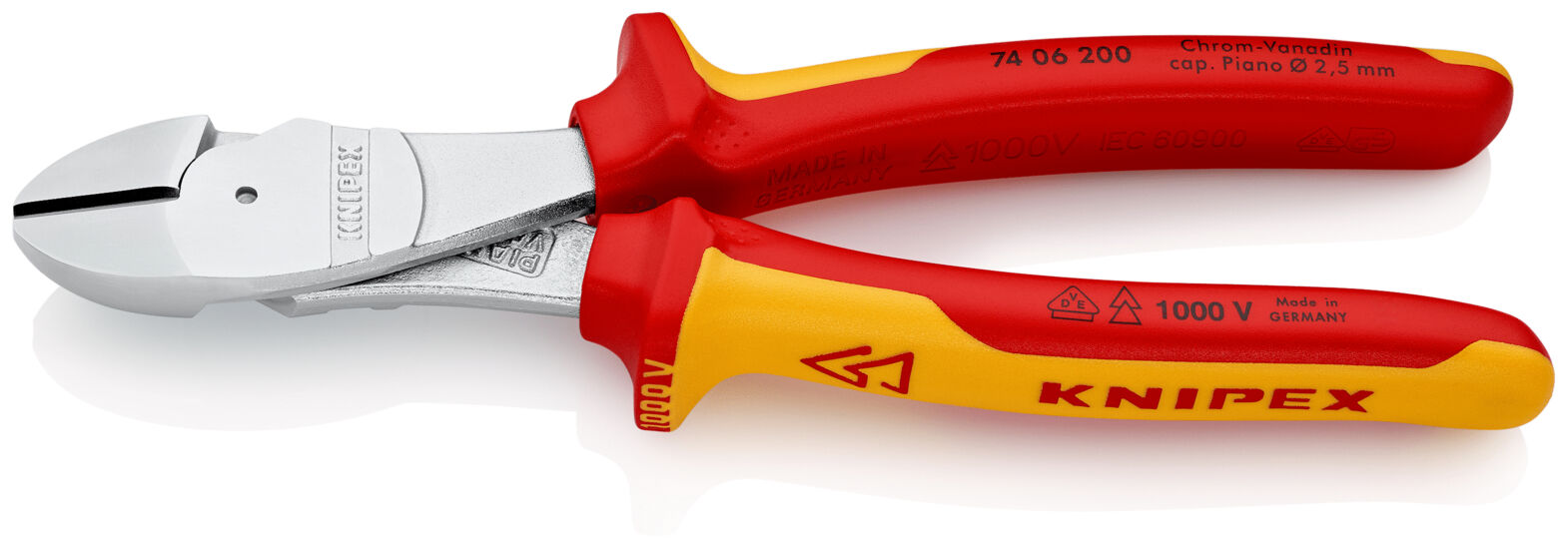

The chrome-plated high-leverage diagonal cutter is VDE-tested and features a forged-on joint axle for long-lasting reliability. Weighing 304 g and with a straight head design, this tool is ideally suited for professional applications. The maximum cutting capacity is 3.0 mm for hard material, 4.2 mm for medium-hard material, and 2.5 mm for piano wire.
The large cutting edge of the diagonal cutter further supports its high functionality and makes it an indispensable tool in any technical operation.
Details
- Type of pliers Type of pliers
- High-leverage diagonal cutting pliers
- Bevel Bevel
- large bevel
- Length [mm] Length [mm]
- 200 mm
- Max Ø hard Max Ø hard
- 3.0 mm
- Max Ø medium Max Ø medium
- 4.2 mm
- Max Ø Piano Max Ø Piano
- 2.5 mm
- Material Material
- chrome-vanadium steel
- Surface Surface
- chromed
- ESD ESD
- no
- Head shape Head shape
- straight
- Weight [g] Weight [g]
- 304 g
Knipex insulated tools are made of high-quality materials according to the regulations of national and international standards. In compliance with the prescribed safety measures for working under voltage, e.g. DIN VDE 0105, EN 50110, IEC 60364, they offer maximum protection when working under voltage up to AC 1000V (alternating curring) and DC 1500V (direct current).
Knipex pliers with the two-colored multi-component handle insulation (red/yellow) meet the requirements of VDE 0682 part 201 and the corresponding international standards (e.g. EN 60900 or IEC 60900). The VDE / GS symbol shows that the requirement is confirmed by an inspecting authority committed to neutrality.
Knipex pliers comply with the highest requirements concerning performance, ergonomics, and service life.
Due to a special selection of the used steels and the careful and high-quality processing, the Knipex pliers achieve an optimal durability and service life. Innovative ideas always offer forward-looking solutions for an easy, effective and safe working.
The cutting shapes and cutting performance:
With mini bevel (facet)
Nearly flush cut. Fine cutting edges. Suitable for soft steel wire, copper wire and cable.
With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.
Without bevel flush (facet)
Flush cut for soft materials.
