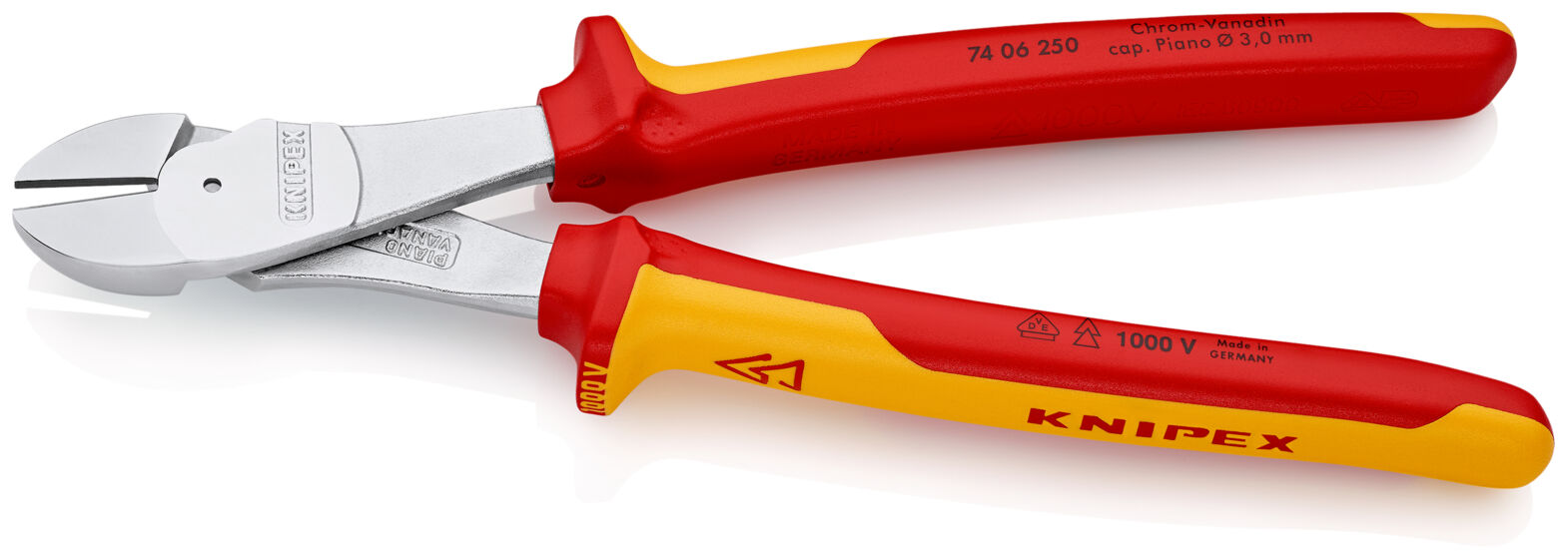

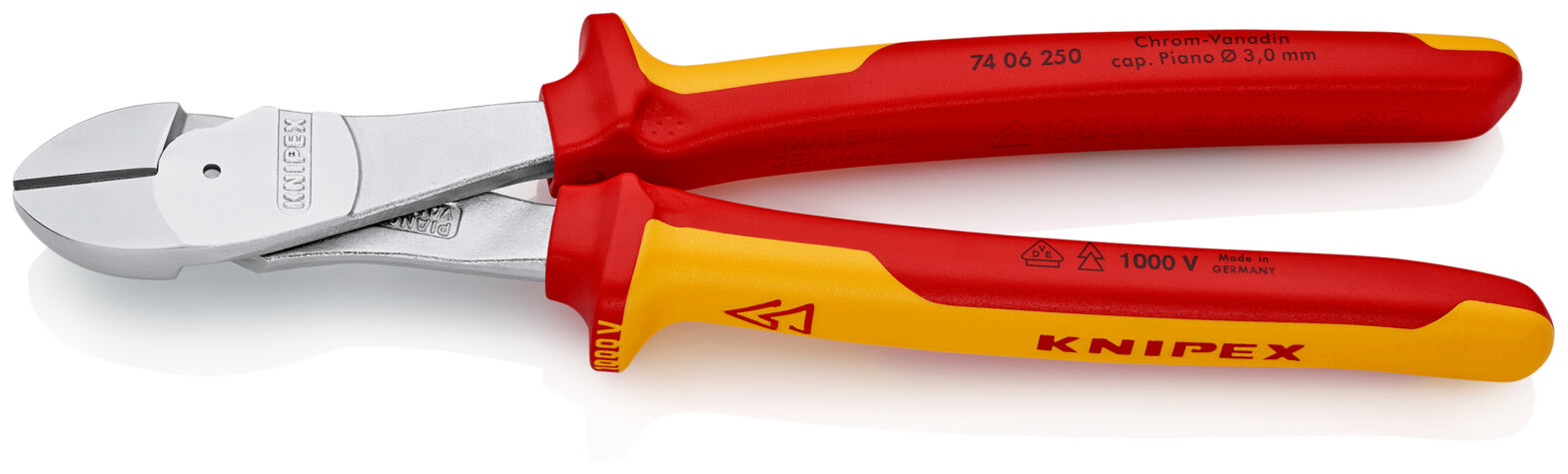

The tool is made of chrome-vanadium steel and has a straight head shape. With a total length of 250 mm and the ability to cut wires up to a diameter of 4.6 mm (medium), 3.5 mm (hard), and 3.0 mm (piano), this Kraft side cutter is an indispensable tool for professional applications. The side cutter is not ESD safe and features a large bevel, which ensures additional robustness and longevity.
Details
- Bevel Bevel
- large bevel
- Max Ø medium Max Ø medium
- 4.6 mm
- Max Ø hard Max Ø hard
- 3.5 mm
- Max Ø Piano Max Ø Piano
- 3.0 mm
- Length [mm] Length [mm]
- 250 mm
- Material Material
- chrome-vanadium steel
- ESD ESD
- no
- Head shape Head shape
- straight
- Type of pliers Type of pliers
- High-leverage diagonal cutting pliers
Knipex insulated tools are made of high-quality materials according to the regulations of national and international standards. In compliance with the prescribed safety measures for working under voltage, e.g. DIN VDE 0105, EN 50110, IEC 60364, they offer maximum protection when working under voltage up to AC 1000V (alternating curring) and DC 1500V (direct current).
Knipex pliers with the two-colored multi-component handle insulation (red/yellow) meet the requirements of VDE 0682 part 201 and the corresponding international standards (e.g. EN 60900 or IEC 60900). The VDE / GS symbol shows that the requirement is confirmed by an inspecting authority committed to neutrality.
Knipex pliers comply with the highest requirements concerning performance, ergonomics, and service life.
Due to a special selection of the used steels and the careful and high-quality processing, the Knipex pliers achieve an optimal durability and service life. Innovative ideas always offer forward-looking solutions for an easy, effective and safe working.
The cutting shapes and cutting performance:
With mini bevel (facet)
Nearly flush cut. Fine cutting edges. Suitable for soft steel wire, copper wire and cable.
With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.
Without bevel flush (facet)
Flush cut for soft materials.
