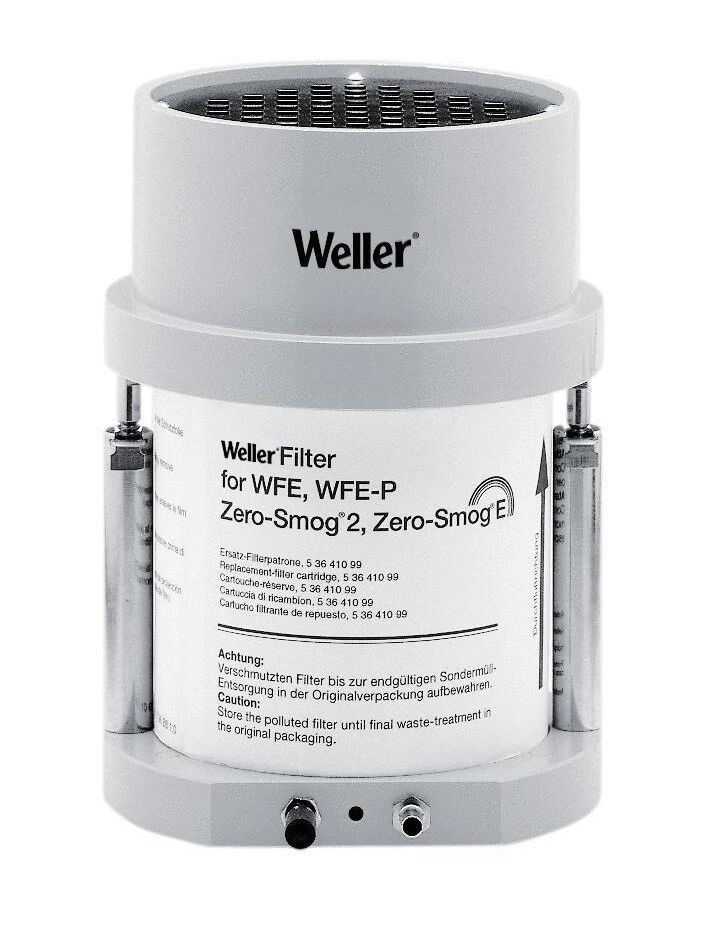

The image displays a cylindrical air filter in white with a top grid structure. On the front side, information and connections for use are visible.
WFE solder fume extraction
(Product No.: 536.402.99)
The image displays a cylindrical air filter in white with a top grid structure. On the front side, information and connections for use are visible.
Notice / Inquire

WFE solder fume extraction

WFE solder fume extraction

dpvlink:
26726
Further product information

Delivery time! Delivery time!
684,35 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

WFE solder fume extraction

The WFE solder fume extractor is a device designed specifically for industrial use, characterized by a robust and stable construction that provides high stability. This portable model can be centrally deployed and allows the connection of up to two soldering irons. It operates based on a maintenance-free pneumatic converter and requires an operating pressure of 3.5 to 6 bar.
The dimensions of the device are 140 mm in width and length, and 200 mm in height, with a weight of 2.7 kg. Despite its compact size, the solder fume extractor boasts a maximum flow rate of 30 liters per minute and a vacuum of up to 20,000 Pa. It operates surprisingly quietly with a noise level of only 39 dB, which contributes to improving the working environment.
Noise level
Noise level
39 dB
Working pressure
Working pressure
3.5 - 6 bar
Height
Height
200 mm
Length
Length
140 mm
Width
Width
140 mm
Flow rate max. per minute
Flow rate max. per minute
30 l
Max. vacuum
Max. vacuum
20,000 Pa
Weight
Weight
2.7 kg
Show accessories
Accessories

Spares

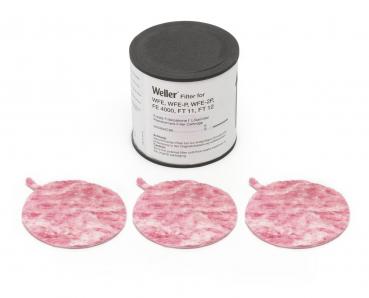

In the picture, there is a round can with a black lid, surrounded by three pink filter discs. The discs are the same size and have a smaller cutout for attachment.
Compact filter for adhesive fumes for WFE,...
Compact filter for adhesive fumes, comprising:
HEPA filter H13 and wide band gas filter
(100% activated carbon)
dpvlink
3583

67,00 EUR
Show product

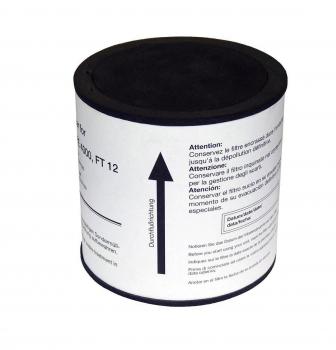

The image shows a cylindrical can with a black lid. The surface is printed with multilingual text and warning notices, including an upward arrow marking.
Compact filter for WFE, WFE P and FT 12
Compact filter, consisting of:
HEPA E12 and wide band gas filter
(50% activated carbon, 50% Puratex)

++ Replacement filter for WFE + WFE P+FT11 + FT12 + FE4000++
dpvlink
3583

79,45 EUR
Show product

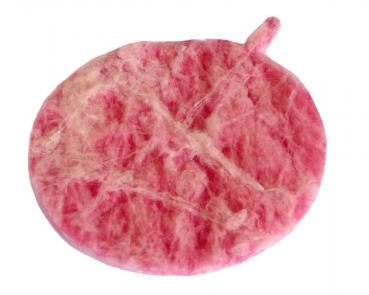

The image shows a round, flat shape in soft pink tones, made of a light, felt-like material. On one side, there is a small, narrow handle.
Preview: Fine dust filter F7 for WFE, WFE P and FT 12
Preview: The image shows a cylindrical container with a lattice-like pattern on the top. Below the container, it says
Fine dust filter F7 for WFE, WFE P and FT...
Fine dust filter F7, Pu = 3 pieces
(Pu = 3 Pieces)
dpvlink
3583

9,95 EUR
Show product
It is a round, flat container with a brown cardboard edge. The top surface is white and displays a pattern of small, colored dots in a grid-like design.
Preview: Compressed air cleaning filter for WFE and WFE P
Preview: The image displays a cylindrical container with a lattice-like lid. The top shows a top view of the lid, and the bottom shows a view of the underside, labeled as
Preview: The image shows a round, flat surface with a white inner area containing 16 small, red squares in a 4x4 pattern. The outer edge is brown.
Compressed air cleaning filter for WFE and...
Compressed air cleaning / exhaust air filter
activated carbon WFE (replacement)
dpvlink
3583

28,70 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 628
Complete Catalog 2023 - 2024

Product Family

WFE

Article image
Article description
Noise level
Working pressure
Height
Length
Width
Flow rate max. per minute
Max. vacuum
Weight
Price
Compare
536.402.99 - WFE solder fume extraction
536.402.99
WFE solder fume extraction
39 dB
3.5 - 6 bar
200 mm
140 mm
140 mm
30 l
20,000 Pa
2.7 kg
684,35 EUR
