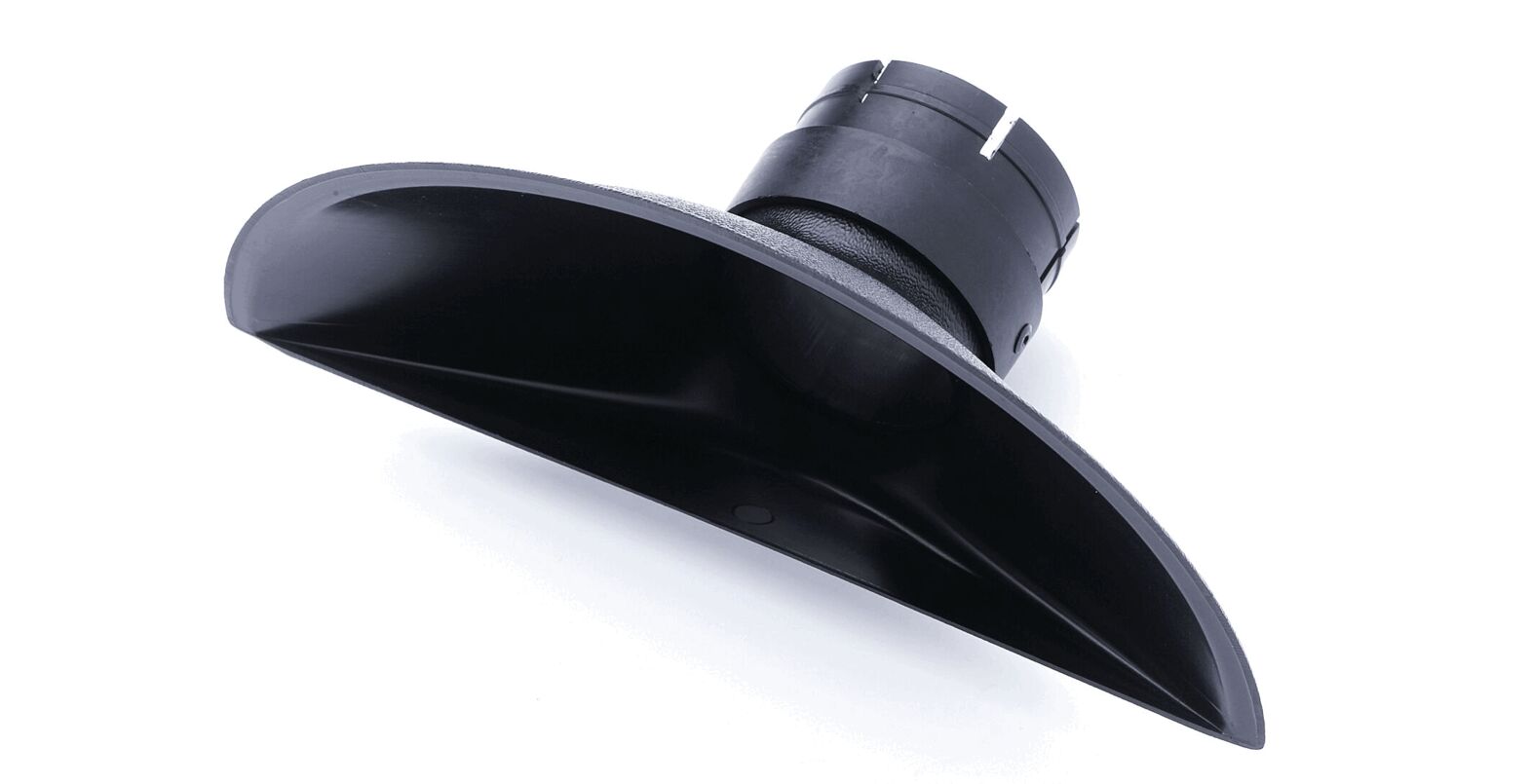

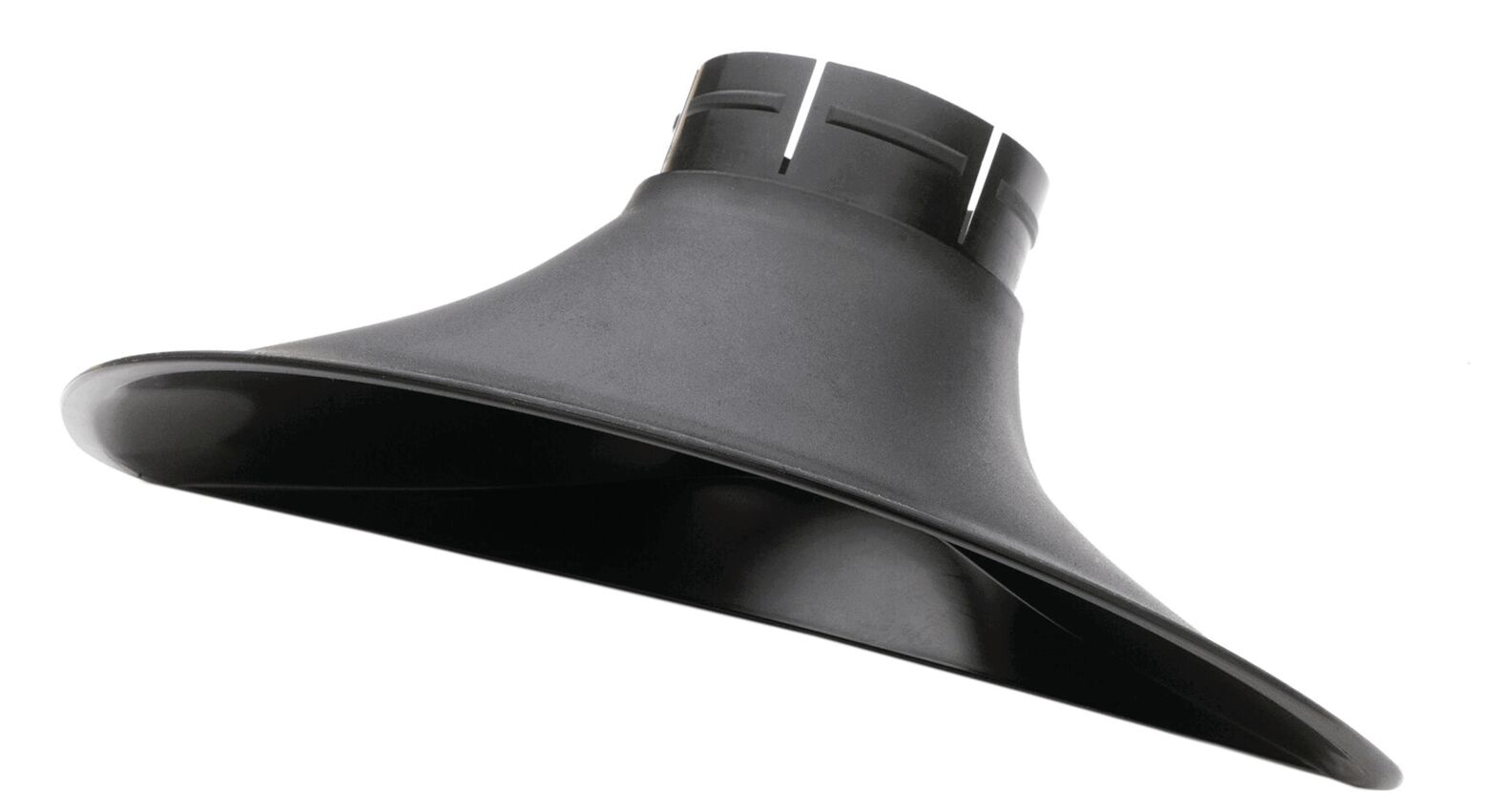

Easy-Click 60 ESD funnel-shaped nozzle
(Product No.: 536.573.99)
The image shows a black light modifier shaped like a funnel. It has a wide, flat rim and a narrower opening at the top, with an attachment option.
The image displays a black, bowl-shaped object with a cylindrical extension. It appears to be a technical component, possibly for a device or accessory.
Mobile Preview: The image shows a black light modifier shaped like a funnel. It has a wide, flat rim and a narrower opening at the top, with an attachment option.
Mobile Preview: The image displays a black, bowl-shaped object with a cylindrical extension. It appears to be a technical component, possibly for a device or accessory.
Notice / Inquire

Easy-Click 60 ESD funnel-shaped nozzle

Easy-Click 60 ESD funnel-shaped nozzle

dpvlink:
15097
Properties:
Further product information

available available
44,05 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Easy-Click 60 ESD funnel-shaped nozzle

The funnel-shaped ESD nozzle Easy-Click 60, manufactured by Weller, is specifically designed for use with flexible and articulated extraction arms. With a width of 230 mm and a depth of 100 mm, this product provides an efficient solution for area extraction systems. It is characterized by its precise workmanship and suitability for various accessories of the Easy-Click-60 system. The nozzle is ideal for applications that require a component safe from electrostatic discharge, thus supporting safety in sensitive work environments.
The robust construction ensures a long lifespan and reliability in daily use.
Height
Height
100 mm
Width
Width
230 mm
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 635
Complete Catalog 2023 - 2024

Product Family


This product is similar to:

The image shows a silver air purifier with three black openings on top. It has a control area with buttons and a display on the front and is mounted on wheels.
Zero Smog 4V for adhesive vapors
Zero Smog 4 V
volume extraction with built-in turbine
with filter for adhesive fumes
consisting of wide band gas filter
(50% activated carbon/50% Chemisorb)
fine dust filter F7
max. capacity 4 workstations
dpvlink
16607

1.974,60 EUR
The image displays a device for extracting vapors. It features a rectangular, silver-colored body with four openings on top and a flexible, hose-like outlet pointing to the right.
Zero Smog 4V Kit1 nozzle
Zero Smog 4V Kit 1 nozzle
Portable volume extraction unit
for 1 workstation with filter H13 and wide band
gas filter (50% activated carbon/50% Chemisorb)
fine dust filter F7
max. capacity 4 workstations:
536.606.99 Zero Smog 4V
536.572.99 2x KIT 1 WF beveled nozzle for volume extraction
536.574.99 throttle
536.575.99 table mounting set
536.576.99 extraction hose
dpvlink
16611

2.175,60 EUR
The image displays a gray device labeled "FT ZERO SMOG Series" with two flexible hoses. The hoses are black, and one ends in a flat nozzle.
Zero Smog 4V Kit2 Nozzle
Zero Smog 4V Kit 1 nozzle
Portable volume extraction unit
for 2 workstations with filter H13 and wide band
gas filter (50% activated carbon/50% Chemisorb)
fine dust filter F7
max. capacity 4 workstations:
536.606.99 Zero Smog 4V
536.572.99 2x KIT 1 WF beveled nozzle for volume extraction
including table mounting set
dpvlink
16611

2.407,20 EUR
The image shows a square, silver device with three round openings on top. There is a digital control panel with buttons and displays at the front. It has two side handles and wheels.
Zero Smog 6V for adhesive vapors
Zero Smog 6V, mobile extraction unit 230V / 50 Hz
for volume extraction with built-in turbine
compact filter for adhesive fumes consisting of:
wide band gas filter
(50% activated carbon/50% Puratex)
fine dust filter F7
max. capacity 8 workstations
dpvlink
17100

3.944,40 EUR
