MG 100S Kit 2 with funnel
MG 100S Kit 2 with funnel

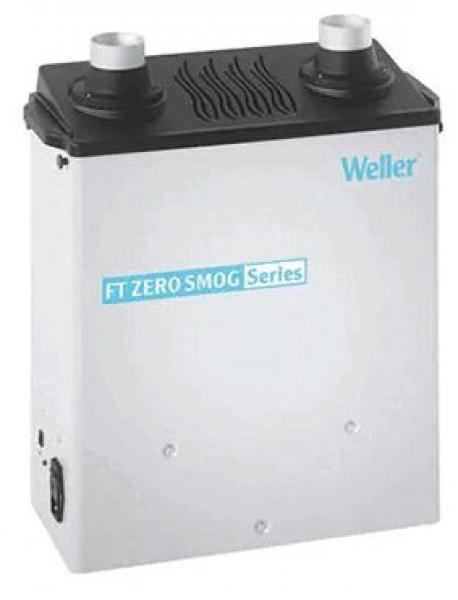

The MG 100S Kit 2 with funnel, manufactured by Weller, is a high-performance extraction device specifically designed for use at up to two workstations. The kit includes the MG 100S extraction unit (100-1000-ESD) as well as two 1.5 meter long extraction arms (0F15) and two funnel nozzles (750.ALFA-ESD), which enable efficient capture of dust and other particles.The device measures 210 mm in width, 610 mm in height, and 460 mm in length. Despite its robust construction, it weighs only 15 kg, making it easy to position. With a noise level of just 52 dB, the MG 100S Kit 2 operates extremely quietly. The technical specifications include a power of 100 W and a voltage supply of 100 to 240 V, allowing for flexible use in various power networks. The airflow rate is an impressive 140 m³ per hour, and the maximum vacuum reaches 2,300 Pa, ensuring effective extraction.
Details
- Noise level Noise level
- 52 dB
- Power Power
- 100 W
- Voltage Voltage
- 100 - 240 V
- Height [mm] Height
- 610 mm
- Length [mm] Length
- 460 mm
- Width [mm] Width
- 210 mm
- Air flow/hour Air flow/hour
- 140 m³
- Max. vacuum Max. vacuum
- 2,300 Pa
- Weight Weight
- 15 kg
Show accessories
Spares
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
MG 100S Kit 2
Article image
Article description
Noise level
Power
Voltage
Height [mm]
Length [mm]
Width [mm]
Air flow/hour
Max. vacuum
Weight
Price
Compare
52 dB
100 W
100 - 240 V
610 mm
460 mm
210 mm
140 m³
2,300 Pa
15 kg
