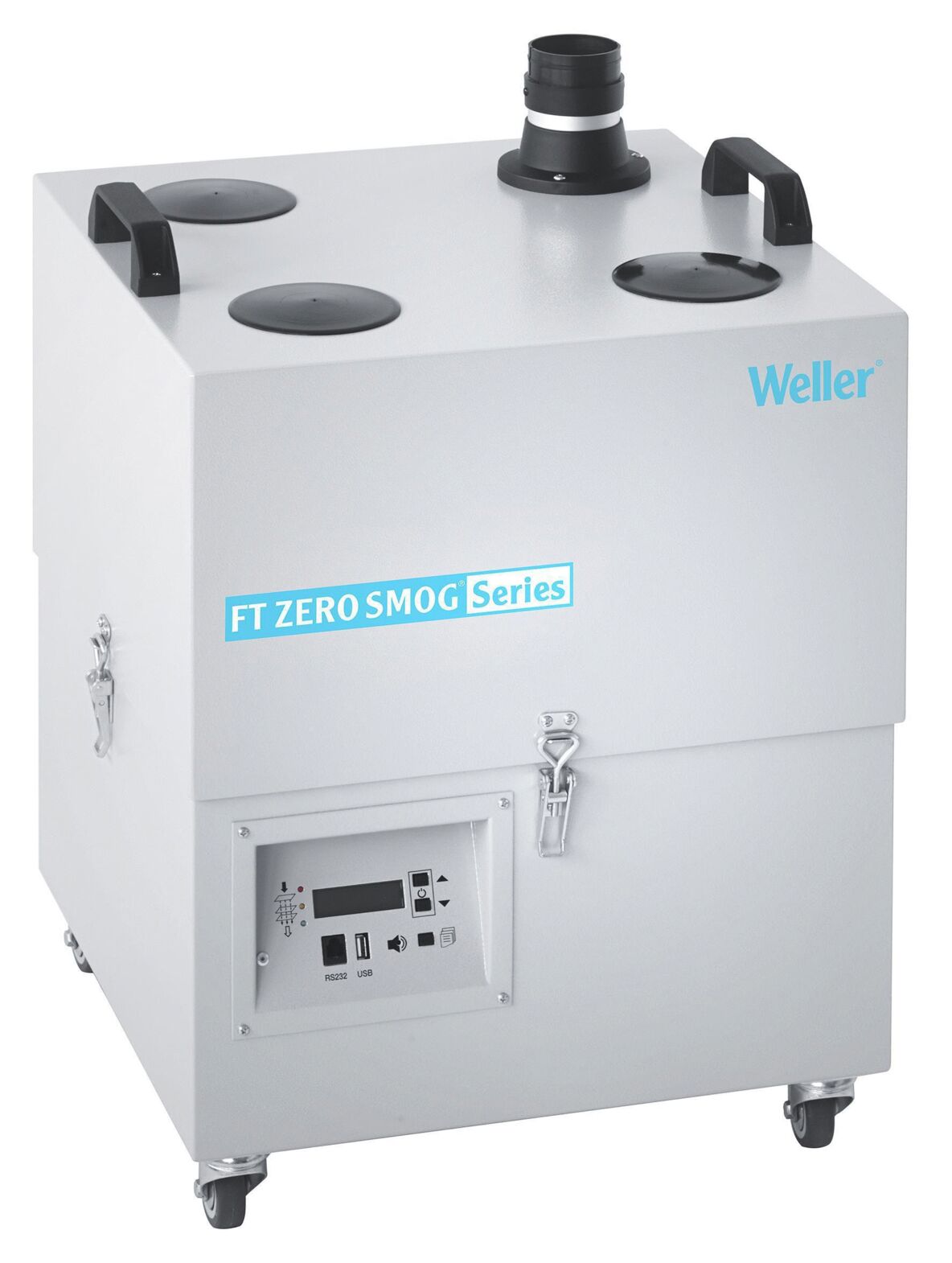

The image shows a square, silver device with three round openings on top. There is a digital control panel with buttons and displays at the front. It has two side handles and wheels.

Zero Smog 6V for adhesive vapors

(Product No.: 536.676.99)

The image shows a square, silver device with three round openings on top. There is a digital control panel with buttons and displays at the front. It has two side handles and wheels.

(Product No.: 536.676.99)

Zero Smog 6V for adhesive vapors

ArticleNo: 536.676.99

Zero Smog 6V for adhesive vapors

dpvlink:

17100

Further product information

Availability: at short notice

at short notice

at short notice

3.944,40 EUR

excl. 19% tax

1 PCE

Product Info

Zero Smog 6V for adhesive vapors

The Zero Smog 6V from Weller is specifically designed for the extraction of adhesive fumes and is known for its user-friendliness. With dimensions of 460 mm in width and length and a height of 665 mm, the unit is compact enough to be positioned directly at the workplace. It features a special broadband gas filter and an electronic filter control with both optical and acoustic alarm functions, enhancing safety at the workplace.
Weighing 40 kg and with an air flow rate of 645 m³ per hour, the unit provides efficient performance with a noise level of only 51 dB. The Constant Flow Control (CFC) feature ensures optimally regulated extraction for each workplace, regardless of the number of connected workstations. The power consumption is 460 W with a voltage of 230 V.
Additionally, the Zero Smog 6V is equipped with an automatic speed control that extends energy efficiency and filter life. An external pre-filter can be connected to increase filter capacity. The device is mobile thanks to four wheels and can be remotely controlled via an RS 232 connection. An efficiency test can be performed via USB connection, simplifying maintenance and monitoring.

Details

Noise level Noise level: 51 dB
Power Power: 460 W
Voltage Voltage: 230 V
Height [mm] Height: 665
Length [mm] Length: 460
Width [mm] Width: 460
Air flow/hour Air flow/hour: 645 m³
Max. vacuum Max. vacuum: 3,000 Pa
Weight Weight: 40 kg

Show accessories

Accessories

Accessories

The image shows a gray cable with two connectors. Both ends are specially shaped, one has a rounded side with several small holes, the other is rectangular with a blue edge.

Connecting cable for remote control WCB2

Connecting cable RS232 for WCB2

17,50 EUR

Spares

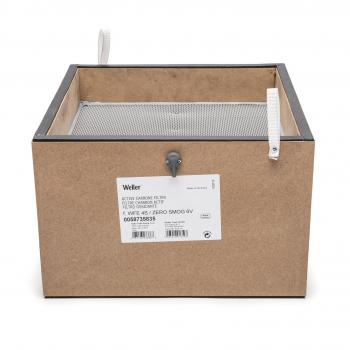

The image shows a square, brown cardboard box with a fine grid on the top. On the front side, there is a label with information and a small handle.

Wide band gas filter for Zero Smog 6V

Compact filter for adhesive fumes (WFE4S / WFE20D)
consisting of:
(50% activated carbon, 50% Chemisorb)

501,55 EUR

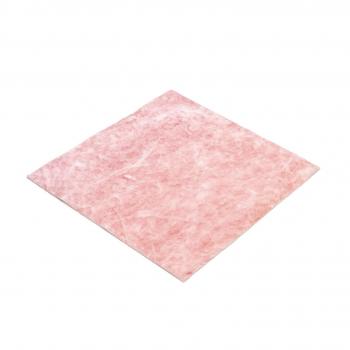

The image shows a square piece of material in soft pink. The surface is slightly textured and appears thin and somewhat transparent. It is lying flat on a surface.

Fine dust filter F7 for Zero Smog 6V

Fine dust filter F 7 for WFE20D

156,95 EUR

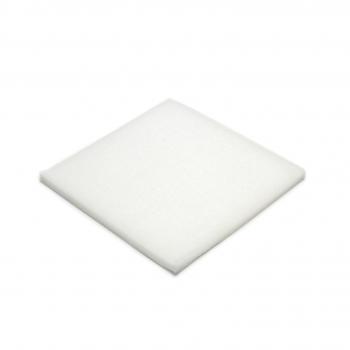

The image shows a square, white cushion or pad. It is flat and has rounded corners, with a soft, smooth surface. The dimensions are uniform.

Fine dust filter M5 for Zero Smog 6V

Fine dust filter F 5 for WFE20D

56,45 EUR

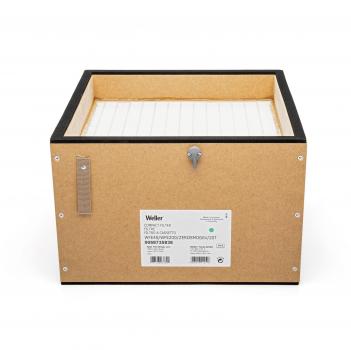

The image shows a square, brown wooden box with a black border. The top is open and features white stripes. On the front, there is a label with information attached.

Compact filter for Zero Smog 6V

Compact filter for WFE4S / WFE20D
consisting of:
HEPA filter H13 and wide band
gas filter (50% activated carbon, 50% Chemisorb)

480,50 EUR

The image displays a square, brown cardboard box with a black plastic frame. At the top, a white, textured surface is visible. On the front, there is a label with technical information.

Compact filters for Zero Smog 4V

Compact filter
for WFE 2S, WFE 2Kit1, WFE 2Kit2
consisting of EPA particle filter H13
Particle sizes < 0.5 µm
and wide band gas filter
(50% activated carbon, 50% Chemisorb)
according to DIN EN 1822

272,80 EUR

The image displays a square, flat object in white. The surface is even and soft, possibly a cushion or a mat. It has no discernible patterns or textures.

Fine dust filter F5 for Zero Smog 4V

Fine dust filter M5
Particle size to 100 µm
(Pu = 10 pcs)
according to DIN EN 779

48,80 EUR

The image displays a square, soft material in a light, peach tone. The surface is slightly textured and appears to be fluffy. There is a caption in the center.

Fine dust filter F7 for Zero Smog 4V

Fine dust filter F7
Particle size to 10 µm
(Pu = 10 pcs)
according to DIN EN 779

68,90 EUR

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Complete Catalog 2023 - 2024

Product Family

Zero Smog 6V solder fume extraction

Article image

Article description

Noise level

Power

Voltage

Height [mm]

Length [mm]

Width [mm]

Air flow/hour

Max. vacuum

Weight

Price

Compare

536.676.99 - Zero Smog 6V for adhesive vapors

536.676.99
Zero Smog 6V for adhesive vapors

51 dB

460 W

230 V

665

460

460

645 m³

3,000 Pa

40 kg

This product is compatible with (for example):

The image shows a flexible, black hose with a curved shape. It is attached to a base and ends in a wide, flat opening.

Extraction arm KIT 1WF funnel

WFE Kit 1 funnel 60, Easy-Clic-60 extraction arm
with funnel 230 x 100 mm, stop valve, kit flexible
total length 1 m, consisting:

- stop valve with table clamp kit 536.574.99
- extraction hose 3 m 700-3051-ESD
- funnel nozzle 536.573.99
- extraction arm 0F10

ESD protective

260,35 EUR

The image shows a curved pipe section made of black and white materials. It has a flat base with holes for mounting. There is a connector at one end.

Easy-Click 60 extraction hose 90° bent

Hose connection WFE Easy Click, bent
Ø 60 mm

ESD protective

65,10 EUR

The image shows a flexible hose with a black, spiral surface, attached to a solid holder. The hose curves and ends in an open, round opening.

Extraction arm KIT 1 WF 32 nozzle

Kit 1 WF 32 nozzle
Easy-Click-60 extraction arm
for WFE S volume extraction

Set comprising:
- 536.574.99 stop valve with table clamp set
- 536.576.99 flexible extraction hose 3 m
- 536.580.99 extraction arm Dm 32 mm

ESD protective

328,30 EUR

The image displays a flexible, corrugated hose in black. It features smooth openings at both ends and is shaped in an arc. Ideal for connecting to devices or apparatuses.

Extraction arm flexible, 0.7 m

Extraction arm, flexible, 60 mm diameter
for sloped and funnel-shaped nozzles
Length 0.7m

ESD protective

93,80 EUR

The image shows a flexible, gray arm with a hose attached to a table. At the end of the hose, there is a round opening. The arm can be moved into various positions.

Extraction arm KIT 1S WF 2-joint arm with...

Kit 1S WF nozzle
Easy-Click-60 double-joint aluminium arm with
sloped nozzle, total length 1.5 m
consisting of:

- 536.598.99 table clamp set
- 536.576.99 flexibel extraction hose 3m
- extraction hose Ø60 mm
- 536.577.99 sloped nozzle

ESD protective

480,50 EUR

The image displays a metallic telescope tube mounted at an angle on a holder. It features a shiny silver surface, a black lens rim, and an adjustable mount.

Double extraction arm 1 joint

Easy-click-60 articulated extraction arm ESD-safe
with shut-off valve and table clamp set
(without accessories)

ESD protective

247,90 EUR

The image shows an accessory optical part, usually black and silver in color. It has a cylindrical shape with a coarser, rubberized grip and a chrome-plated adjustment knob.

Easy Click 60 WFV stop valve

WFE valve for extraction arm
for regulating the airflow in
articulated extraction arm 536 598.99

ESD protective

105,30 EUR

The image shows a flexible, corrugated hose in a U-shape. It has black transitions at both ends and a gray striped surface.

Easy-Click 60 extraction hose

Extraction hose 60, diameter 60
Length 3 m, grey/black, flexible
Quick coupling

ESD protective

95,70 EUR

The image shows a silver, metallic part with two tubes connected at an angle. It has black rubber grips and a black adjustment knob in the center.

Extension rotating joint

Easy-click-60 Pivoting extension joint

(without accessories)

ESD protective

183,75 EUR

The image shows a telescope. It has a silver, cylindrical body with black ends. There is an adjustable mount on the bottom that stabilizes it.

Extraction arm with ball joint

Easy-click-60 articulated extraction arm
with stop valve and ball joint clamp
(without accessories)

ESD protective

259,40 EUR

The image displays a silver device resembling a telescope. It features a cylindrical body, a black mounting element, and a round, tapered opening at one end.

Extraction arm 1 joint for wall mounting

Easy-click-60 extraction arm wall mount
with stop valve and table clamp set
(without accessories)

ESD protective

416,35 EUR

The image shows a telescopic extension with two elongated tubes made of silver metal. The tubes are attached at a joint and have black eyelets at the ends. There is a mount at the bottom.

Double extraction arm 1 joint

Easy-click-60 articulated double extraction arm
ESD-safe with shut-off valve and table clamp set
(without accessories)

ESD protective

480,50 EUR

The image shows a silver, cylindrical object with a wide, open end and a black, round connector at one end. It appears metallic and smooth.

Easy-Click 60 sloped nozzle

Suction nozzle ESD metal diameter 50 mm
Length 130 mm, suitable for extraction arms
with flexible hose

ESD protective

43,05 EUR

The image displays a silver exhaust with a black edge. At the front, there is a round, metallic grille insert visible that protects the opening.

Easy-Click 60 sloped nozzle with grill insert...

Suction nozzle ESD metal D = 50 mm, with mesh
Length 130 mm, suitable for extraction arms
with flexible hose

ESD protective

77,55 EUR

The image shows a triangular, black object with a round opening in the middle. It has a smooth surface and a slightly curved shape that resembles a funnel.

Easy-Click 60 nozzle

Suction nozzle ESD 190 x 100 mm, black
with quick adapter diameter 60 mm, for the
connection to extraction arms with flexible hose

ESD protective

59,35 EUR

The ring is made of metallic material, has a matte surface, and is cylindrical. It is hollow inside and has a uniform, smooth structure. The edges are clean and even.

Z Adapter ESD
for mounting suction nozzles with
quick adapter 60 mm on fixed extraction arms

ESD protective

59,35 EUR

The image displays a flexible, corrugated hose in black. It features smooth openings at both ends and is shaped in an arc. Ideal for connecting to devices or apparatuses.

Extraction arm, flexible 1m

Extraction arm, flexible, 60 mm diameter
for sloped and funnel-shaped nozzles
Length max. 1 m, ESD safe

ESD protective

88,05 EUR

The image shows a black component with a round base and a conical body. In the middle, there is a white ring. It appears to be a part possibly intended for pipe or hose connections.

Easy-Click 60 extraction hose straight

Hose connection WFE Easy Click, straight
Ø 60 mm

ESD protective

21,90 EUR

The image displays a T-shaped object in silver and black, with three round, solid sections. It has screws visible on the surface. The structure appears sturdy.

Easy-Click 60 T-piece

T-piece WFE Easy Click 60

ESD protective

111,05 EUR

The image shows a flexible vacuum cleaner arm. It has a metallic body that transitions into a long, black hose. The hose ends in a wide, open nozzle.

Extraction arm KIT 1S WF joint arm with funnel...

Kit 1S WF funnel, Easy-Click-60 1 joint
aluminium arm with funnel nozzle 230 x 100 mm,
Shut-off valve, full length 1.20 m
consisting of:
- 587.627.47 1 joint arm with valve and table clamp set
- 536.576.99 flexible suction hose 3 m
- extraction arm dm 60 mm, length 0.7 m
- 536.573.99 funnel nozzle

ESD protective

376,15 EUR

The image shows a flexible, black hose with a silver end. The hose is slightly curved and has a holder at the base, which is used for attachment.

Extraction arm KIT 1 WF nozzle

WFE Kit 1 nozzle 60 Easy-Clic-60 extraction arm
with sloped nozzle, stop valve, kit flexible
consisting of:

- stop valve with table clamp kit 536.574.99
- extraction hose 3 m 700-3051-ESD
- sloped nozzle 536.577.99
- extraction arm 0F10

ESD protective

260,35 EUR

The image shows a black light modifier shaped like a funnel. It has a wide, flat rim and a narrower opening at the top, with an attachment option.

Easy-Click 60 ESD funnel-shaped nozzle

ALFA Funnel Nozzle
Easy-Click 60 Funnel Nozzle
for flexible and articulated extraction arms
Width 230 mm, height 100 mm.
For attachment to an aluminium extraction arm without a flexible suction hose, the adapter Z is required.

ESD protective

44,05 EUR

The image displays a telescope accessory: a black and white sight with a circular end, alongside two metallic C-shaped brackets. All parts provide stability.

Easy Click 60 stop valve

WFV 60 stop valve
incl.2 table clamps

ESD protective

135,90 EUR

The image displays two silver metal clips. Each has a C-shape with a long, straight shaft and a small, triangular end. They are arranged next to each other.

Table clamp set

Table clamp set (2 metal clamps 100 mm)

ESD protective

25,95 EUR

The image shows a round, silver exhaust pipe with a black bracket. It has a smooth surface and a slightly tapered opening on one side.

WF 60 sloped nozzle

WF 60 sloped nozzle for flexible and
joint extraction arm

ESD protective

38,30 EUR

A flexible, black hose with a wide opening on one side and a narrower one on the other. It has a ribbed surface and an arched shape.

ESD sloped aluminium nozzle WF 32

WF32 microscope extraction arm
Ø 32 mm with high flexibility,
incl. beveled nozzle
ESD compliant

ESD protective

134,00 EUR

The image displays a flexible, silver arm of a swivel or projection device. It has distinct joints and a mount that is attached to a table.

Double extraction arm 2 joints

WF aluminium tripod extraction arm

ESD protective

293,85 EUR

The image shows a smoke extraction device. It has a large, gray body with several openings on top. A flexible hose leads to an open, black exit area.

Zero Smog 4V Kit1 funnel

Zero Smog 4V Kit 1 funnel
Portable volume extraction unit
for 1 workstation, with filter H13 and
wide band gas filter (50% activated carbon/50%
Chemisorb)
fine dust filter F7
max capacity 4 workstations
comprising: 536.606.99 Zero Smog 4V
536.571.99 KIT 1 WF funnel for volume extraction, incl set for table mounting

2.175,60 EUR

The image displays a device for extracting vapors. It features a rectangular, silver-colored body with four openings on top and a flexible, hose-like outlet pointing to the right.

Zero Smog 4V Kit1 nozzle

Zero Smog 4V Kit 1 nozzle
Portable volume extraction unit
for 1 workstation with filter H13 and wide band
gas filter (50% activated carbon/50% Chemisorb)
fine dust filter F7
max. capacity 4 workstations:
536.606.99 Zero Smog 4V
536.572.99 2x KIT 1 WF beveled nozzle for volume extraction
536.574.99 throttle
536.575.99 table mounting set
536.576.99 extraction hose

2.175,60 EUR

The image shows a smoke extraction device with a rectangular, gray casing and two black, flexible hoses that are bent upwards providing exhaust air.

Zero Smog 4V Kit1 funnel

Zero Smog 4V Kit 1 funnel
Portable volume extraction unit
for 2 workstations with filter H13 and wide band
gas filter (50% activated carbon/50% Chemisorb)
fine dust filter F7
max. capacity 4 workstations:
536.606.99 Zero Smog 4V
536.571.99 2x KIT 1 WF funnel for volume extraction, incl. set for table mounting

2.407,20 EUR

The image displays a gray device labeled "FT ZERO SMOG Series" with two flexible hoses. The hoses are black, and one ends in a flat nozzle.

Zero Smog 4V Kit2

Zero Smog 4V Kit 1 nozzle
Portable volume extraction unit
for 2 workstations with filter H13 and wide band
gas filter (50% activated carbon/50% Chemisorb)
fine dust filter F7
max. capacity 4 workstations:
536.606.99 Zero Smog 4V
536.572.99 2x KIT 1 WF beveled nozzle for volume extraction
including table mounting set

2.407,20 EUR

The image displays a rectangular black frame holding several stacked, folded filters in soft red and pink hues. The filters are soft and lightweight.

Bag filter F7 for Zero Smog 4V and 6V

Bag filter F7 for large amounts of dust

80,40 EUR

The image displays a trapezoidal waste bin. It features a sturdy, silver frame at the top and is covered with green, soft material that tapers to a point at the bottom.

Non-woven filter for Zero Smog 4V and 6V

Bag filter for sticky residues
(e.g. large amounts of flux)

101,45 EUR

The image shows a black, cylindrical object with a thick, round end and a narrower, straight end. A white seal is visible, marking the transition between the parts.

Adapter 40 / 60 mm for WFE

ESD protective

62,20 EUR

The image shows a black, cylindrical adapter with a divided surface. Next to it are two oval rubber rings that serve as seals.

50/60 Hose connection adapter

Adapter 50 / 60 mm for WFE

ESD protective

8,25 EUR

The image shows a cylindrical object with black ends and a white middle section. It has a smooth, solid handle and a small button on the side.

Easy-Click 60 double plug-in connection

Extraction hose adapter diameter 60
for hose extension

ESD protective

35,40 EUR

The image shows a flexible, corrugated hose in a U-shape. It has black transitions at both ends and a gray striped surface.

Easy-Click 60 extraction hose

Connecting hose with quick connector (ESD)
(Diameter 65 mm) length: 2 m

ESD protective

78,49 EUR

This product is similar to:

The image displays a trapezoidal waste bin. It features a sturdy, silver frame at the top and is covered with green, soft material that tapers to a point at the bottom.

Non-woven filter for Zero Smog 4V and 6V

Bag filter for sticky residues
(e.g. large amounts of flux)

101,45 EUR

The image shows a square, brown wooden box with a black border. The top is open and features white stripes. On the front, there is a label with information attached.

Compact filter for Zero Smog 6V

Compact filter for WFE4S / WFE20D
consisting of:
HEPA filter H13 and wide band
gas filter (50% activated carbon, 50% Chemisorb)

480,50 EUR

The image shows a square, white cushion or pad. It is flat and has rounded corners, with a soft, smooth surface. The dimensions are uniform.

Fine dust filter M5 for Zero Smog 6V

Fine dust filter F 5 for WFE20D

56,45 EUR

The image displays a rectangular black frame holding several stacked, folded filters in soft red and pink hues. The filters are soft and lightweight.

Bag filter F7 for Zero Smog 4V and 6V

Bag filter F7 for large amounts of dust

80,40 EUR
