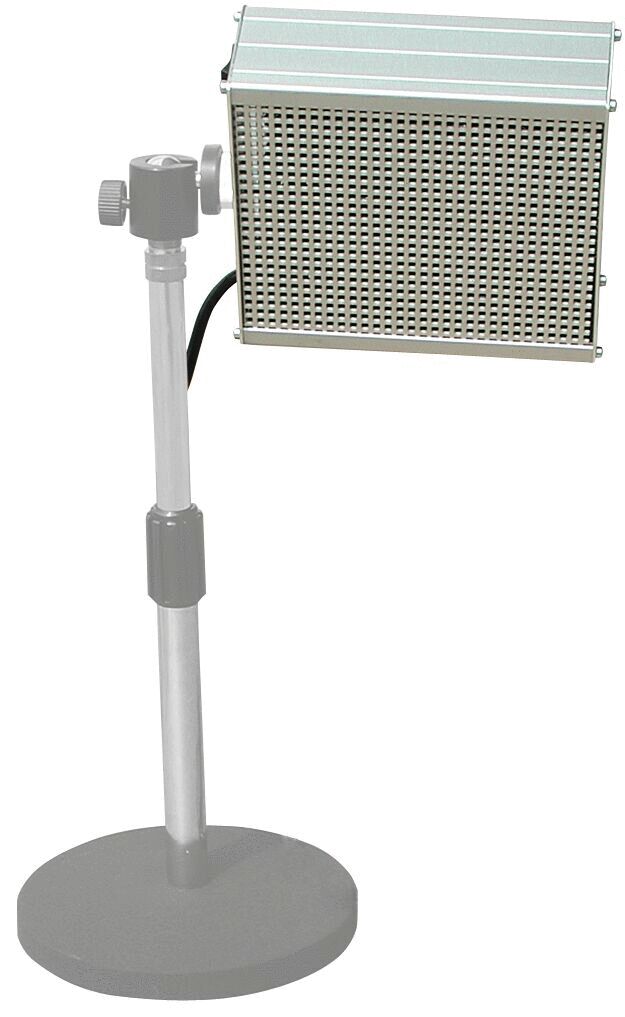

The image shows a table lamp with a rectangular metal lampshade. The lampshade stands on a sturdy round base, and the mast is adjustable.
LDA 1 Solder fume extractor
(Product No.: 201.250)
The image shows a table lamp with a rectangular metal lampshade. The lampshade stands on a sturdy round base, and the mast is adjustable.
Notice / Inquire

LDA 1 Solder fume extractor

dpvlink:
3563
Air flow/hour:
170 m³
Power:
18 W
Noise level:
40 dB
Further product information

available available
74,90 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

LDA 1 Solder fume extractor

The LDA 1 is an efficient solder fume extractor specifically designed to eliminate harmful solder fumes at the workplace. With a sturdy aluminum casing and compact dimensions of 150 mm width, 55 mm height, and 140 mm length, this device offers excellent performance while taking up minimal space. The integrated axial fan with an airflow of 170 m³ per hour ensures effective extraction and filtration through an activated carbon filter that effectively binds chemical pollutants.
With a low noise level of only 40 dB and an energy consumption of 18 W, the LDA 1 is both quiet and energy-efficient. This device is delivered without a tripod, making it ideal for flexible workplace layouts without the maintenance costs of extraction ducts. It also avoids the shutdown of the entire system in case of a failure. The advantages over permanently installed extraction systems include flexibility and cost efficiency, as well as ease of handling and maintenance-free operation.
The LDA 1 is thus the ideal solution for work environments that require reliable and efficient extraction of solder fumes.
Air flow/hour
Air flow/hour
170 m³
Power
Power
18 W
Noise level
Noise level
40 dB
Voltage
Voltage
220 - 240 V
Height
Height
55 mm
Length
Length
140 mm
Width
Width
150 mm
Bracket
Bracket
aluminum
Show accessories
Accessories

Accessories

The image shows a group of six rectangular, black plates. The surface feels rough and textured. They are symmetrically arranged, three on the left and three on the right side.
Activated carbon filter for solder fume extractor...
Activated carbon filter 6-piece pack
(suitable for LDA 1)
dpvlink
30931

14,90 EUR
Show product

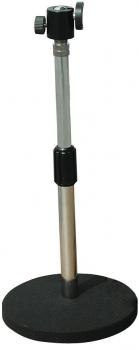

The image shows a microphone stand. It has a round, heavy base for stability, a tall, adjustable metal rod with a screw head on top to hold a microphone.
Preview: Table tripod LDS 1
Preview: The image shows a floor lamp with a sturdy, round black base. The lamp arm is silver, and the lampshade is rectangular with a perforated pattern.
Preview: The image shows a table lamp with a square, white lampshade mounted on an adjustable metal frame. The base is round and black.
Table tripod LDS 1
Tripod LDS 1 (suitable for LDA 1)
dpvlink
30931

43,70 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 625
Complete Catalog 2023 - 2024

Product Family

LDA 1 Solder fume extractor

This LDA 1 soldering fume absorber was developed to absorb harmful fumes in the workplace. It actively protects against headaches, eye inflammation and fatigue, which are often caused by inhaling soldering fumes. The powerful axial fan extracts the foul-smelling soldering fumes through an activated carbon filter. Chemical pollutants are thus effectively absorbed.

The solder vapor absorber is available in different versions: LDA 1 with Euro plug, LDA 1 with Swiss plug, LDA 1 R with special filter for all pollutants.

  • Solder vapor absorber with different power (4 - 18W)
  • Air flow rate 140 m³/h - 183m³/h depending on version
  • Low noise level (38 or 40 dB)
  • Can be used as a table-top device, optionally with tilt-adjustable stand
  • Dimensions: 150x140x55mm
  • Aluminum housing
  • Low power consumption
  • No maintenance costs (compared to permanently installed extraction systems)

Article image
Article description
Air flow/hour
Power
Noise level
Price
Compare
201.250 - LDA 1 Solder fume extractor
201.250
LDA 1 Solder fume extractor
170 m³
18 W
40 dB
74,90 EUR
201.250.CH - LDA 1 Solder fume extractor
201.250.CH
LDA 1 Solder fume extractor
183 m³
8 W
40 dB
-
201.252 - LDA 1-R Solder fume extractor
201.252
LDA 1-R Solder fume extractor
140 m³
4 W
38 dB
89,00 EUR
