HT470-A desoldering tweezers

(Product No.: JBC-HT470-A)

(Product No.: JBC-HT470-A)

HT470-A desoldering tweezers

ArticleNo: JBC-HT470-A

HT470-A desoldering tweezers

dpvlink:

29556

Further product information

Availability: at short notice

at short notice

at short notice

245,00 EUR

excl. 19% tax

1 PCE

Product Info

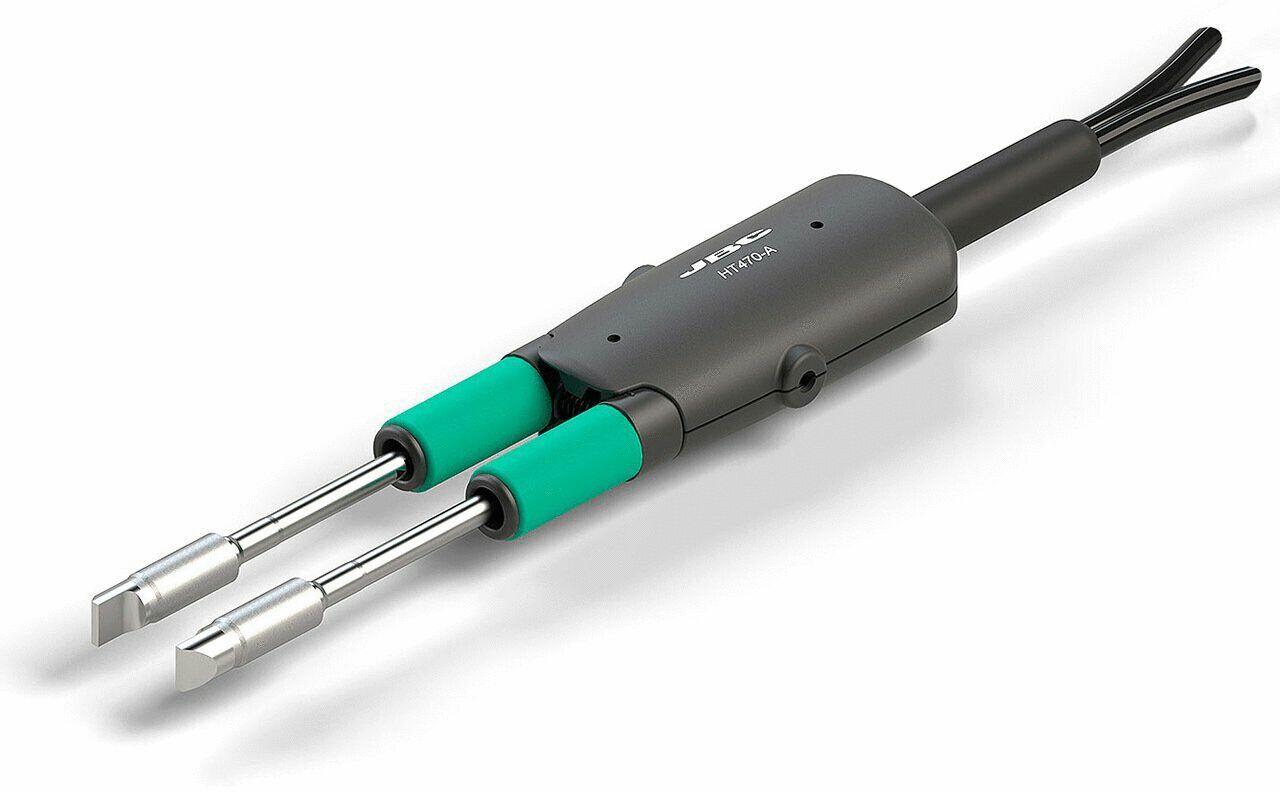

HT470-A desoldering tweezers

The HT470-A desoldering tweezer from JBC is a highly specialized tool designed for the rapid and precise removal of components on circuit boards. It features two simultaneously heated tips that enable effective and quick desoldering, ideal for fine soldering tasks where conventional methods are insufficient. This tweezer is compatible with JBC soldering stations, benefiting from advanced temperature control and fast response times.
The HT470-A was specifically developed for applications requiring a high amount of heat, such as soldering coaxial cable shields in telecommunications antennas or large copper conductors in medical imaging scanners. It requires two HDE-U control units and the HDT-SE stand for operation. Note that the C470 tips must be purchased separately, as they are not included in the package.
This desoldering tweezer is excellent for electronic repairs and prototype development, where precision and efficiency are required.

Details

Show accessories

Accessories

Accessories

Soldering tip C470-001

JBC C470-001 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
-Ø 1.7 mm
-Tip shape: round
-Tip orientation: straight

43,00 EUR

Soldering tip C470-002

JBC C470-002 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- 6.0 x 1.5 mm
-Tip shape: chisel-shaped
-Tip orientation: straight

43,00 EUR

Soldering tip C470-003

JBC C470-003 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
-Ø 7.5 mm
-Tip shape: round
-Tip orientation: sloped

43,00 EUR

Soldering tip C470-004

JBC C470-004 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- 7.5 x 1.5 mm
-Tip shape: chisel-shaped
-Tip orientation: straight

43,00 EUR

Soldering tip C470-005

JBC C470-005 soldering tip for soldering iron T470
stamp
-Use up to 500°C with supply unit HDE
- Ø 15.0 mm , stamp

46,00 EUR

Soldering tip C470-006

JBC C470-006 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- 10.0 x 2.5 mm
-Tip shape: chisel-shaped
-Tip orientation: straight

46,00 EUR

Soldering tip C470-007

JBC C470-007 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- 15.5 x 2.5 mm
-Tip shape: chisel-shaped
-Tip orientation: straight

46,00 EUR

Soldering tip C470-008

JBC C470-008 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
-Ø 3.5 mm
-Tip shape: round
-Tip orientation: angled

43,00 EUR

Soldering tip C470-009

JBC C470-009 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- 5.5 x 1.5 mm
-Tip shape: chisel-shaped
-Tip orientation: straight

43,00 EUR

Soldering tip C470-010

JBC C470-010 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- A= Ø 12.2 mm, R= 8 mm

64,00 EUR

Soldering tip C470-011

JBC C470-011 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
-Ø 4.2 mm
-Tip shape: round
-Tip orientation: straight

59,00 EUR

Soldering tip C470-012

JBC C470-012 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- A= 2.5 mm ; B= 10.4 mm ; R= 6.0 mm
- with scraping
-Tip orientation: straight

64,00 EUR

Soldering tip C470-013

JBC C470-013 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- 2 x 0.9 mm
-Tip shape: chisel-shaped
-Tip orientation: straight

43,00 EUR

Soldering tip C470-014

JBC C470-014 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- 4 x 1.3 mm
-Tip shape: round
-Tip orientation: straight

43,00 EUR

Soldering tip C470-015

JBC C470-015 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
-6.0 x 1.7 mm
-Tip shape: chisel-shaped
-Tip orientation: straight

43,00 EUR

Soldering tip C470-016

JBC C470-016 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
-7.5 x 1.7 mm
-Tip shape: chisel-shaped
-Tip orientation: straight

43,00 EUR

Soldering tip C470-017

JBC C470-017 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- 5 x 1.2 mm
-Tip shape: chisel-shaped
-Tip orientation: straight

43,00 EUR

Soldering tip C470-018

JBC C470-018 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
-8.9 x 1.7 mm
-Tip shape: chisel-shaped
-Tip orientation: angled

46,00 EUR

Soldering tip C470-019

JBC C470-019 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
-Ø 3.5 mm
-Tip shape: round
-Tip orientation: sloped

43,00 EUR

Soldering tip C470-020

JBC C470-020 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
-Ø 3.4 mm gullwing
-Tip shape: special shape
-Tip orientation: straight

64,00 EUR

Soldering tip C470-021

JBC C470-021 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- A= 4.0 mm ; B= 12.0 mm
-Tip shape: special shape, chisel-shaped
-Tip orientation: straight

64,00 EUR

Soldering tip C470-022

JBC C470-022 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- 28 x 4 mm
-Tip shape: special shape, blade-shaped

98,00 EUR

Soldering tip C470-023

JBC C470-023 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- A= 32.2 mm ; B= 2.4 mm
-Tip shape: chisel-shaped
-Tip orientation: straight

98,00 EUR

Soldering tip C470-025

JBC C470-025 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
-Ø 1.7 mm
-Tip shape: round
-Tip use: for plastic rivets

48,00 EUR

Soldering tip C470-026

JBC C470-026 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
-Ø 3.5 mm
-Tip shape: round
- Tip use: for plastic rivets
-Tip orientation: bent

48,00 EUR

Soldering tip C470-027

JBC C470-027 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- A= 43 ; B= 20 mm, stamp
-Tip shape: special shape

185,00 EUR

Soldering tip C470-028

JBC C470-028 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- A= 5 x 1.8mm ; B= 1.2 mm ; C= 1.0 mm
-Tip shape: special shape
-Tip orientation: straight

64,00 EUR

Soldering tip C470-029

JBC C470-029 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- A= 14.0 x 3.0 mm ; R= 31 mm
-Tip shape: chisel-shaped
-hollowed

64,00 EUR

Soldering tip C470-030

JBC C470-030 soldering tip for soldering iron T470
-special soldering tip for outer conductor
mounting jack
-Use up to 500°C with supply unit HDE
-A = 7.9 x 1.8 mm, B = 5.0 mm; C = 4.0 mm
-Tip shape: special shape
- tip orientation: straight

64,00 EUR

Soldering tip C470-031

JBC C470-031 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- A= 6.0 x 1.8 mm, B= 3.2 mm
-Tip shape: special shape
-Tip orientation: straight

60,00 EUR

Soldering tip C470-032

JBC C470-032 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- A= Ø 9.0 ; B= 24 mm
-Tip shape: round
- Tip use: for plastic rivets
-Tip orientation: straight

48,00 EUR

Soldering tip C470-033

JBC C470-033 soldering tip for soldering iron T470
-special soldering tip for outer conductor
mounting jack
-Use up to 500°C with supply unit HDE
-A = 7.0 x 1.8 mm, B = 3.65 mm; C = 3.6 mm
-Tip shape: special shape
- tip orientation: straight

64,00 EUR

Soldering tip C470-034

JBC C470-034 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- 3.5 x 1.5 mm
-Tip shape: chisel-shaped
-Tip orientation: angled

43,00 EUR

Soldering tip C470-035

JBC C470-035 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- 4 x 2.5 mm
-Tip shape: chisel-shaped
-Tip orientation: straight

43,00 EUR

Soldering tip C470-036

JBC C470-036 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- 2 x 1.0 mm
-Tip shape: chisel-shaped
-Tip orientation: straight

43,00 EUR

Soldering tip C470-037

JBC C470-037 soldering tip for soldering iron T470
-special soldering tip for outer conductor
mounting jack
-Use up to 500°C with supply unit HDE
-A = 12.7 x 1.9 mm, B = 8.0 mm; C = 5.0 mm
-Tip shape: special shape
- tip orientation: straight

64,00 EUR

Soldering tip C470-038

JBC C470-038 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
-A = 2.5 mm; B = 10.4 mm; C = 22 mm; R = 6 mm
-Tip shape: special shape
-Tip orientation: straight

64,00 EUR

Soldering tip C470-039

JBC C470-039 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
-8.5 x 2.5 mm
-Tip shape: chisel-shaped

43,00 EUR

Soldering tip C470-040

JBC C470-040 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- 4 x 1.3 mm
-Tip shape: chisel-shaped
- Tip orientation: straight

43,00 EUR

Soldering tip C470-041

JBC C470-041 soldering tip for soldering iron T470
-special soldering tip for outer conductor
mounting jack
-Use up to 500°C with supply unit HDE
- A= Ø 15.0 mm ; B= Ø 12.5 mm ; C= 3 mm

64,00 EUR

Soldering tip C470-042

JBC C470-042 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- A= 7.5 mm ; B= 4.8 mm ; C= 3.0 mm
D= 2.4 mm ; E= 7.5 mm
-Tip shape: chisel-shaped
- hollowed

53,00 EUR

Soldering tip C470-043

JBC C470-043 solder bath tip for soldering
iron T470
- Tip shape: special shape
- A= 10 mm ; B= 2.5 mm ; C= 1.1 mm ; D= 1.9 mm

46,00 EUR

Soldering tip C470-044

JBC C470-044 soldering tip for soldering iron T470
stamp
-Use up to 500°C with supply unit HDE
- A= 15 mm ; B= 10 mm ; C= 5.0 mm

75,00 EUR

Special soldering tip C470-051

JBC C470-045 special soldering tip for soldering
iron T470
-Use up to 500°C with supply unit HDE
- A= Ø 8.0, tip length: B= depth 25 mm
- special soldering tip for the soldering of long contacts

66,00 EUR

Soldering tip C470-046

JBC C470-046 flat soldering tip for T470/HT470
-Use up to 500°C with supply unit HDE
- A= 7.5 mm ; B= 4.5 mm ; C= 1.5 mm ; D= 7 mm
-Tip shape: flat

49,00 EUR

Soldering tip C470-047

JBC C470-047 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- A= 7.5 mm ; B= 12.0 ; C= 1.1 mm

64,00 EUR

Soldering tip C470-048

JBC C470-048 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- A= 5.5 mm, B= 3.4 mm ; C= 1.6 mm
-Tip shape: special shape
- Tip orientation: straight

64,00 EUR

Soldering tip C470-049

JBC C470-049 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- A= 6.9 mm, B= 5.2 mm, C= 1.9 mm
-Tip shape: special shape
- Tip orientation: straight

64,00 EUR

Soldering tip C470-050

JBC C470-050 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- A= 8 mm ; B= 4.6 mm

60,00 EUR

Special soldering tip C470-051

JBC C470-051 special soldering tip for soldering
iron T470
-Use up to 500°C with supply unit HDE
- A= 21 mm ; B= 9.0 mm ; C=6.0 mm
D= 4.0 mm

93,00 EUR

Soldering tip C470-052

JBC C470-052 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- A= 8.0 mm, B= 7.0 mm ; C= 8.5 mm
-Tip shape: chisel-shaped

64,00 EUR

Soldering tip C470-055

JBC C470-055 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- A= 8.0 mm, B= Ø 4.0 mm ; C= 2.0 mm
-Tip shape: special shape
- Tip orientation: straight

64,00 EUR

Soldering tip C470-056

JBC C470-056 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- Ø 10.0 mm
-Tip shape: round
- Tip orientation: sloped

43,00 EUR

Soldering tip C470-057

JBC C470-057 soldering tip for soldering iron T470
stamp
-Use up to 500°C with supply unit HDE
- A= 30 mm ; B= 20 mm ; C= 5.0 mm

93,00 EUR

Soldering tip C470-058

JBC C470-058 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
-8.5 x 2.5 mm
-Tip shape: chisel-shaped
- Tip orientation: straight

43,00 EUR

Soldering tip C470-059

JBC C470-059 soldering tip for soldering iron T470
-Use up to 500°C with supply unit HDE
- A= 20 mm ; B= 2.4 mm
-Tip shape: chisel-shaped
- Tip orientation: straight

66,00 EUR

Solder bath tip C470-SP01

JBC C470-SP01 soldering bath tip for soldering
iron T470
- attachable small soldering bath
- A= 18 mm ; B= 15 mm

105,00 EUR

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Product Family

Article image

Article description

Power

Voltage

Price

Compare

JBC-HT420-A - HT420-A Desoldering tweezers

JBC-HT420-A
HT420-A Desoldering tweezers

50 / 50 W

24 V

JBC-HT470-A - HT470-A desoldering tweezers

JBC-HT470-A
HT470-A desoldering tweezers

This product is compatible with (for example):

KHT470B desoldering tweezers with HDT support...

JBC KHT470A desoldering tweezers with HDT
holder kit
-HT470A desoldering tweezers
-HDT holder
* No soldering tips included

525,00 EUR
