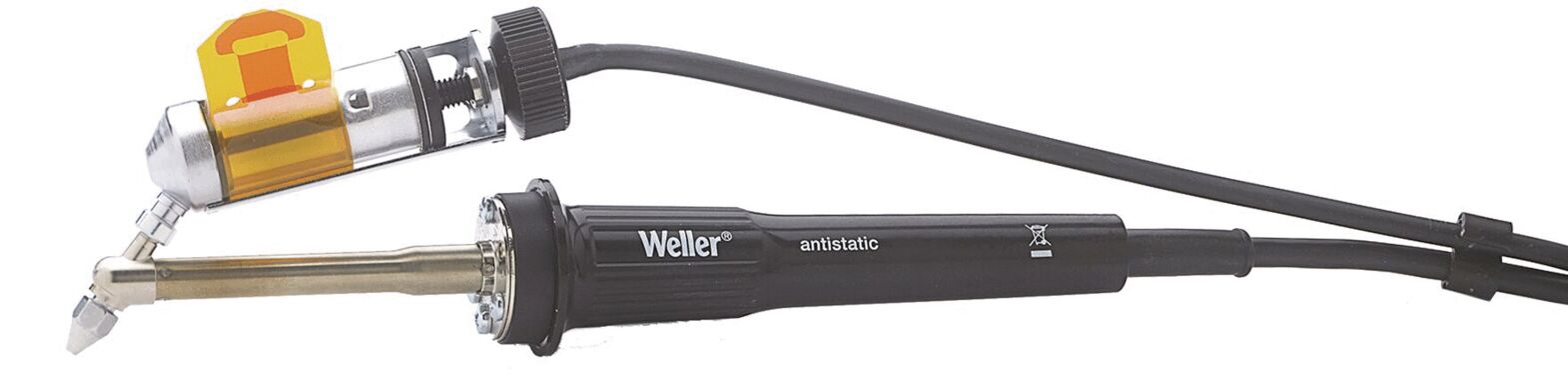

The image shows a soldering iron with a long, narrow black handle and a golden soldering tip. A cable connects it to an electronic control.
DSX 120 desoldering iron
(Product No.: 513.198.99)
The image shows a soldering iron with a long, narrow black handle and a golden soldering tip. A cable connects it to an electronic control.
Notice / Inquire

DSX 120 desoldering iron

DSX 120 desoldering iron

dpvlink:
3856
Power:
120 W
Heating-up time:
35 s
Properties:
Further product information

at short notice at short notice
346,50 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

DSX 120 desoldering iron

The DSX 120 from Weller is a high-performance desoldering iron specifically designed for precise and safe removal of solder. This model features ESD safety and utilizes the latest heating technology, offering a power of 120 W. The desoldering iron reaches an operating temperature of 50 to 350 °C in just 35 seconds, making it extremely efficient for fast workflows.
The integrated vacuum pump can be conveniently activated via a finger switch on the handle, facilitating handling during the desoldering process. Additionally, the proven exchange system allows for quick replacement of the solder cartridge, whose fill level is visible at all times through the transparent glass body.
For easy cleaning, the DSX 120 is equipped with an XDS suction nozzle that has an integrated suction channel. The desoldering iron is compatible with Weller Rework stations WR 2 and WR 3M and uses soldering tips from the XDS series. This makes it an ideal choice for professional applications in industry and technology where reliability and precision are required.
Power
Power
120 W
Heating-up time
Heating-up time
35 s
suitable soldering tip series
suitable soldering tip series
XDS
Temperature range
Temperature range
50 - 350 °C
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image displays a sketch of a quill pen with a sharp, wide edge that is rounded at the top. In the center, there is a small number "1" depicted. The rest is a slender handle.
Suction nozzle XDS 1
XDS 1 suction nozzle Ø 1.4 x Ø 2.5 mm, L = 10.5 mm
dpvlink
16470

11,40 EUR
The image shows a schematic representation of an object with a sharp, conical shape. On the broader side, the number "2" is depicted, while a thinner shaft is attached to it.
Suction nozzle XDS 2
XDS 2 suction nozzle Ø 3.0 x Ø 5.3 mm, L=10.5 mm
dpvlink
16470

11,40 EUR
The image shows a long, narrow object with a tapered front tip. At the wider area, the number "3" is displayed, and a straight rod extends from the back.
Suction nozzle XDS 3
XDS 3 suction nozzle Ø 1.0 x Ø 2.3 mm, L=10.5 mm
dpvlink
16470

11,40 EUR
The image shows a long, narrow object with a broader tip. On the side, there is the number "4". The object ends in a straight, thin section.
Suction nozzle XDS 4
XDS 4 suction nozzle Ø 1.2 x Ø 2.5 mm, L=10.5 mm
dpvlink
16470

11,40 EUR
The image shows a screwdriver with a slim, long handle and a properly shaped blade that bears the number 5. The handle is slightly wider and has a distinct shape.
Suction nozzle XDS 5
XDS 5 suction nozzle Ø 1.8 x Ø 3.3 mm, L=10.5 mm
dpvlink
16470

11,40 EUR
The image shows a schematic representation of a sharp, elongated object with a larger, narrow section in the middle and a thin end, which might be part of a tool.
Suction nozzle XDS 6
XDS 6 suction nozzle Ø 0.7 x Ø 1.9 mm, L=16.5 mm
dpvlink
16470

11,40 EUR
The image shows a technical component that looks like a narrow funnel. In the center is the number "7". It has an elongated shape and ends with a narrow attachment.
Suction nozzle XDS 7
XDS 7 suction nozzle Ø 1.2 x Ø 2.7 mm, L=16.5 mm
dpvlink
16470

11,40 EUR
The image displays a technical drawing of a component. It features a wide, rounded front with a notch and a narrow, straight end. It appears symmetrical.
Suction nozzle XDS 8
XDS 8 suction nozzle Ø 1.5 x Ø 2.9 mm, L=10.5 mm
dpvlink
16470

11,40 EUR
The image displays a drawing of a fountain pen nib. It has a conical shape with a small groove in the middle, which extends into a longer shaft.
XDS 9 Measuring tip
XDS 9 measuring tip
dpvlink
16470

20,10 EUR
The image shows a ring-shaped metal body that is hollow inside. The surface is rough and matte, the material appears sturdy and heavy. It has a slightly thicker edge.
Sealing cap (10 pieces) for desoldering iron...
Sealing cap WXDP 120 (10 pieces)
dpvlink
30624

25,05 EUR
The image shows four orange, transparent containers with a wide opening and a sturdy base. The containers are tilted and have a simple, functional shape.
Glass tube with flap (4 pieces) for desoldering...
Glass tube with strap for WXDP 120 (4 pieces)
dpvlink
30624

33,50 EUR
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 608
Complete Catalog 2023 - 2024

Product Family

DSX 80 Desoldering iron set

cleaned quickly and easily. The vacuum is activated by the finger switch integrated in the handle. A wide range of nozzles and CSF heads makes it a universal tool.


Article image
Article description
Power
Heating-up time
Price
Compare
513.183.99 - DSX 80 desoldering iron set
513.183.99
DSX 80 desoldering iron set
80 W
80 s
370,40 EUR
513.190.99 - DSX 80 desoldering iron
513.190.99
DSX 80 desoldering iron
80 W
80 s
267,05 EUR
513.198.99 - DSX 120 desoldering iron
513.198.99
DSX 120 desoldering iron
120 W
35 s
346,50 EUR
