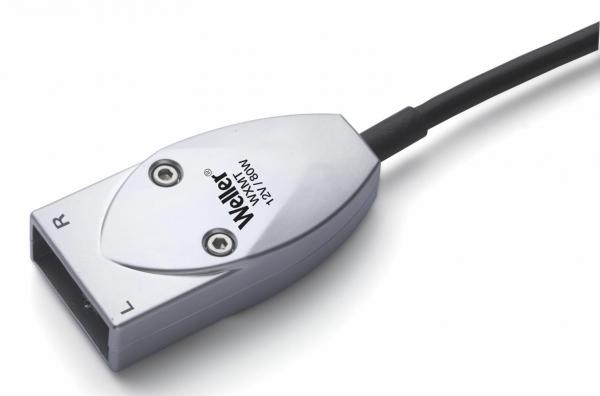

The image shows a silver plug with two round openings for connections, a cable leading out, and the inscription "Weller". The shape is oval and flat.
WXMT Micro desoldering tweezers
(Product No.: 513.177.99)

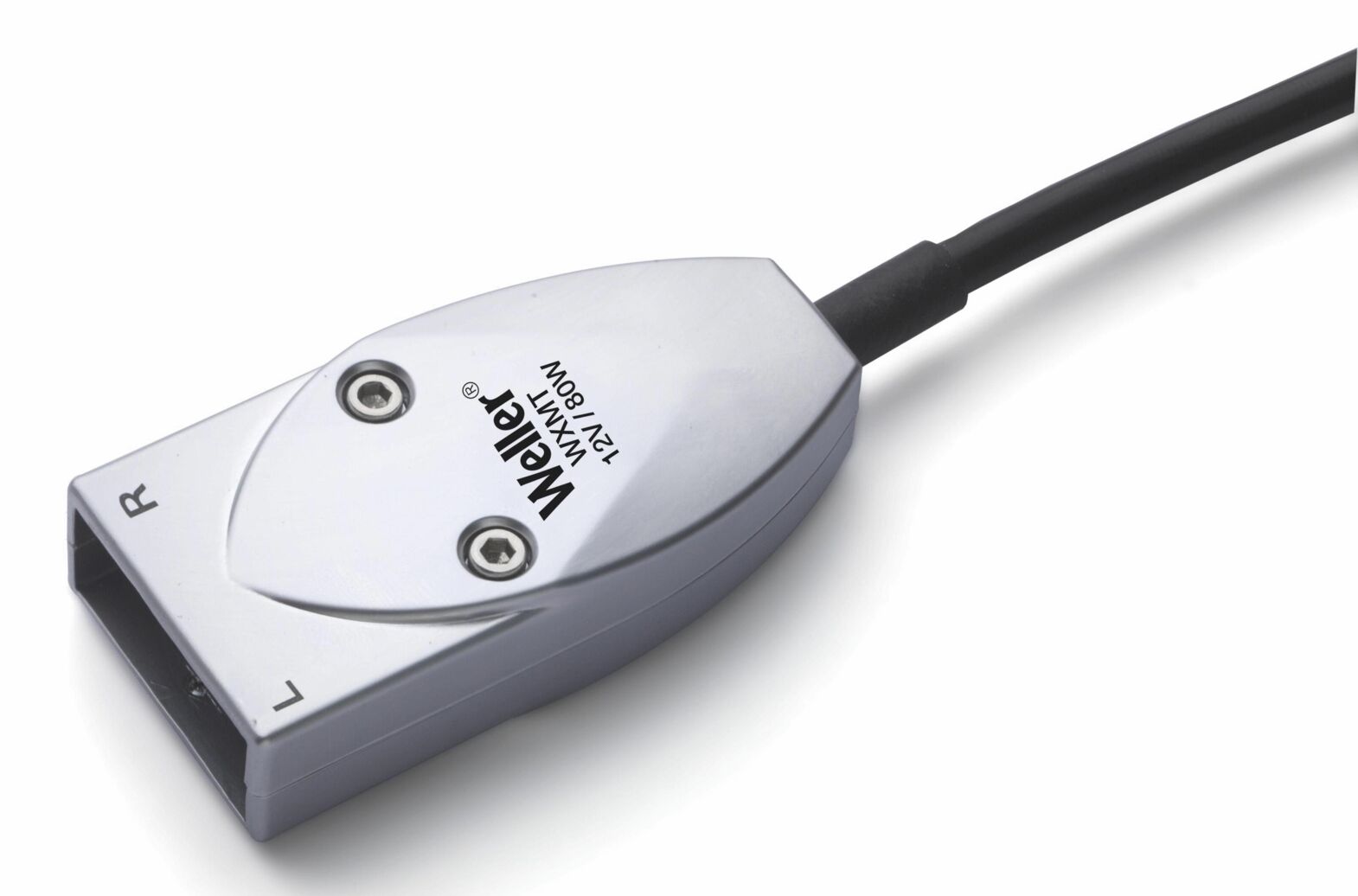

The image shows a silver plug with two round openings for connections, a cable leading out, and the inscription "Weller". The shape is oval and flat.
Notice

WXMT Micro desoldering tweezers

WXMT Micro desoldering tweezers

dpvlink:
14810
Properties:
Further product information

at short notice at short notice
167,50 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

WXMT Micro desoldering tweezers

The WXMT micro desoldering tweezer from Weller is specifically designed for the precise soldering and desoldering of very small SMD components. This high-quality tool features paired, parallel-adjusted soldering tips and an active soldering tip that ensures optimal heat transfer. The integrated signal conditioning in the handle and the extremely short heat-up times of only 3 seconds increase the efficiency of the work process.
The micro desoldering tweezer is ESD-safe and offers individual iron calibration, which can be performed independently of the base station. With a power of 2 x 40 W and a temperature range of 100 to 450 degrees Celsius, the device is suitable for demanding soldering tasks. The tweezer is compatible with the RTW series of soldering tips and is specially developed for use with WX soldering stations. An integrated usage sensor contributes to cost efficiency by detecting activity and enabling a stop-and-go function.
Power
Power
40 / 40 W
ESD
ESD
yes
suitable soldering tip series
suitable soldering tip series
RTW
Heating-up time
Heating-up time
3 s
Temperature range
Temperature range
100 - 450 °C
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a device with two long, thin metal spikes protruding forward. The body is made of black plastic and has a silver metal base. At the top, there are buttons labeled with the letters "L" and "R".
Soldering tip RTW 1
RTW 1 pair of soldering tips 0.2 mm, 45 °
(suitable for WMRT)
dpvlink
7491

59,35 EUR
The image shows an electrical switch with two long metal guides. The switch has a rubberized surface and a rotary knob that can be set to the position "L" or "R".
Soldering tip RTW 2
RTW 2 pair of soldering tips 0.7 x 0.4 mm, 45 °
(suitable for WMRT)
dpvlink
7493

59,35 EUR
The image shows a technical device with a black handle section and two long, metallic tongs. On the top, there is a switch labeled with the letters "L" and "R".
Soldering tip RTW 3
RTW 3 pair of soldering tips 3.0 x 0.7 mm, 45 °
(suitable for WMRT)
dpvlink
7495

69,85 EUR
The image displays a technical connector with two metallic contacts. It features a black plastic handle and a control lever marked with the letters "L" and "R".
Soldering tip RTW 4
RTW 4 pair of soldering tips 6.0 x 0.7 mm, 45 °
(suitable for WMRT)
dpvlink
7497

81,35 EUR
The image shows an interface with two metal probes that look like clamps, and a housing with a rotatable part. The letters "L" and "R" are printed on the rotatable part.
Soldering tip RTW 6NW
RTW NW soldering tip pair 0.2 mm, 45 °
(suitable for WMRT)
not wettable, for soldering and desoldering
mini-components 0201 / 0402
dpvlink
13559

81,35 EUR
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 604
Complete Catalog 2023 - 2024

Product Family

WXMT micro soldering tweezers

Article image
Article description
Power
ESD
suitable soldering tip series
Heating-up time
Temperature range
Price
Compare
513.177.99 - WXMT Micro desoldering tweezers
513.177.99
WXMT Micro desoldering tweezers
40 / 40 W
yes
RTW
3 s
100 - 450 °C
167,50 EUR
