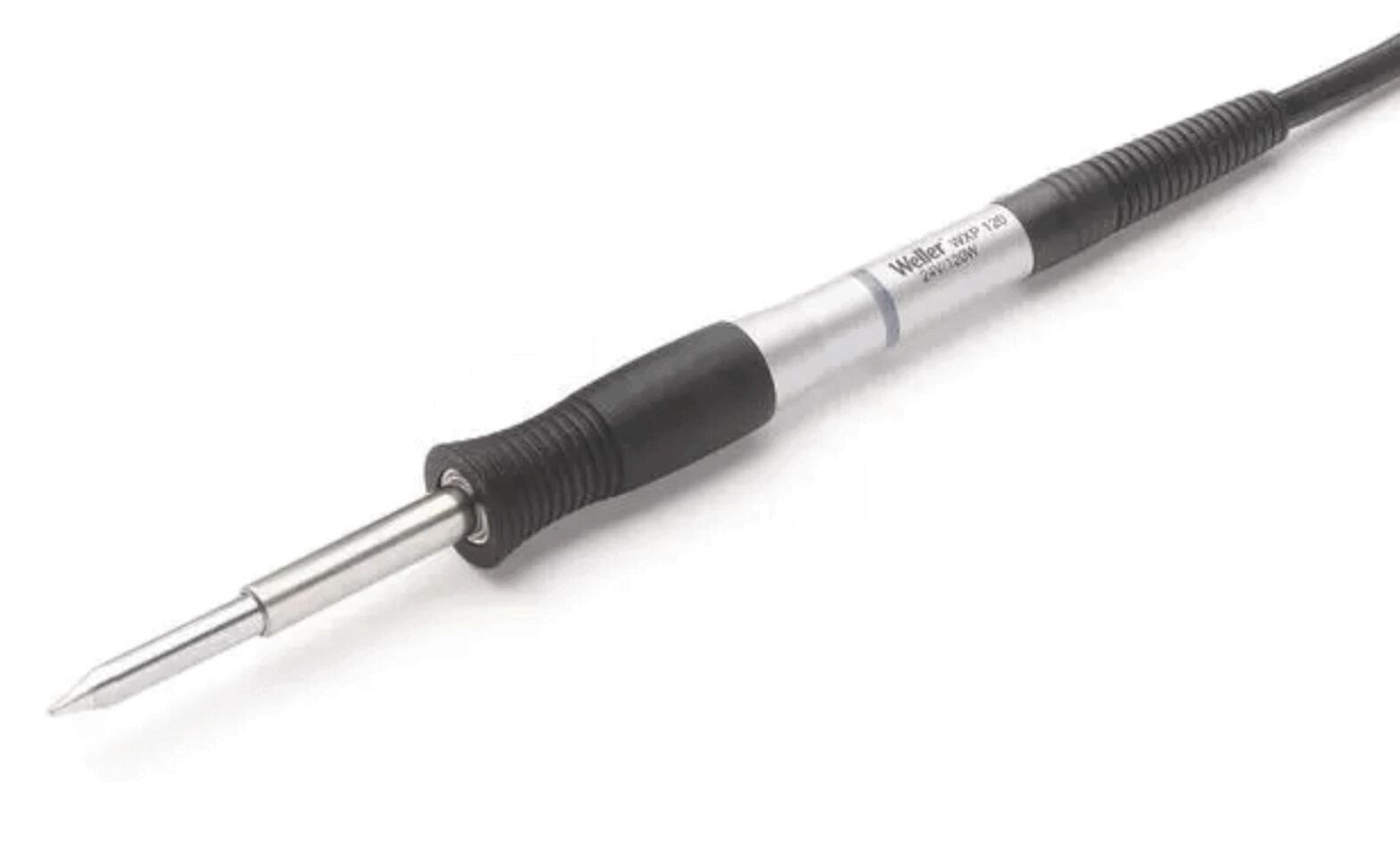

The image shows a soldering iron with a black handle and a long, silver, pointed tip. A cable connects it to a power source.
WXP 120 soldering iron 120 W
(Product No.: 529.201.99)
The image shows a soldering iron with a black handle and a long, silver, pointed tip. A cable connects it to a power source.
Notice / Inquire

WXP 120 soldering iron 120 W

WXP 120 soldering iron 120 W

dpvlink:
15694
Power:
120 W
Heating-up time:
14 s
suitable soldering tip series:
XT
Properties:
Further product information

at short notice at short notice
228,75 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

WXP 120 soldering iron 120 W

The WXP 120 soldering iron from Weller is an advanced tool for professionals in electronics manufacturing and repair. This model features a power of 120 W and a fast heating time of only 14 seconds, allowing for efficient handling. The temperature can be precisely regulated between 100 and 450 °C, making the soldering iron suitable for a variety of component sizes and heat requirements.
The integrated Power Response heating technology, along with an optimized sensor position, ensures quick response times and precise temperature control. The use of a usage sensor significantly reduces consumption costs, especially for heaters and soldering tips. Additionally, the soldering iron offers visual process control through an LED signal function and stores important parameters such as standby temperatures and automatic shutdown times.
The compatible XT soldering tip series allows for flexible exchanges at cost-effective prices, and the ESD-safe design ensures the safety of sensitive components. Ergonomically designed, this device enables comfortable and reliable work.
Power
Power
120 W
Heating-up time
Heating-up time
14 s
suitable soldering tip series
suitable soldering tip series
XT
ESD
ESD
yes
Temperature range
Temperature range
100 - 450 °C
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 605
Complete Catalog 2023 - 2024

Product Family

WXP Soldering iron series

The ESD-safe WXP soldering irons from Weller are powerful tools for professional soldering work. They offer a fast heat-up time, precise temperature control and are compatible with the Weller WX soldering stations. Thanks to intelligent sensor technology and high energy efficiency, they are ideal for demanding soldering tasks in electronics production and repair. Ergonomic design and durable tips ensure comfortable and reliable work. Depending on the power, the WXP soldering irons are suitable for various soldering tasks and component sizes. The soldering irons are available as individual items with a matching soldering tip and/or as a set with a safety rest.

  • Parameter memory in the iron, e.g. standby temperatures and automatic switch-off time
  • Reduction of consumption costs (heating elements and soldering tips) thanks to usage sensor
  • Visual process control through LED signal function
  • Intelligent soldering irons with different power levels (65-200 W)
  • Fast heat-up times (7-19 sec.)
  • Heating element technology: Power Response or Silver-Line
  • For different component sizes (small to very large) with different heat requirements (average to high)

Article image
Article description
Power
Heating-up time
suitable soldering tip series
included soldering iron
Safety rest
Price
Compare
529.211.99 - WXP 65 soldering iron 65 W
529.211.99
WXP 65 soldering iron 65 W
65 W
7 s
XNT


245,05 EUR
529.208.99 - WXP 80 soldering iron 80 W
529.208.99
WXP 80 soldering iron 80 W
80 W
10 s
LT


262,25 EUR
529.209.99 - WXP 80 Soldering iron set
529.209.99
WXP 80 Soldering iron set
80 W
10 s
LT
WXP 80
WSR 201
287,15 EUR
529.201.99 - WXP 120 soldering iron 120 W
529.201.99
WXP 120 soldering iron 120 W
120 W
14 s
XT


228,75 EUR
529.202.99 - WXP 120 Soldering iron set
529.202.99
WXP 120 Soldering iron set
120 W
14 s
XT
WXP 120
WSR 201
239,30 EUR
529.205.99 - WXP 200 soldering iron 200 W
529.205.99
WXP 200 soldering iron 200 W
200 W
19 s
XHT


274,70 EUR
529.206.99 - WXP 200 Soldering iron set
529.206.99
WXP 200 Soldering iron set
200 W
19 s
XHT
WXP 200
WSR 202
292,90 EUR
Show Compare List (0)

This product is compatible with (for example):

The image shows a compact, square device with a white upper part and a black lower part. At the top, there is a round outlet and a lid. On the front, there are buttons and a display.
Zero Smog TL
Zero Smog TL solder fume extraction unit
with filter level display
120 W , 220-240V - 50/60 Hz.
dpvlink
20593

962,90 EUR
Show product
The image shows a compact, square device with a white upper part and a black lower part. At the top, there is a round outlet and a lid. On the front, there are buttons and a display.
Zero Smog TL with gas filter
Zero Smog TL solder fume extraction unit
with gas filter art. 587.359.38
power 120 W , 220-240V - 50/60 Hz.
dpvlink
20593

1.042,35 EUR
Show product
The image displays a gray device with a rounded lid and a hose that curves upward in an arch-like shape. The hose features a wide, open nozzle.
Zero Smog TL Kit 1 FN
Zero Smog TL Kit 1 FN solder fume extraction unit
with filter level display
power 120 W , 220-240V - 50/60 Hz.
consisting of:
- FT91013699 solder fume extraction unit Zero-Smog TL
- FT91000033 ZSRS Zero Smog Remote Switch
- 0F10 Flexible extraction arm
- ALFA ALFA funnel nozzle
- shut-off valve with table clamp
- 700-3051-ESD suction hose 3 m
dpvlink
20604

1.169,65 EUR
Show product
The image shows a device with two flexible hose arms extending from a square casing on a table. The hoses are black and round at the ends.
Preview: Zero Smog TL Kit 2 SN
Preview: The image displays a glossy black device with a button on the front and a cable extending to the right. It is a remote control named
Zero Smog TL Kit 2 SN
Zero Smog TL Kit 2 SN solder fume extraction unit
with filter level display
power 120 W , 220-240V - 50/60 Hz.
consisting of:
- 1x FT91013699 solder fume extraction unit Zero-Smog TL
- 1x FT91000033 ZSRS Zero Smog Remote Switch
- 2x 0F15 Flexible extraction arm
- 2x FT-NL metal nozzle sloped diameter 60 mm
- 2 x 587.628.46 mounting clamp diameter 63 mm
dpvlink
20604

1.167,70 EUR
Show product
The image shows a device with two long, flexible hose arms extending from a rectangular casing on a table. The hoses are black and curved.
Preview: Zero Smog TL Kit 2 FN
Preview: The image displays a glossy black device with a button on the front and a cable extending to the right. It is a remote control named
Zero Smog TL Kit 2 FN
Zero Smog TL Kit 2 FN solder fume extraction unit
with filter level display
power 120 W , 220-240V - 50/60 Hz.
consisting of:
- 1x FT91013699 solder fume extraction unit Zero-Smog TL
- 1x FT91000033 ZSRS Zero Smog Remote Switch
- 2x 0F15 Flexible extraction arm
- 2x ALFA ALFA funnel nozzle
- 2 x 587.628.46 mounting clamp diameter 63 mm
dpvlink
20604

1.180,15 EUR
Show product
The image shows a deep blue machine with yellow elements used for cleaning shoes. On the side, there is a brush, and next to it lies a can of care product.
Preview: HAKKO Soldering tip polisher FT 700
Preview: The image displays a compact, blue-yellow device with a round knob on top, a long handle loop, and an open compartment at the front filled with wire brushes.
Preview: The image shows a blue soldering iron stand with a yellow holder. A soldering iron is inserted in the holder, next to it is a round cleaning brush.
HAKKO Soldering tip polisher FT 700
HAKKO Soldering tip polisher FT 700
with 2 rotating bronze brushes

scope of delivery:
•FT-700 soldering tip polsiher
•B 3052 2 bronze brushes
•FS 100 paste 10g
•B 3051 cleaning brush with handle
dpvlink
24140

Price on request
Show product
The image displays an electric tip cleaner. It features a rounded black base, a transparent lid, and a circular opening with a yellow border. The brand "HAKKO FT-710" is visible.
Preview: HAKKO Soldering tip cleaner FT 710-05
Preview: The image displays a small device with a blue and silver casing, mounted on a black base. Adjacent to it are a power adapter and two black rings, as well as a thin ring.
Preview: The image shows a black charger with cable and two black screw plugs. Alongside is a flat, transparent plastic measuring device.
Preview: The image shows two black, conical screws with threads and a round washer. Next to it lies a small measuring template labeled
Preview: The image shows a compact, rectangular solder sucker in blue and silver. Two black attachments are lying next to it, as well as a set of instructions in the form of a small paper.
HAKKO Soldering tip cleaner FT 710-05
HAKKO Soldering tip cleaner FT 710-05
with rotating brush rollers B (plastic)

Delivery:
•FT-710 Hakko Soldering tip cleaner
•connection cable
•A 1567 brush rollers 2 pcs
•B 3517 soldering iron holder A
•B 3518 soldering iron holder B
•B 3523 locking nut
•measuring template
dpvlink
24143

Price on request
Show product

This product is similar to:

The image displays a black device with two round openings and a screen. The screen shows two temperature readings and status information in green and blue font.
Preview: WXSmart Supply unit 230V
Preview: The image shows a technical device with a modern design. It has a black front with two analog displays and buttons. The sides are in a light blue, with ventilation openings.
WXSmart Supply unit 230V
WXsmart supply unit 230V
2-channel high-performance station, 1 air and
1 vacuum channel. Up to 16 tools can be connected

-- only supply unit without accessories --
dpvlink
26822

1.147,60 EUR
Show product

Customers who bought this product also bought the following products:

The image shows a silver metal cylinder with a flat, broadly shaped tip and a slightly rounded end. The cylinder is lying at an angle on a white surface.
Soldering tip chisel-shaped XT D
XT D chisel tip 4.6 mm x 0.8 mm
for WP 120 and WXP 120
dpvlink
11340

9,30 EUR
Show product

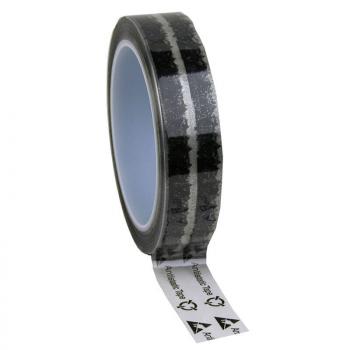

The image shows a roll of tape. The roll has a smooth surface and is patterned in black and gray. One end of the tape hangs over the roll and displays a label.
