WXPP MS Soldering iron
(Product No.: 529.228.99)
Notice / Inquire

WXPP MS Soldering iron

dpvlink:
24433
Power:
40 W
Heating-up time:
3 s
suitable soldering tip series:
RTP MS
Further product information

at short notice at short notice
NEW
179,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

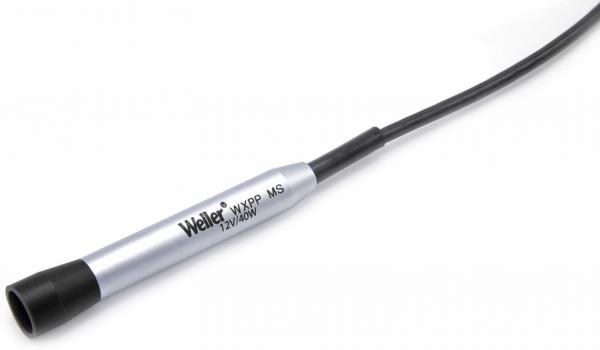

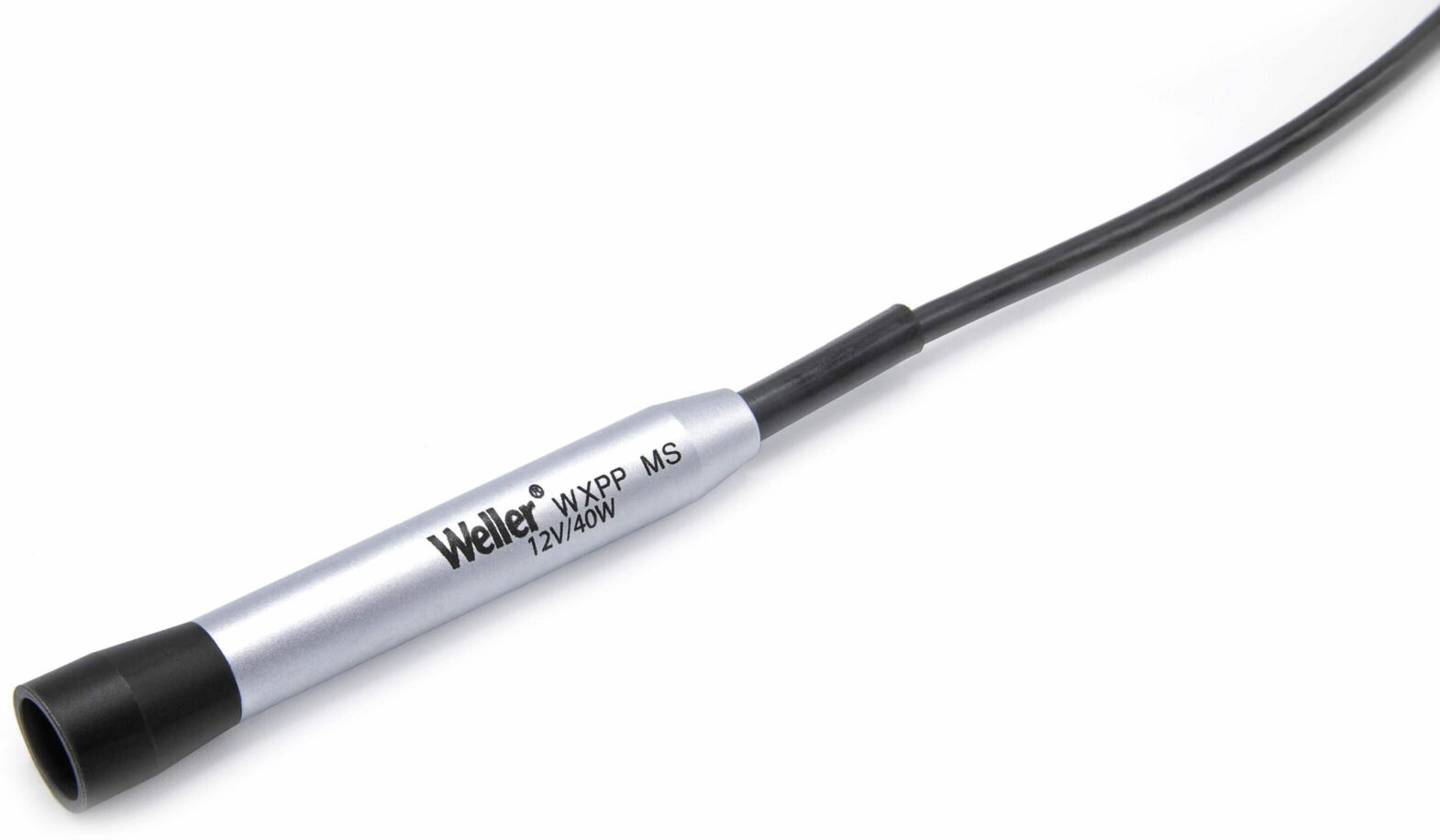

WXPP MS Soldering iron

The WXPP MS soldering iron from Weller is a highly specialized tool, particularly suitable for demanding high-performance soldering applications. With a power of 40 W and an operating voltage of 12 V, this intelligent Pico soldering iron is ideal for applications in LED technology, solar technology, as well as for multilayer boards and high-frequency boards with large heat sinks. The soldering iron reaches operating temperature in just 3 seconds and can be precisely controlled within a temperature range of 100 to 450 °C.
Compatibility with all Weller WX stations and MIL-SPEC compliance ensure the highest standards and reliability. A special feature is the cartridge system of the RTP MS soldering tips, which allows for quick, tool-free changes even when the soldering iron is hot. Moreover, the soldering iron includes an integrated parameter memory for standby temperatures and shutdown times, which simplifies handling and contributes to reducing operating costs. The excellent heat transfer and the quick response time of the soldering iron ensure that even the largest components can be soldered efficiently and precisely.
Power
Power
40 W
Heating-up time
Heating-up time
3 s
suitable soldering tip series
suitable soldering tip series
RTP MS
Voltage
Voltage
12 V
Temperature range
Temperature range
100 - 450 °C
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

WX MS soldering iron series

The WX MS soldering irons from Weller have been specially developed for high-precision soldering work in ESD-sensitive areas. All models are compatible with the Weller WX soldering stations, offer excellent energy efficiency, ESD protection and are suitable for demanding soldering processes in industry, medical technology and aerospace. Depending on the power, they are suitable for different soldering applications and component sizes. The soldering irons are available as individual items or as a set with a matching soldering tip and safety rest.

  • Intelligent soldering irons with different outputs (40 or 150 W) for different soldering applications and component sizes (very small to large)
  • Military standard (MIL-SPEC)
  • Extremely short heat-up time (3-7 sec.)
  • Compatible with WX soldering stations
  • Parameter memory in the iron e.g. standby temperatures, automatic switch-off time
  • Reduction in consumption costs (heating element and soldering tips) thanks to usage sensor
  • Fast, tool-free soldering tip change
  • Change the entire soldering tip when the soldering iron is hot thanks to the active soldering tip (cartridge) system


MS soldering irons are MIL-SPEC-compliant, i.e. they are used in accordance with MIL-STD-2000. In contrast to conventional soldering irons, they have additional insulation to ground, which prevents interference frequencies. MS soldering irons are not compatible with conventional soldering tips, but must always be used with MS soldering tips.


Article image
Article description
Power
Heating-up time
suitable soldering tip series
included soldering iron
Safety rest
Price
Compare
NEW
529.228.99 - WXPP MS Soldering iron
529.228.99
WXPP MS Soldering iron
40 W
3 s
RTP MS


179,00 EUR
NEW
529.213.99 - WXMP MS Soldering iron
529.213.99
WXMP MS Soldering iron
40 W
5 s
RTM MS


190,45 EUR
NEW
529.230.99 - WXUP MS Soldering iron
529.230.99
WXUP MS Soldering iron
150 W
7 s
RTU MS


190,45 EUR
529.233.99 - WXPP MS soldering iron set
529.233.99
WXPP MS soldering iron set
150 W
7 s
RTU MS
WXUP MS
WSR 200
250,75 EUR
529.232.99 - WXPP MS soldering iron set
529.232.99
WXPP MS soldering iron set
40 W
3 s
RTP MS
WXPP MS
WSR 208
300,55 EUR
529.234.99 - WXMP MS soldering iron set
529.234.99
WXMP MS soldering iron set
40 W
5 s
RTM MS
WXMP MS
WSR 200
308,20 EUR
Show Compare List (0)

This product is compatible with (for example):

The image displays a selection of tools: a soldering iron, a spool of solder, a pair of pliers, and a soldering station, all used for electronic work.
WXPP MS soldering iron set
WXPP MS Soldering iron set, consisting of:
- WXPP MS Pico soldering iron /40W
+ RTP004SMS tip
- safety rest WSR 208
- Erem tweezers 5 SA
- solder wire SAC M1, 0.2 mm, 10g

++for high-precision and soldering applications
Pico short heating up time ++
dpvlink
24433

300,55 EUR
Show product
