WXUP MS Soldering iron
(Product No.: 529.230.99)
Notice / Inquire

WXUP MS Soldering iron

dpvlink:
24433
Power:
150 W
Heating-up time:
7 s
suitable soldering tip series:
RTU MS
Further product information

at short notice at short notice
NEW
190,45 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

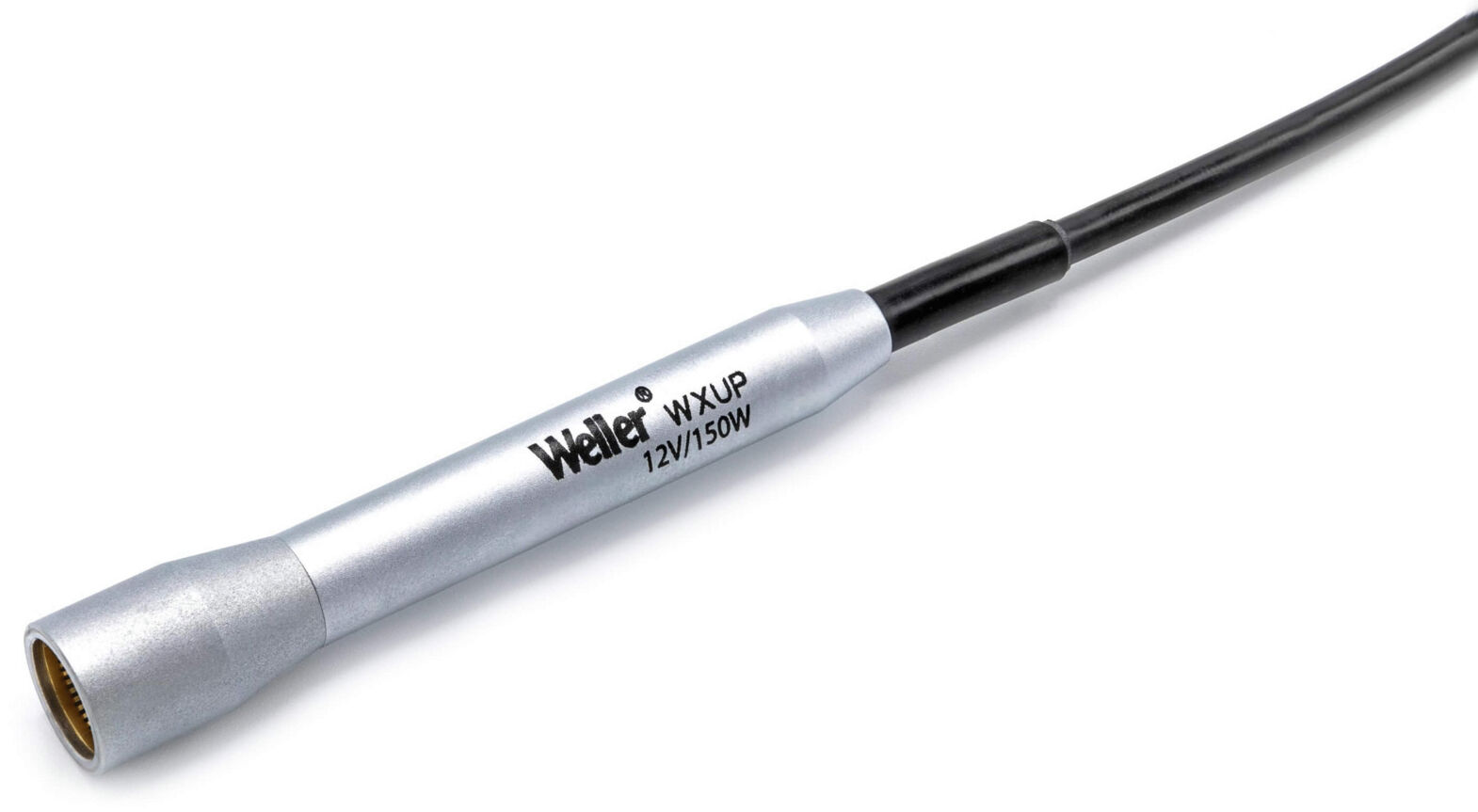

WXUP MS Soldering iron

The WXUP MS soldering iron from Weller is a high-performance solution for demanding soldering projects. This device is specifically designed for large components with high energy requirements and meets the stringent requirements of military standards (MIL-SPEC). With an impressive power of 150 W and an operating voltage of 24 V, the soldering iron offers an extremely short heat-up time of only 7 seconds, making it ideal for efficient work.
Additional features include the triple-award-winning, active RTU MS soldering tips, which ensure excellent heat transfer and response time. The soldering tips can be changed quickly and without tools, even when the soldering iron is hot, thanks to the innovative cartridge system. Additionally, the device features an integrated parameter memory, which allows it to store standby temperatures and shutdown times, significantly reducing consumption costs.
The soldering iron is exclusively compatible with MS soldering tips and not with conventional soldering tips, ensuring compliance with MIL-SPEC and minimizing interference frequencies. This robust tool is compatible with all Weller WX soldering stations, making it a versatile and efficient solution for professional soldering applications.
Power
Power
150 W
Heating-up time
Heating-up time
7 s
suitable soldering tip series
suitable soldering tip series
RTU MS
Voltage
Voltage
24 V
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

WX MS soldering iron series

The WX MS soldering irons from Weller have been specially developed for high-precision soldering work in ESD-sensitive areas. All models are compatible with the Weller WX soldering stations, offer excellent energy efficiency, ESD protection and are suitable for demanding soldering processes in industry, medical technology and aerospace. Depending on the power, they are suitable for different soldering applications and component sizes. The soldering irons are available as individual items or as a set with a matching soldering tip and safety rest.

  • Intelligent soldering irons with different outputs (40 or 150 W) for different soldering applications and component sizes (very small to large)
  • Military standard (MIL-SPEC)
  • Extremely short heat-up time (3-7 sec.)
  • Compatible with WX soldering stations
  • Parameter memory in the iron e.g. standby temperatures, automatic switch-off time
  • Reduction in consumption costs (heating element and soldering tips) thanks to usage sensor
  • Fast, tool-free soldering tip change
  • Change the entire soldering tip when the soldering iron is hot thanks to the active soldering tip (cartridge) system


MS soldering irons are MIL-SPEC-compliant, i.e. they are used in accordance with MIL-STD-2000. In contrast to conventional soldering irons, they have additional insulation to ground, which prevents interference frequencies. MS soldering irons are not compatible with conventional soldering tips, but must always be used with MS soldering tips.


Article image
Article description
Power
Heating-up time
suitable soldering tip series
included soldering iron
Safety rest
Price
Compare
NEW
529.228.99 - WXPP MS Soldering iron
529.228.99
WXPP MS Soldering iron
40 W
3 s
RTP MS


179,00 EUR
NEW
529.213.99 - WXMP MS Soldering iron
529.213.99
WXMP MS Soldering iron
40 W
5 s
RTM MS


190,45 EUR
NEW
529.230.99 - WXUP MS Soldering iron
529.230.99
WXUP MS Soldering iron
150 W
7 s
RTU MS


190,45 EUR
529.233.99 - WXPP MS soldering iron set
529.233.99
WXPP MS soldering iron set
150 W
7 s
RTU MS
WXUP MS
WSR 200
250,75 EUR
529.232.99 - WXPP MS soldering iron set
529.232.99
WXPP MS soldering iron set
40 W
3 s
RTP MS
WXPP MS
WSR 208
300,55 EUR
529.234.99 - WXMP MS soldering iron set
529.234.99
WXMP MS soldering iron set
40 W
5 s
RTM MS
WXMP MS
WSR 200
308,20 EUR
Show Compare List (0)

This product is compatible with (for example):

The image shows a soldering iron with a long, smooth tip and a soldering iron stand. The stand features a round, yellow metal spiral for resting the hot iron.
WXPP MS soldering iron set
WXUP MS Soldering iron set, consisting of:
- WXUP MS Ultra soldering iron 24V/150W
+ RTU032SMS tip
- safety rest WSR 200

++for demanding soldering applications and largest components
Ultra short heating up time ++
dpvlink
24433

250,75 EUR
Show product
