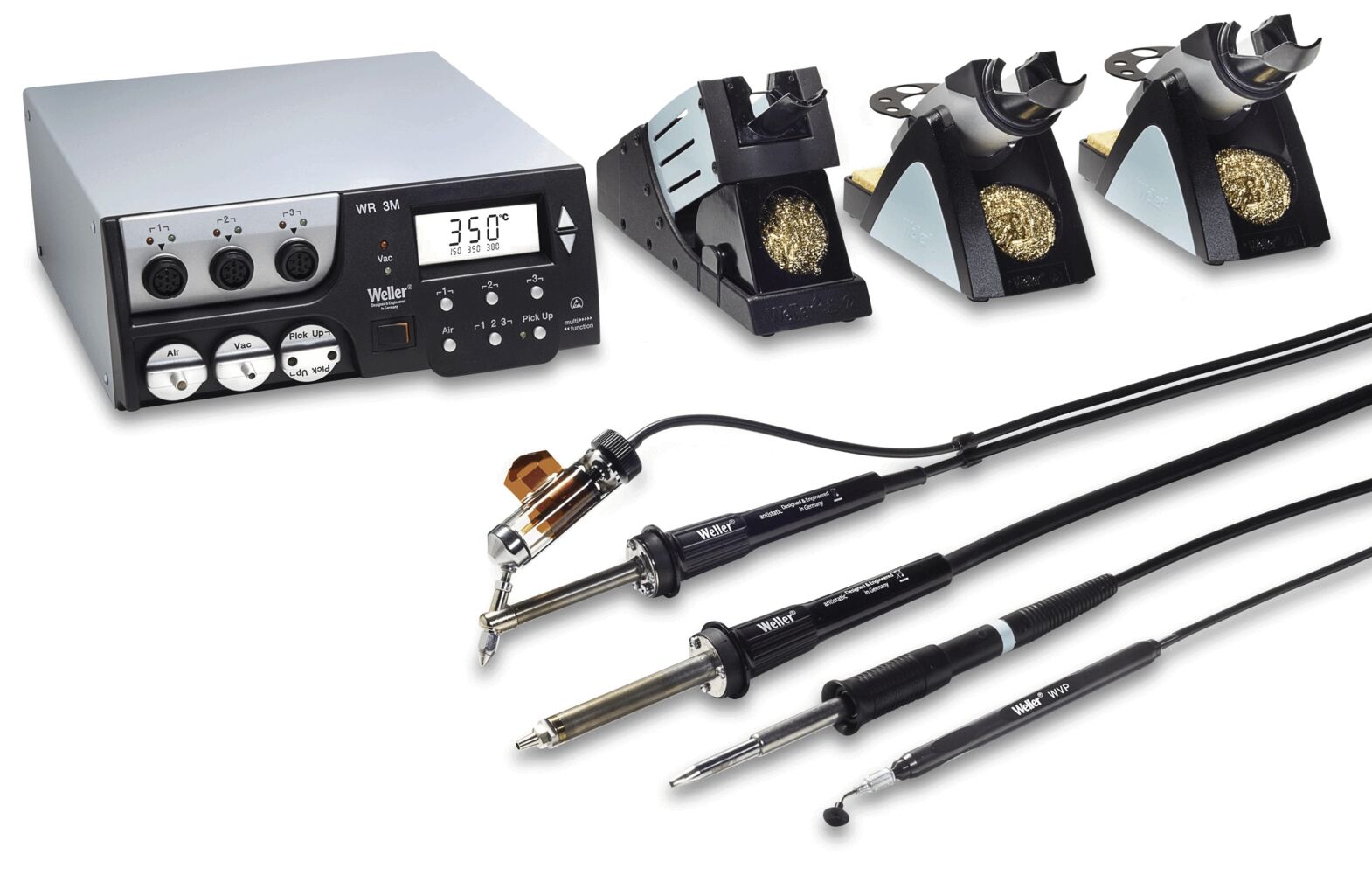

The image displays a soldering station with a digital display and multiple controls. Included are various soldering tools and holders with bronze-colored sponges for cleaning.
WR 3000M Rework station for horizontal working
(Product No.: 533.686.99)
The image displays a soldering station with a digital display and multiple controls. Included are various soldering tools and holders with bronze-colored sponges for cleaning.
Notice / Inquire

WR 3000M Rework station for horizontal working

WR 3000M Rework station for horizontal working

dpvlink:
9603
Width :
240 mm
Height :
103 mm
Length :
240 mm
Power:
360 / 400 W
Channels:
3
Temperature range:
50 - 550 °C
Properties:
Further product information

at short notice at short notice
3.014,05 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

WR 3000M Rework station for horizontal working

The Weller WR 3000M is a rework set with the 3-channel supply unit WR 3M, developed for professional repair and rework applications on electronic components. The set includes, in addition to the supply unit with a total power of 360 W (maximum 400 W), several soldering irons, safety rests, and other accessories.



  • Large all-around set for all repair tasks
  • Supply unit with 3 independent channels for parallel operation of up to 3 soldering tools
  • Separate vacuum channel for pick-up
  • Simultaneous operation of hot air and desoldering possible
  • All high-speed micro-tools can be connected
  • Hot air iron, soldering iron, and desoldering iron included
  • Desoldering iron DSX 80: Same working posture as conventional soldering irons
  • Automatic tool recognition by the supply unit
  • Grounding through a 3.5 mm jack socket on the back of the device



Scope of delivery:
WR 3M Supply unit 533.666.99
HAP 200 Hot air iron 200 W 527.116.99
2x WSR 209 Safety rest 515.185.99
DSX 80 Inline desoldering iron 513.190.99
WP 80 Soldering iron with soldering tip LT B 529.180.99
WDH 10T Safety rest 515.161.99
Vacuum pipette 529.184.99

Item number: 533.686.99

Width
Width
240 mm
Height
Height
103 mm
Length
Length
240 mm
Power
Power
360 / 400 W
Channels
Channels
3
Temperature range
Temperature range
50 - 550 °C
Voltage
Voltage
230 V
ESD
ESD
yes
Flow rate max. per minute
Flow rate max. per minute
18 l
Hot air max. per minute
Hot air max. per minute
15 l
included soldering iron
included soldering iron
HAP 200 / DSX 80
Safety rest
Safety rest
WSR 209 / WDH 10T
suitable soldering tip series
suitable soldering tip series
LT
Temperature accuracy +/-
Temperature accuracy +/-
9 °C
Temperature stability +/-
Temperature stability +/-
2 °C
Vacuum
Vacuum
0.7 bar
Weight
Weight
6.7 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a rectangular, black rubber base with a textured surface. In the center, there is a square, recessed field.
Foot switch 1-step for WR 3000M
Foot switch 1-step
dpvlink
29280

112,95 EUR
The image shows a metallic tool set with several holders and connections. There are three upright elements and a cable connection that runs sideways. The surface is flat.
WRK Reflow system complete
WRK - Reflowset for SMD components with external
Hot air, comprising:
Desoldering housing:
33x33 / 27x27 / 24x24 / 20x20 mm
15, 5 x 15, 5 / 12, 5 x 12, 5 / 10 x 10 mm,
Vacuum pick-up 4.5 + 10 mm, three-legged pick-up nozzle rest
dpvlink
9611

401,05 EUR
The image shows a silver, compact device with rounded edges. The top features a flat surface, while the bottom has a cable for power supply. The surface includes ventilation slots.
WHP 80 Preheating plate 80 W
WHP 80 - preheating plate 24 V / 80 W
heated surface 80 x 50 mm
temperature range 50 ° C - 200 ° C
dpvlink
3816

516,85 EUR

Spares

The image shows a soldering iron tool in black with a long, slender metal tip and a yellow regulator on the handle. It has a power cord that leads to the power source.
DSX 80 desoldering iron
Desoldering iron DSX 80
with desoldering nozzle DX 113HM
dpvlink
3856

267,05 EUR
The image shows a soldering iron with a black handle and a blue ring. The tip is metallic and thin. A cable extends from the handle. The iron is used for soldering.
WP 80 soldering iron with soldering tip LT-B...
WP 80 soldering iron 24V / 80 watts
with soldering tip LT B
dpvlink
8307

184,75 EUR
The image shows a black hand tool with a long handle and a smooth, round tip. A wire-like cable extends from the handle. Smaller parts are laid out next to it.
WVP vacuum pipette
WVP vacuum pipette for WR3M
dpvlink
9893

83,25 EUR
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 599
