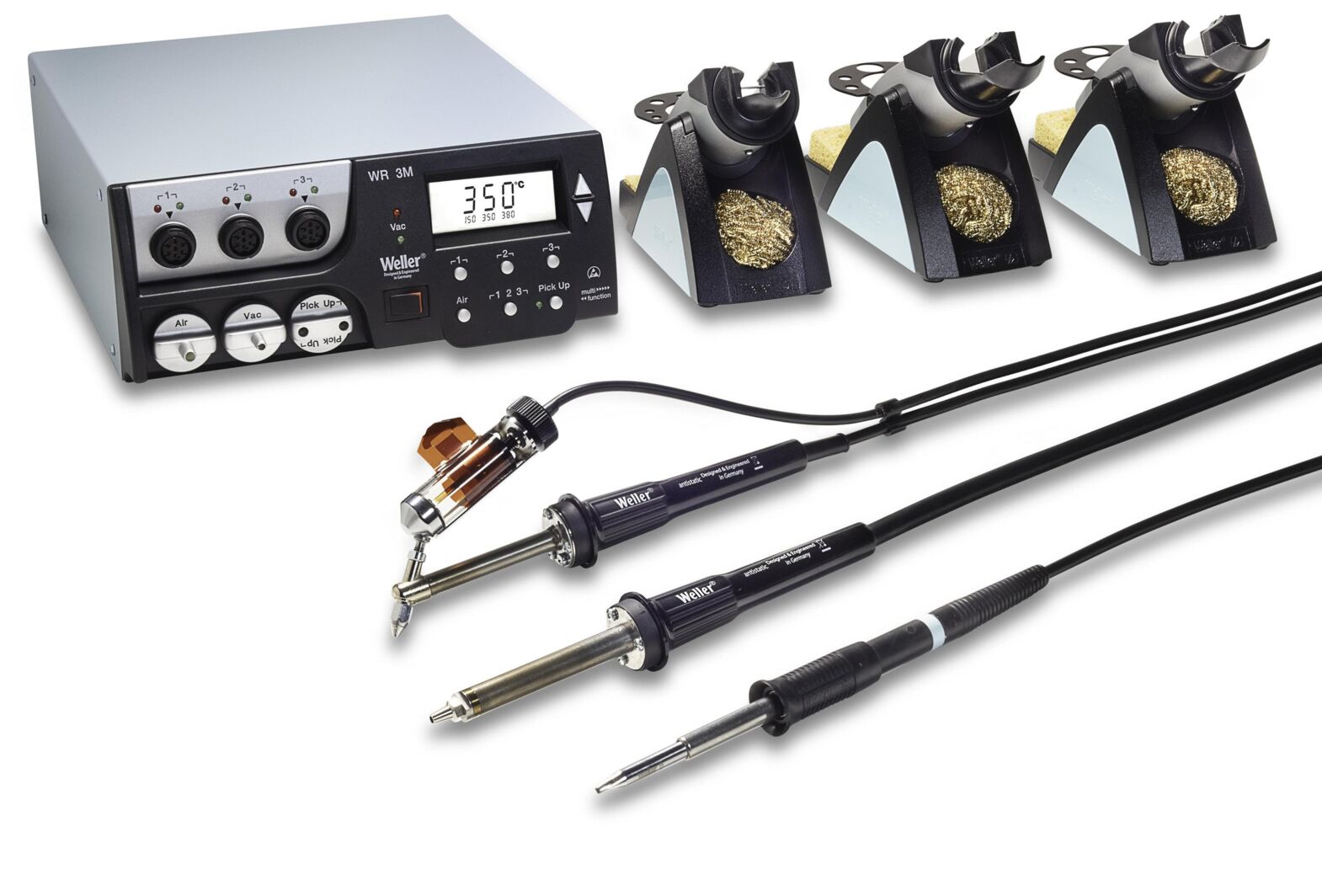

The image displays a soldering iron kit with a control unit and several soldering tips. The control unit features a digital display and multiple controls. Everything is arranged on a smooth surface.
WR 3000M ER Desoldering station
(Product No.: 533.688.70)
The image displays a soldering iron kit with a control unit and several soldering tips. The control unit features a digital display and multiple controls. Everything is arranged on a smooth surface.
Notice / Inquire

WR 3000M ER Desoldering station

WR 3000M ER Desoldering station

dpvlink:
16570
Width :
240 mm
Height :
103 mm
Length :
280 mm
Power:
360 / 400 W
Channels:
3
Temperature range:
50 - 550 °C
Properties:
Further product information

available available
2.975,75 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

WR 3000M ER Desoldering station

The Weller WR 3000M ER is a rework set with the 3-channel supply unit WR 3M, developed for professional repair and rework applications on electronic components. The set includes the supply unit with a total power of up to 400 W, several soldering irons, safety rests, and additional accessories.

  • Large all-around set for all repair tasks
  • Supply unit with 3 independent channels for parallel operation of up to 3 soldering tools
  • Dedicated vacuum channel for pick-up
  • Simultaneous operation of hot air and desoldering possible
  • All high-speed micro-tools can be connected
  • Includes hot air iron, soldering iron, and desoldering iron
  • Automatic tool recognition by the supply unit
  • Grounding via 3.5 mm jack socket on the back of the device



Scope of delivery:

WR 3M Supply unit 533 666 99
HAP 200 Hot air iron 200 W 527 116 99
2 x WSR 209 Safety rest 515 183 99
DSX 120 Desoldering iron + Suction nozzle XDS 1 513 198 99
WP 120 Soldering iron 120 W 529 193 99
WSR 201 Safety rest 515 175 99

Item number: 533.688.70

Width
Width
240 mm
Height
Height
103 mm
Length
Length
280 mm
Power
Power
360 / 400 W
Channels
Channels
3
Temperature range
Temperature range
50 - 550 °C
Voltage
Voltage
230 V
ESD
ESD
yes
Flow rate max. per minute
Flow rate max. per minute
18 l
Hot air max. per minute
Hot air max. per minute
15 l
Temperature accuracy +/-
Temperature accuracy +/-
9 °C
Temperature stability +/-
Temperature stability +/-
2 °C
Vacuum
Vacuum
0.7 bar
Weight
Weight
6.7 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a rectangular, black rubber base with a textured surface. In the center, there is a square, recessed field.
Foot switch 1-step for WR 3000M
Foot switch 1-step
dpvlink
29280

112,95 EUR
Show product

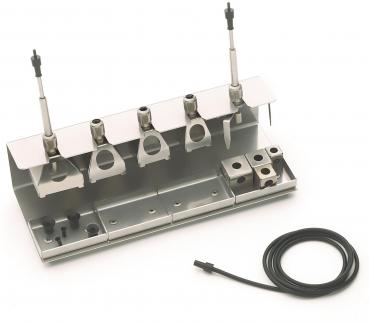

The image shows a metallic tool set with several holders and connections. There are three upright elements and a cable connection that runs sideways. The surface is flat.
WRK Reflow system complete
WRK - Reflowset for SMD components with external
Hot air, comprising:
Desoldering housing:
33x33 / 27x27 / 24x24 / 20x20 mm
15, 5 x 15, 5 / 12, 5 x 12, 5 / 10 x 10 mm,
Vacuum pick-up 4.5 + 10 mm, three-legged pick-up nozzle rest
dpvlink
9611

401,05 EUR
Show product
The image shows a silver, compact device with rounded edges. The top features a flat surface, while the bottom has a cable for power supply. The surface includes ventilation slots.
WHP 80 Preheating plate 80 W
WHP 80 - preheating plate 24 V / 80 W
heated surface 80 x 50 mm
temperature range 50 ° C - 200 ° C
dpvlink
3816

516,85 EUR
Show product
The image shows a black hand tool with a long handle and a smooth, round tip. A wire-like cable extends from the handle. Smaller parts are laid out next to it.
WVP vacuum pipette
WVP vacuum pipette for WR3M
dpvlink
9893

83,25 EUR
Show product

Spares

The image shows a soldering iron holder with a metal sponge for cleaning the soldering iron. The soldering iron features an open handle and a pointed tip.
WP 120 Soldering iron set
WP 120 soldering kit with
rest WDH 10 T + soldering tip XTB
++ suitable soldering tip XT series ++
dpvlink
8307

257,45 EUR
Show product
