WT 1011M Soldering station set
(Product No.: 534.496.99)
The image shows a soldering station with a digital display and controls. Next to the station, there is a soldering tip in a holder. A sponge for cleaning is also included.
The image displays a black digital temperature control device with a blue display. It has buttons for temperature adjustment and currently shows 350 °C. The brand "Weller" is clearly visible.
The image shows a narrow, black soldering tip with a cylindrical handle. The handle features a white inscription with the name "Weller" and technical specifications.
The image shows a small, black and gray metal sharpener with a holder on top for pencils. On the side, there is a container for wood shavings. A lever allows for the turning of the pencil.
The image shows a handy tool with a round, rubberized handle and a long metal tip. The handle has grooves for a better grip. It resembles a pen holder.
Mobile Preview: The image shows a soldering station with a digital display and controls. Next to the station, there is a soldering tip in a holder. A sponge for cleaning is also included.
Mobile Preview: The image displays a black digital temperature control device with a blue display. It has buttons for temperature adjustment and currently shows 350 °C. The brand "Weller" is clearly visible.
Mobile Preview: The image shows a narrow, black soldering tip with a cylindrical handle. The handle features a white inscription with the name "Weller" and technical specifications.
Mobile Preview: The image shows a small, black and gray metal sharpener with a holder on top for pencils. On the side, there is a container for wood shavings. A lever allows for the turning of the pencil.
Mobile Preview: The image shows a handy tool with a round, rubberized handle and a long metal tip. The handle has grooves for a better grip. It resembles a pen holder.
Notice

WT 1011M Soldering station set

WT 1011M Soldering station set

dpvlink:
30403
included soldering iron:
WTPP MS
Safety rest:
WSR 205
suitable soldering tip series:
RTP
Heating-up time:
3 s
Power:
95 W
Channels:
1
Further product information

at short notice at short notice
NEW
524,50 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

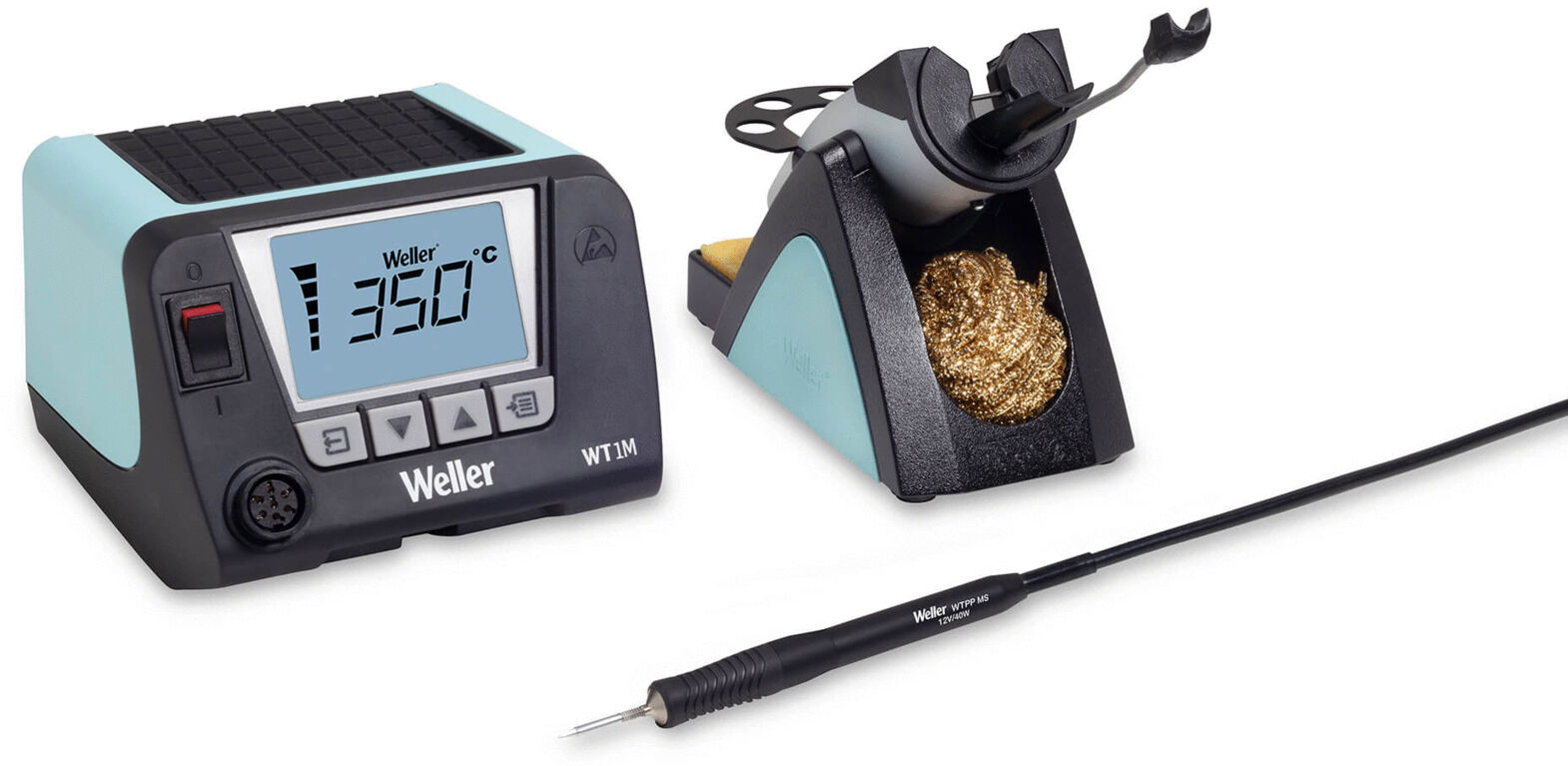

WT 1011M Soldering station set

The WT 1011M Soldering Station Set is a professional complete solution for demanding soldering tasks in electronics manufacturing, repair, and prototype development. It combines a 95 W single-channel power unit with a high-quality soldering iron and various soldering tips that offer a rapid heat-up time of just 3 seconds. The temperature accuracy is +/- 9 °C and the stability is +/- 2 °C, which ensures precise and reliable results.
The set includes an intuitive menu structure and a graphical LC display with backlight for easy operability. The compact design allows for high productivity with minimal space requirement, and the units are stackable, saving additional space. Moreover, the set can be connected to the ZeroSmog fume extraction system, which increases work safety.
The WT 1011M is designed for use with the RTP series soldering tips, known for their short heat-up times and high efficiency. The set is ESD-safe and offers a temperature range from 50 to 450 °C. Weighing 1.9 kg, it is lightweight and ergonomically designed for daily use.



Contents:

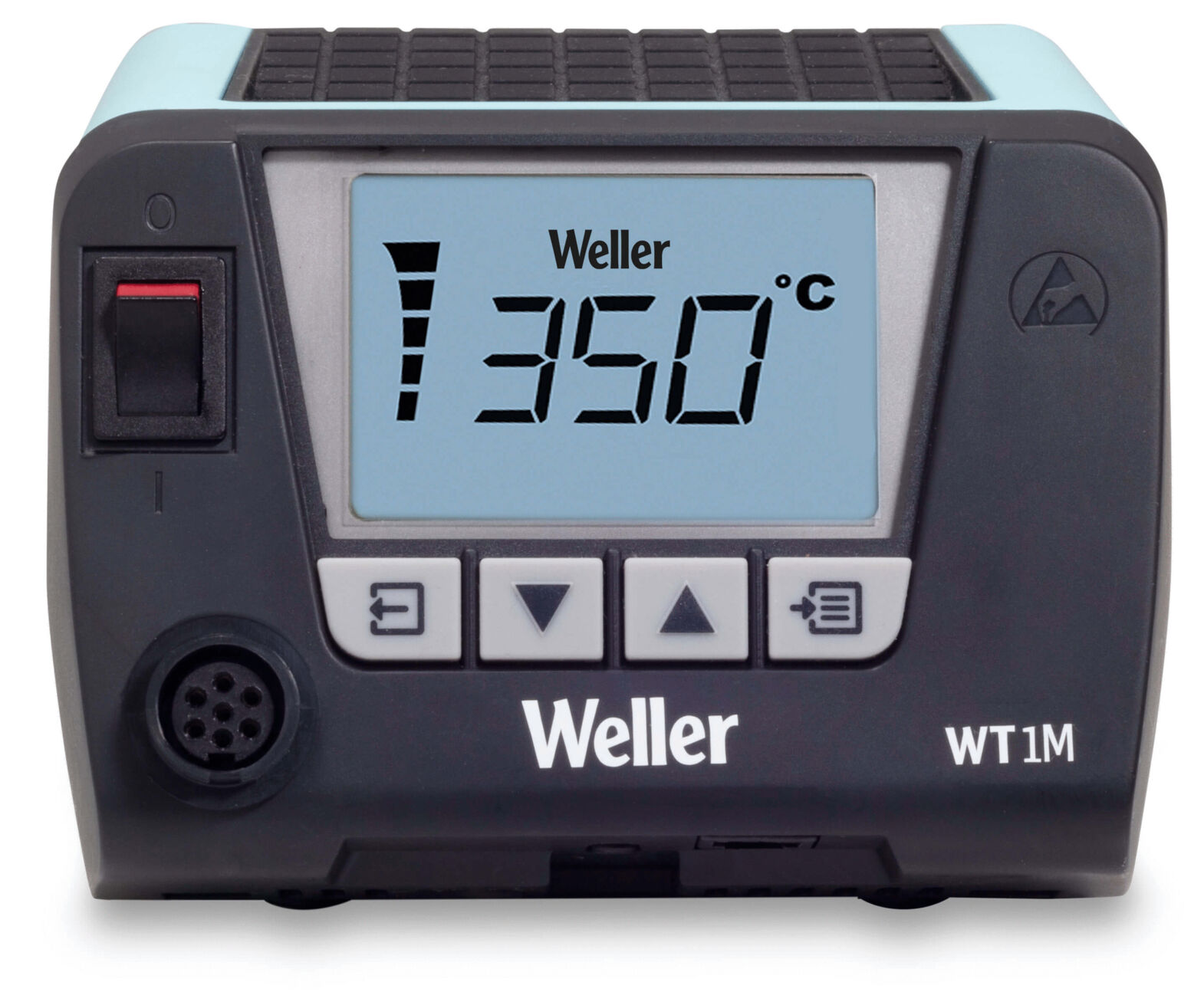

Power Unit WT 1M 534.476.99

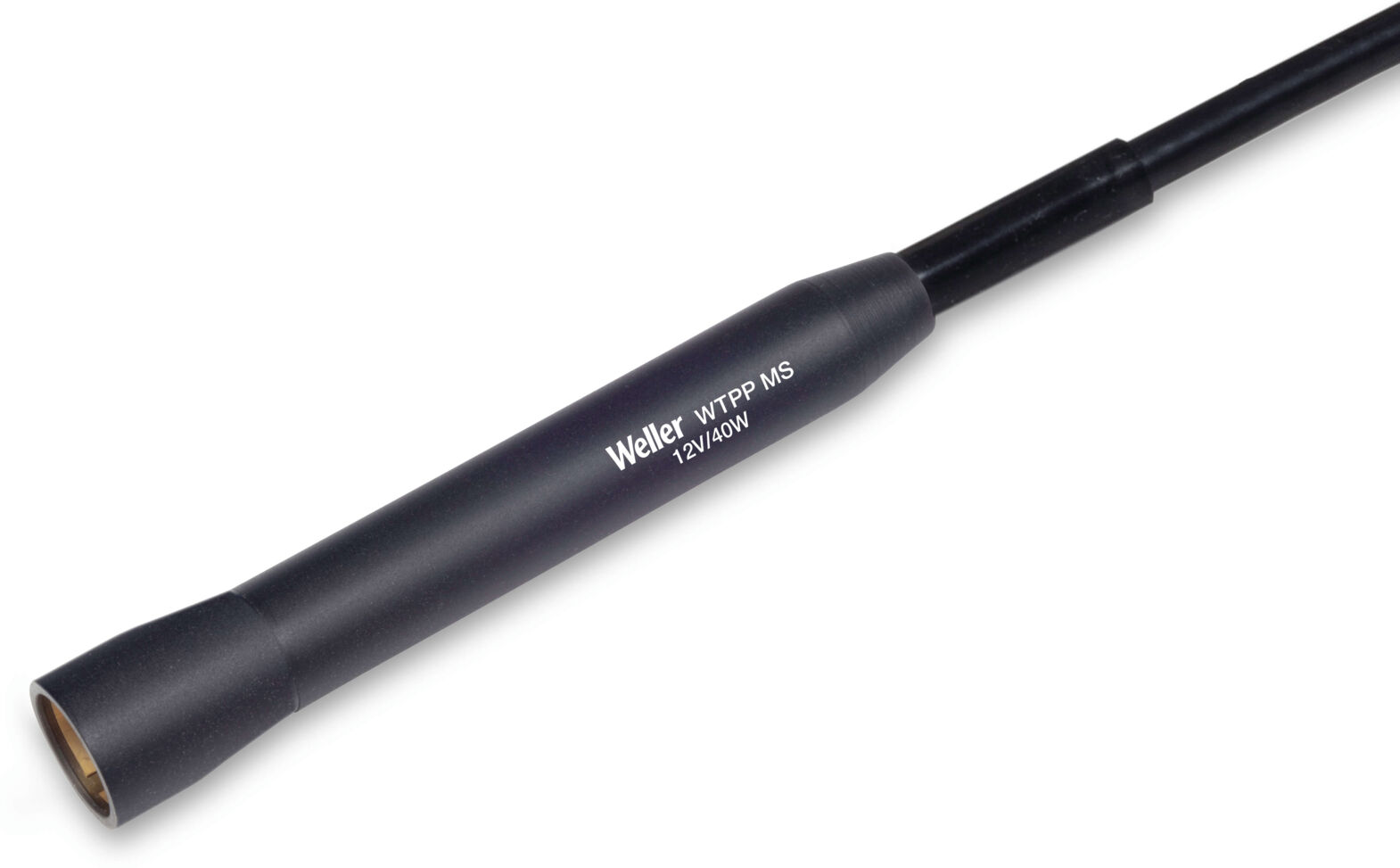

Soldering Iron WTPP MS 529.240.99

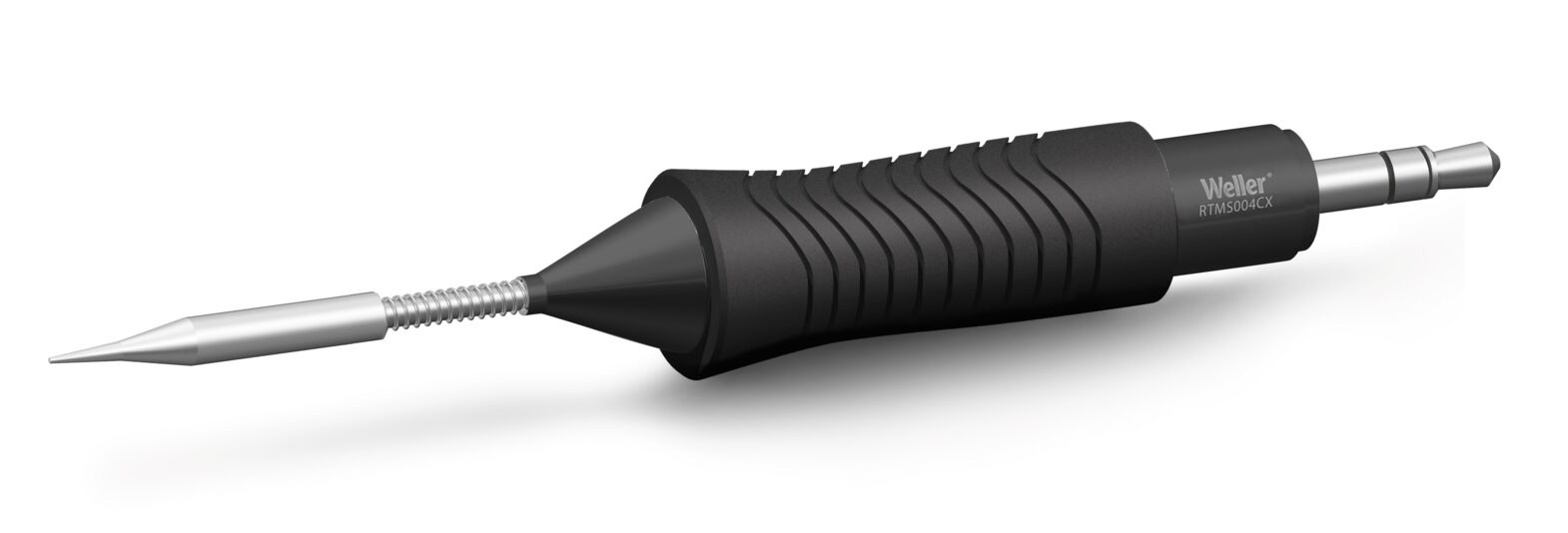

Soldering Tip RTP 004 S MS 501.102.99

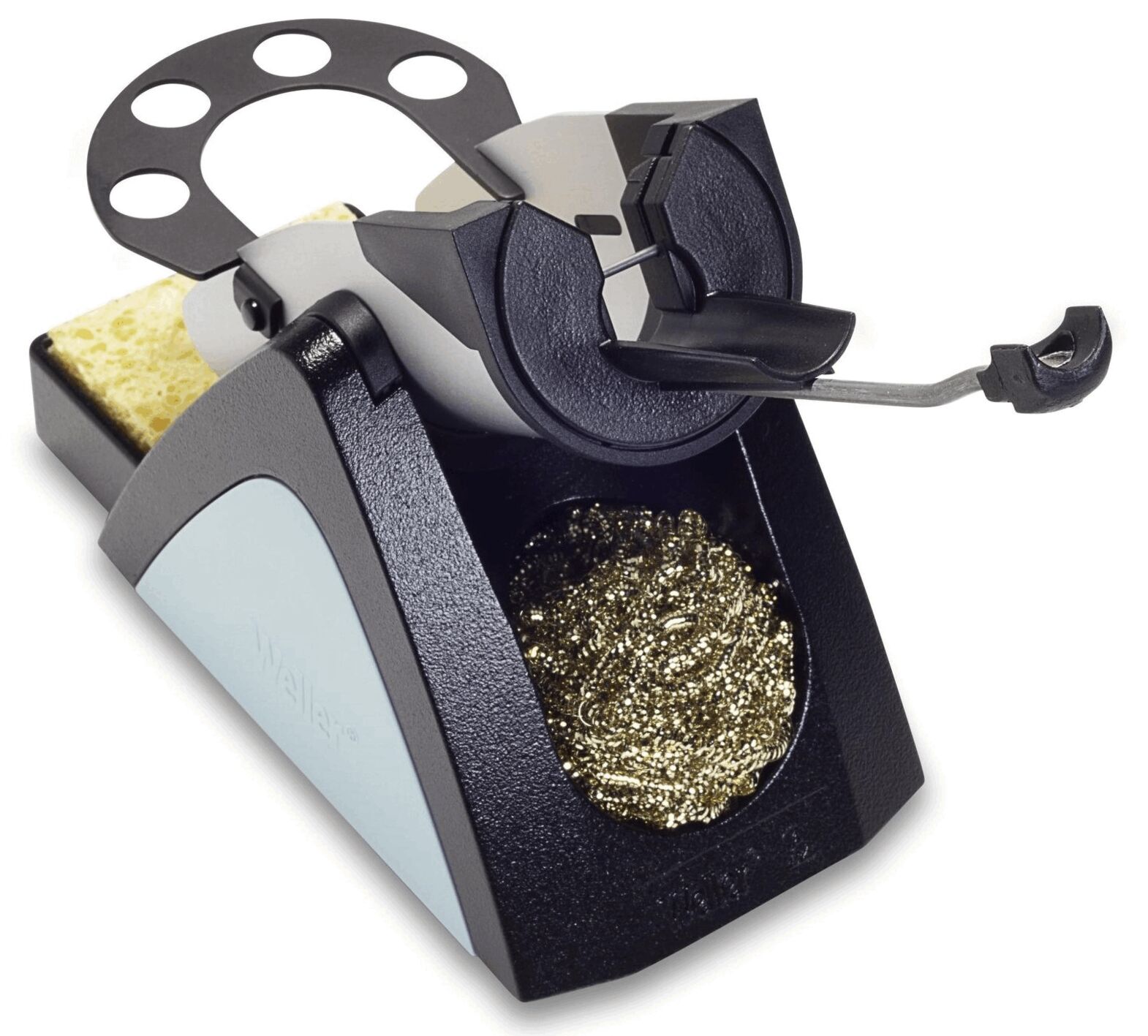

Safety Rest WSR 205 515.179.99



included soldering iron
included soldering iron
WTPP MS
Safety rest
Safety rest
WSR 205
suitable soldering tip series
suitable soldering tip series
RTP
Heating-up time
Heating-up time
3 s
Power
Power
95 W
Channels
Channels
1
Voltage
Voltage
230 V
ESD
ESD
yes
Temperature accuracy +/-
Temperature accuracy +/-
9 °C
Temperature range
Temperature range
50 - 450 °C
Temperature stability +/-
Temperature stability +/-
2 °C
Weight
Weight
1.9 kg
Show accessories
Accessories

Spares

The image displays a black digital temperature control device with a blue display. It has buttons for temperature adjustment and currently shows 350 °C. The brand "Weller" is clearly visible.
WT 1M Supply unit
WT1M 1-channel supply unit
95W, 230V
dpvlink
30397

334,05 EUR
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

WT 1M Soldering station sets

The soldering station sets with the WT 1M supply unit are professional complete solutions that are ideal for various demanding soldering applications in electronics production, repair and prototype development. These sets combine the powerful WT 1M supply unit with high-quality soldering irons and accessories to make the work process efficient and precise. They are very flexible and can be expanded as required. The sets offer precision, durability and ergonomics at the highest level.


Article image
Article description
included soldering iron
Safety rest
suitable soldering tip series
Heating-up time
Power
Channels
Price
Compare
NEW
534.486.99 - WT 1010M Soldering station set
534.486.99
WT 1010M Soldering station set
WTMP MS
WSR 205
RTM
5 s
95 W
1
524,50 EUR
NEW
534.496.99 - WT 1011M Soldering station set
534.496.99
WT 1011M Soldering station set
WTPP MS
WSR 205
RTP
3 s
95 W
1
524,50 EUR
NEW
534.606.99 - WT 1012M Soldering station set
534.606.99
WT 1012M Soldering station set
WTMT MS
WSR 211
RTW
5 s
95 W
1
621,20 EUR
