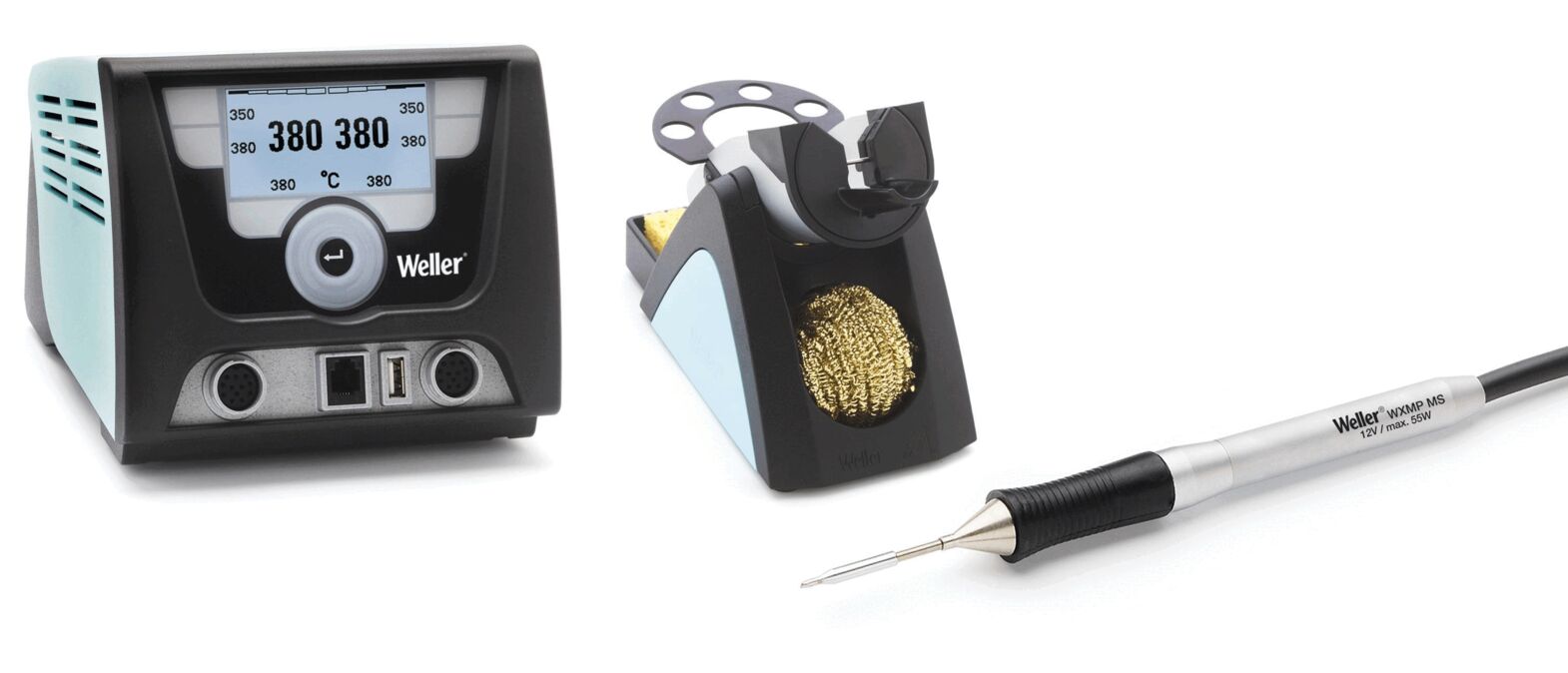

The image displays a soldering iron kit. On the left is a digital soldering iron controller with a display, on the right a soldering iron and a holder with a wire brush.
WX 2010 MICRO MS soldering station
(Product No.: 534.226.70)
The image displays a soldering iron kit. On the left is a digital soldering iron controller with a display, on the right a soldering iron and a holder with a wire brush.
Notice

WX 2010 MICRO MS soldering station

WX 2010 MICRO MS soldering station

dpvlink:
24426
included soldering iron:
WXMPS MS
Safety rest:
WSR 200
suitable soldering tip series:
RTM MS
Heating-up time:
5 s
Properties:
Further product information

at short notice at short notice
909,30 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

WX 2010 MICRO MS soldering station

The WX 2010 MICRO MS soldering station from Weller is a state-of-the-art solution for precise standard and micro soldering applications that meet MIL-SPEC / IPC standards. The station features an extremely fast heat-up time of just 5 seconds and offers a temperature stability of ±2 °C and a temperature accuracy of ±9 °C in the range of 100 - 550 °C.
The soldering station has an automatic tool recognition that ensures the connected tool is immediately identified and optimal settings are automatically applied. The intelligent soldering iron with motion sensor and integrated data storage enables a tool-free tip change and ensures energy efficiency by activating the tools only when needed. Additional devices are automatically put into standby mode.
The station offers multilingual menu navigation and ESD protection, with a weight of 3.45 kg and dimensions of 154 mm width, 135 mm height, and 174 mm length. The digital operation and the 2-in-1 safety rest for wet and dry tip cleaning complete the profile of this efficient soldering station.



Contents:

534.203.99

WX 2

Power unit

529.213.99

WXMP MS

Micro soldering iron 40 W, 12 V with soldering tip RTM013SMS

515.174.99

WSR 200

Safety rest



included soldering iron
included soldering iron
WXMPS MS
Safety rest
Safety rest
WSR 200
suitable soldering tip series
suitable soldering tip series
RTM MS
Heating-up time
Heating-up time
5 s
Automatic tool detection
Automatic tool detection ensures that soldering stations and other systems identify the connected tool and make the optimum settings automatically.
yes
Channels
Channels
2
Power
Power
255 W
Voltage
Voltage
230 V
Height
Height
135 mm
Length
Length
174 mm
Width
Width
154 mm
ESD
ESD
yes
Control
Control
digital
Temperature accuracy +/-
Temperature accuracy +/-
9 °C
Temperature range
Temperature range
100 - 550 °C
Temperature stability +/-
Temperature stability +/-
2 °C
Weight
Weight
3.45 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

Infrared heating plate WHP 3000 - 600W
WHP 3000 infrared preheating plate Weller
Temperature range 50 ° C – 400 ° C
heated surface 120 x 190 mm, 600W / 230V
dpvlink
9624

1.522,80 EUR
Infrared heating plate WHP 3000 - 1200W
WHP 3000 infrared heating plate Weller
Temperature range 50 ° C – 400 ° C
heated surface 190 x 245 mm, 1200 W / 230V
dpvlink
9624

1.981,30 EUR
Preheating plate WHP 1000
WHP 1000 preheating plate Weller
heated area 220 x 150 mm, ESD-safe
Temperature range 50 ° C - 300 ° C
1000W / 230V
dpvlink
13775

1.872,15 EUR
Soldering tip needle tip RTM 002 C
RT-1 / RTM 002 C soldering tip / needle tip
dpvlink
6882

25,85 EUR
Soldering tip pointed RTM 008 C
RT-2 / RTM 008 C soldering tip / round tip 0.8 mm
dpvlink
6884

25,85 EUR
Soldering tip chisel-shaped bent 30° RTM...
RT 3XMY chisel tip 30° bent 1.3 x 0.5 mm
dpvlink
6889

45,95 EUR
Soldering tip chisel-shaped RTM 013 S
RT-3 / RTM 013 S soldering tip / chisel tip
1.3 x 0.4 mm
dpvlink
6886

25,85 EUR
Soldering tip chisel-shaped RTM 015 S
RT-4 / RTM 015 S soldering tip / chisel tip
1.5 x 0.4 mm
dpvlink
6886

25,85 EUR
Soldering tip chisel-shaped bent 30° RTM...
RT-5/RTM 008 S X soldering tip / chisel tip
0.8 x 0.4 mm, bent
dpvlink
6889

25,85 EUR
Soldering tip round sloped 45° RTM 012 B...
RT-6/RTM 012 B soldering tip / round
beveled 45 ° 1.2 mm
dpvlink
6891

25,85 EUR
Soldering tip blade tip sloped 45° RTM 030...
RT-7 / RTM 030 K soldering tip / blade tip
45 ° beveled, 2.8 mm
dpvlink
6893

25,85 EUR
Soldering tip chisel-shaped RTM 022 S
RT-8 / RTM 022 S soldering tip / chisel tip
2.2 x 0.4 mm
dpvlink
6886

25,85 EUR
Soldering tip chisel-shaped RTM 008 S
RT-9 /RTM 008 S soldering tip / chisel-shaped
0.8 x 0.4 mm
dpvlink
6886

25,85 EUR
Gullwing tip RTM 020 G
RT-10 GW /RTM 020 G Gullwing tip
dpvlink
8302

25,85 EUR
Soldering tip chisel-shaped RTM 036 S
RT-11 / RTM 036 S soldering tip chisel-shaped
3.6 x 0.9 mm
dpvlink
6886

41,15 EUR
Soldering tip chisel-shaped RTM 004 S
RT-1SC / RTM 004 S soldering tip / chisel tip
0.15 x 0.4 mm
dpvlink
6886

25,85 EUR
Measuring tip RTM 028 X
RT / RTM 028 X measuring tip
dpvlink
13771

34,45 EUR
Soldering tip RTW 1
RTW 1 pair of soldering tips 0.2 mm, 45 °
(suitable for WMRT)
dpvlink
7491

59,35 EUR
Soldering tip RTW 2
RTW 2 pair of soldering tips 0.7 x 0.4 mm, 45 °
(suitable for WMRT)
dpvlink
7493

59,35 EUR
Soldering tip RTW 3
RTW 3 pair of soldering tips 3.0 x 0.7 mm, 45 °
(suitable for WMRT)
dpvlink
7495

69,85 EUR
Soldering tip RTW 4
RTW 4 pair of soldering tips 6.0 x 0.7 mm, 45 °
(suitable for WMRT)
dpvlink
7497

81,35 EUR
Soldering tip RTW 6NW
RTW NW soldering tip pair 0.2 mm, 45 °
(suitable for WMRT)
not wettable, for soldering and desoldering
mini-components 0201 / 0402
dpvlink
13559

81,35 EUR
The image shows a black cable with two transparent connectors at the ends. On the right, two small devices are depicted, along with order numbers.
WX connecting cable
WX connection cable
to connect two WX2 stations
dpvlink
14846

13,95 EUR
The image shows a black plug with a trapezoidal end that has five small, round contacts. On the top, it reads "Wieler". The plug has two metal connectors on the sides.
WX adapter for PC
WX adapter for PC
to connect the WX station to a PC
WX cable additionally required
dpvlink
14846

23,95 EUR
The image shows a black D-Sub connector with 9 pins. It has a rectangular shape and features two screws on the sides for mounting. A brand logo is visible at the top.
WX adapter for WFE and WHP
WX adapter for WFE/WHP
to connect the WX station with WFE
solder fume extraction systems or WHP
pre-heating plate, WX cable additionally required
dpvlink
14846

25,35 EUR
WXHP 120 Preheating plate 120 W
Preheating plate WXHP 120
Temperature range 50 °C - 200 °C, 120 W, 24 V
Can be connected to WX 1, WX 2, WXD 2,
WXA 2, WXR 3
dpvlink
26711

570,46 EUR

Spares

WXMT Micro desoldering tweezers
WXMT desoldering tweezers 24 V, 40 watts
without tips
dpvlink
14810

167,50 EUR
The image shows a sleek, silver device with a smooth, cylindrical end and an attached black cable. It is a sensor or measuring instrument.
WXMP micro soldering iron handpiece
WXMP micro soldering iron handpiece, 24, 40 watts
dpvlink
14818

179,00 EUR
The image displays an electronic device with a display-like surface. It features buttons and ports on the front. The colors are black and light blue, and it is used for temperature control.
WX 2 supply unit
WX 2 - 2-channel supply unit 230V
digital control technology,temperature range
100°C-550°
max. power 200 W (255 W)
Serial number:........................
dpvlink
14792

689,15 EUR
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 593
Complete Catalog 2023 - 2024

Product Family

Article image
Article description
included soldering iron
Safety rest
suitable soldering tip series
Heating-up time
Price
Compare

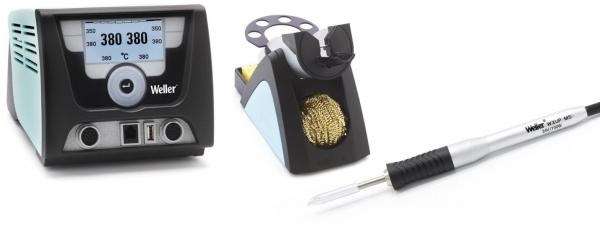

534.226.72 - WX 2012 ULTRA MS soldering station
