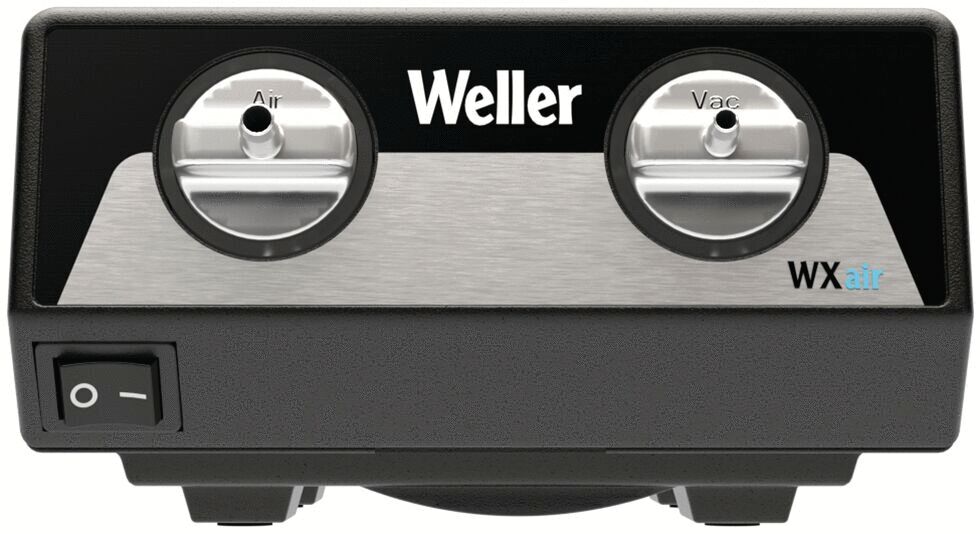

The image displays a black device with a curved shape. At the top, there are two round buttons and the logo "Weller". On the bottom left, there is an on/off switch.

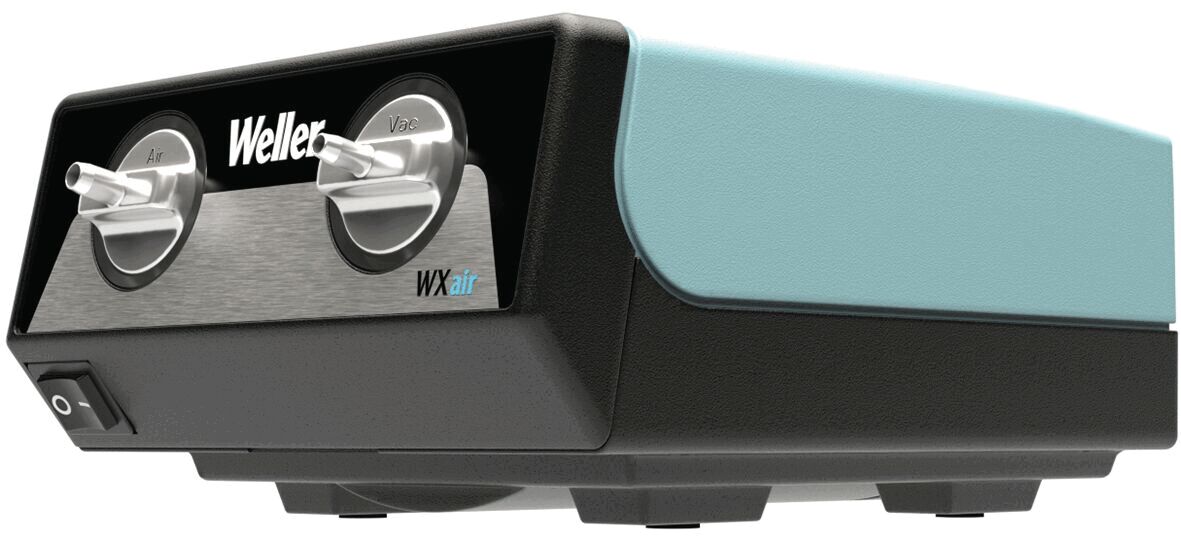

The image displays a black and turquoise device with two round knobs on the front. It reads "Weller WXair". It has a smooth surface and a rectangular shape.
Preview: The image displays a black device with a curved shape. At the top, there are two round buttons and the logo "Weller". On the bottom left, there is an on/off switch.
Preview: The image displays a black and turquoise device with two round knobs on the front. It reads "Weller WXair". It has a smooth surface and a rectangular shape.
WXair Rework module
(Product No.: 534.526.99)
The image displays a black device with a curved shape. At the top, there are two round buttons and the logo "Weller". On the bottom left, there is an on/off switch.
The image displays a black and turquoise device with two round knobs on the front. It reads "Weller WXair". It has a smooth surface and a rectangular shape.
Mobile Preview: The image displays a black device with a curved shape. At the top, there are two round buttons and the logo "Weller". On the bottom left, there is an on/off switch.
Mobile Preview: The image displays a black and turquoise device with two round knobs on the front. It reads "Weller WXair". It has a smooth surface and a rectangular shape.
Notice

WXair Rework module

WXair Rework module

dpvlink:
26826
Width [mm]:
154 mm
Height [mm]:
195 mm
Length [mm]:
87 mm
Power:
70 W
Properties:
Further product information

at short notice at short notice
563,75 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

WXair Rework module

WXair Rework Module
The WXair Rework Module, an extension for the WXSmart soldering station, enables seamless integration into a complete combo rework station. This globally first standalone 2-in-1 rework module is distinguished by an integrated high-performance rotary vane pump. It offers optional foot switch activation for efficient workflows and replaceable filters that extend the pump's lifespan. Complete ESD safety ensures protection in sensitive work environments.

Compatibility with various tools such as the Weller desoldering iron WXDP 120 and WXDV 120, as well as the hot air pencil WXHAP 200, maximizes flexibility. Backward compatibility is also provided.

Technical Specifications:
  • Dimensions: 195 x 154 x 87 mm (L x W x H)
  • Weight: approx. 1.28 kg
  • Power supply: 230 V, 50 Hz
  • Power consumption: 70 W
  • Flow rate: 18 l/min
  • Vacuum: 70 kPA

    • Width [mm]
    Width
    154 mm
    Height [mm]
    Height
    195 mm
    Length [mm]
    Length
    87 mm
    Power
    Power
    70 W
    Fuse
    Fuse
    T4A
    Voltage
    Voltage
    100 - 240 V
    ESD
    ESD
    yes
    Flow rate max. per minute
    Flow rate max. per minute
    18 l
    Weight
    Weight
    1.28 kg
    Pictograms
    ESD protective
    Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

    Documents

    Downloads

    Please log in to download datasheets! :
    There are several datasheets for this product. Please log in!

    Catalogues

    Page: 588
    Complete Catalog 2023 - 2024

    Product Family

    Article image
    Article description
    Width [mm]
    Height [mm]
    Length [mm]
    Power
    Price
    Compare
    534.526.99 - WXair Rework module
    534.526.99
    WXair Rework module
    154 mm
    195 mm
    87 mm
    70 W
    563,75 EUR
    Show Compare List (0)
