Soldering tip chisel-shaped RTM 003 S NW MS
(Product No.: 544.626.71)

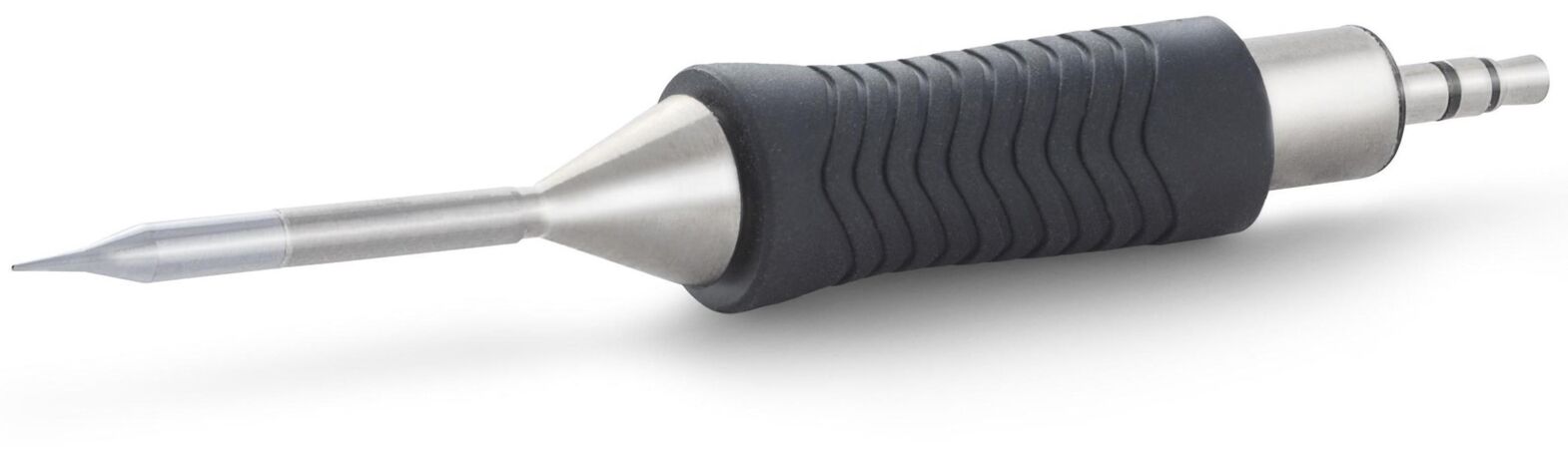

The image shows a tool that has a sharp metal tip on one end. The handle is non-slip, black with embossed lines, and it ends in a narrow connection.

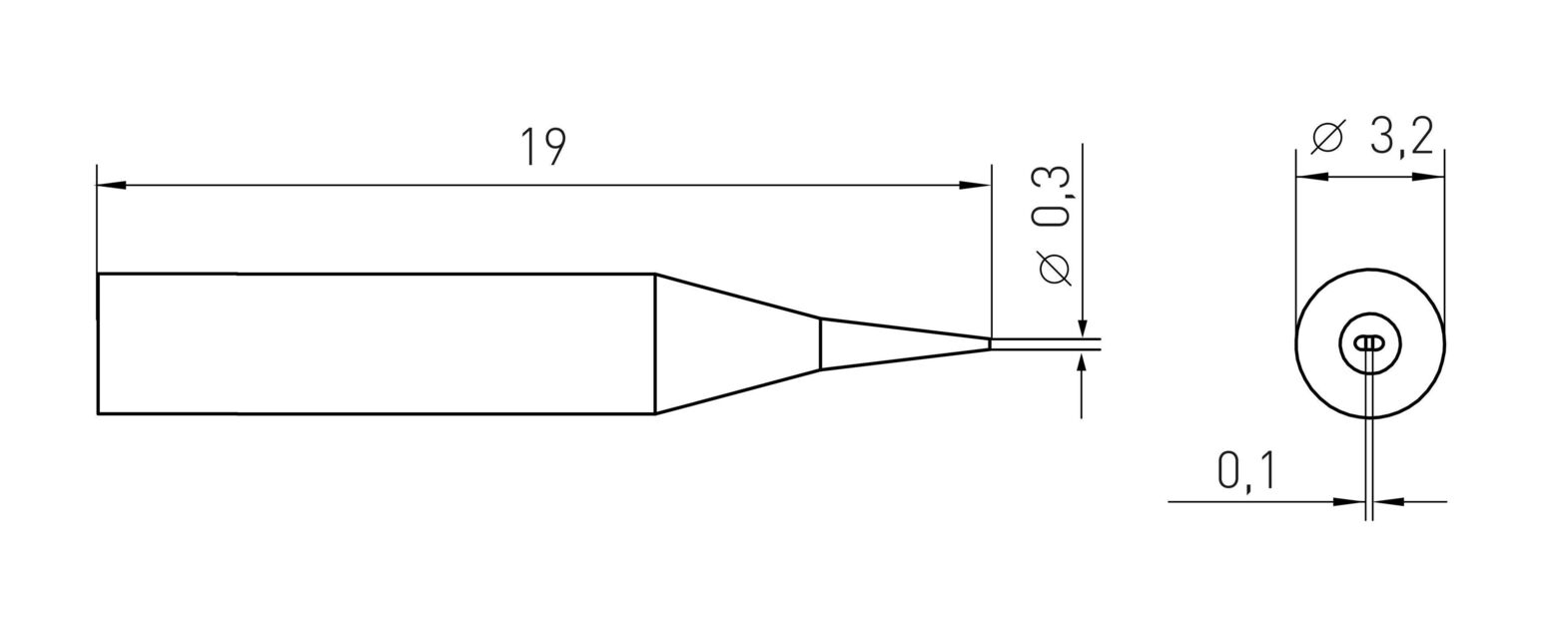

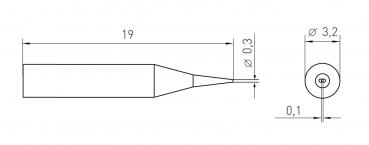

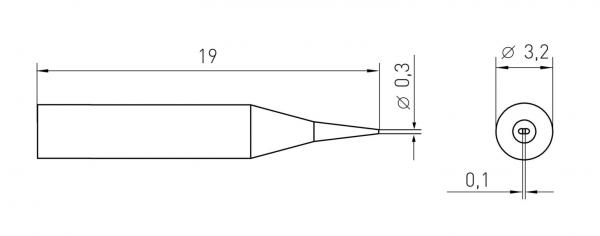

The image displays a technical drawing of a thin, pointed object with specified dimensions: 19 mm in length, 3.2 mm in diameter at the thicker part, and 0.3 mm at the tip. A cross-section is shown on one side.
The image shows a jack plug with a metallic end and a rubberized, non-slip grip. It has three contact points and is attached to a thin cable.
Mobile Preview: The image shows a tool that has a sharp metal tip on one end. The handle is non-slip, black with embossed lines, and it ends in a narrow connection.
Mobile Preview: The image displays a technical drawing of a thin, pointed object with specified dimensions: 19 mm in length, 3.2 mm in diameter at the thicker part, and 0.3 mm at the tip. A cross-section is shown on one side.
Mobile Preview: The image shows a jack plug with a metallic end and a rubberized, non-slip grip. It has three contact points and is attached to a thin cable.
Notice

Soldering tip chisel-shaped RTM 003 S NW MS

Soldering tip chisel-shaped RTM 003 S NW MS

dpvlink:
6886
Tip width:
0.3 mm
Thickness/diameter:
0.1 mm
Further product information

at short notice at short notice
44,05 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Soldering tip chisel-shaped RTM 003 S NW MS

The soldering tip Chisel Tip RTM 003 S NW MS from Weller is a highly precise component, specifically designed for use with the soldering iron models WMRP and WXMP. This straight chisel-shaped soldering tip allows for exact and efficient heat transfer, making it ideal for precise soldering tasks. The tip itself has a width of 0.3 mm and a thickness or diameter of 0.1 mm. Belonging to the RTM series guarantees a compatible and powerful addition to the corresponding soldering irons. With this soldering tip from Weller, you achieve optimal soldering results, thanks to the precise workmanship and specific shape.
Tip width
Tip width
0.3 mm
Thickness/diameter
Thickness/diameter
0.1 mm
Soldering tip series
Soldering tip series
RTM
Soldering tip shape
Soldering tip shape
chisel-shaped
suitable soldering iron
suitable soldering iron
WMRP / WXMP
