Soldering tip blade tip RTMS 030 K MS

(Product No.: 501.151.99)

Mobile Preview: Image

Mobile Preview: Image

Mobile Preview: Image

(Product No.: 501.151.99)

Soldering tip blade tip RTMS 030 K MS

ArticleNo: 501.151.99

dpvlink:

26984

Further product information

Availability: at short notice

at short notice

at short notice

40,20 EUR

1 PCE

Product Info

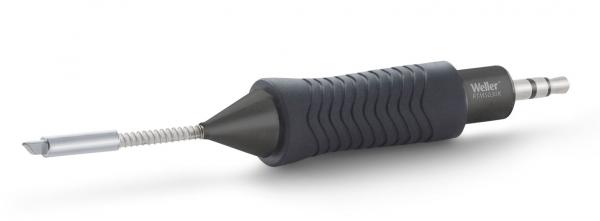

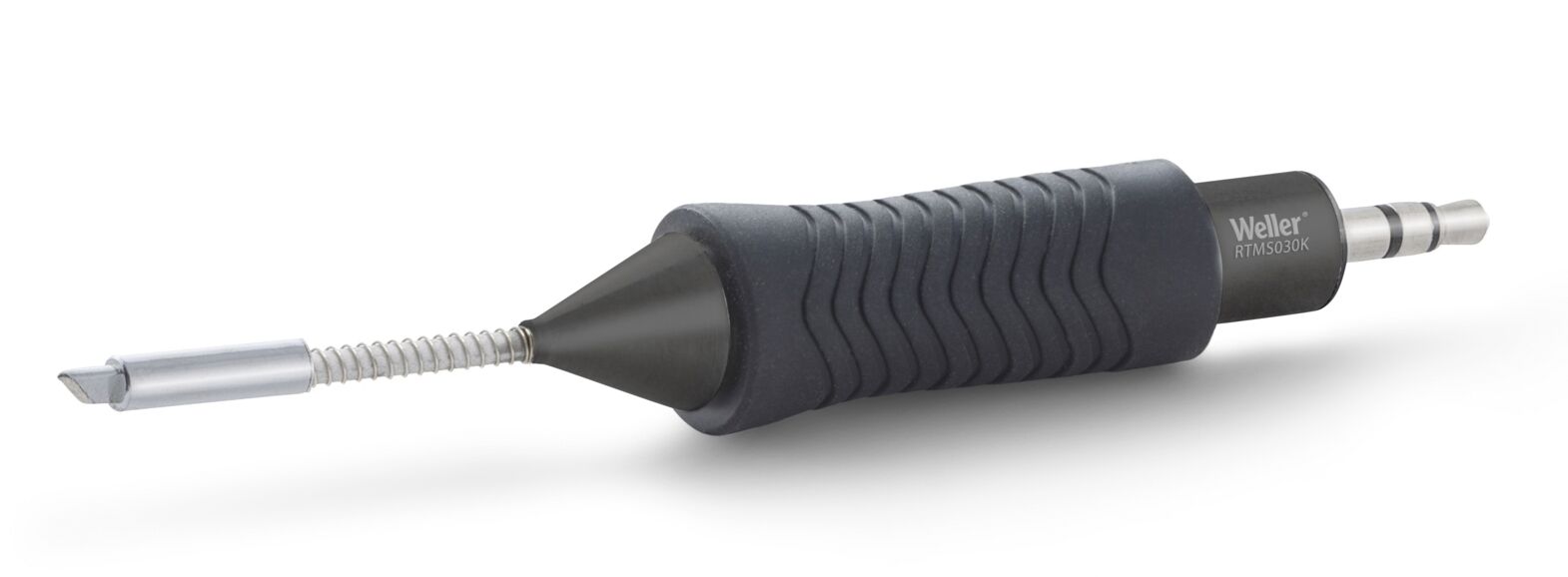

The RTMS 030 K MS soldering tip from Weller is a highly specialized soldering tip designed for use in MIL-SPEC applications. It meets the rigorous requirements of MIL-STD-2000 and offers improved shielding against interference frequencies thanks to its additional insulation. This specification ensures reliable performance in sensitive electronic environments.

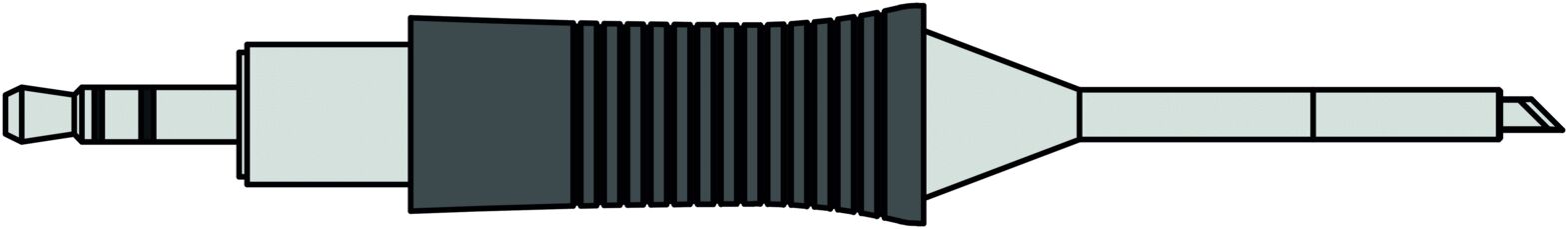

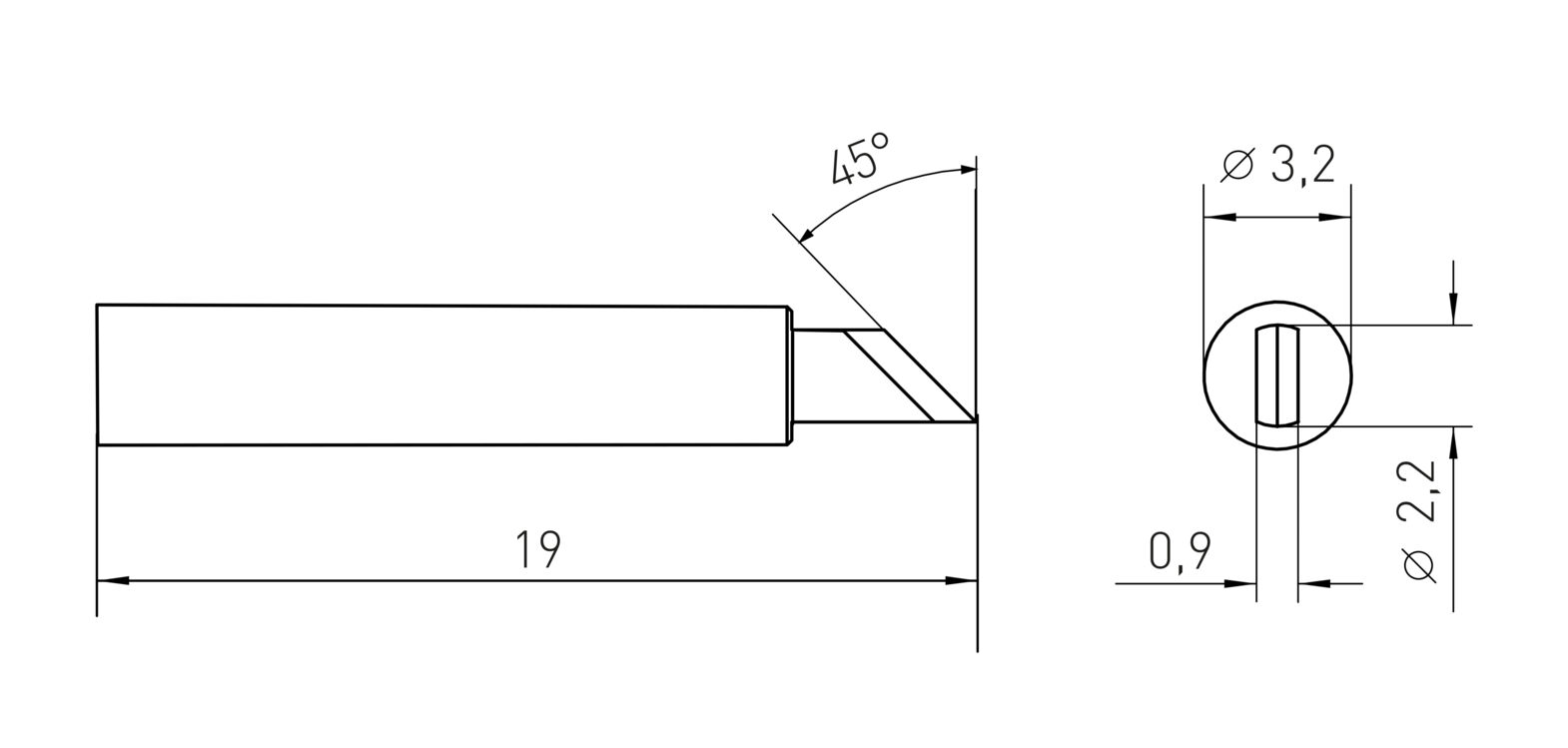

The soldering tip has a beveled knife shape with a width of 3.0 mm and a length of 19 mm, which enables precise work. It is part of the RTMS soldering tip series and is exclusively compatible with Weller soldering iron models WXMPS MS and WXsmart. This combination ensures optimal functionality and longevity of the soldering tip.
Please note that the RTMS 030 K MS soldering tip is not compatible with conventional soldering irons and was specifically developed for use with MS soldering irons.

Details

Length [mm] Length [mm]: 19 mm
Tip width Tip width: 3.0 mm
Soldering tip series Soldering tip series: RTMS
Soldering tip shape Soldering tip shape: blade tip
suitable soldering iron suitable soldering iron: WXMPS

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Product Family

Article image

Article description

Length [mm]

Tip width

Soldering tip series

Soldering tip shape

suitable soldering iron

Price

Compare

501.151.99 - Soldering tip blade tip RTMS 030 K MS

501.151.99
Soldering tip blade tip RTMS 030 K MS

19 mm

3.0 mm

RTMS

blade tip

WXMPS

40,20 EUR

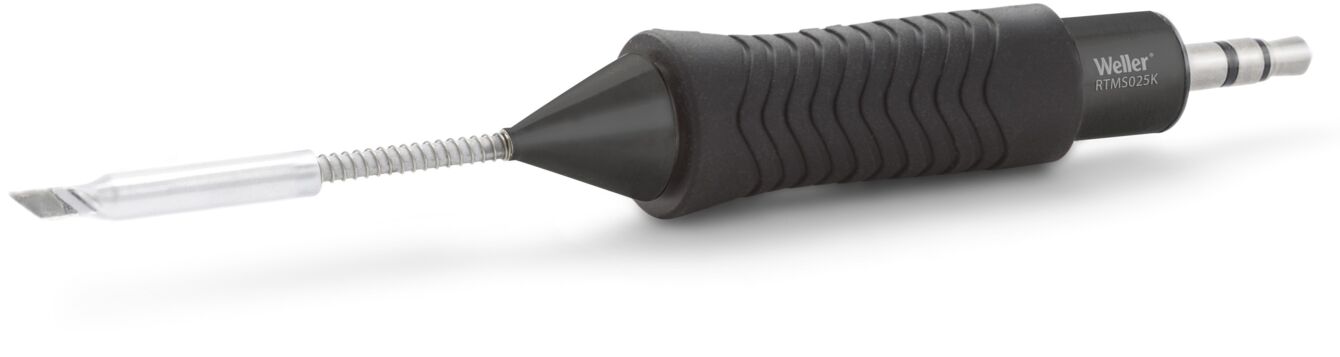

501.087.99 - Soldering tip blade tip RTMS 025 K MS

501.087.99
Soldering tip blade tip RTMS 025 K MS

19 mm

2.5 mm

RTMS

blade tip

WXMPS

40,20 EUR
