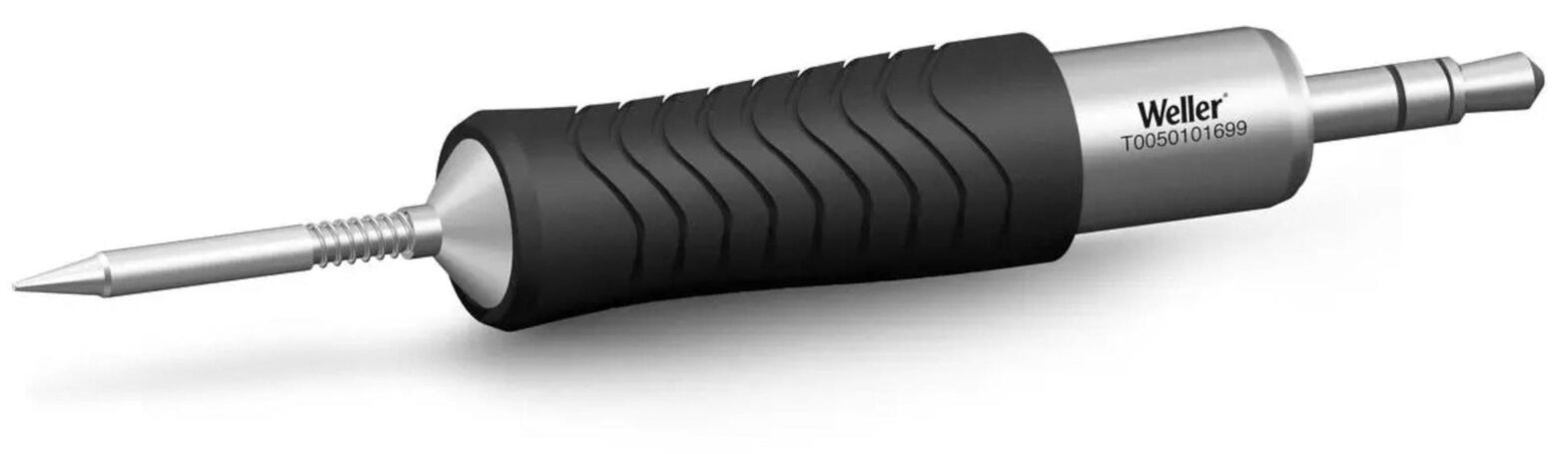

Soldering tip needle tip RTP 004 C MS

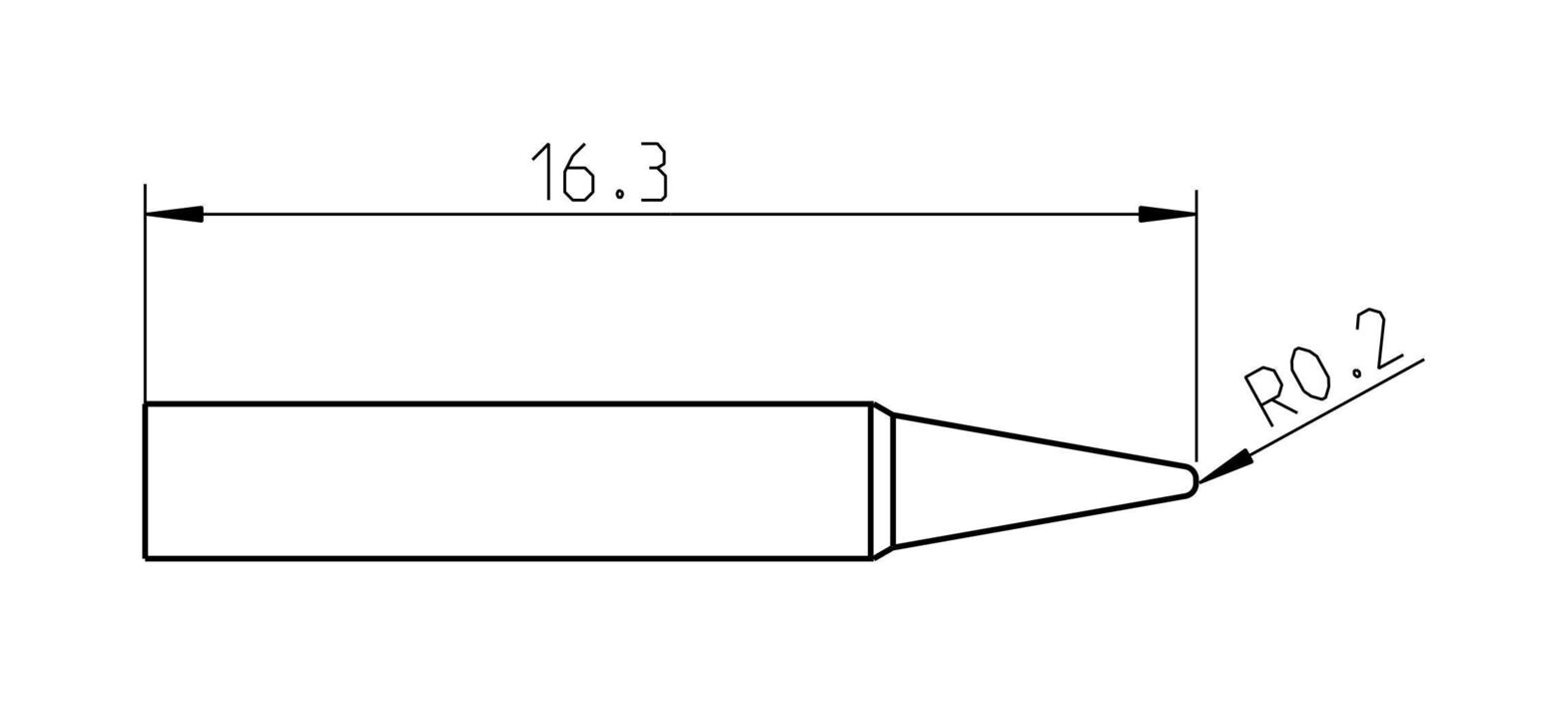

The soldering tip RTP 004 C MS from Weller, specifically designed for use with the soldering iron WXPP MS, meets the strict MIL-SPEC standards according to MIL-STD-2000. This needle tip is characterized by a conical shape with a diameter of 0.4 mm and a length of 16.3 mm. It belongs to the RTP series of soldering tips and is exclusively compatible with the corresponding MS soldering iron.
The special feature of the MS soldering tips lies in their additional insulation against ground, which prevents the occurrence of interference frequencies. Due to this special configuration, use with conventional handpieces is not possible. This ensures high precision and reliability in specialized soldering tasks that meet MIL-SPEC requirements.
The special feature of the MS soldering tips lies in their additional insulation against ground, which prevents the occurrence of interference frequencies. Due to this special configuration, use with conventional handpieces is not possible. This ensures high precision and reliability in specialized soldering tasks that meet MIL-SPEC requirements.
Details
- Ø Ø
- 0.4 mm
- Length [mm] Length [mm]
- 16.3 mm
- Soldering tip series Soldering tip series
- RTP
- Soldering tip shape Soldering tip shape
- needle tip
- suitable soldering iron suitable soldering iron
- WXPP MS
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
