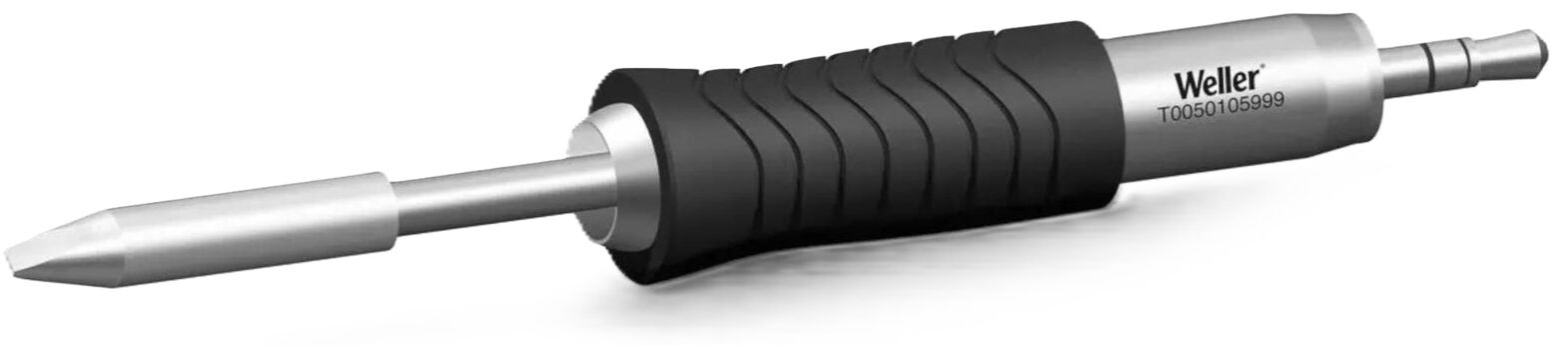

Soldering tip chisel-shaped RTU 022 S MS
The soldering tip RTU 022 S MS from Weller is a high-quality chisel tip, specifically designed for use with the soldering iron WXUP MS. With a width of 2.2 mm and a thickness of 0.6 mm, and a length of 28 mm, this tip enables precise soldering work. It is part of the RTU series and is characterized by its chisel shape.
The special feature of this soldering tip is its MIL-SPEC compliance according to MIL-STD-2000, which ensures higher reliability and performance. It has additional insulation against ground, which effectively prevents interference frequencies, thus allowing for interference-free application.
Please note that the RTU 022 S MS can only be used with the designated soldering iron WXUP MS, as it is not compatible with other handpieces. This ensures optimal functionality and safety during use.
The special feature of this soldering tip is its MIL-SPEC compliance according to MIL-STD-2000, which ensures higher reliability and performance. It has additional insulation against ground, which effectively prevents interference frequencies, thus allowing for interference-free application.
Please note that the RTU 022 S MS can only be used with the designated soldering iron WXUP MS, as it is not compatible with other handpieces. This ensures optimal functionality and safety during use.

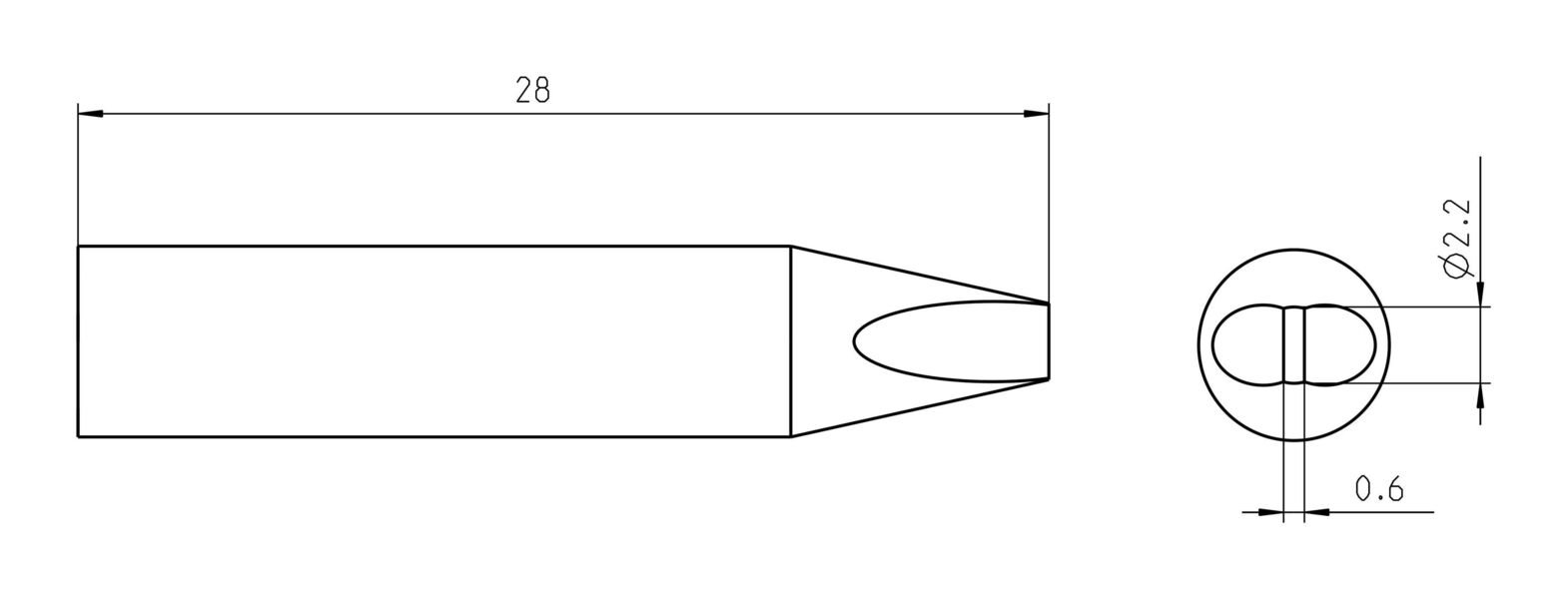

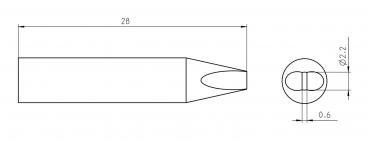

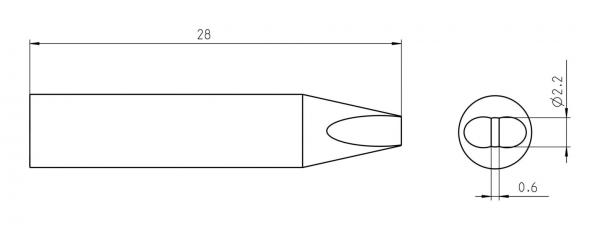

Details
- Tip width Tip width
- 2.2 mm
- Thickness/diameter Thickness/diameter
- 0.6 mm
- Length [mm] Length [mm]
- 28 mm
- Soldering tip series Soldering tip series
- RTU
- Soldering tip shape Soldering tip shape
- chisel-shaped
- suitable soldering iron suitable soldering iron
- WXUP MS
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
