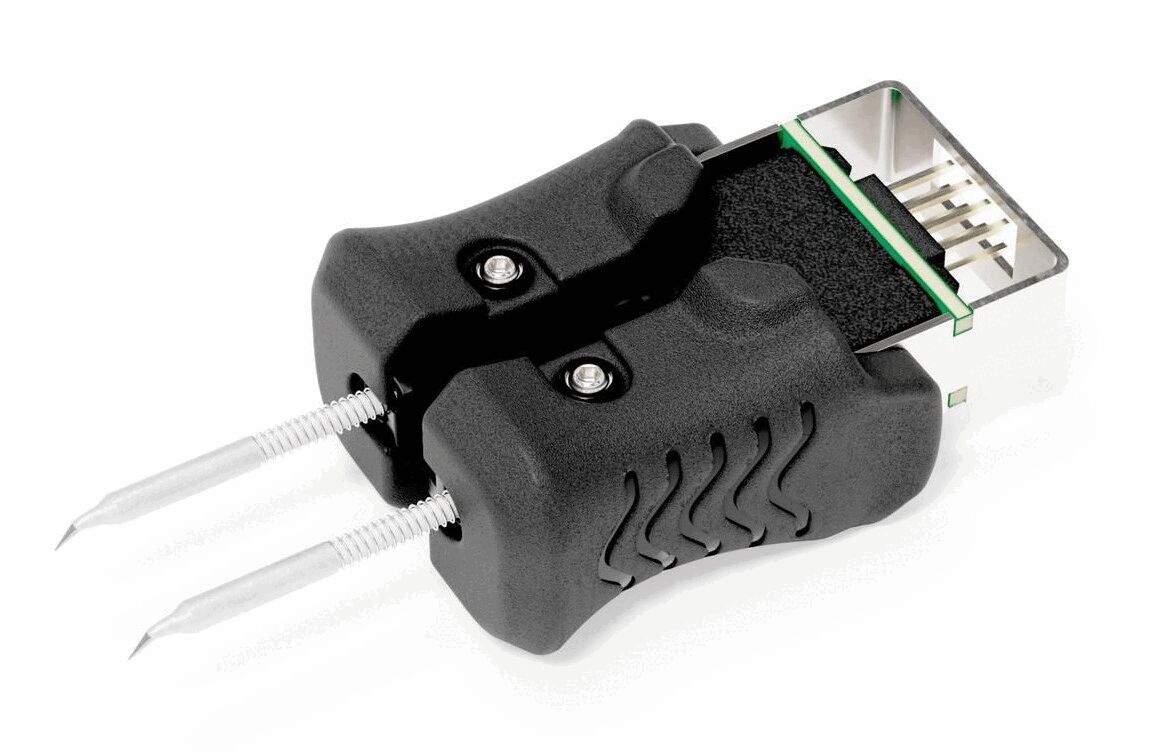

The image shows a black USB adapter with two metallic pins. The adapter has a tiered shape and a standard USB port visible on the top.
Soldering tip pair conical bent RTWPS 001 C X HM
(Product No.: 501.155.99)
The image shows a black USB adapter with two metallic pins. The adapter has a tiered shape and a standard USB port visible on the top.
Notice / Inquire

Soldering tip pair conical bent RTWPS 001 C X HM

Soldering tip pair conical bent RTWPS 001 C X HM

dpvlink:
27469
Further product information

at short notice at short notice
75,60 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Soldering tip pair conical bent RTWPS 001 C X HM

The soldering tip pair RTWPS 001 C X HM from Weller is characterized by its conical, curved shape and is specifically designed for use with the Weller desoldering tweezers WTMT and WXMTS. These high-precision tips have a diameter of only 0.1 mm and offer a power of 40W each at a voltage of 12V, which allows for a rapid heating time of just 5 seconds.
The tip length is 16.3 mm and they are ESD-safe, making them suitable for sensitive electronic work. The temperature range in which these soldering tips operate effectively is between 100 and 450 °C. The RTWPS series stands for quality and precision, making it an ideal choice for professional soldering applications.
Power
Power
40 / 40 W
Voltage
Voltage
12 V
Length
Length
16.3 mm
Ø
Ø
0.1 mm
ESD
ESD
yes
Soldering tip series
Soldering tip series
RTWPS
Soldering tip shape
Soldering tip shape
tapered , bent
suitable soldering iron
suitable soldering iron
WTMT / WXMTS
Heating-up time
Heating-up time
5 s
Temperature range
Temperature range
100 - 450 °C
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

RTWPS Pico soldering tips pair conical bent

Article image
Article description
Power
Voltage
Length
Ø
ESD
Soldering tip series
Soldering tip shape
suitable soldering iron
Heating-up time
Temperature range
Price
Compare
501.155.99 - Soldering tip pair conical bent RTWPS 001 C X HM
501.155.99
Soldering tip pair conical bent RTWPS 001 C X HM
40 / 40 W
12 V
16.3 mm
0.1 mm
yes
RTWPS
tapered , bent
WTMT / WXMTS
5 s
100 - 450 °C
75,60 EUR
