Soldering tip C120-010 left
(Product No.: JBC-C120-010)
The image displays technical drawings of two components on a circuit board. Next to the board, dimensions and reference numbers of the components are depicted.
The image shows a green circuit board with four black integrated circuits (ICs) in a row. Two metallic connectors are positioned at the top and are labeled.
Mobile Preview: The image displays technical drawings of two components on a circuit board. Next to the board, dimensions and reference numbers of the components are depicted.
Mobile Preview: The image shows a green circuit board with four black integrated circuits (ICs) in a row. Two metallic connectors are positioned at the top and are labeled.
Notice

Soldering tip C120-010 left

Soldering tip C120-010 left

dpvlink:
25933
Thickness/diameter:
0.7 mm
Soldering tip shape:
straight , blade tip
Further product information

Delivery time! Delivery time!
48,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Soldering tip C120-010 left

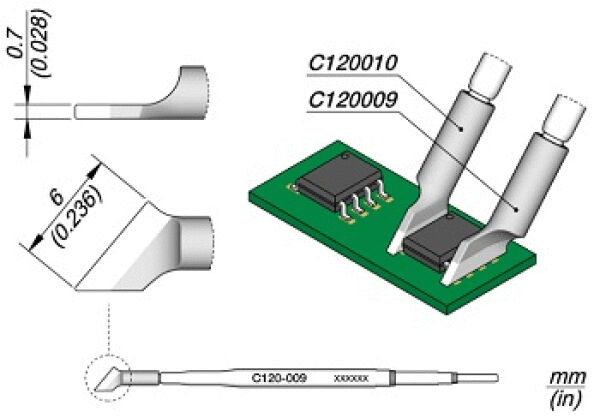

The JBC C120-010 left soldering tip is specifically designed for high-precision and specialized soldering tasks. This product features a straight blade tip with a diameter of 0.7 mm and a width of 6.0 mm, allowing for extremely fine and precise application. The rapid heating times and excellent heat transfer ensure efficient work processes. Additionally, the durability of this soldering tip is noteworthy, making it an economical choice for technical applications.

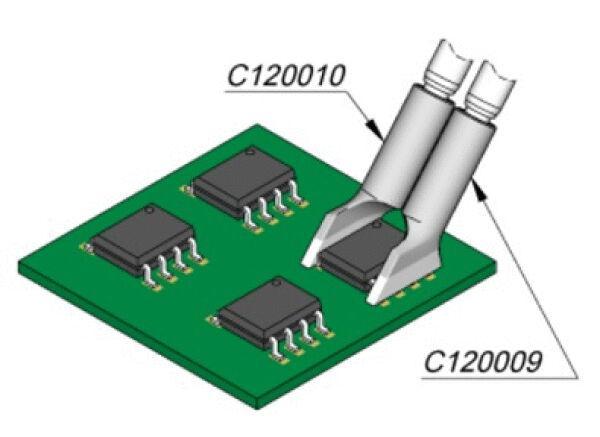

The soldering tip is specifically developed for use with the PA120 micro-tweezers from the same manufacturer and can be used for both soldering and desoldering chips or dual-in-line components. It is also compatible with the C120-009 soldering tip, which further increases flexibility in use. As part of the C120 series of soldering tips, it is exclusively suitable for the corresponding PA120 soldering iron, ensuring optimal compatibility and performance.
Thickness/diameter
Thickness/diameter
0.7 mm
Soldering tip shape
Soldering tip shape
straight , blade tip
Tip width
Tip width
6.0 mm
Soldering tip series
Soldering tip series
C120
suitable soldering iron
suitable soldering iron
PA120
