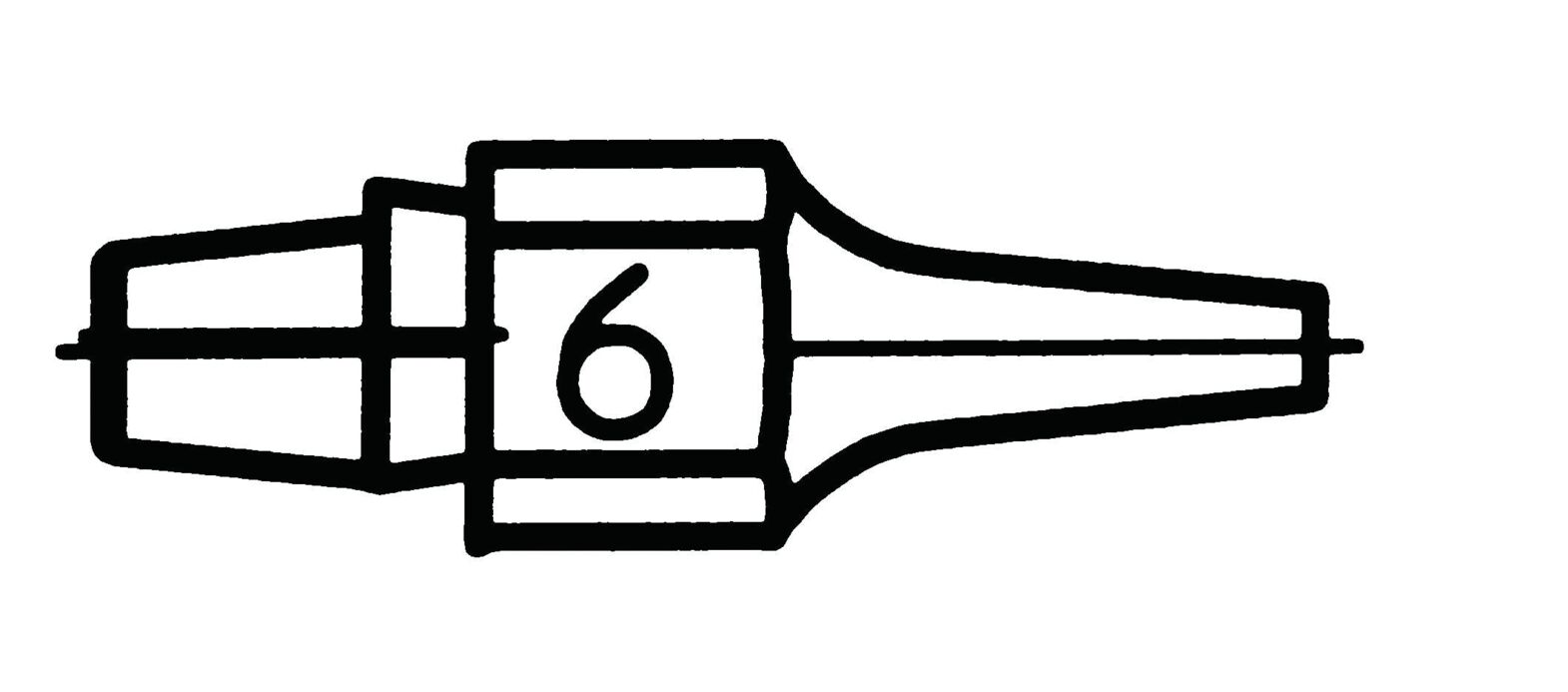

The image shows a schematic representation of a pen tip that starts at a pointed end and tapers to a wide base. In the center is the number 6.
Suction nozzle DX 116
(Product No.: 513.146.99)
The image shows a schematic representation of a pen tip that starts at a pointed end and tapers to a wide base. In the center is the number 6.
Notice

Suction nozzle DX 116

Suction nozzle DX 116

dpvlink:
6867
Test No.:
6
Internal Ø:
1.2 mm
External Ø:
2.7 mm
Length [mm]:
29 mm
Further product information

available available
9,85 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Suction nozzle DX 116

The suction nozzle DX 116 is a highly specialized accessory for the Weller desoldering stations DSX 80 and DSXV 80. It is distinguished by its ability to precisely and efficiently suction molten solder, making it an indispensable tool for repair, prototyping, and manufacturing processes in the electronics industry.
The nozzle is made from heat-resistant materials and offers an inner diameter size of 1.2 mm and an outer diameter of 2.7 mm. With a length of 29 mm, it allows for optimal handling and accessibility.
Produced by Weller, a leading manufacturer in the industry, the suction nozzle DX 116 guarantees durability and reliability when used with corresponding desoldering stations.
Test No.
Test No.
6
Internal Ø
Internal Ø
1.2 mm
External Ø
External Ø
2.7 mm
Length [mm]
Length
29 mm
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 617
Complete Catalog 2023 - 2024

Product Family


This product is compatible with (for example):

The image shows a soldering iron set: A soldering iron with a black handle and metal tip, connected by a cable. Next to it is a stand with a sponge and a small metal brush for cleaning.
DSX 80 desoldering set
DSX 80 desoldering iron Kit, 80 W / 24 V
with desoldering iron DSX80, safety rest WDH 30,
suction nozzle DX 112 + DX 113, cleaning kit and
seal for glass container
dpvlink
3856

370,40 EUR
DSX 80 desoldering iron
Desoldering iron DSX 80
with desoldering nozzle DX 113HM
dpvlink
3856

267,05 EUR
