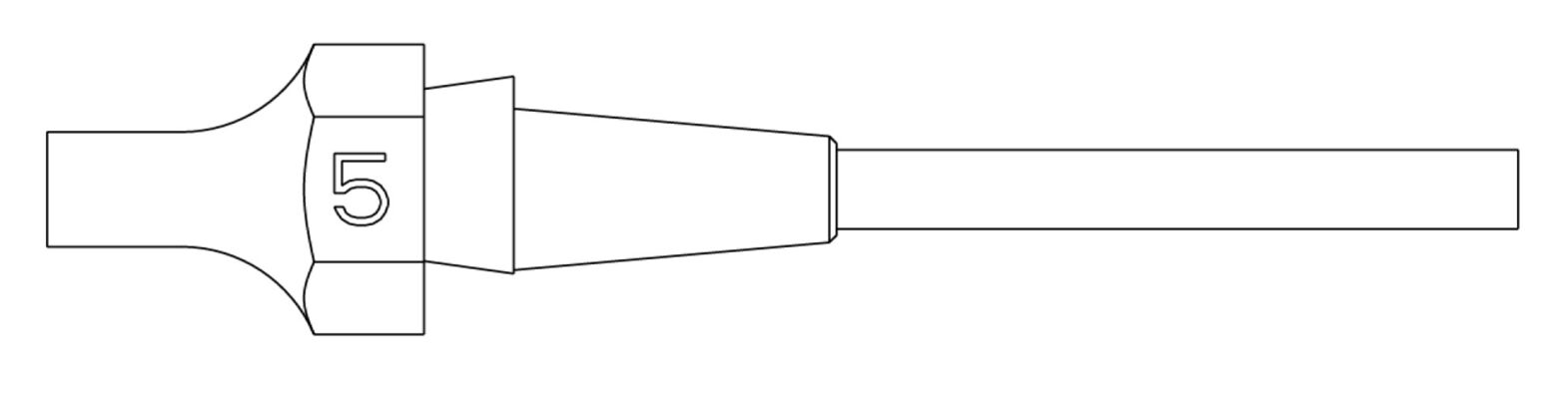

Suction nozzle XDS 5
(Product No.: 513.254.99)
The image shows a screwdriver with a slim, long handle and a properly shaped blade that bears the number 5. The handle is slightly wider and has a distinct shape.
Notice / Inquire

Suction nozzle XDS 5

Suction nozzle XDS 5

dpvlink:
16470
Internal Ø:
1.8 mm
External Ø:
3.3 mm
Further product information

available available
11,40 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Suction nozzle XDS 5

The suction nozzle XDS 5, developed by Weller, is an indispensable accessory for the desoldering stations WXDP 120 and DSX 120. It is distinguished by its precise manufacturing from heat-resistant materials and is excellently suited for extracting melted solder. With an inner diameter of 1.8 mm and an outer diameter of 3.3 mm, this nozzle provides the necessary precision for demanding repair, prototyping, and manufacturing tasks in the electronics industry. Available in various sizes and shapes, the suction nozzle XDS 5 meets the highest standards of efficiency and reliability in professional use.
Internal Ø
Internal Ø
1.8 mm
External Ø
External Ø
3.3 mm
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 617
Complete Catalog 2023 - 2024

Product Family

Weller suction nozzle XDS for WXDP 120 and DSX 120

The XDS suction nozzles are designed for the WXDP 120 and DSX 120 desoldering irons and are ideal for removing solder from a wide variety of solder joints. They heat up, melt the solder and suck it out through an integrated tube into the tin collection container when the vacuum is activated.

Article image
Article description
Internal Ø
External Ø
Price
Compare
513.250.99 - Suction nozzle XDS 1
513.250.99
Suction nozzle XDS 1
1.4 mm
2.5 mm
11,40 EUR
513.251.99 - Suction nozzle XDS 2
513.251.99
Suction nozzle XDS 2
3.0 mm
5.3 mm
11,40 EUR
513.252.99 - Suction nozzle XDS 3
513.252.99
Suction nozzle XDS 3
1.0 mm
2.3 mm
11,40 EUR
513.253.99 - Suction nozzle XDS 4
513.253.99
Suction nozzle XDS 4
1.2 mm
2.5 mm
11,40 EUR
513.254.99 - Suction nozzle XDS 5
513.254.99
Suction nozzle XDS 5
1.8 mm
3.3 mm
11,40 EUR
513.255.99 - Suction nozzle XDS 6
513.255.99
Suction nozzle XDS 6
0.7 mm
1.9 mm
11,40 EUR
513.256.99 - Suction nozzle XDS 7
513.256.99
Suction nozzle XDS 7
1.2 mm
2.7 mm
11,40 EUR
513.257.99 - Suction nozzle XDS 8
513.257.99
Suction nozzle XDS 8
1.5 mm
2.9 mm
11,40 EUR
513.258.99 - XDS 9 Measuring tip
513.258.99
XDS 9 Measuring tip


20,10 EUR
