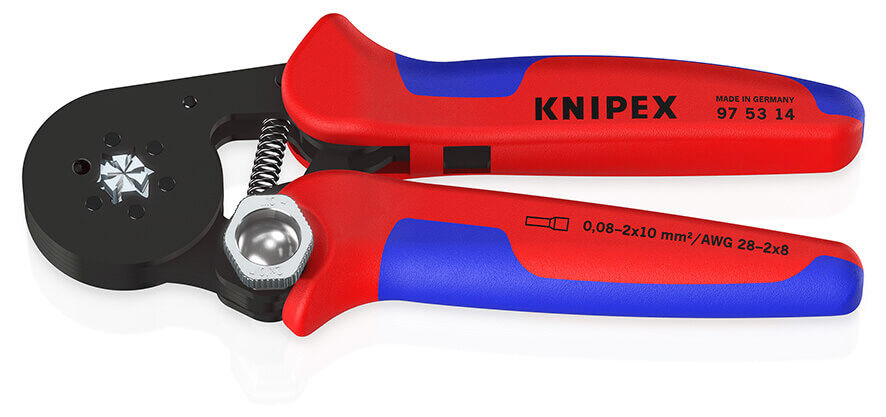

The image shows a red-blue wire cutter with a black blade. The handles are ergonomically shaped and provide a good grip. The pliers are marked with "KNIPEX" and technical specifications.

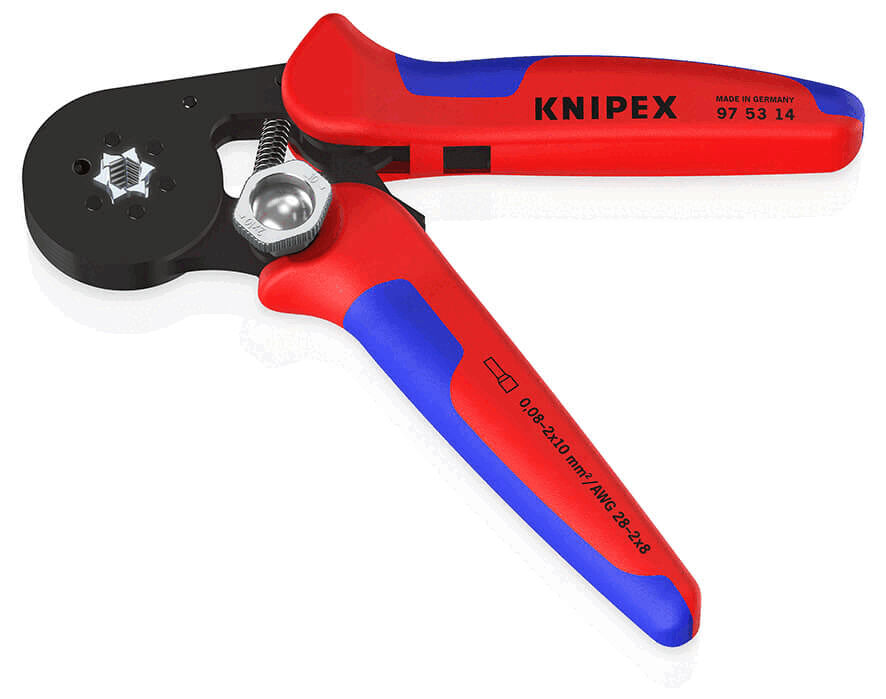

This is a red and blue crimping tool with a black working surface. The handle is ergonomically shaped and provides a good grip. The brand name "KNIPEX" is printed on the tool.

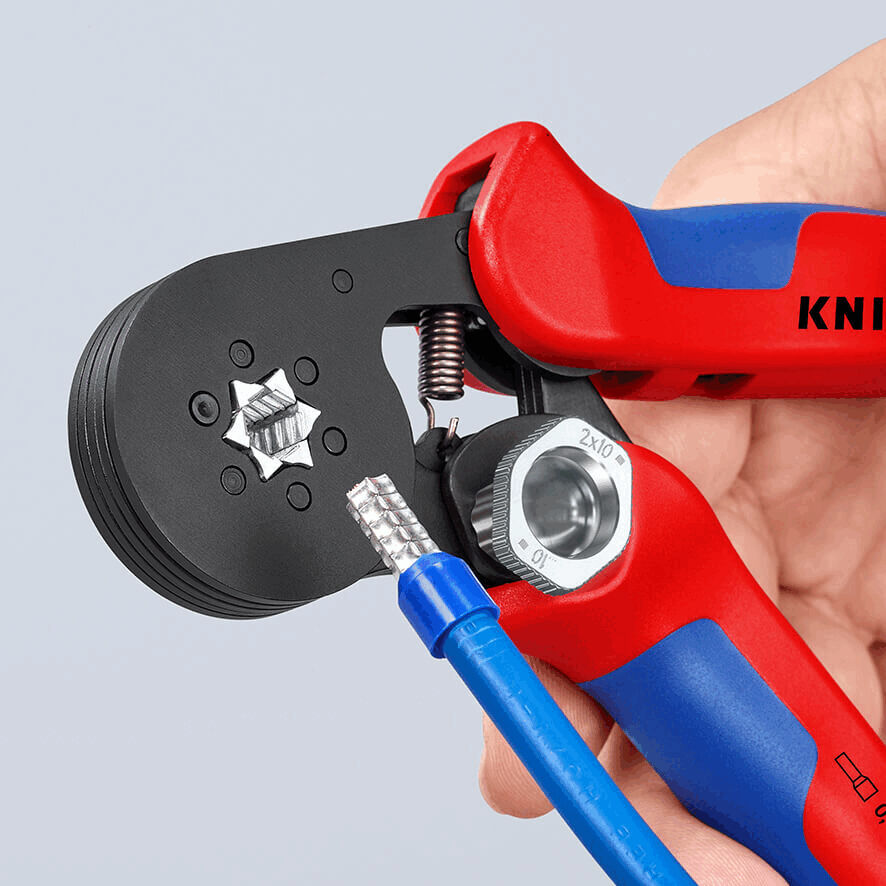

The image shows a hand holding a red and blue crimping tool. The tool has a black surface and an opening into which a blue wire is being inserted.

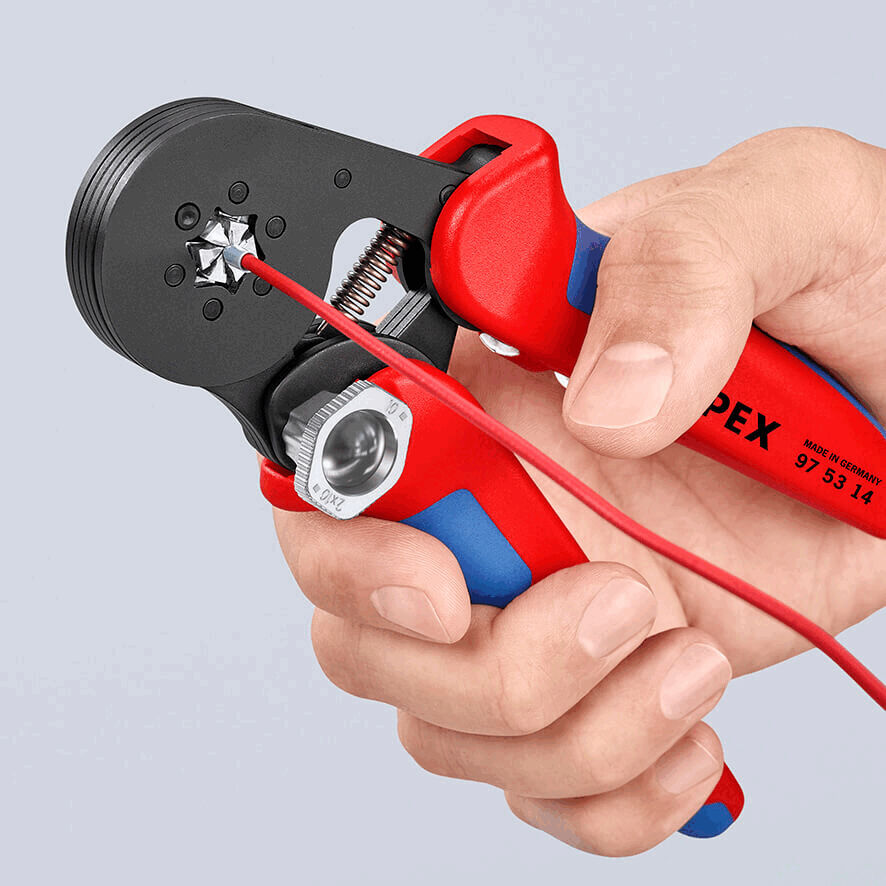

The image shows a hand holding a red and blue pair of pliers. The pliers are used for stripping wires, with a red cable currently being clamped.

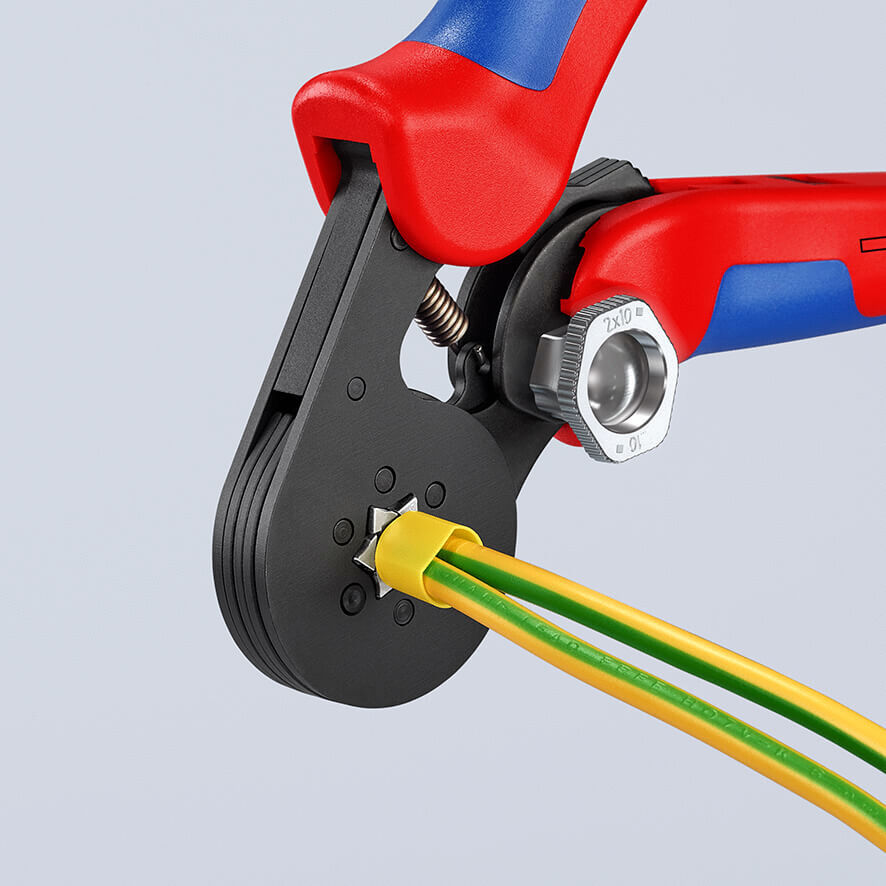

The image shows a wire cutter with red-blue handles. The cutter is holding green and yellow insulated wires. The cutting surface is black and features a circular recess.

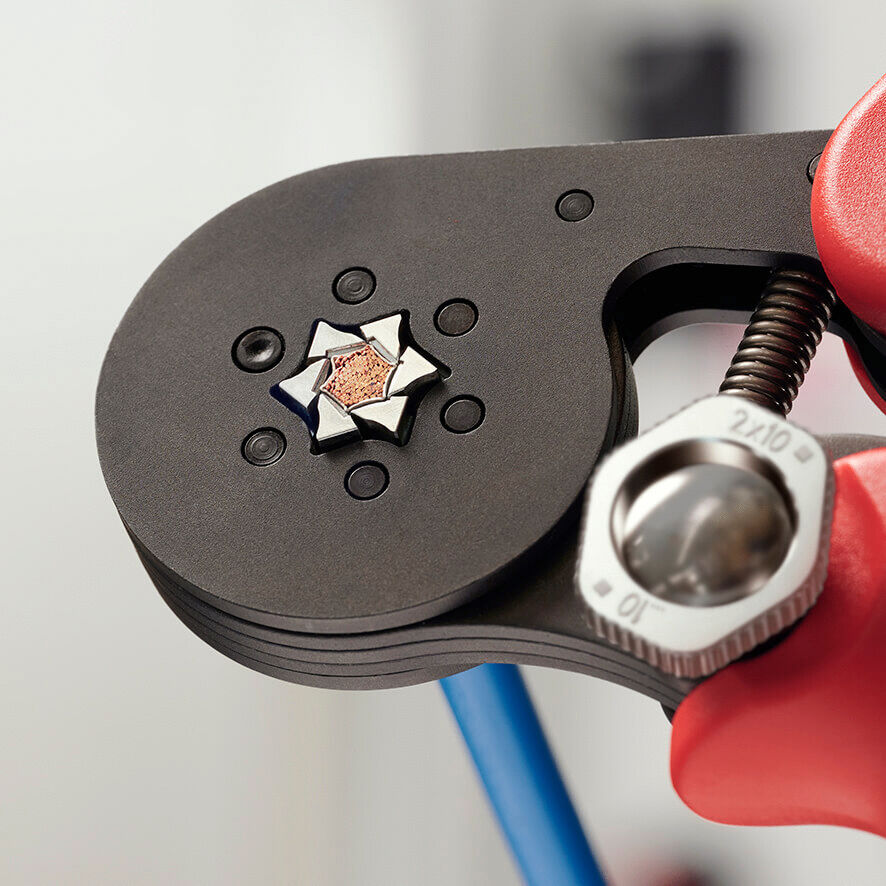

The image shows a tool with a black, round main surface. In the center, there is a star-shaped relief. Red handles are visible, and an adjustment screw is present.

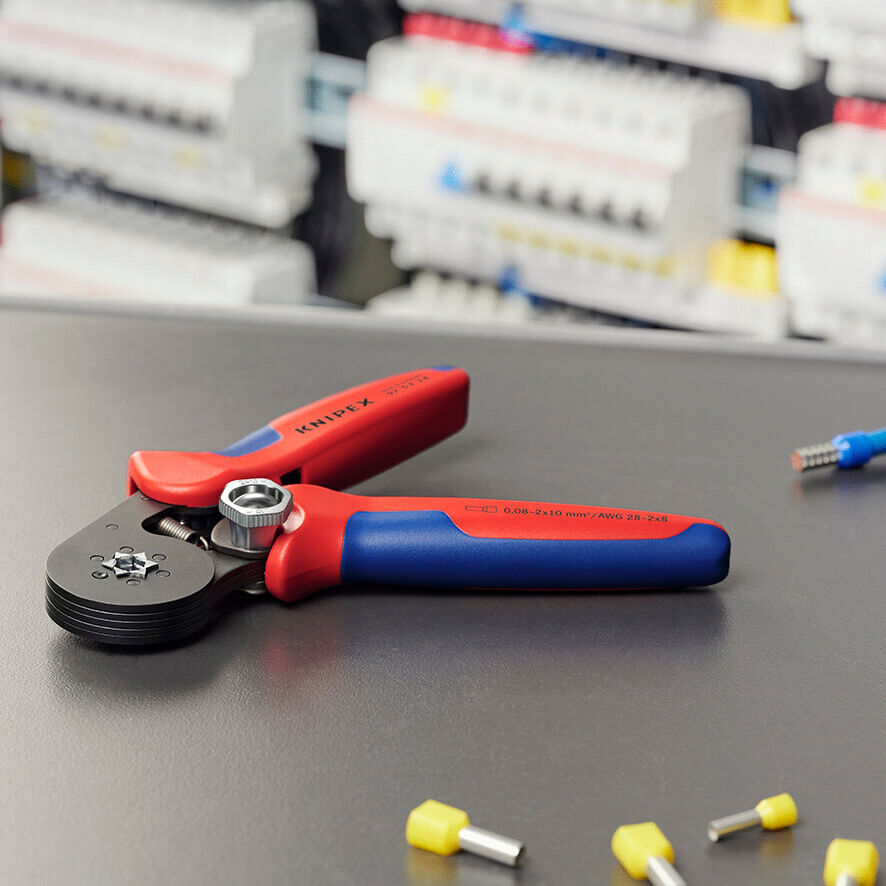

The image shows a crimping tool with red and blue handles on a dark table. In the background, colored terminal connectors and cables are visible.

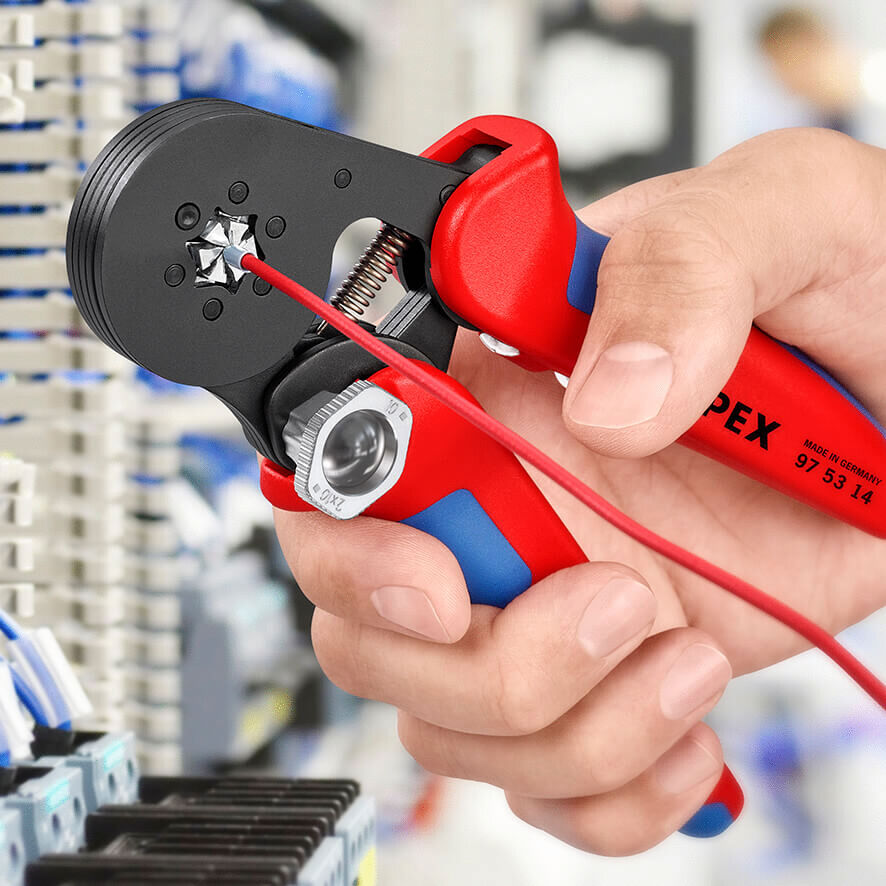

The image shows a hand holding a red and blue pair of pliers. The pliers have a black, round tip gripping a thin red cable. In the background, electrical components are visible.
Preview: The image shows a red-blue wire cutter with a black blade. The handles are ergonomically shaped and provide a good grip. The pliers are marked with "KNIPEX" and technical specifications.
Preview: This is a red and blue crimping tool with a black working surface. The handle is ergonomically shaped and provides a good grip. The brand name "KNIPEX" is printed on the tool.
Preview: The image shows a hand holding a red and blue crimping tool. The tool has a black surface and an opening into which a blue wire is being inserted.
Preview: The image shows a hand holding a red and blue pair of pliers. The pliers are used for stripping wires, with a red cable currently being clamped.
Preview: The image shows a wire cutter with red-blue handles. The cutter is holding green and yellow insulated wires. The cutting surface is black and features a circular recess.
Preview: The image shows a tool with a black, round main surface. In the center, there is a star-shaped relief. Red handles are visible, and an adjustment screw is present.
Preview: The image shows a crimping tool with red and blue handles on a dark table. In the background, colored terminal connectors and cables are visible.
Preview: The image shows a hand holding a red and blue pair of pliers. The pliers have a black, round tip gripping a thin red cable. In the background, electrical components are visible.
Self-adjusting crimping pliers with hexagonal crimp
(Product No.: K-975314.180)
The image shows a red-blue wire cutter with a black blade. The handles are ergonomically shaped and provide a good grip. The pliers are marked with "KNIPEX" and technical specifications.
This is a red and blue crimping tool with a black working surface. The handle is ergonomically shaped and provides a good grip. The brand name "KNIPEX" is printed on the tool.
The image shows a hand holding a red and blue crimping tool. The tool has a black surface and an opening into which a blue wire is being inserted.
The image shows a hand holding a red and blue pair of pliers. The pliers are used for stripping wires, with a red cable currently being clamped.
The image shows a wire cutter with red-blue handles. The cutter is holding green and yellow insulated wires. The cutting surface is black and features a circular recess.
The image shows a tool with a black, round main surface. In the center, there is a star-shaped relief. Red handles are visible, and an adjustment screw is present.
The image shows a crimping tool with red and blue handles on a dark table. In the background, colored terminal connectors and cables are visible.
The image shows a hand holding a red and blue pair of pliers. The pliers have a black, round tip gripping a thin red cable. In the background, electrical components are visible.
Mobile Preview: The image shows a red-blue wire cutter with a black blade. The handles are ergonomically shaped and provide a good grip. The pliers are marked with "KNIPEX" and technical specifications.
Mobile Preview: This is a red and blue crimping tool with a black working surface. The handle is ergonomically shaped and provides a good grip. The brand name "KNIPEX" is printed on the tool.
Mobile Preview: The image shows a hand holding a red and blue crimping tool. The tool has a black surface and an opening into which a blue wire is being inserted.
Mobile Preview: The image shows a hand holding a red and blue pair of pliers. The pliers are used for stripping wires, with a red cable currently being clamped.
Mobile Preview: The image shows a wire cutter with red-blue handles. The cutter is holding green and yellow insulated wires. The cutting surface is black and features a circular recess.
Mobile Preview: The image shows a tool with a black, round main surface. In the center, there is a star-shaped relief. Red handles are visible, and an adjustment screw is present.
Mobile Preview: The image shows a crimping tool with red and blue handles on a dark table. In the background, colored terminal connectors and cables are visible.
Mobile Preview: The image shows a hand holding a red and blue pair of pliers. The pliers have a black, round tip gripping a thin red cable. In the background, electrical components are visible.
Notice

Self-adjusting crimping pliers with hexagonal crimp

Self-adjusting crimping pliers with hexagonal crimp

dpvlink:
8995
Length :
180 mm
Capacity:
0.08 - 16.0 mm²
AWG:
6 - 10
Further product information

at short notice at short notice
146,25 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Self-adjusting crimping pliers with hexagonal crimp

The self-adjusting crimping tool from KNIPEX allows for precise and standard-compliant crimping of wire end ferrules according to DIN 46228 Part 1 + 4 and is UL approved in conjunction with KNIPEX wire end ferrules 97 99 330 - 399. This tool is characterized by its hexagonal crimp shape, which is particularly suitable for confined connections and ensures an almost round compression. The automatic adjustment to the desired wire end ferrule size and the forced lock ensure consistently high crimp quality.
The pliers process wire end ferrules from 0.08 to 16 mm² and all twin wire end ferrules up to 2 x 10 mm² (AWG 2 x 8) using a toggle lever. The crimping tool is made of chrome vanadium electric steel, oil-hardened, and measures 180 mm in length, 75 mm in width, and 21 mm in height with a weight of 445 g. The ergonomic design and the small handle span allow for fatigue-free work, supported by a force amplification through a toggle lever.
Length
Length
180 mm
Capacity
Capacity
0.08 - 16.0 mm²
AWG
AWG
6 - 10
Height
Height
21 mm
Width
Width
75 mm
Material
Material
chrome-vanadium electirc steel / oil-hardened
ESD
ESD
no
Weight
Weight
445 g
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 491
Complete Catalog 2023 - 2024

Product Family

Self-adjusting crimping pliers with hexagonal crimp

Article image
Article description
Length
Capacity
AWG
Price
Compare
K-975314.180 - Self-adjusting crimping pliers with hexagonal crimp
K-975314.180
Self-adjusting crimping pliers with hexagonal crimp
180 mm
0.08 - 16.0 mm²
6 - 10
146,25 EUR
