Stripping and crimping pliers
(Product No.: K-1272.190)

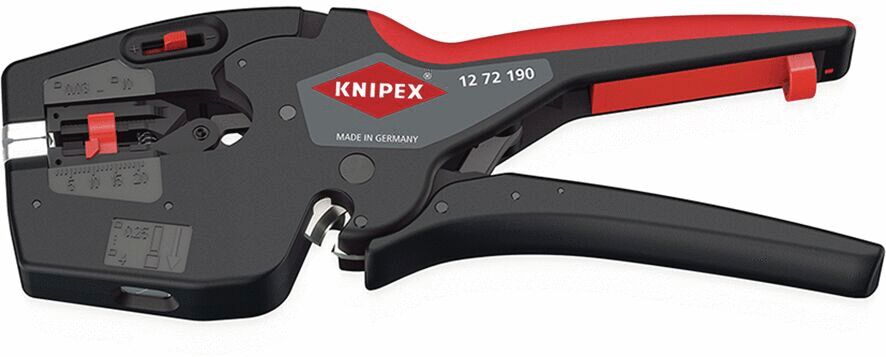

The image shows a black and red wire stripper. It has two handles and a flat working surface with various settings for cables. A logo is clearly visible.
The image shows a black and red cable cutter. It has a handle that fits comfortably in the hand, and a mechanical system for precise cable processing. Brand logo visible.
The image shows three different cables. At the top is a green, thin cable. Below it is a black, thick cable, and at the bottom lies a blue cable with a clear texture.

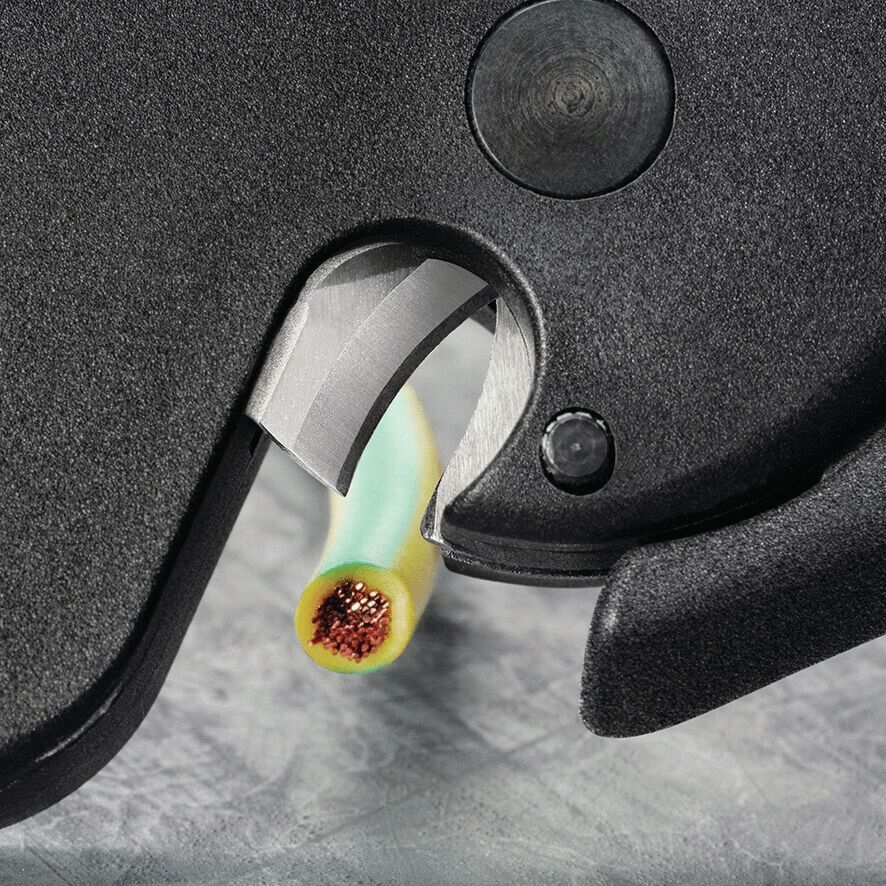

The image shows a section of a tool, likely a pair of pliers. A yellow and green wire is visible, passing through a foldable blade to cut or manipulate it.

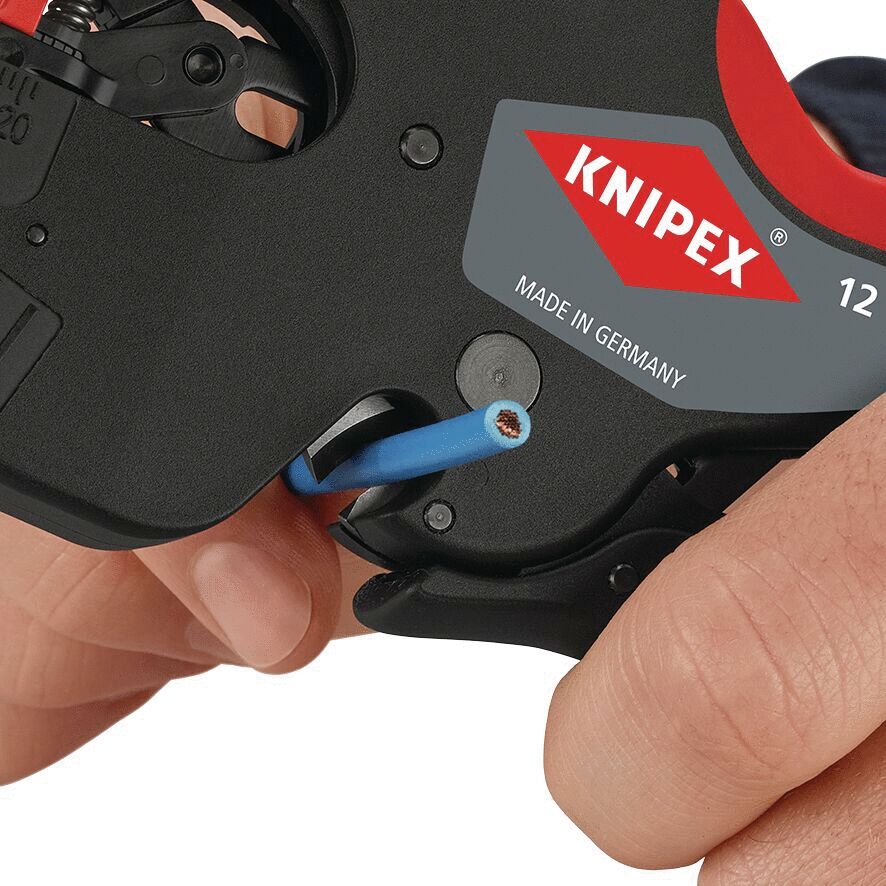

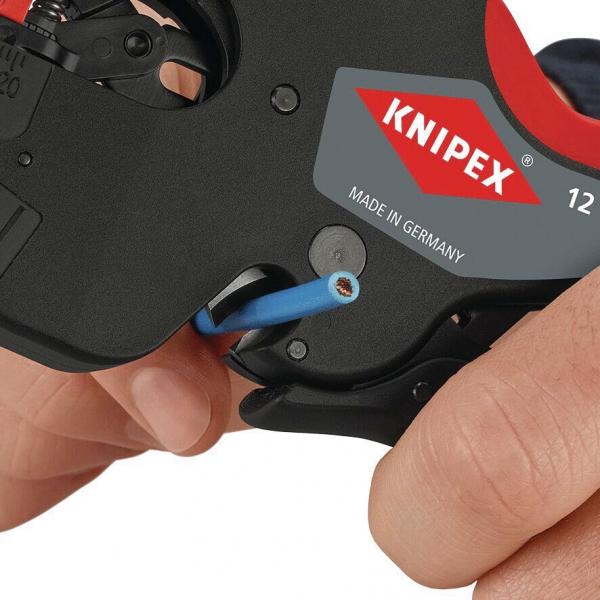

The image shows a hand holding a cable stripping tool from Knipex. It has a black surface and a red handle. A blue wire is being threaded through the tool.

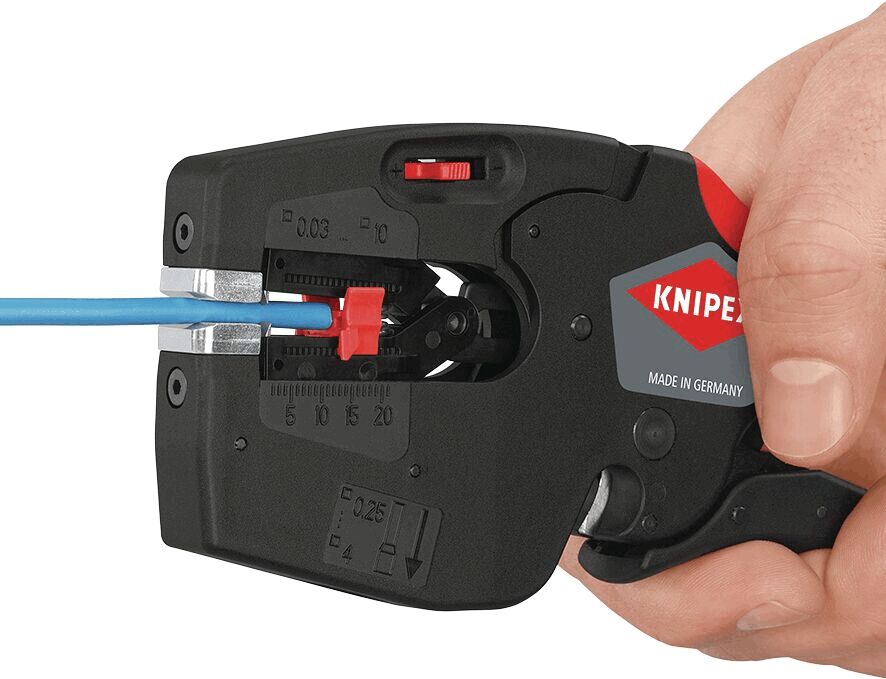

The image shows a hand holding a wire stripper from Knipex. The pliers have a black surface with red accents and various adjustment markings.
The image shows a wire cutter in a hand. The cutting mechanism is black, with red and grey details. A blue wire is inserted into the pliers, ready to be cut.
The image shows a hand holding a black tool used for stripping wires. A blue wire is inserted into the tool and is currently being processed.
The image shows a dog leash with a handle in black and red. The leash is elastic, red with blue accents, and has a loop for wrist protection.
The image shows a hand holding a labelable stamp. A black marker writes the word "Name" on the red area of the stamp. The stamp is primarily black with red accents.
The image shows a part of a device with a black matte surface. There are red-colored switches and a counter ranging from 0.03 to 10. Mechanical parts are visible.

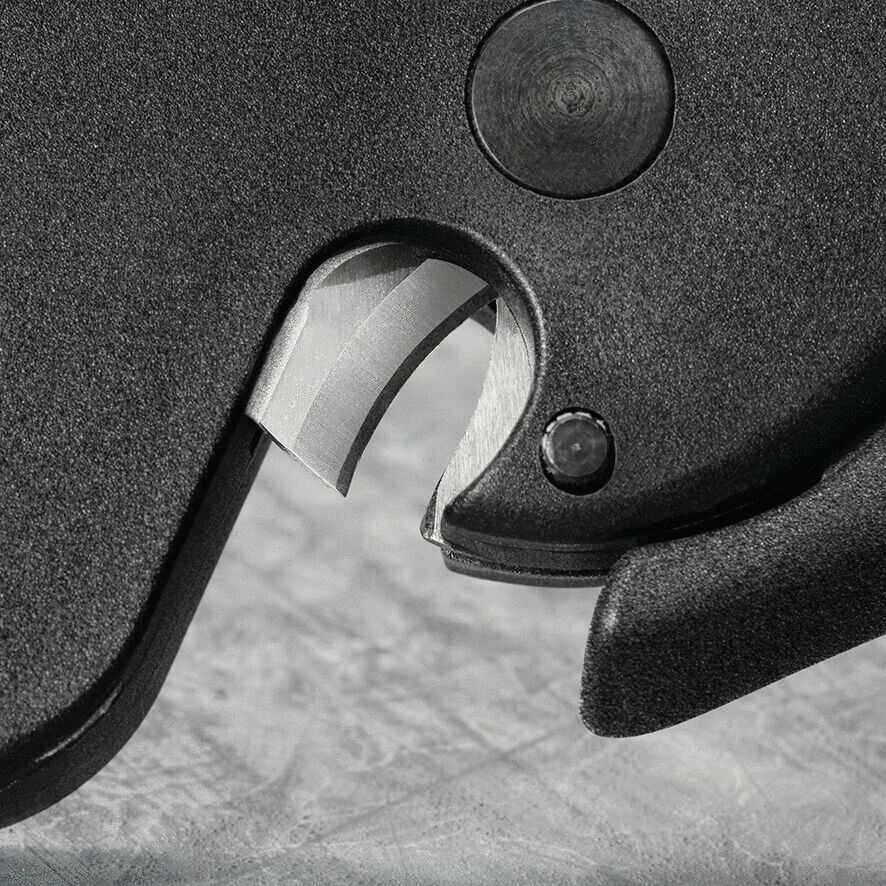

The image shows a section of a black, solid surface with a silver metal part. The shape resembles a blade or a mechanism, embedded in the black mount.

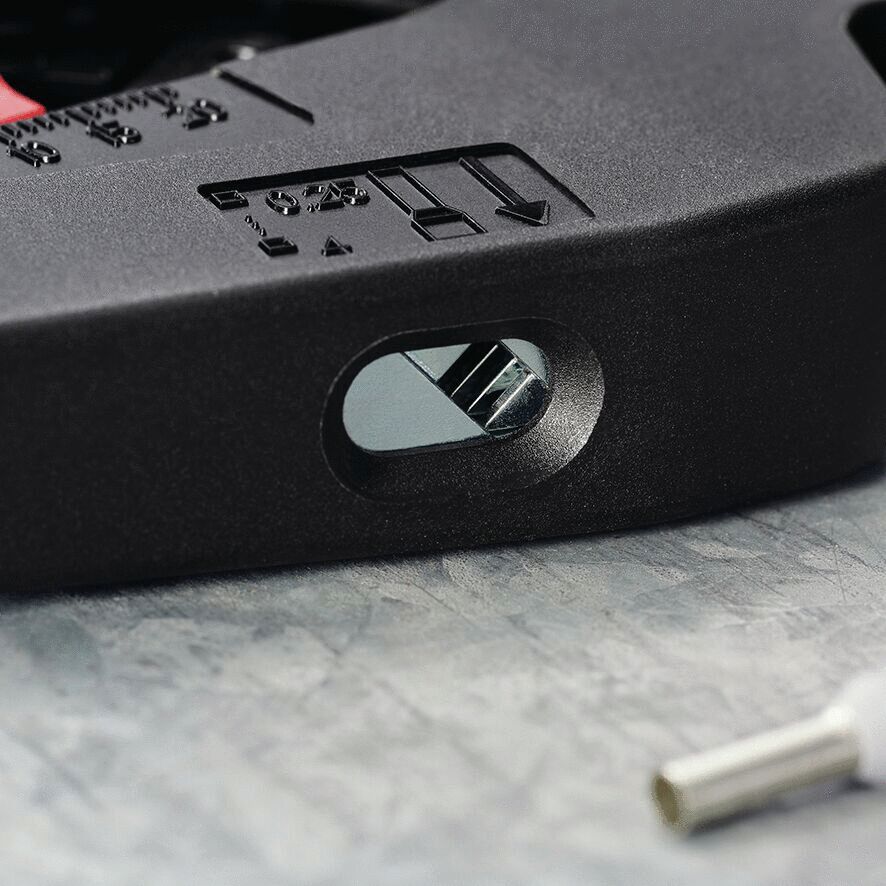

The image shows a matte black object with a small opening and a reflective interior. Next to it lies a silver cylindrical object. The background is bright and textured.
The image displays a detailed close-up of a mechanical part. It features multiple metallic components and a matte, black surface. The structure appears functional and precise.
Mobile Preview: The image shows a black and red wire stripper. It has two handles and a flat working surface with various settings for cables. A logo is clearly visible.
Mobile Preview: The image shows a black and red cable cutter. It has a handle that fits comfortably in the hand, and a mechanical system for precise cable processing. Brand logo visible.
Mobile Preview: The image shows three different cables. At the top is a green, thin cable. Below it is a black, thick cable, and at the bottom lies a blue cable with a clear texture.
Mobile Preview: The image shows a section of a tool, likely a pair of pliers. A yellow and green wire is visible, passing through a foldable blade to cut or manipulate it.
Mobile Preview: The image shows a hand holding a cable stripping tool from Knipex. It has a black surface and a red handle. A blue wire is being threaded through the tool.
Mobile Preview: The image shows a hand holding a wire stripper from Knipex. The pliers have a black surface with red accents and various adjustment markings.
Mobile Preview: The image shows a wire cutter in a hand. The cutting mechanism is black, with red and grey details. A blue wire is inserted into the pliers, ready to be cut.
Mobile Preview: The image shows a hand holding a black tool used for stripping wires. A blue wire is inserted into the tool and is currently being processed.
Mobile Preview: The image shows a dog leash with a handle in black and red. The leash is elastic, red with blue accents, and has a loop for wrist protection.
Mobile Preview: The image shows a hand holding a labelable stamp. A black marker writes the word "Name" on the red area of the stamp. The stamp is primarily black with red accents.
Mobile Preview: The image shows a part of a device with a black matte surface. There are red-colored switches and a counter ranging from 0.03 to 10. Mechanical parts are visible.
Mobile Preview: The image shows a section of a black, solid surface with a silver metal part. The shape resembles a blade or a mechanism, embedded in the black mount.
Mobile Preview: The image shows a matte black object with a small opening and a reflective interior. Next to it lies a silver cylindrical object. The background is bright and textured.
Mobile Preview: The image displays a detailed close-up of a mechanical part. It features multiple metallic components and a matte, black surface. The structure appears functional and precise.
Notice

Stripping and crimping pliers

Stripping and crimping pliers

dpvlink:
26792
Properties:
Further product information

available available
115,55 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

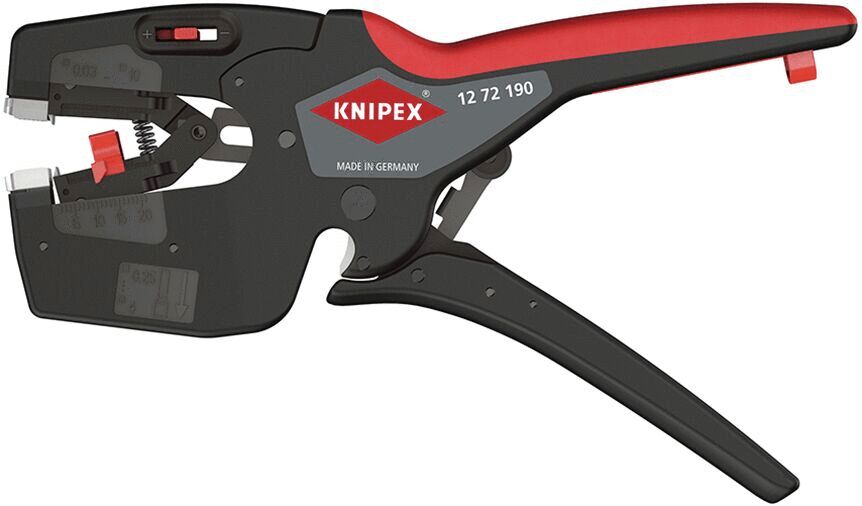

Stripping and crimping pliers

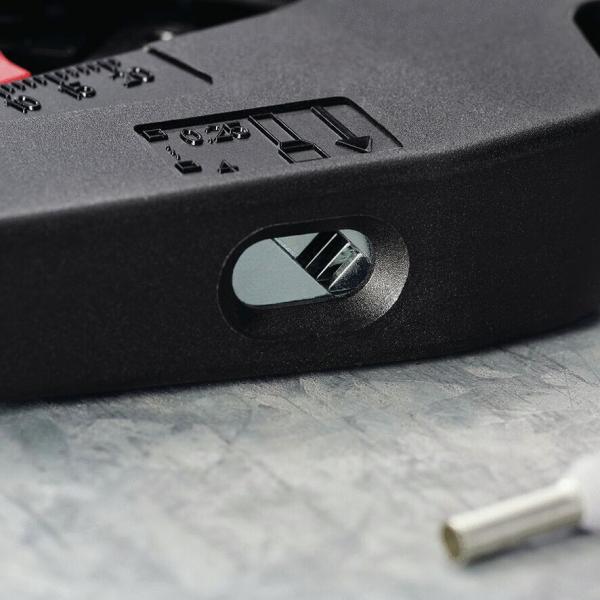

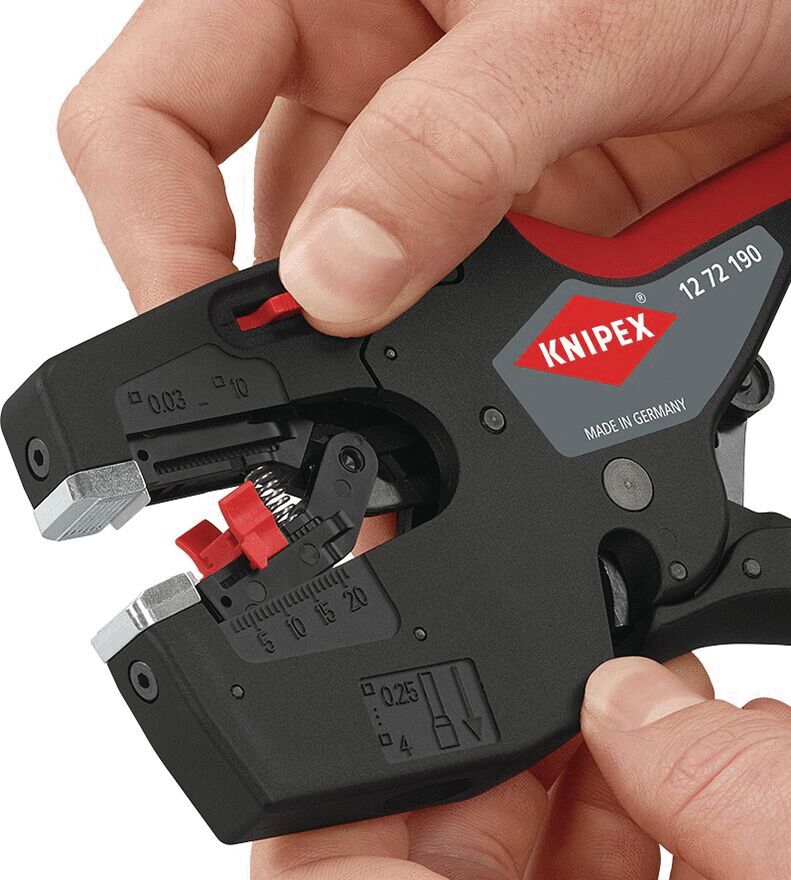

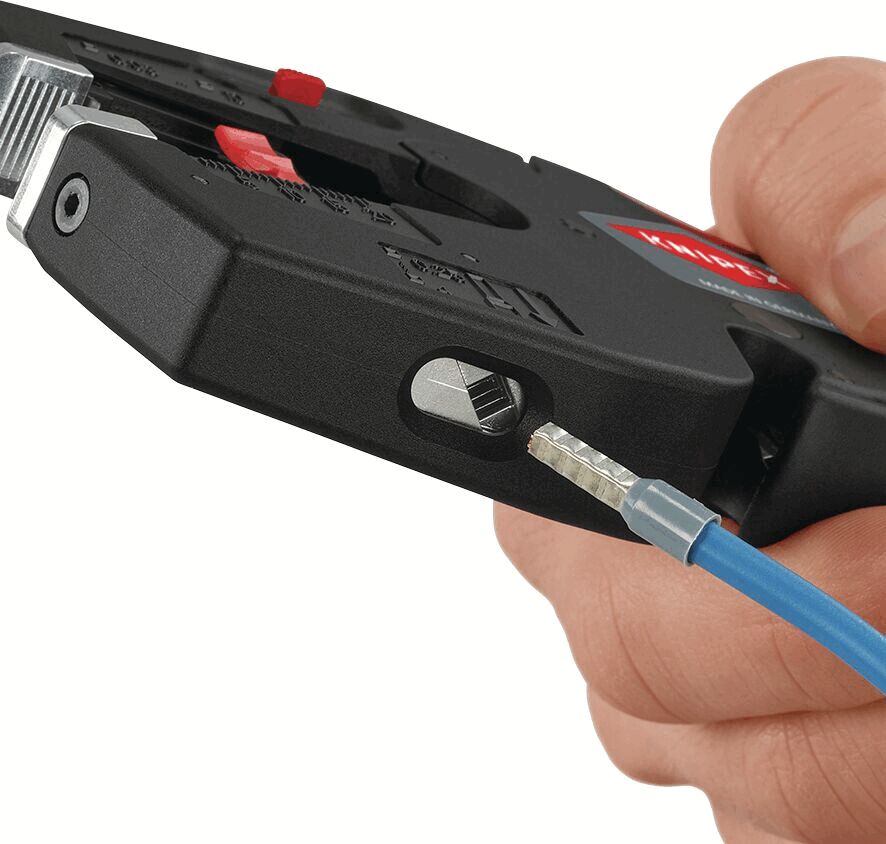

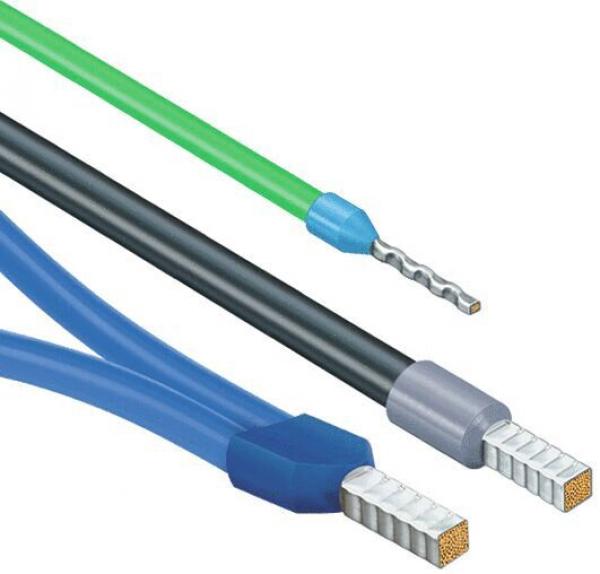

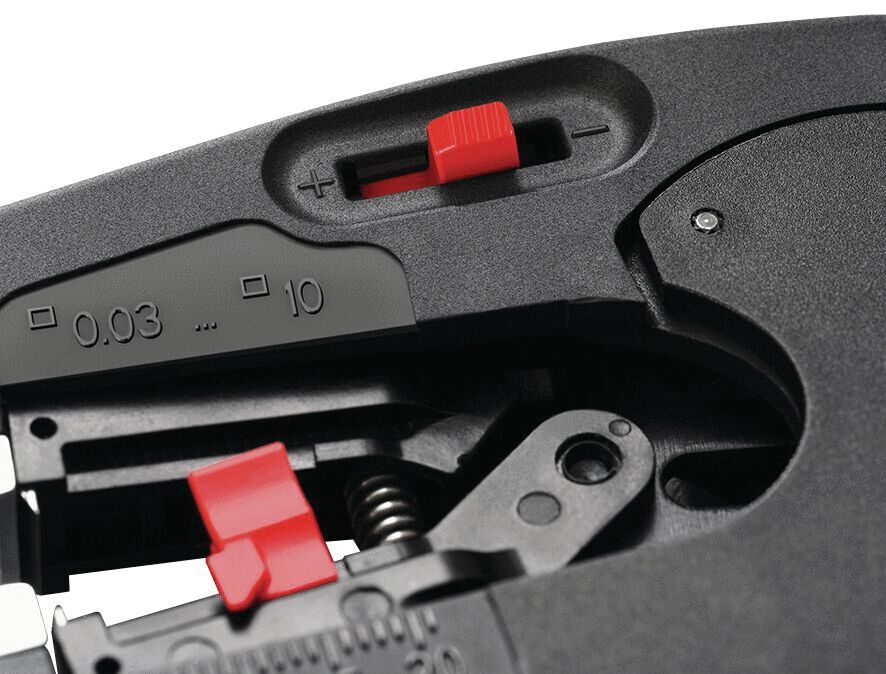

The wire stripper and crimping tool combines precise stripping, efficient crimping, and sharp cutting in one robust tool. Equipped with a high-quality housing made of glass-fiber-reinforced plastic, this tool offers durability and reliability for professional use. The pliers allow automatic size adjustment for stripping conductors between 0.03 mm² to 10 mm² (AWG 32 - 8) and support precise square crimping of ferrules according to DIN 46228 Part 1 + 4, adjusting itself for sizes from 0.25 mm² to 4 mm²/2 x 2.5 mm².

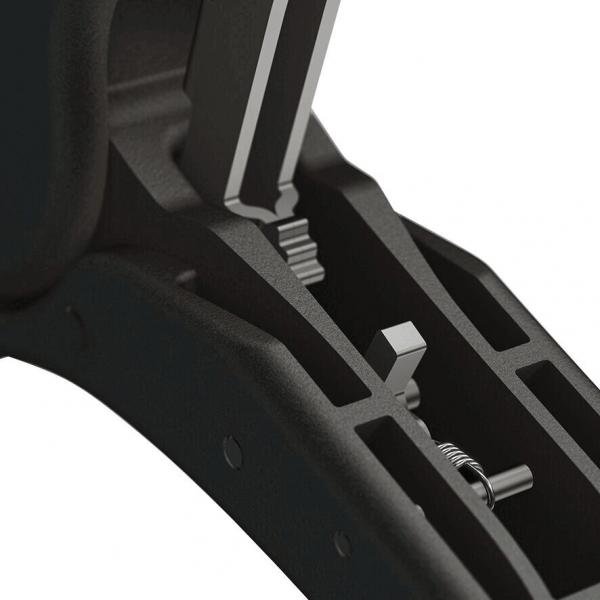

The slip-resistant, ergonomic two-component handles ensure a secure grip and comfortable handling. An integrated cable cutter enables clean cutting of Cu and Al conductors finely stranded up to 10 mm² (AWG 8), solid up to 6 mm² (AWG 10). The mandatory lock ensures consistently high crimp quality by applying the necessary pressure. With a width of 17 mm, a height of 110 mm, a length of 190 mm, and a weight of 170 g, this pliers is an indispensable tool for electrical professionals, especially in the field of home installations and wiring of electronic devices.
AWG
AWG
32 - 8
Capacity
Capacity
10 mm²
Height [mm]
Height
110 mm
Length [mm]
Length
190 mm
Width [mm]
Width
17 mm
Material
Material
plastic / glass fiber reinforced
ESD
ESD
no
Weight [g]
Weight
170 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

Stripping and crimping pliers

Article image
Article description
AWG
Capacity
Height [mm]
Length [mm]
Width [mm]
Material
ESD
Weight [g]
Price
Compare
K-1272.190 - Stripping and crimping pliers
K-1272.190
Stripping and crimping pliers
32 - 8
10 mm²
110 mm
190 mm
17 mm
plastic / glass fiber reinforced
no
170 g
115,55 EUR
