Stripping diagonal cutting pliers ISO 1000V 160 mm
Stripping diagonal cutting pliers ISO 1000V 160 mm

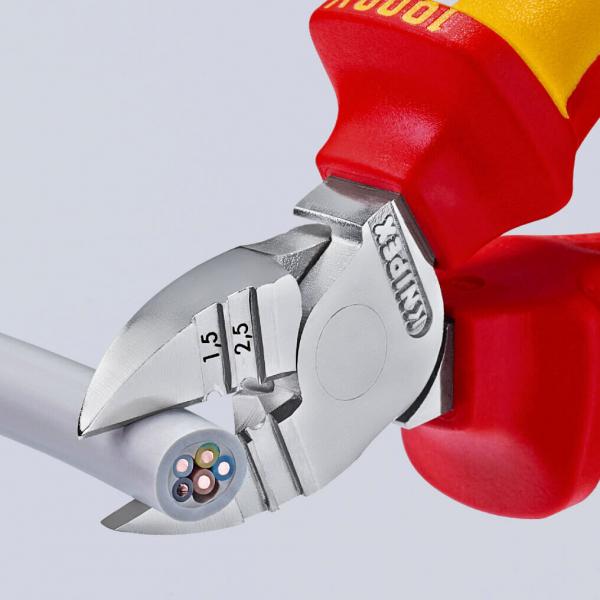

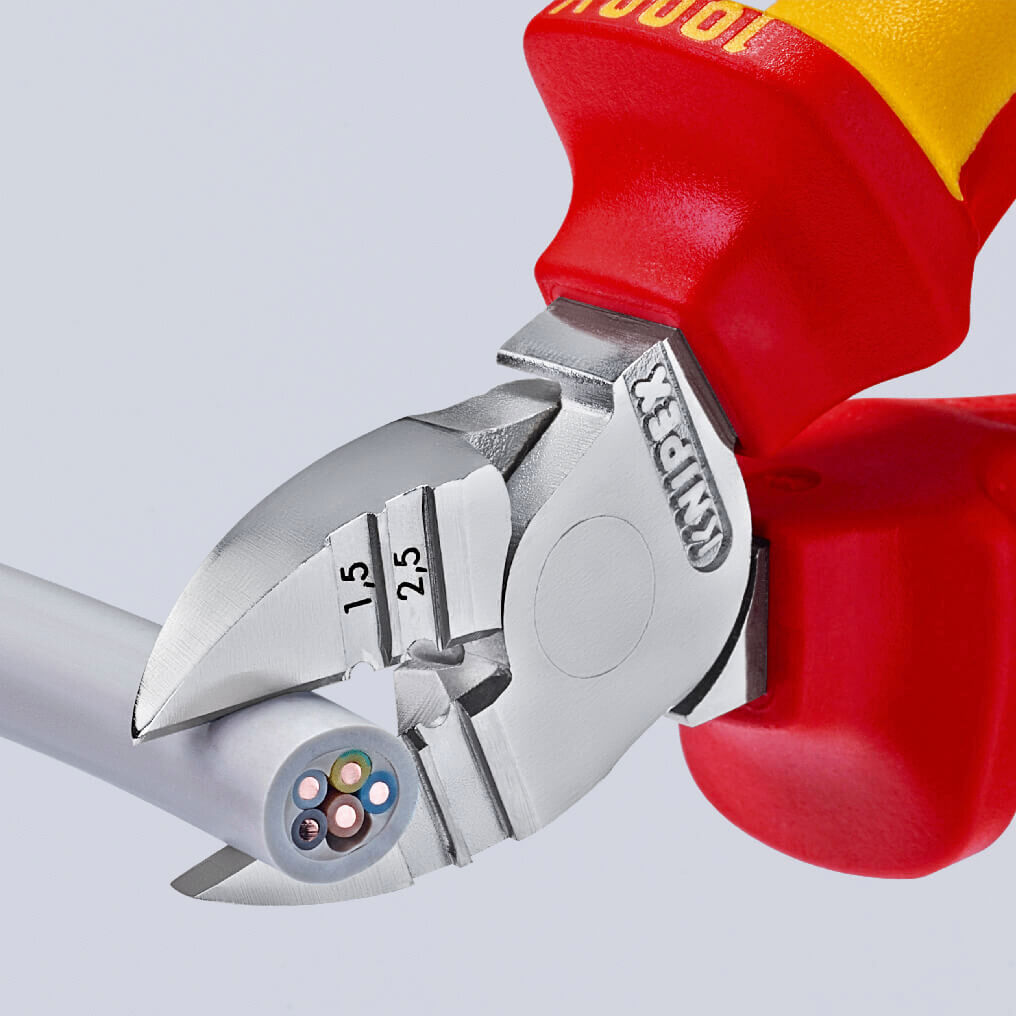

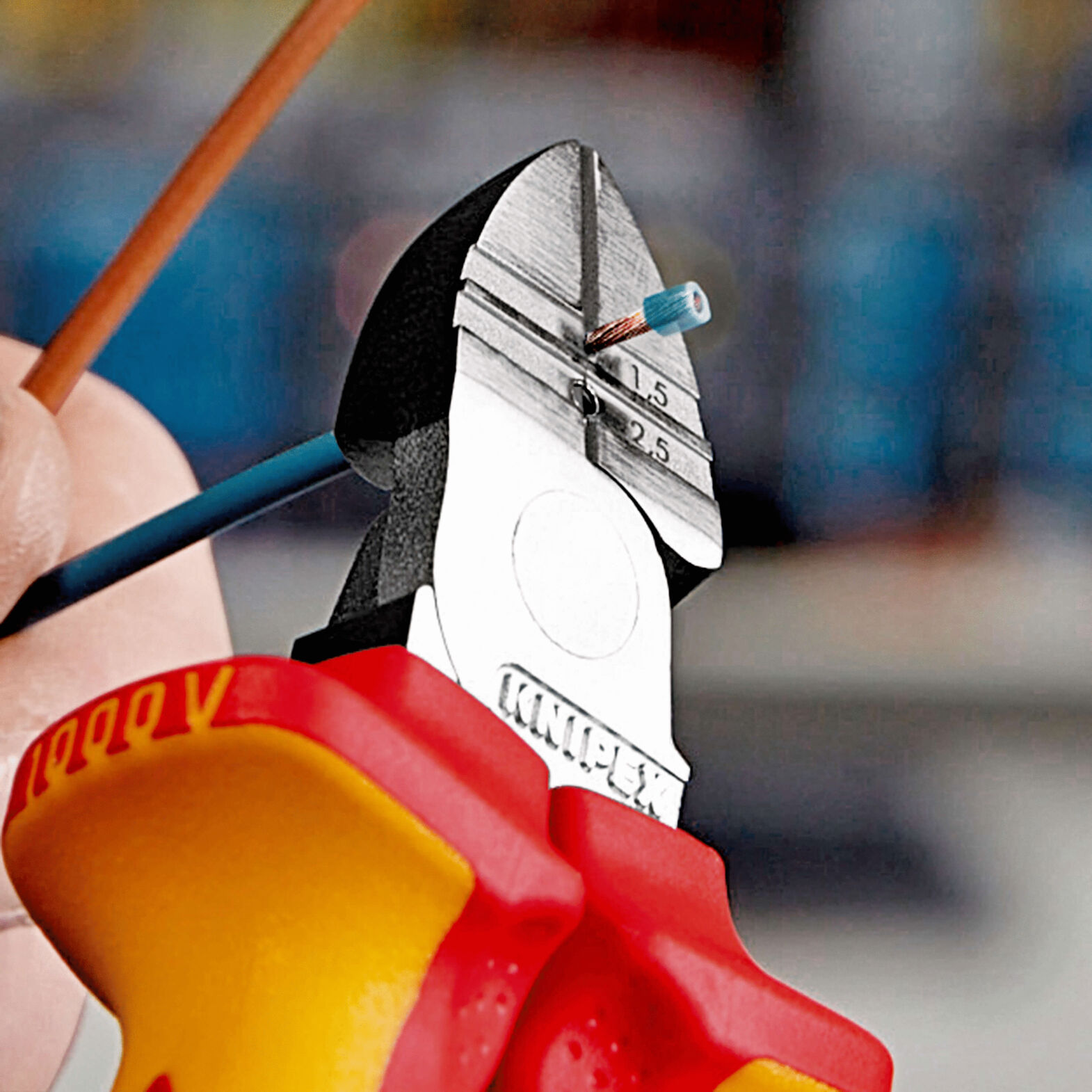

The KNIPEX 1000V 160 mm Insulation Side Cutter combines high functionality with a robust design for professional applications. This VDE-tested tool is specifically designed for precise stripping and cutting of single-strand conductors and soft wire up to a diameter of 4.0 mm. Equipped with precision stripping holes, it is excellent for conductors with cross-sections of 1.5 and 2.5 mm².The long cutting edge and high transmission ratios guarantee superior cutting performance, while the long tips also allow for fine cutting work in confined spaces. Made from hardened vanadium electric steel with a blade hardness of approximately 60 HRC, the tool is known for its durability and reliability.
The dimensions of the side cutter are 160 mm in length, 60 mm in width, and 30 mm in height, with a weight of 238 g. It is not suitable for ESD-safe applications. With its capacity for AWG 15 to 13, it offers a wide range of uses, ideal for comfortably cutting NYM cables up to 5 x 2.5 mm².
Details
- Length [mm] Length
- 160 mm
- Capacity Capacity
- 1.5 - 2.5 mm²
- AWG AWG
- 15 - 13
- Height [mm] Height
- 30 mm
- Width [mm] Width
- 60 mm
- Material Material
- Tool steel / hardened
- ESD ESD
- no
- Weight [g] Weight
- 238 g
VDE
The VDE mark indicates that electrical products comply with the requirements of IEC 60900. It ensures the highest safety and quality standards for devices designed for use at voltages up to 1000 V AC (alternating current) and 1500 V DC (direct current).
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Length [mm]
Capacity
AWG
Price
Compare
160 mm
1.5 - 2.5 mm²
15 - 13
