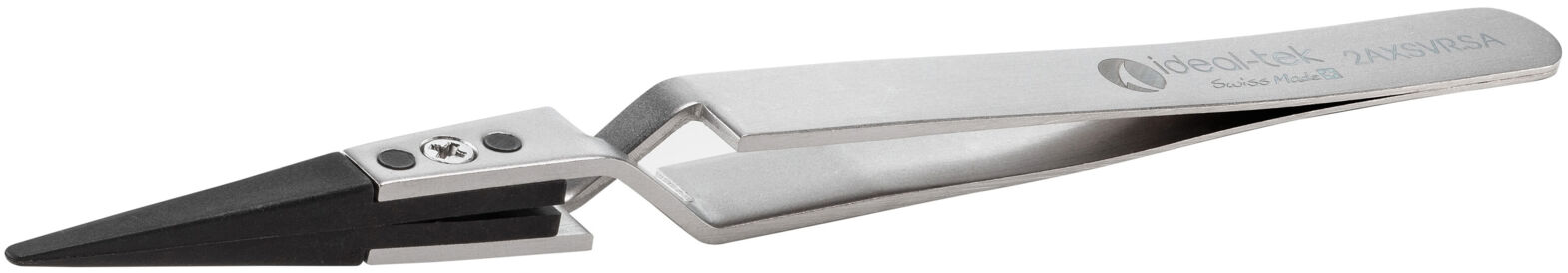

The image displays a precise stainless steel tweezer with a pointed, narrow working surface and a gray plastic handle. It is slender and shiny.

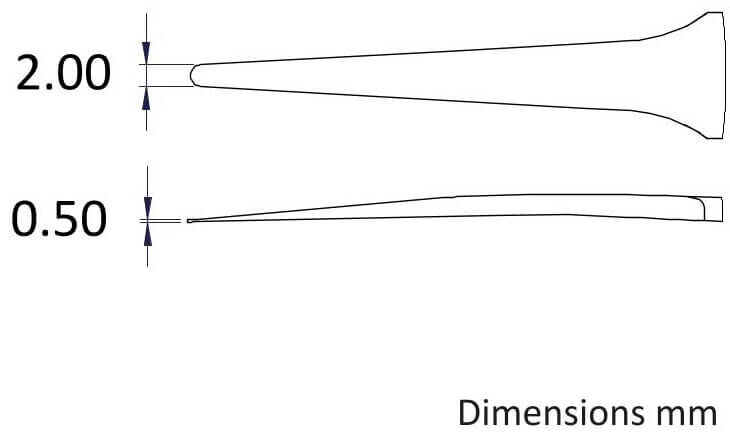

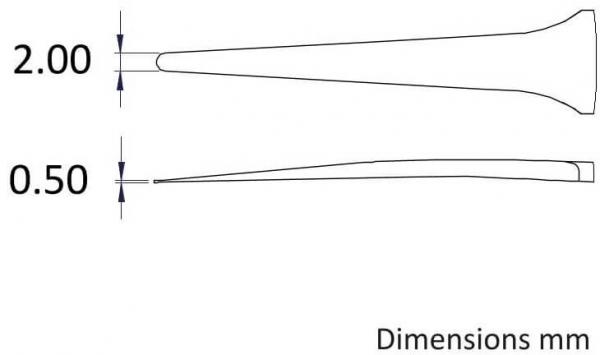

The image displays a technical drawing with two lengths: 2.00 mm and 0.50 mm. The lines are narrow and tapered, with a label "Dimensions mm" at the bottom edge.
Preview: The image displays a precise stainless steel tweezer with a pointed, narrow working surface and a gray plastic handle. It is slender and shiny.
Preview: The image displays a technical drawing with two lengths: 2.00 mm and 0.50 mm. The lines are narrow and tapered, with a label "Dimensions mm" at the bottom edge.
Cross tweezers with exchangeable tip ESD 2AXSVR.SA
(Product No.: I-2AXSVR.SA)
The image displays a precise stainless steel tweezer with a pointed, narrow working surface and a gray plastic handle. It is slender and shiny.
The image displays a technical drawing with two lengths: 2.00 mm and 0.50 mm. The lines are narrow and tapered, with a label "Dimensions mm" at the bottom edge.
Mobile Preview: The image displays a precise stainless steel tweezer with a pointed, narrow working surface and a gray plastic handle. It is slender and shiny.
Mobile Preview: The image displays a technical drawing with two lengths: 2.00 mm and 0.50 mm. The lines are narrow and tapered, with a label "Dimensions mm" at the bottom edge.
Notice / Inquire

Cross tweezers with exchangeable tip ESD 2AXSVR.SA

dpvlink:
11862
Tweezer type:
tweezers with exchangeable tips , Reverse-action tweezers
Tip form:
straight
Gripping surface:
smooth
Handle surface:
smooth
Tip type characteristics:
fine, round, flat
Properties:
Further product information

available available
22,95 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Cross tweezers with exchangeable tip ESD 2AXSVR.SA

The ESD cross tweezers with interchangeable tip 2AXSVR.SA by ideal-tek are specifically designed for use in areas where sensitive components such as glass and ceramic substrates are handled. This precision tool is made from an ESD-PVDF plastic that is reinforced with 30% carbon fiber to ensure high mechanical strength and excellent chemical resistance. The tweezers offer a maximum temperature resistance of 190°C for short-term use and a surface resistance of 10² Ω.
The smooth gripping and handling surface, along with the finely rounded and flat designed tips, enable safe and scratch-free operation. The cross tweezers feature interchangeable tips, allowing for flexible adaptation to different application areas. With a length of 130 mm and a tip length of 26 mm, the tool provides precise control. It is important to note that the tweezers are not resistant to strong acids, alkalis, hot water, or steam.
This high-quality tool is ideal for fields such as micromechanics and electronics assembly, where precision and reliability are required.
Tweezer type
Tweezer type
tweezers with exchangeable tips , Reverse-action tweezers
Tip form
Tip form
straight
Gripping surface
Gripping surface
smooth
Handle surface
Handle surface
smooth
Tip type characteristics
Tip type characteristics
fine, round, flat
Height
Height
11 mm
Length
Length
130 mm
Thickness/diameter
Thickness/diameter
0.5 mm
Tip length
Tip length
26 mm
Tip width
Tip width
2.0 mm
Width
Width
10 mm
B [mm]
B [mm]
10 mm
Material
Material
stainless steel
Surface
Surface
sandblastered
Tip
Tip
Plastic
ESD
ESD
yes
Exchangeable tips
Exchangeable tips
yes
Weight
Weight
15 g
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Smooth gripping surface
Smooth gripping surfaces leave no marks on sensitive materials. They are ideal for fine work and gripping single wires or delicate surfaces.

Accessories

Spares

In the picture, there are two black-colored, pointed individual parts that look like brackets. Additionally, there are some small silver screws. The materials are solid and sturdy.
Preview: Replacement exchangeable tips A2ACF
Preview: The image displays two profiles in side view. The top profile has a narrow, tapered shape with a width of 2 mm, while the bottom profile has a flatter contour with a width of 0.4 mm. Dimensions are provided.
Replacement exchangeable tips A2ACF
ESD Carbofib exchangeable tip A2ACF
dpvlink
11854

5,76 EUR
Show product
The image shows two black, pointed tools with flattened ends that resemble blades. Next to them are two small, round screws.
Preview: Replacement exchangeable tips A2ACP
Preview: The image displays two schematic drawings of a shape or an object with specified dimensions: top 2.00 mm and bottom 0.40 mm. The shapes are slender and taper to a point.
Replacement exchangeable tips A2ACP
ESD plastic exchangeable tip A2ACP
dpvlink
11854

6,58 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 396
Complete Catalog 2023 - 2024

Product Family

Reverse-action tweezers with exchangeable tips 2AX

These ESD cross-action tweezers with exchangeable tips make fine work easier than ever before. The tips are made of high-quality plastic and offer the perfect balance of durability and precision. They also guarantee maximum precision when working and ensure that even the smallest components can be handled effortlessly. The cross tweezers are closed in the rest position.

Tweezers with exchangeable plastic tips are versatile and suitable for a wide range of tasks. They are ideal for handling sensitive electronic components such as circuit boards and microchips. They are also suitable for work in jewelry making, medicine and life sciences.

  • Easy and quick replacement - so you always have the right tip for the job.
  • Correct alignment - the tips have 3 alignment points, ensuring that they are always correctly aligned.
  • Cost-effective - plastic tips are cheaper than ceramic tips, making them a good choice for budget-conscious users.




Article image
Article description
Tweezer type
Tip form
Gripping surface
Handle surface
Tip type characteristics
Price
Compare
I-2AXCFR.SA - ESD cross tweezers with exchangeable tip 2AXCFR.SA
I-2AXCFR.SA
ESD cross tweezers with exchangeable tip 2AXCFR.SA
tweezers with exchangeable tips , Reverse-action tweezers
straight
smooth
smooth
very fine, round, flat
22,95 EUR
I-2AXCPR.SA - ESD cross tweezers with exchangeable tip 2AXCPR.SA
I-2AXCPR.SA
ESD cross tweezers with exchangeable tip 2AXCPR.SA
Reverse-action tweezers , tweezers with exchangeable tips
straight
smooth
smooth
very fine, round, flat
22,95 EUR
I-2AXSVR.SA - Cross tweezers with exchangeable tip ESD 2AXSVR.SA
I-2AXSVR.SA
Cross tweezers with exchangeable tip ESD 2AXSVR.SA
tweezers with exchangeable tips , Reverse-action tweezers
straight
smooth
smooth
fine, round, flat
22,95 EUR
