Main page » Products » Tweezers » Individual tweezers » ESD tweezers with exchangeable tip 249CFR.SA

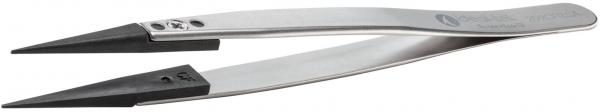

Preview: The image shows a sharp, two-pronged pair of pliers made of shiny metal. The tips are narrow and pointed, the handle is slightly curved and has a matte, black surface.

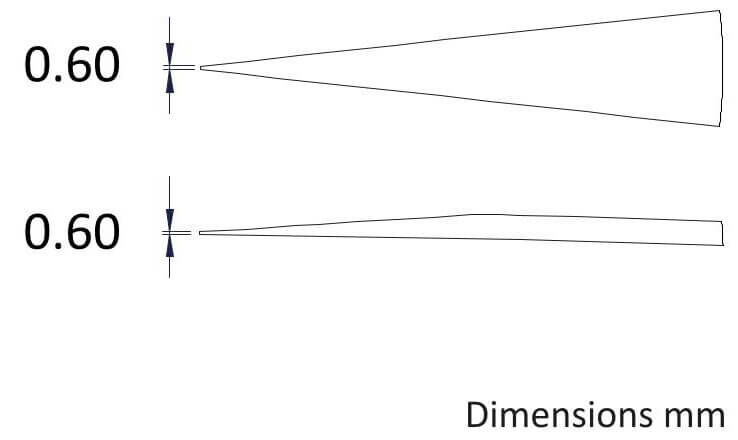

Preview: The image shows two drawn objects, both labeled "0.60 mm". The upper object has a conical shape, the lower one a straight, narrow shape. On the right it says "Dimensions mm".

ESD tweezers with exchangeable tip 249CFR.SA

(Product No.: I-259CFR.SA)

Mobile Preview: The image shows a sharp, two-pronged pair of pliers made of shiny metal. The tips are narrow and pointed, the handle is slightly curved and has a matte, black surface.

Mobile Preview: The image shows two drawn objects, both labeled "0.60 mm". The upper object has a conical shape, the lower one a straight, narrow shape. On the right it says "Dimensions mm".

ESD-Pinzetten mit Wechselspitze

(Product No.: I-259CFR.SA)

ESD tweezers with exchangeable tip 249CFR.SA

Name: ESD tweezers with exchangeable tip 249CFR.SA
SKU: I-259CFR.SA
Price: 19.50 EUR
Availability: InStock

ArticleNo: I-259CFR.SA

dpvlink:

11788

Tweezer type:

tweezers with exchangeable tips

Tip form:

straight

Gripping surface:

smooth

Handle surface:

smooth

Tip type characteristics:

fine, pointed, strong

Properties:

Further product information

Availability: available

available

19,50 EUR

excl. 19% tax

1 PCE

Compare

Notice / Inquire

Product Info

ESD tweezers with exchangeable tip 249CFR.SA

The ESD tweezer with interchangeable tip 259CFR.SA from ideal-tek is specifically designed for handling sensitive components in areas such as micromechanics and electronics assembly. This tweezer is characterized by its plastic interchangeable tips, which offer excellent scratch resistance and are therefore ideal for use with glass and ceramic substrates. The carbon fiber reinforced ESD plastic not only ensures static discharge safety but also low friction and high wear and abrasion resistance.
The tweezer offers a maximum temperature resistance of 190°C and a surface resistance of 10² Ω. Its tips are fine, pointed, and strong, which facilitates precise work under a microscope due to the shorter body. The tip width and thickness are each 0.6 mm, with a total length of 130 mm and a weight of 17.5 g. The grip surfaces are smooth, providing additional comfort during handling. Despite its many advantages, the tweezer is not resistant to strong acids, alkalis, hot water, or steam.
In summary, the ESD tweezer with interchangeable tip 259CFR.SA is a high-quality tool for professionals who require the highest precision and reliability in sensitive working environments.

Details

Tweezer type Tweezer type: tweezers with exchangeable tips
Tip form Tip form: straight
Gripping surface Gripping surface: smooth
Handle surface Handle surface: smooth
Tip type characteristics Tip type characteristics: fine, pointed, strong
Height Height: 16 mm
Length Length: 130 mm
Thickness/diameter Thickness/diameter: 0.6 mm
Tip length Tip length: 25 mm
Tip width Tip width: 0.6 mm
Width Width: 10 mm
B [mm] B [mm]: 10 mm
Material Material: stainless steel
Surface Surface: sandblastered
Tip Tip: Plastic
ESD ESD: yes
Exchangeable tips Exchangeable tips: yes
Weight Weight: 17.5 g

Show accessories

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Smooth gripping surface

Smooth gripping surfaces leave no marks on sensitive materials. They are ideal for fine work and gripping single wires or delicate surfaces.

Accessories

Spares

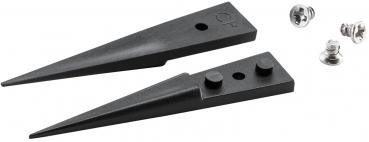

The image shows two sharp, black wedges that taper to a point at the ends. Next to the wedges are three silver screws.

Preview: The image displays two schematic representations of shapes with a width of 0.60 mm. The top shows a conical tapering shape, while the bottom depicts a flatter, elongated shape.

Replacement exchangeable tips A259CF

ESD Carbofib exchangeable tip A259CF

dpvlink

11854

5,76 EUR

Show product

The image shows two black, pointed parts that are shaped like wedges. Next to them are some silver screws. The parts appear to be intended for fastening or mounting.

Preview: The image displays two line drawings with identical dimensions of 0.60 mm. The upper line features a pointed shape, while the lower one has a straight, flatter shape.

Replacement exchangeable tips A259CP

ESD plastic exchangeable tip A259CP
++ ideal-tek - Swiss made++

dpvlink

11854

6,58 EUR

Show product

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 396

Complete Catalog 2023 - 2024

Product Family

ESD Tweezers with exchangeable tips

These ESD tweezers with exchangeable tips make fine work easier than ever before. The tips are made of high-quality plastic and offer the perfect balance of durability and precision. They also guarantee maximum precision when working and ensure that even the smallest components can be handled effortlessly.

Tweezers with exchangeable plastic tips are versatile and suitable for a wide range of tasks. They are ideal for handling sensitive electronic components such as circuit boards and microchips. They are also suitable for work in jewelry making, medicine and life sciences.

Easy and quick replacement - so you always have the right tip for the job.
Correct alignment - the tips have 3 alignment points, ensuring that they are always correctly aligned.
Cost-effective - plastic tips are cheaper than ceramic tips, making them a good choice for budget-conscious users.
