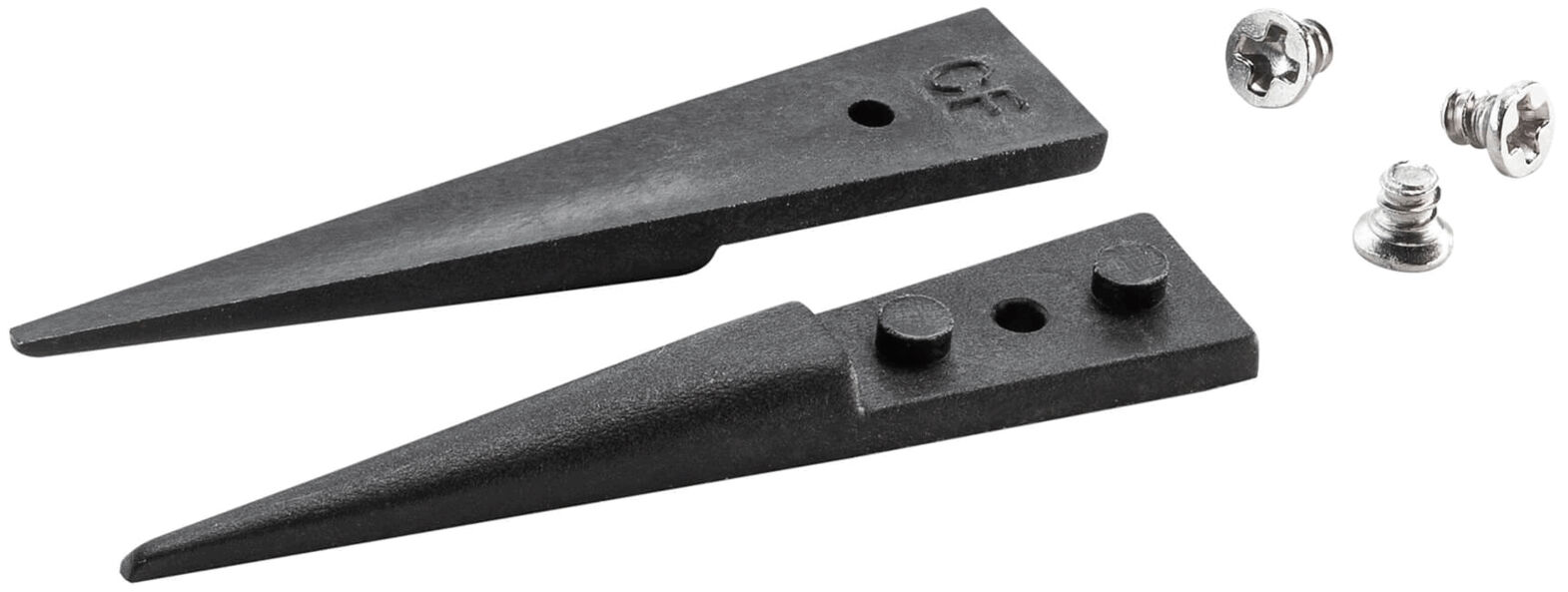

Preview: The image shows two sharp, black metal parts that look like wedges, next to two small screws. The wedges each have two holes and flat bottoms.

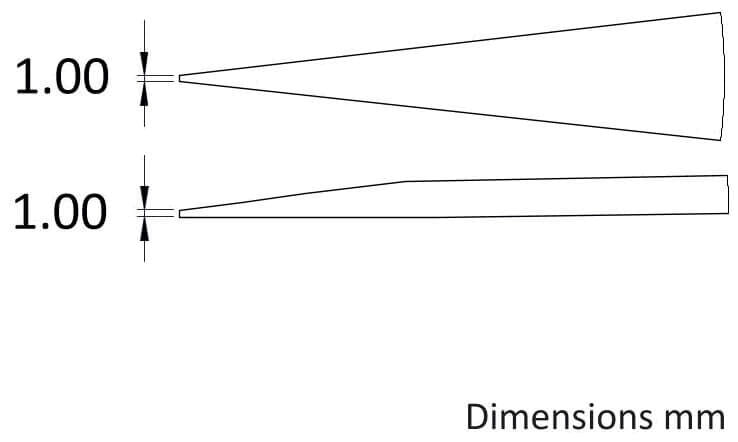

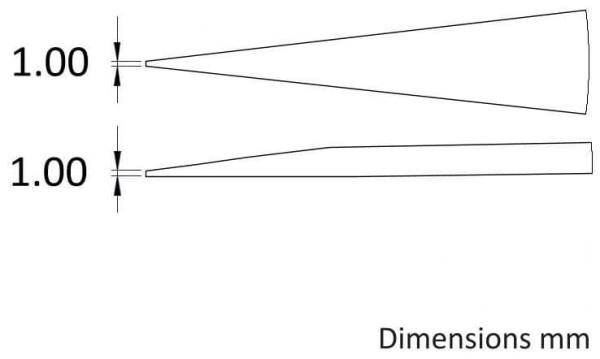

Preview: The image shows two simplified, trapezoidal objects in top view. Both have a height of 1 mm, the upper one is sharper, the lower one flatter. Labels indicate the dimensions in millimeters.

Replacement exchangeable tips A00CF

(Product No.: I-A00CF)

Mobile Preview: The image shows two sharp, black metal parts that look like wedges, next to two small screws. The wedges each have two holes and flat bottoms.

Mobile Preview: The image shows two simplified, trapezoidal objects in top view. Both have a height of 1 mm, the upper one is sharper, the lower one flatter. Labels indicate the dimensions in millimeters.

ESD-Pinzetten mit Wechselspitze

(Product No.: I-A00CF)

Replacement exchangeable tips A00CF

Name: Replacement exchangeable tips A00CF
SKU: I-A00CF
Price: 5.76 EUR
Availability: InStock

ArticleNo: I-A00CF

dpvlink:

11854

Tip form:

straight

Gripping surface:

smooth

Tip type characteristics:

thick, squared, strong

Properties:

Further product information

Availability: available

available

5,76 EUR

excl. 19% tax

1 PCE

Compare

Notice / Inquire

Product Info

Replacement exchangeable tips A00CF

The Ideal-Tek A00CF replacement tweezer tip is a high-quality solution for technical applications where precision and material care are required. Made in Switzerland, this kit includes two carbon fiber tips and three screws, specially developed for the Type 00CF tweezers. The tips, made from an ESD-capable plastic reinforced with 30% carbon fiber, not only offer excellent wear resistance and mechanical stability but also very low friction and outstanding chemical resistance against oils, fats, and most nonpolar solvents.
The tips are straight, thick, edgy, and strong, with a width of 8.0 mm and a tip width of 1.0 mm. The total length is 40 mm with a weight of only 1 gram. Despite their robustness, the tips are heat stabilized up to 130°C for continuous use and can withstand temperatures up to 190°C for short periods. The surface resistance is 102 Ω, highlighting the ESD safety.
Due to their properties, the replacement tip is particularly suitable for handling sensitive components in areas such as micromechanics and electronics assembly. Please note that the material is not resistant to strong acids, alkalis, hot water, or steam.

Details

Tip form Tip form: straight
Gripping surface Gripping surface: smooth
Tip type characteristics Tip type characteristics: thick, squared, strong
Height Height: 3.5 mm
Length Length: 40 mm
Thickness/diameter Thickness/diameter: 1.0 mm
Tip width Tip width: 1.0 mm
Width Width: 8.0 mm
Material Material: carbon
Tip Tip: Plastic
ESD ESD: yes
Weight Weight: 1 g

Show accessories

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Smooth gripping surface

Smooth gripping surfaces leave no marks on sensitive materials. They are ideal for fine work and gripping single wires or delicate surfaces.

Accessories

The image shows a silver tweezer with pointed tips. The handles are slightly curved and made of metal, while the tips are black and non-slip. Ideal for precise gripping.

Preview: The image shows two narrow, conical shapes. Both have a width of 1.00 mm at their thickest points. The upper shape is pointed, the lower one is flatter. Below it states

ESD tweezers with exchangeable tip 00CFR.SA...

ESD Carbofib exchangeable tip tweezers 00CFR.SA
+ ideal-tek +, A: 130 mm, B: 1.0 mm, C: 2.0 mm
Swiss made

dpvlink

11788

19,50 EUR

Show product

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 395

Complete Catalog 2023 - 2024

Product Family

Exchangeable tips for tweezers with exchangeable tips

Exchangeable plastic tips for the tweezers with exchangeable tips offer a perfect balance of durability and precision. They are suitable for working with electronic components such as circuit boards and microchips.

Easy and quick replacement - so you always have the right tip for the job.
Correct alignment - the tips have 3 alignment points, ensuring that they are always correctly aligned.
Cost-effective - plastic tips are cheaper than ceramic tips, making them a good choice for budget-conscious users.
