EPApro® Personnel-Tester
The advantages at a glance:
- Simultaneous measurement of shoes and wriststraps with short test time < 2 seconds
- Comfortable guest function e.g. for changing visitors
- Measurement of single shoe or in series as well as hands-free mode
- Adjustable measuring voltage with individual voltage reduction for sensitive persons
- Configurable thresholds
- Person identification with integrated Multi RFID reader
- Compliant with all usual standards, existent ID cards can still be used
- Access release / barrier controllable via configurable switch outputs
- Suitable for personnel access control systems
- Documentation of the measured values
- Intuitive user interface with clear display of the results´
- Privacy mode: display mode without showing personal data
- Password-protected access for administrators and managers
- Standard-compliant testing in compliance with DIN EN ISO 61340-5-1 and ANSI ESD S20.20
- Data logging in compliance with GDPR with automatic delete function
- Menu-driven calibration mode for simple calibration on site (returning the device for calibration is not necessary)
- Connectable via LAN or optionally WLAN adapter
- Languages German and English (GB)
The structure of the Personnel Tester
The features of the Personnel Tester

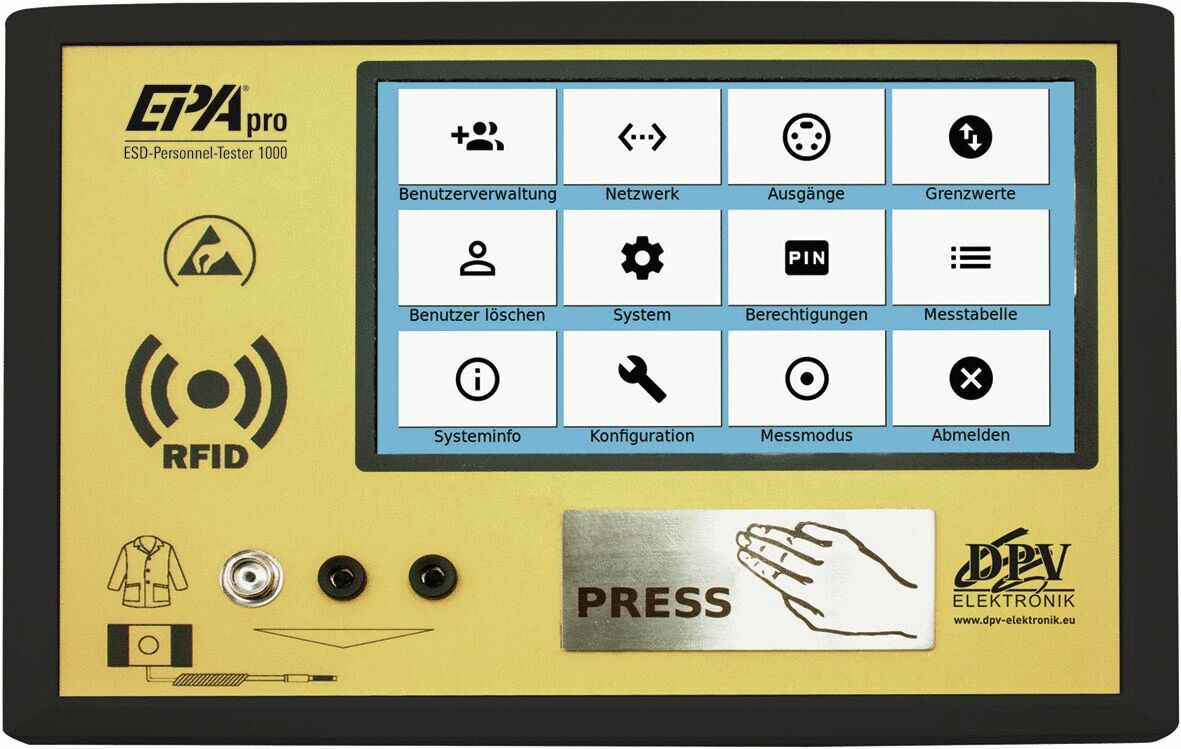

Display and operation
Display and operation are done via a 7-inch HD color touch display. The access for managers and administrators to the menus and parameters is protected by password. When using the optional EPApro® Control Server software, it is possible to configure the networked EPApro® 1000 devices centrally with the software.
Measurements
The measurements are made quickly and precisely within 2 seconds. This avoids delays or long waiting times at the entrance.
Shoes and wriststraps can be tested simultaneously. Configurable measuring voltage and thresholds enable optimal adaptation to your requirements. The reduction of the measuring voltage to 35 V for sensitive persons is adjustable for the respective employee. The measurement of the resistance comprises a test of the shoes, wriststraps or ESD coats (measurement of the ESD coats if they are used for primary personnel grounding, see standard).
There are several special functions like e.g. hands-free measurement (serial measurement of the shoes), variable measuring intervals, etc.
The measured data are stored in the database integrated in the device. After the measurement, the employee obtains immediately a feedback on the screen.
Multi RFID reader
An integrated Multi RFID reader is compatible with the usual RFID standards and enables the identification of the person and the personal logging of the measurement.
Using existing RFID cards is possible. It is optionally also possible to use other readers via the USB port e.g. barcode reader, etc.
Temperature and humidity sensor
The integrated temperature and humidity sensor captures the ambient conditions at the time of measurement and logs these together with the measured values in the internal database.

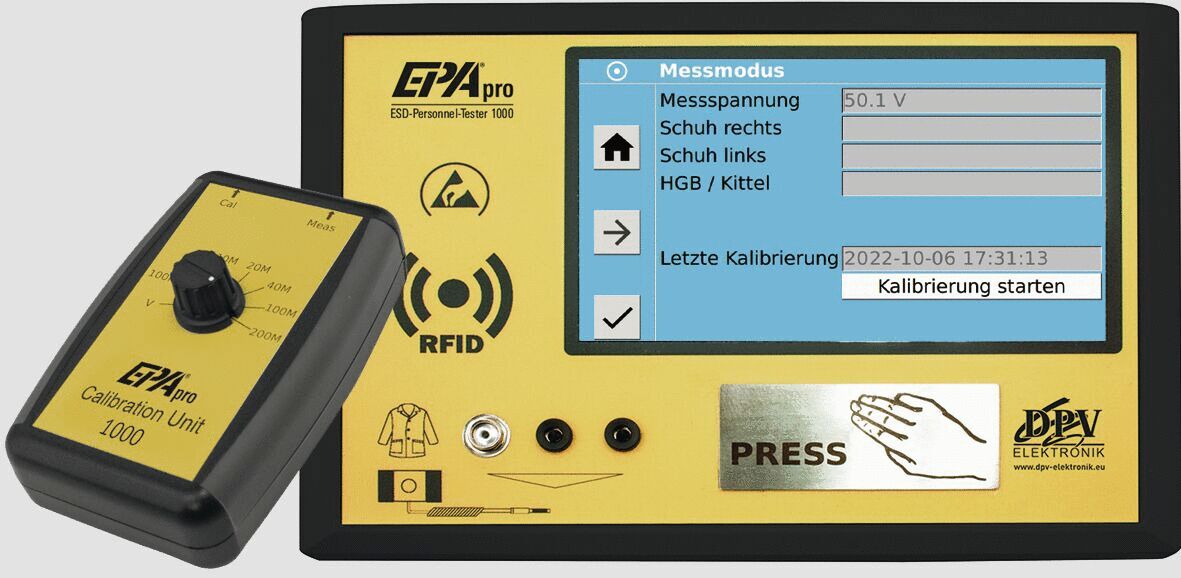

Integrated calibration function
The EPApro® 1000 has an integrated menu-driven calibration mode. It is possible to connect an optionally available calibration unit to the calibration input of the device
Thanks to this feature, it is not necessary to return the device for calibration. When using EPApro® Control Server software, the calibration data is additionally stored on the server.

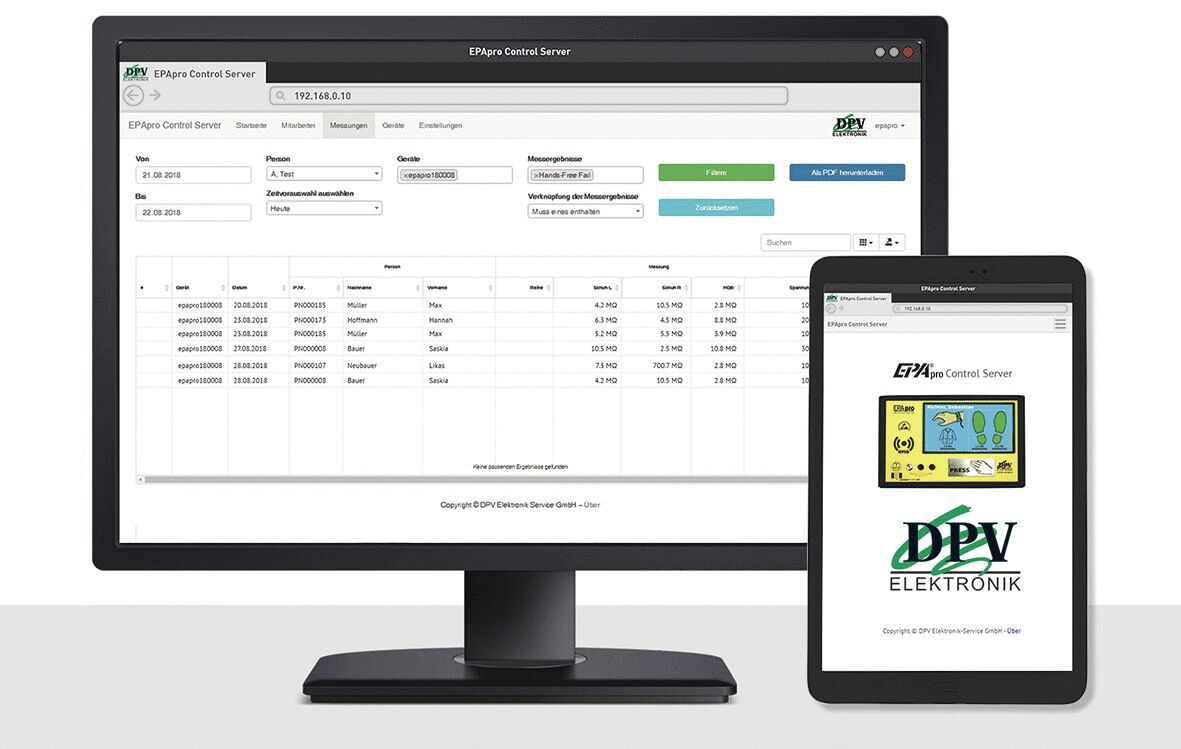

Connection with the EPApro® Control Server
The EPApro® 1000 device can be connected as a single device (Stand Alone) or via the company network with the optionally available EPApro® Control Server software, even across locations. The EPApro® Control Server offers the advantage of being able to manage the EPApro® 1000 devices centrally and to store all data in a central database.
Learn more about the EPApro® Control Server
Guest function
In case of visitor and guest cards, it is possible to enter the names directly on the device without any further administrative expense.
Control
The EPApro® 1000 has a powerful multicore and graphics processor to control the measurements and the touch user interface.
Technical data
| Voltage / power | 6 W (9 V/DC) (power supply unit 100-230V/AC) |
| Operating conditions | + 10 to 40° C / up to 75% relative humidity |
| Test time | < 2 seconds |
| Device: dimensions / weight | 265 x 180 x 100 mm / 1 kg |
| Footwear electrode: dimensions / weight | 500 x 350 x 8 mm / 2.6 kg |
| Test voltage | Wählbar: 100V / 50V / 30V/DC (Toleranz ±5%) | |
| Test | Measuring range – upper thresholds | Measuring range – lower thresholds |
| Wriststrap | 1 MΩ - 200 MΩ | none / 100 KΩ / 750 KΩ |
| Footwear worn against metal plate (value per shoe) | 1 MΩ - 200 MΩ | none / 100 KΩ / 750 KΩ |
| Footwear measurement in series (hands-free) | 1 MΩ - 200 MΩ | none / 100 KΩ / 750 KΩ |
