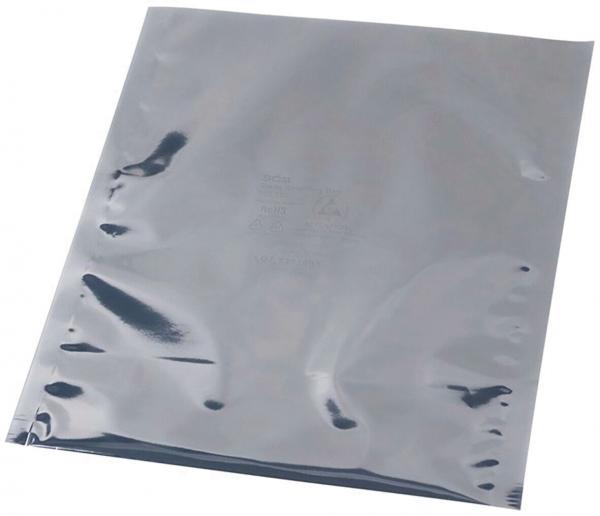

ESD Shielding bag PCL-100

The ESD shielding bags protect electronic parts and components from electrostatic discharge (ESD) and prevent static charge on the bag, which could damage ESD-prone parts and assemblies. They also meet the requirements for surface particles in cleanroom applications.
  • heat-sealable

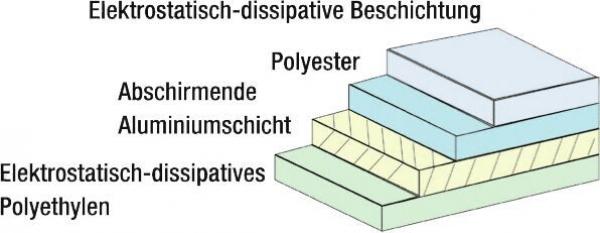

  • Outer layer - antistatic coating
    Surface resistance RS = 1011 Ohm
  • Metallization - aluminized
  • Inner layer - dissipative polyethylene
    Surface resistance RS = 104 - 1011 Ohm
  • Electrostatic Shielding <10nJ (Energy Test)
  • multi-layered structure, transparent
  • High shielding against electrostatic charge
  • suitable for use in cleanrooms
  • contains no amines, silicone or heavy metals
  • Side weld seam
  • Standard imprint: ESD warning icon, type designation, recycling symbol, RoHS compliance, LOT no.

Standards:
ANSI/ESD S20.20, ANSI/ESD S541, ANSI/ESD S11.4 Level 3, IEST-STD-CC1246E Level 100

Article image
Article description
Length
Thickness
Width
Electrostatic shielding
Static decay time max.
Surface resistance Rs
amine-free
Material
heat-sealable
PU
Conductivity
recyclable
Price
Compare
3M-PCL100.1012 - Shielding bag SCS, type PCL100
3M-PCL100.1012
Shielding bag SCS, type PCL100 "metal-in" 255 x 305 mm
305 mm
0,071 mm
255 mm
10 nJ
2 s
104 - 1011 Ω
yes
polyester / polyethylene
yes
100 piece


46,24 EUR
3M-PCL100.1115 - Shielding bag SCS, type PCL100
3M-PCL100.1115
Shielding bag SCS, type PCL100 "metal-in" 280 x 380 mm
380 mm
0,071 mm
280 mm
10 nJ
2 s
104 - 1011 Ω
yes
polyester / polyethylene
yes
100 piece
shielding

64,01 EUR
3M-PCL100.1218 - Shielding bag SCS, type PCL100
3M-PCL100.1218
Shielding bag SCS, type PCL100 "metal-in" 305 x 455 mm
455 mm
0,071 mm
305 mm
10 nJ
2 s
104 - 1011 Ω
yes
polyester / polyethylene
yes
100 piece
shielding

83,40 EUR
3M-PCL100.1818 - Shielding bag SCS, type PCL100
3M-PCL100.1818
Shielding bag SCS, type PCL100 "metal-in" 455 x 455 mm
455 mm
0,071 mm
455 mm
10 nJ
2 s
104 - 1011 Ω
yes
polyester / polyethylene
yes
100 piece
shielding
yes
135,50 EUR
3M-PCL100.2024 - Shielding bag SCS, type PCL100
3M-PCL100.2024
Shielding bag SCS, type PCL100 "metal-in" 505 x 610 mm
610 mm
0,071 mm
505 mm
10 nJ
2 s
104 - 1011 Ω
yes

yes
100 piece
shielding
yes
194,12 EUR
3M-PCL100.35 - Shielding bag SCS, type PCL100
3M-PCL100.35
Shielding bag SCS, type PCL100 "metal-in" 75 x 125 mm
125 mm
0,071 mm
75 mm
10 nJ
2 s
104 - 1011 Ω
yes
polyester / polyethylene
yes
100 piece
shielding
yes
17,90 EUR
3M-PCL100.46 - Shielding bag SCS, type PCL100
3M-PCL100.46
Shielding bag SCS, type PCL100 "metal-in" 100 x 150 mm
150 mm
0,071 mm
100 mm
10 nJ
2 s
104 - 1011 Ω
yes
polyester / polyethylene
yes
100 piece
shielding
yes
20,40 EUR
3M-PCL100.610 - Shielding bag SCS, type PCL100
3M-PCL100.610
Shielding bag SCS, type PCL100 "metal-in" 150 x 255 mm
255 mm
0,071 mm
150 mm
10 nJ
2 s
104 - 1011 Ω
yes
polyester / polyethylene
yes
100 piece
shielding
yes
32,60 EUR
3M-PCL100.812 - Shielding bag SCS, type PCL100
3M-PCL100.812
Shielding bag SCS, type PCL100 "metal-in" 200 x 305 mm
305 mm
0,071 mm
200 mm
10 nJ
2 s
104 - 1011 Ω
yes
polyester / polyethylene
yes
100 piece
shielding
yes
45,45 EUR
