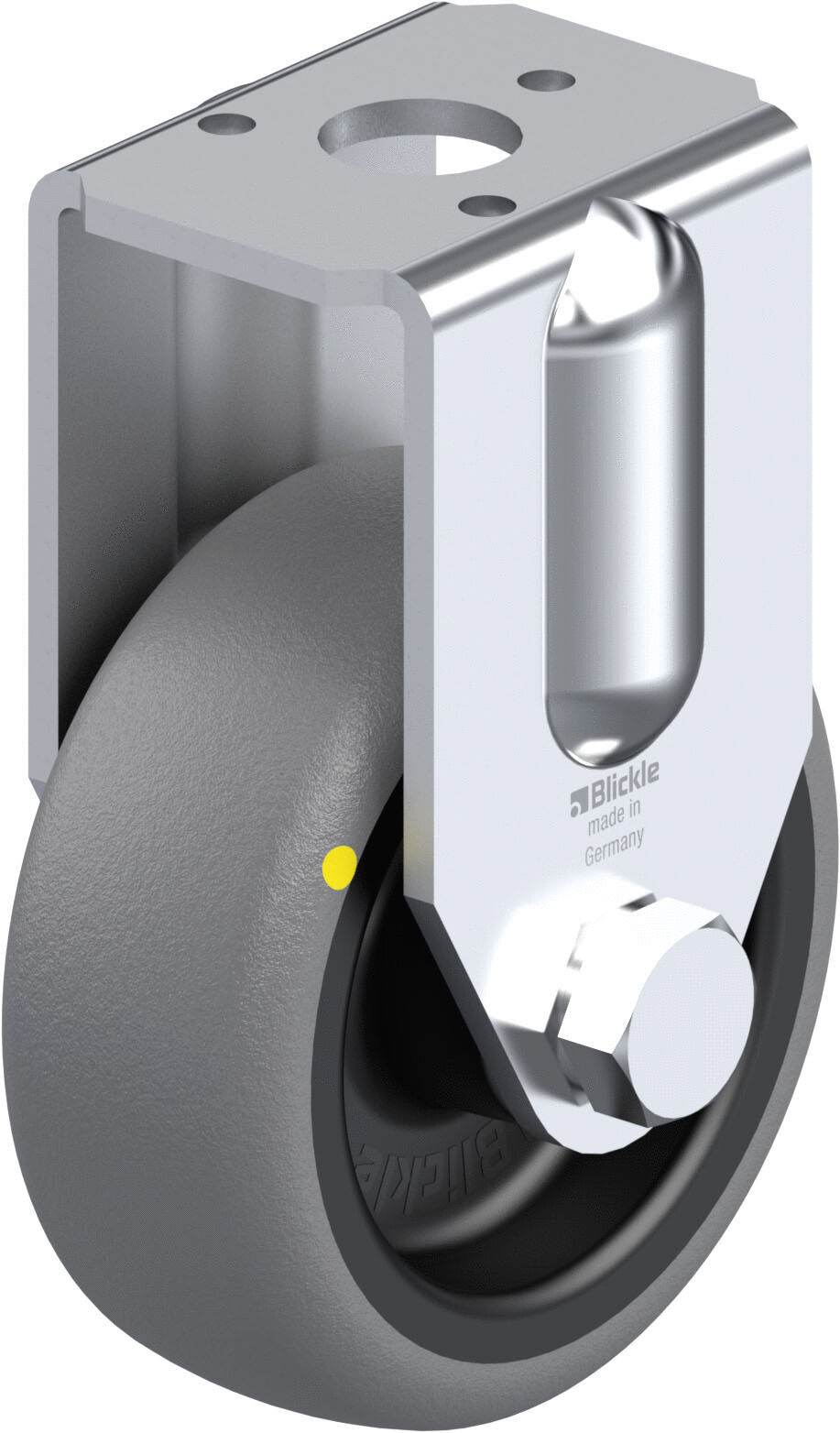

ESD Light duty fixed castor with bolt hole 650, load capacity 75 kg
ESD Equipment Swivel Caster with Back Hole 650, Load Capacity 75 kg
This ESD equipment swivel caster from series 650 with a back hole and a static load capacity of 75 kg combines functionality with high quality and ESD compliance according to DIN EN 61340-5-1. The housing is made of galvanically zinc-plated, blue passivated sheet steel that is Cr6-free. The wheel consists of a high-quality polypropylene wheel body and a tread made of thermoplastic rubber elastomer (TPE), which has a hardness of 85 Shore A and is non-marking and oil-resistant. The caster is characterized by high chemical resistance and a temperature resistance from -20 °C to +60 °C, though the load capacity decreases at temperatures above +30 °C. Technical Specifications: - Load capacity (static): 75 kg - Wheel diameter: 50 mm - Overall height: 69 mm - ESD: yes - Conductivity: conductive - Weight: 100 g - Shore hardness: 85 Shore A - Mounting type: back hole - Plate diameter: 43 mm - Wheel width: 19 mm - Wheel bearing: plain bearing - Back hole: 11 mm - Temperature resistance: -20 - 60 °C - Load capacity while moving: 30 kg
Item number: 603.B-050.ELS
This ESD equipment swivel caster from series 650 with a back hole and a static load capacity of 75 kg combines functionality with high quality and ESD compliance according to DIN EN 61340-5-1. The housing is made of galvanically zinc-plated, blue passivated sheet steel that is Cr6-free. The wheel consists of a high-quality polypropylene wheel body and a tread made of thermoplastic rubber elastomer (TPE), which has a hardness of 85 Shore A and is non-marking and oil-resistant. The caster is characterized by high chemical resistance and a temperature resistance from -20 °C to +60 °C, though the load capacity decreases at temperatures above +30 °C. Technical Specifications: - Load capacity (static): 75 kg - Wheel diameter: 50 mm - Overall height: 69 mm - ESD: yes - Conductivity: conductive - Weight: 100 g - Shore hardness: 85 Shore A - Mounting type: back hole - Plate diameter: 43 mm - Wheel width: 19 mm - Wheel bearing: plain bearing - Back hole: 11 mm - Temperature resistance: -20 - 60 °C - Load capacity while moving: 30 kg
Item number: 603.B-050.ELS
Details
- Load capacity (static) Load capacity (static)
- 75 kg
- Wheel Ø Wheel Ø
- 50 mm
- Total height Total height
- 69 mm
- Bolt hole Bolt hole
- 11 mm
- Mounting typ Mounting typ
- bolt hole
- Plate diameter Plate diameter
- 43 mm
- Wheel bearing Wheel bearing
- plain bearing
- Wheel width Wheel width
- 19 mm
- Wheel/castor type Wheel/castor type
- light duty fixed castor
- Conductivity Conductivity
- conductive
- Load capacity when moving Load capacity when moving
- 30 kg
- Shore hardness Shore hardness
- 85 Shore A
- ESD ESD
- yes
- Temperature resistance Temperature resistance
- -20 - 60 °C
- Weight [g] Weight [g]
- 100
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Load capacity (static) | Wheel Ø | Total height | Price | Compare |
|---|---|---|---|---|---|---|
|
603.B-050.ELS ESD Light duty fixed castor with bolt hole 650, load capacity 75 kg | 75 kg | 50 mm | 69 mm | 6,95 EUR | |
|
603.B-075.ELS ESD Light duty fixed castor with bolt hole 650, load capacity 125 kg | 125 kg | 50 mm | 98 mm | 8,30 EUR | |
| Show Compare List (0) | ||||||
