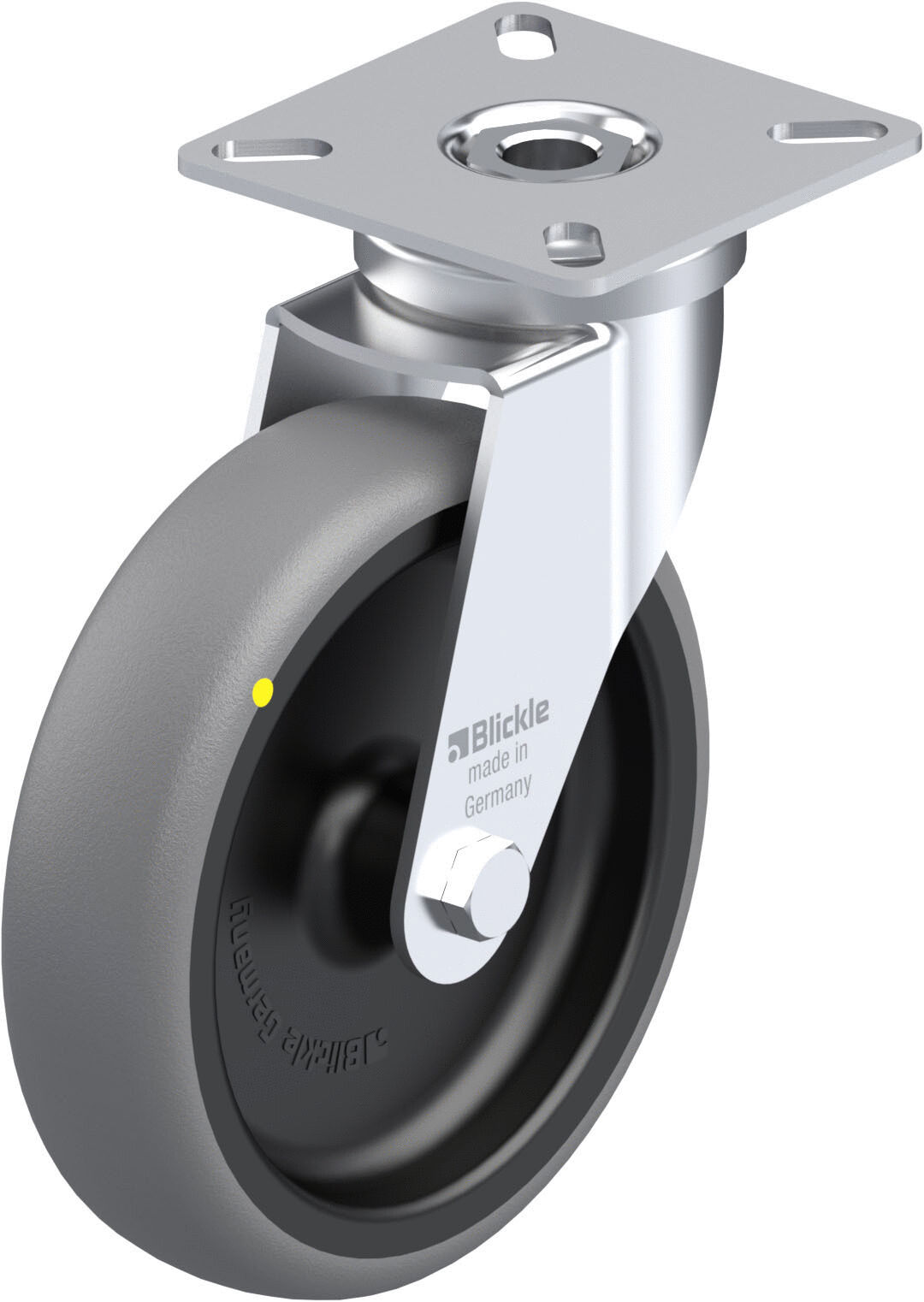

ESD Light duty swivel castor with top plate, load capacity 150 kg
ESD Equipment Swivel Caster with Mounting Plate 650, Load Capacity 150 kg
This ESD equipment swivel caster from series 650 with a load capacity of 150 kg is ideal for use in environments that require high chemical resistance and ESD compliance according to DIN EN 61340-5-1. The housing is made of galvanically zinc-plated, blue passivated steel sheet and offers smooth operation and a long lifespan due to its double ball bearing in the swivel head, stable central bolt, and special dynamic Blickle riveting. The wheel combines a tread made of high-quality, non-marking thermoplastic rubber elastomer with a break-resistant polypropylene wheel body.
Technical Data: - Wheel Ø: 100 mm - Overall height: 123 mm - Offset: 33 mm - ESD: yes - Conductivity: conductive - Weight: 300 g - Shore hardness: 85 Shore A - Mounting type: mounting plate - Plate dimensions: 60 x 60 mm - Wheel/caster type: unbraked equipment swivel caster - Wheel width: 25 mm - Wheel bearing: plain bearing - Hole for screw: 6.2 mm - Hole spacing: 48 x 48 mm - Temperature resistance: -20°C to +60°C - Load capacity in motion: 60 kg
Ideal for applications that require reduced load capacity at temperatures above +30 °C.
Item number: 604.100.ELS
This ESD equipment swivel caster from series 650 with a load capacity of 150 kg is ideal for use in environments that require high chemical resistance and ESD compliance according to DIN EN 61340-5-1. The housing is made of galvanically zinc-plated, blue passivated steel sheet and offers smooth operation and a long lifespan due to its double ball bearing in the swivel head, stable central bolt, and special dynamic Blickle riveting. The wheel combines a tread made of high-quality, non-marking thermoplastic rubber elastomer with a break-resistant polypropylene wheel body.
Technical Data: - Wheel Ø: 100 mm - Overall height: 123 mm - Offset: 33 mm - ESD: yes - Conductivity: conductive - Weight: 300 g - Shore hardness: 85 Shore A - Mounting type: mounting plate - Plate dimensions: 60 x 60 mm - Wheel/caster type: unbraked equipment swivel caster - Wheel width: 25 mm - Wheel bearing: plain bearing - Hole for screw: 6.2 mm - Hole spacing: 48 x 48 mm - Temperature resistance: -20°C to +60°C - Load capacity in motion: 60 kg
Ideal for applications that require reduced load capacity at temperatures above +30 °C.
Item number: 604.100.ELS
Details
- Load capacity (static) Load capacity (static)
- 150 kg
- Wheel Ø Wheel Ø
- 100 mm
- Total height Total height
- 123 mm
- Bolt hole Bolt hole
- 6.2 mm
- Bolt hole spacing Bolt hole spacing
- 48 x 48 mm
- Mounting typ Mounting typ
- top plate
- Plate dimensions Plate dimensions
- 60 x 60 mm
- Wheel bearing Wheel bearing
- plain bearing
- Wheel width Wheel width
- 25 mm
- Wheel/castor type Wheel/castor type
- light duty swivel castor unbraked
- Offset Offset
- 33 mm
- Conductivity Conductivity
- conductive
- Load capacity when moving Load capacity when moving
- 60 kg
- Shore hardness Shore hardness
- 85 Shore A
- ESD ESD
- yes
- Temperature resistance Temperature resistance
- -20 - 60 °C
- Weight [g] Weight [g]
- 300
