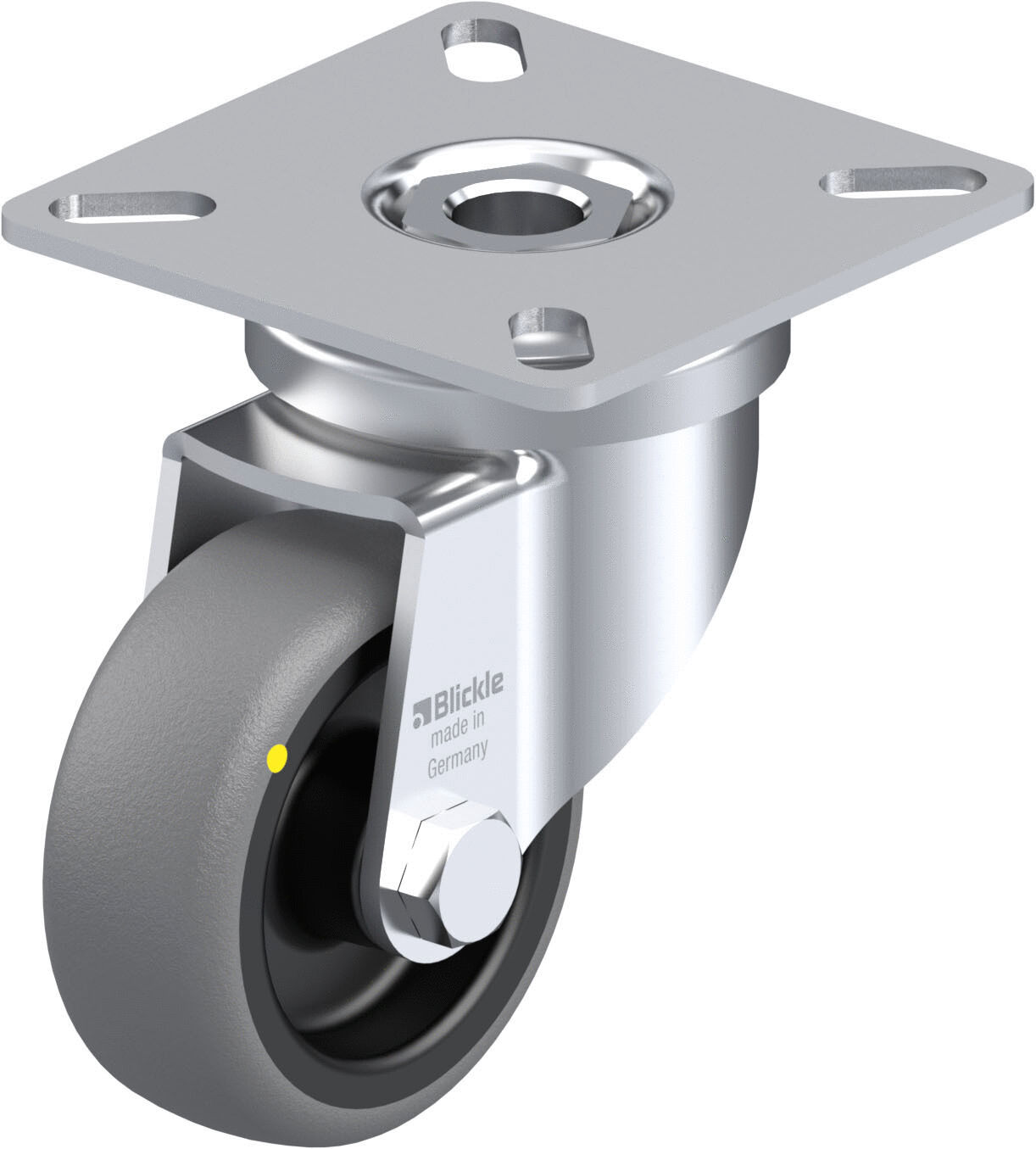

ESD Light duty swivel castor with top plate, load capacity 75 kg
ESD Equipment Caster Wheel with Mounting Plate 650, Load Capacity 75 kg
This ESD equipment caster wheel from series 650 with a load capacity of 75 kg is ideal for use in areas where electrostatic discharge must be avoided. The wheel features a housing made of galvanically zinc-plated steel sheet, which is blue passivated and Cr6-free. A double ball bearing in the swivel head and a sturdy central bolt ensure smooth running and a long service life. The wheel body made of break-resistant polypropylene and the tread made of thermoplastic rubber elastomer (TPE) offer excellent chemical resistance and leave no marks. The wheel is also temperature resistant from -20 °C to +60 °C, although the load capacity is reduced at temperatures above +30 °C. It meets the ESD standard DIN EN 61340-5-1. Technical Data: - Load capacity (static): 75 kg - Wheel Ø: 50 mm - Overall height: 71 mm - Projection: 23 mm - ESD: yes - Conductivity: conductive - Weight: 200 g - Shore hardness: 85 Shore A - Mounting type: mounting plate - Plate dimensions: 60 x 60 mm - Wheel/caster type: unbraked equipment caster - Wheel width: 19 mm - Wheel bearing: plain bearing - Screw hole: 6.2 mm - Distance between screw holes: 48 x 48 mm - Temperature resistance: -20 - 60 °C - Load capacity while moving: 30 kg
Item number: 604.050.ELS
This ESD equipment caster wheel from series 650 with a load capacity of 75 kg is ideal for use in areas where electrostatic discharge must be avoided. The wheel features a housing made of galvanically zinc-plated steel sheet, which is blue passivated and Cr6-free. A double ball bearing in the swivel head and a sturdy central bolt ensure smooth running and a long service life. The wheel body made of break-resistant polypropylene and the tread made of thermoplastic rubber elastomer (TPE) offer excellent chemical resistance and leave no marks. The wheel is also temperature resistant from -20 °C to +60 °C, although the load capacity is reduced at temperatures above +30 °C. It meets the ESD standard DIN EN 61340-5-1. Technical Data: - Load capacity (static): 75 kg - Wheel Ø: 50 mm - Overall height: 71 mm - Projection: 23 mm - ESD: yes - Conductivity: conductive - Weight: 200 g - Shore hardness: 85 Shore A - Mounting type: mounting plate - Plate dimensions: 60 x 60 mm - Wheel/caster type: unbraked equipment caster - Wheel width: 19 mm - Wheel bearing: plain bearing - Screw hole: 6.2 mm - Distance between screw holes: 48 x 48 mm - Temperature resistance: -20 - 60 °C - Load capacity while moving: 30 kg
Item number: 604.050.ELS
Details
- Load capacity (static) Load capacity (static)
- 75 kg
- Wheel Ø Wheel Ø
- 50 mm
- Total height Total height
- 71 mm
- Bolt hole Bolt hole
- 6.2 mm
- Bolt hole spacing Bolt hole spacing
- 48 x 48 mm
- Mounting typ Mounting typ
- top plate
- Plate dimensions Plate dimensions
- 60 x 60 mm
- Wheel bearing Wheel bearing
- plain bearing
- Wheel width Wheel width
- 19 mm
- Wheel/castor type Wheel/castor type
- light duty swivel castor unbraked
- Offset Offset
- 23 mm
- Conductivity Conductivity
- conductive
- Load capacity when moving Load capacity when moving
- 30 kg
- Shore hardness Shore hardness
- 85 Shore A
- ESD ESD
- yes
- Temperature resistance Temperature resistance
- -20 - 60 °C
- Weight [g] Weight [g]
- 200
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Load capacity (static) | Wheel Ø | Total height | Price | Compare |
|---|---|---|---|---|---|---|
|
604.100.ELS ESD Light duty swivel castor with top plate, load capacity 150 kg | 150 kg | 100 mm | 123 mm | 11,35 EUR | |
|
604.075.ELS ESD Light duty swivel castor with top plate, load capacity 125 kg | 125 kg | 75 mm | 100 mm | 9,60 EUR | |
|
604.050.ELS ESD Light duty swivel castor with top plate, load capacity 75 kg | 75 kg | 50 mm | 71 mm | 8,95 EUR | |
| Show Compare List (0) | ||||||
