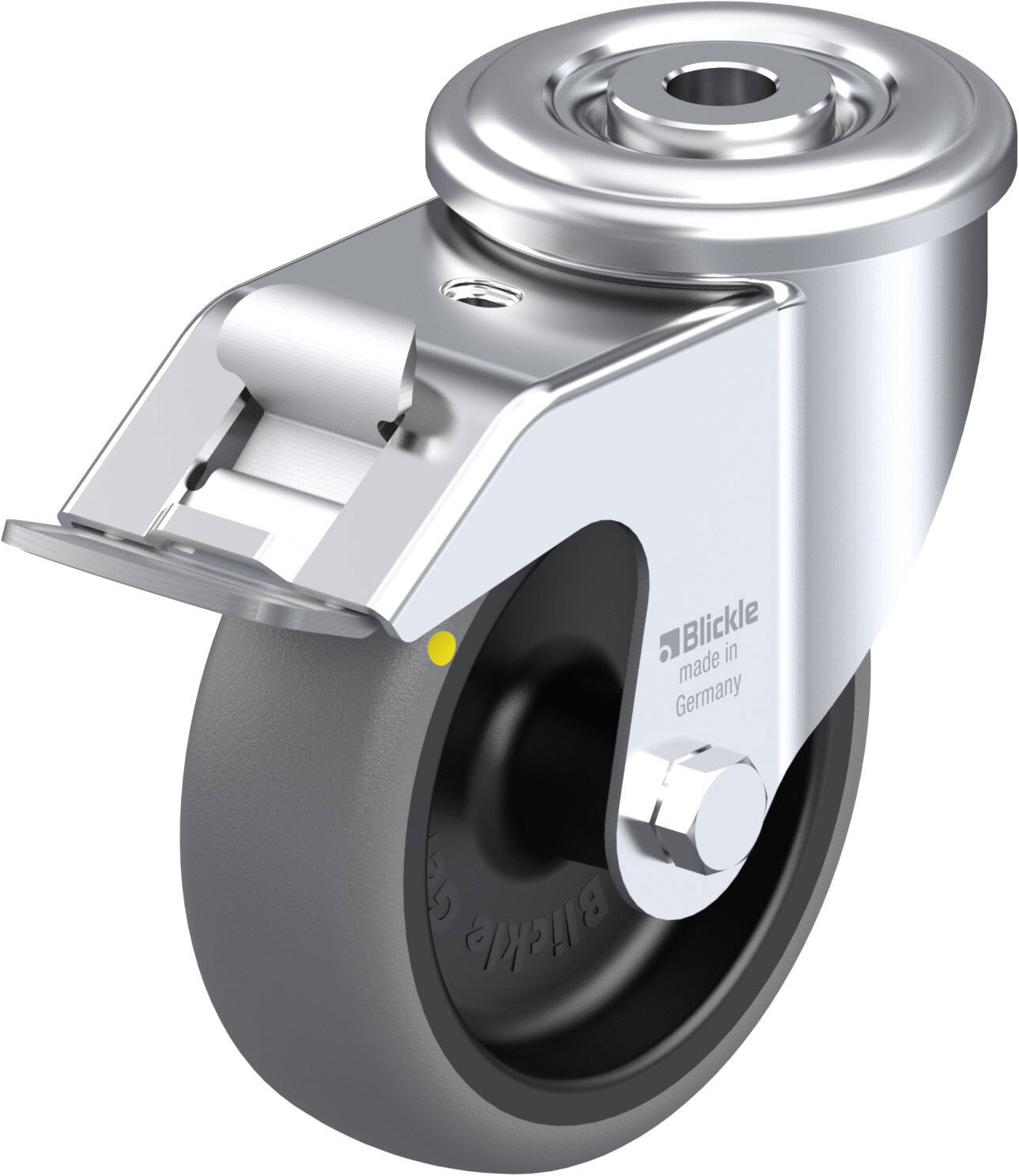

ESD Swivel castor with bolt hole - "stop-fix" 600, load capacity 175 kg
The ESD swivel casters with back hole "stop-fix" 600 from Blickle impress with a load capacity of 175 kg and are specifically designed for use in ESD-sensitive areas. The housing of the LER series is made of galvanically zinc-plated steel sheet, which is blue passivated and Cr6-free. A double ball bearing in the swivel ring and a sturdy central bolt ensure smooth running and a long service life due to the dynamic Blickle riveting.
The wheel of the TPA series features a tread made of high-quality thermoplastic rubber elastomer (TPE) with a hardness of 85 Shore A and is oil-containing and non-marking. The wheel body made of impact-resistant polypropylene is colored black.
The casters are highly resistant to chemicals and aggressive substances and are temperature resistant from -20 °C to +60 °C, although the load capacity is reduced at temperatures above +30 °C. They meet the ESD standard DIN EN 61340-5-1 and offer a static load capacity of 175 kg, while the load capacity when moving is reduced to 70 kg.
Further technical specifications include a wheel diameter of 100 mm, an overall height of 125 mm, a projection of 36 mm, and a weight of 700 g. The plate diameter is 70 mm, and the back hole has a diameter of 13 mm.
The wheel of the TPA series features a tread made of high-quality thermoplastic rubber elastomer (TPE) with a hardness of 85 Shore A and is oil-containing and non-marking. The wheel body made of impact-resistant polypropylene is colored black.
The casters are highly resistant to chemicals and aggressive substances and are temperature resistant from -20 °C to +60 °C, although the load capacity is reduced at temperatures above +30 °C. They meet the ESD standard DIN EN 61340-5-1 and offer a static load capacity of 175 kg, while the load capacity when moving is reduced to 70 kg.
Further technical specifications include a wheel diameter of 100 mm, an overall height of 125 mm, a projection of 36 mm, and a weight of 700 g. The plate diameter is 70 mm, and the back hole has a diameter of 13 mm.
Details
- Load capacity (static) Load capacity (static)
- 175 kg
- Wheel Ø Wheel Ø
- 100 mm
- Total height Total height
- 125 mm
- Bolt hole Bolt hole
- 13 mm
- Mounting typ Mounting typ
- bolt hole
- Plate diameter Plate diameter
- 70 mm
- Wheel bearing Wheel bearing
- plain bearing
- Wheel width Wheel width
- 32 mm
- Wheel/castor type Wheel/castor type
- swivel castor braked
- Offset Offset
- 36 mm
- Conductivity Conductivity
- conductive
- Load capacity when moving Load capacity when moving
- 70 kg
- Bracket Bracket
- steel sheet
- Shore hardness Shore hardness
- 85 Shore A
- Tread Tread
- rubber, thermoplastic
- ESD ESD
- yes
- Temperature resistance Temperature resistance
- -20 - 60 °C
- Weight [g] Weight [g]
- 700
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
