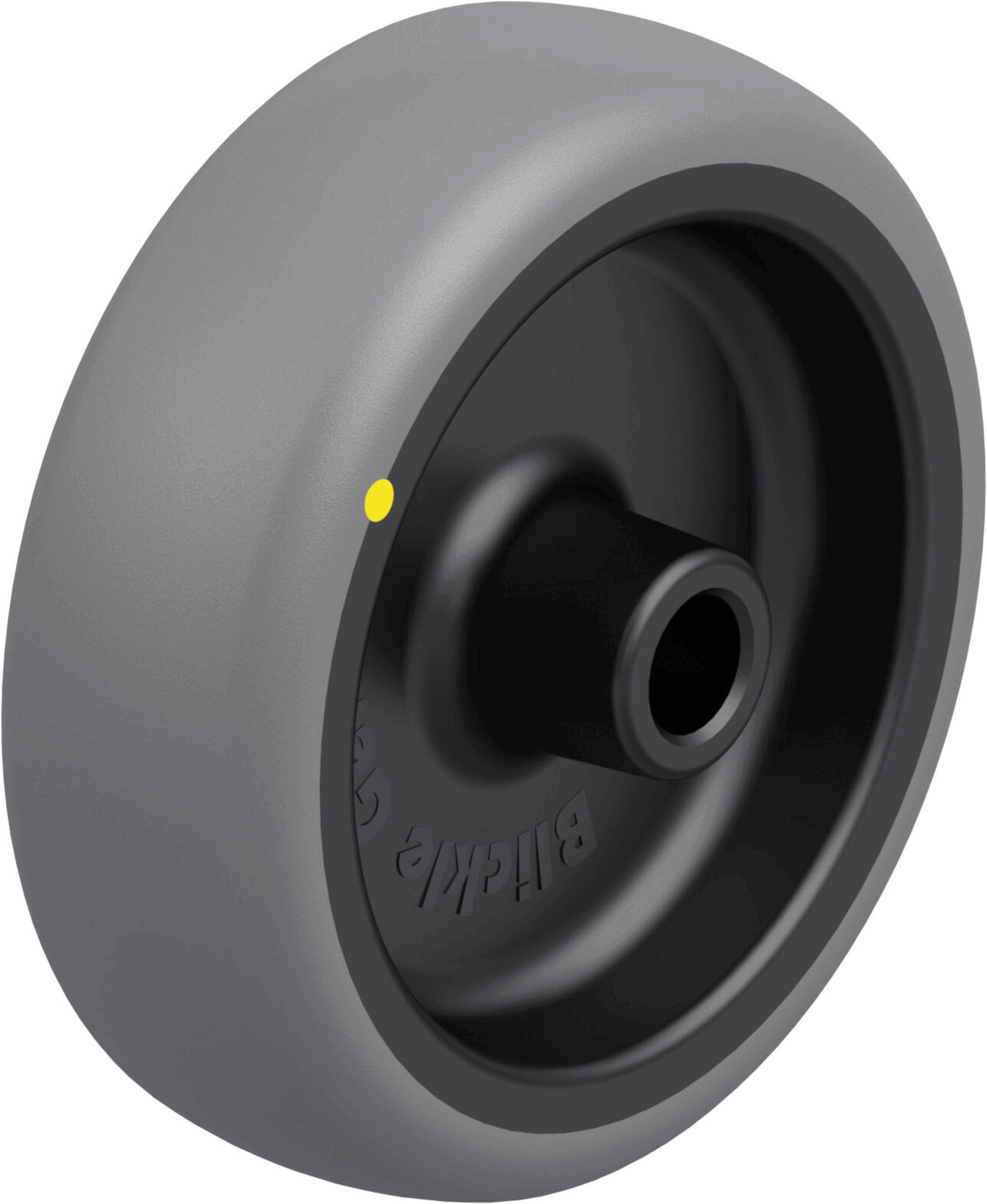

ESD Wheel with thermoplastic rubber tread 600, load capacity 175 kg
ESD Wheel with Thermoplastic Rubber Tread 600, Load Capacity 175 kg
This ESD wheel from the 600 series features a high-quality thermoplastic rubber tread with a hardness of 85 Shore A, which rolls without leaving marks on surfaces. The tread offers low rolling and swivel resistance and is firmly connected to the black, break-resistant polypropylene wheel body. The wheel is particularly resistant to chemicals and withstands temperatures from -20 °C to +60 °C, although the maximum load capacity of 175 kg is reduced at temperatures above +30 °C. Conforming to ESD standard DIN EN 61340-5-1, the wheel ensures safe conductivity.
Technical Data: - Diameter: 100 mm - Width: 32 mm - Axle hole: 12 mm - Hub length: 45 mm - Weight: 200 g - Load capacity (static): 175 kg, in motion: 70 kg - Wheel bearing: plain bearing - Conductivity: yes
Item number: 622.100.ELS
This ESD wheel from the 600 series features a high-quality thermoplastic rubber tread with a hardness of 85 Shore A, which rolls without leaving marks on surfaces. The tread offers low rolling and swivel resistance and is firmly connected to the black, break-resistant polypropylene wheel body. The wheel is particularly resistant to chemicals and withstands temperatures from -20 °C to +60 °C, although the maximum load capacity of 175 kg is reduced at temperatures above +30 °C. Conforming to ESD standard DIN EN 61340-5-1, the wheel ensures safe conductivity.
Technical Data: - Diameter: 100 mm - Width: 32 mm - Axle hole: 12 mm - Hub length: 45 mm - Weight: 200 g - Load capacity (static): 175 kg, in motion: 70 kg - Wheel bearing: plain bearing - Conductivity: yes
Item number: 622.100.ELS
Details
- Wheel Ø Wheel Ø
- 100 mm
- Wheel width Wheel width
- 32 mm
- axle hole axle hole
- 12 mm
- Hub length Hub length
- 45 mm
- Wheel bearing Wheel bearing
- plain bearing
- Wheel/castor type Wheel/castor type
- wheel
- Conductivity Conductivity
- conductive
- Load capacity (static) Load capacity (static)
- 175 kg
- Load capacity when moving Load capacity when moving
- 70 kg
- Shore hardness Shore hardness
- 85 Shore A
- ESD ESD
- yes
- Temperature resistance Temperature resistance
- -20 - 60 °C
- Weight [g] Weight [g]
- 200
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Wheel Ø | Wheel width | axle hole | Hub length | Price | Compare |
|---|---|---|---|---|---|---|---|
|
622.125.ELS ESD Wheel with thermoplastic rubber tread 600, load capacity 200 kg | 125 mm | 32 mm | 12 mm | 45 mm | 8,65 EUR | |
|
622.080.ELS ESD Wheel with thermoplastic rubber tread 600, load capacity 165 kg | 80 mm | 32 mm | 12 mm | 35 mm | - | |
|
622.100.ELS ESD Wheel with thermoplastic rubber tread 600, load capacity 175 kg | 100 mm | 32 mm | 12 mm | 45 mm | 6,45 EUR | |
| Show Compare List (0) | |||||||
