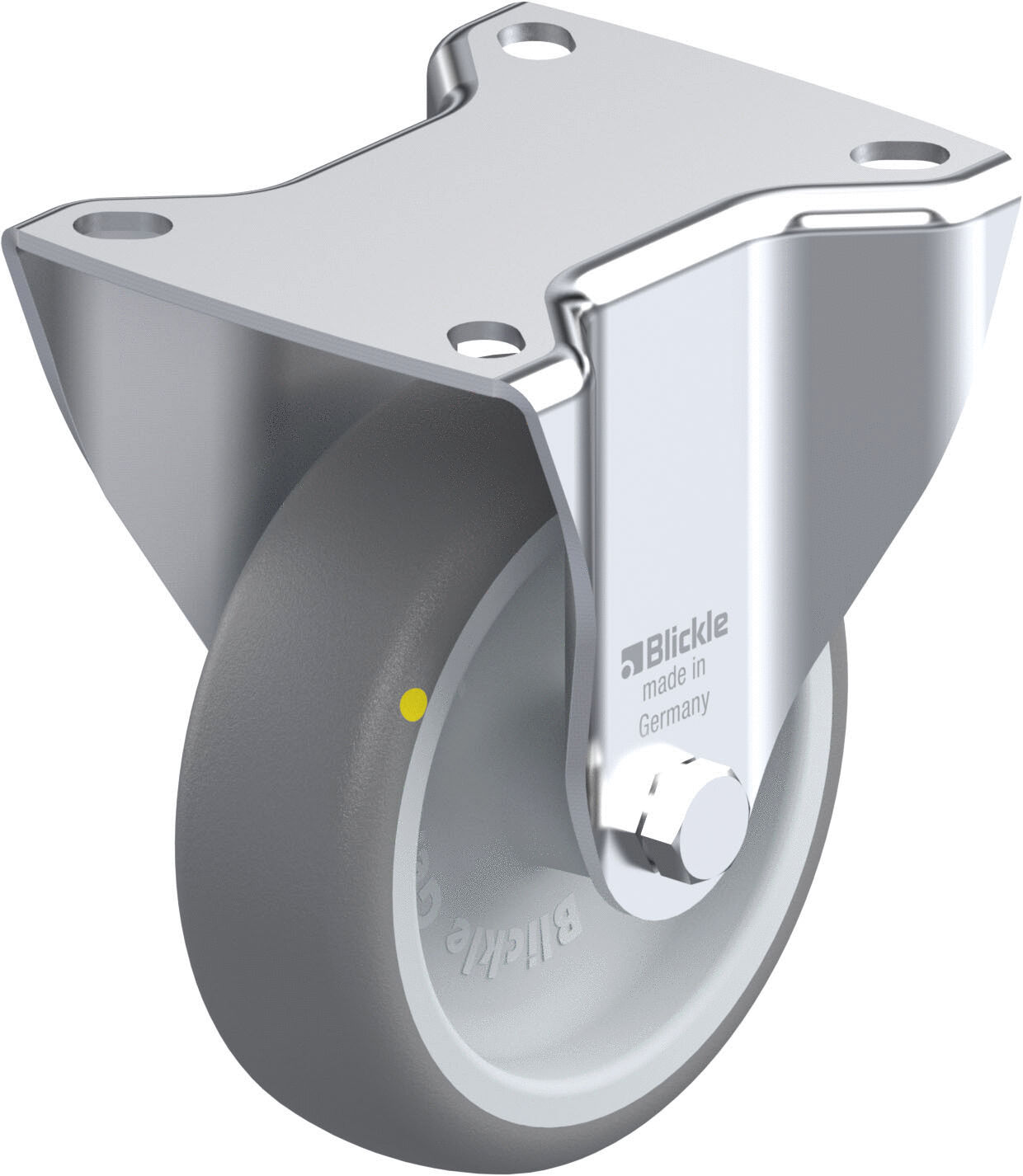

ESD Fixed castor with top plate 600, load capacity 175 kg
ESD Swivel Casters with Mounting Plate 600, Load Capacity 175 kg
This ESD swivel caster with mounting plate from series 600 is specifically designed for technical use with a load capacity of 175 kg. The housing of series B is made from galvanically zinc-coated, blue passivated sheet steel and is Cr6-free. The wheel from series TPA features a tread made of high-quality thermoplastic rubber elastomer (TPE) with a hardness of 85 Shore A in gray and is non-marking and oil-resistant. The wheel body is made of break-resistant polypropylene in black.
Technical Data: - Wheel Ø: 100 mm - Total height: 125 mm - Weight: 500 g - Mounting type: Mounting plate - Plate dimensions: 100 x 85 mm - Wheel width: 32 mm - Wheel bearing: Plain bearing - Bolt hole: 9 mm - Bolt hole spacing: 80 x 60 mm - Temperature resistance: -20 °C to +60 °C - Load capacity in motion: 70 kg
The caster offers high chemical resistance and meets the ESD standard DIN EN 61340-5-1.
Item number: 625.100.ELS
This ESD swivel caster with mounting plate from series 600 is specifically designed for technical use with a load capacity of 175 kg. The housing of series B is made from galvanically zinc-coated, blue passivated sheet steel and is Cr6-free. The wheel from series TPA features a tread made of high-quality thermoplastic rubber elastomer (TPE) with a hardness of 85 Shore A in gray and is non-marking and oil-resistant. The wheel body is made of break-resistant polypropylene in black.
Technical Data: - Wheel Ø: 100 mm - Total height: 125 mm - Weight: 500 g - Mounting type: Mounting plate - Plate dimensions: 100 x 85 mm - Wheel width: 32 mm - Wheel bearing: Plain bearing - Bolt hole: 9 mm - Bolt hole spacing: 80 x 60 mm - Temperature resistance: -20 °C to +60 °C - Load capacity in motion: 70 kg
The caster offers high chemical resistance and meets the ESD standard DIN EN 61340-5-1.
Item number: 625.100.ELS
Details
- Load capacity (static) Load capacity (static)
- 175 kg
- Wheel Ø Wheel Ø
- 100 mm
- Total height Total height
- 125 mm
- Bolt hole Bolt hole
- 9 mm
- Bolt hole spacing Bolt hole spacing
- 80 x 60 mm
- Mounting typ Mounting typ
- top plate
- Plate dimensions Plate dimensions
- 100 x 85 mm
- Wheel bearing Wheel bearing
- plain bearing
- Wheel width Wheel width
- 32 mm
- Wheel/castor type Wheel/castor type
- fixed castor
- Conductivity Conductivity
- conductive
- Load capacity when moving Load capacity when moving
- 70 kg
- Shore hardness Shore hardness
- 85 Shore A
- ESD ESD
- yes
- Temperature resistance Temperature resistance
- -20 - 60 °C
- Weight [g] Weight [g]
- 500
