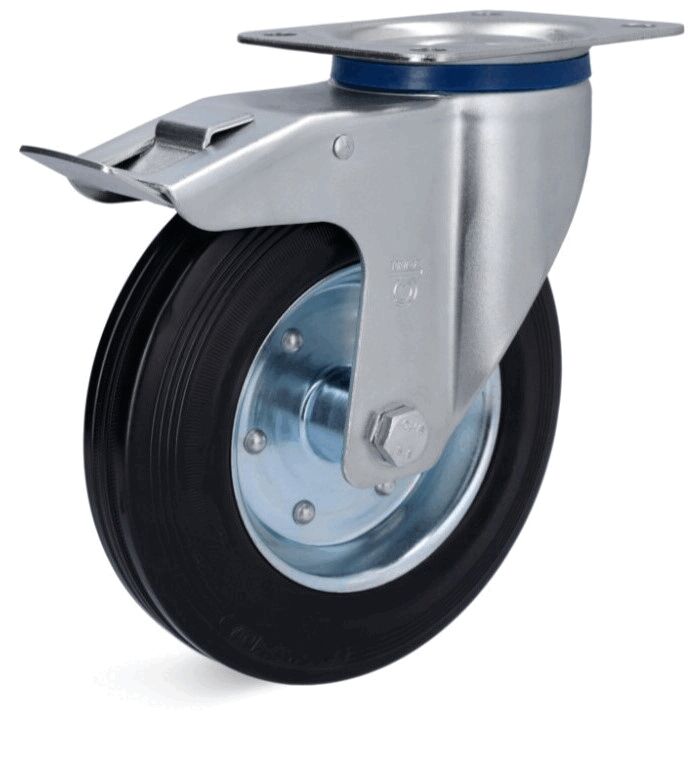

ESD Swivel castors with top plate - double stop 500, load capacity 100 kg

(Product No.: 524.125.DS.EL)

ESD Swivel castors with top plate - double stop 500, load capacity 100 kg

Name: ESD Swivel castors with top plate - double stop 500, load capacity 100 kg
SKU: 524.125.DS.EL
Price: 17.20 EUR
Availability: InStock

ArticleNo: 524.125.DS.EL

ESD Swivel castors with top plate - double stop 500, load capacity 100 kg

dpvlink:

3280

Load capacity :

100 kg

Load capacity (static):

100 kg

Wheel Ø:

125 mm

Total height:

155 mm

Properties:

Further product information

Wheel Ø / Load capacity (static):

Availability: available

available

17,20 EUR

excl. 19% tax

1 PCE

Compare

Notice / Inquire

Product Info

ESD Swivel castors with top plate - double stop 500, load capacity 100 kg

The ESD caster wheels with mounting plate - Double Stop 500 are specifically designed for a load capacity of up to 100 kg and offer optimal application possibilities in ESD-sensitive areas due to their electrical conductivity. The wheels have a diameter of 125 mm and a wheel width of 38 mm, with the total height of the caster being 155 mm. The solid rubber tread is odorless and black, which, in addition to vibration damping, also ensures quiet operation.
The attachment is made via a mounting plate measuring 100 x 80 mm. The steel sheet housing is galvanized, providing additional protection against corrosion. The fork heads are equipped with double ball bearings, which enhances maneuverability. The Shore hardness of the wheels is 85 A, ensuring high load capacity and durability. The wheels are equipped with a roller bearing and weigh 1449 g. The screw holes have a diameter of 9 mm and a screw hole distance of 80 x 60 mm.
Due to the special design, plasticizer diffusion can occur, which may lead to contact discoloration of the floor.

Details

Load capacity Load capacity: 100 kg
Load capacity (static) Load capacity (static): 100 kg
Wheel Ø Wheel Ø: 125 mm
Total height Total height: 155 mm
axle hole axle hole: 8 mm
Bolt hole Bolt hole: 9 mm
Bolt hole spacing Bolt hole spacing: 80 x 60 mm
Mounting typ Mounting typ: top plate
Plate dimensions Plate dimensions: 100 x 80 mm
Wheel bearing Wheel bearing: Roller bearing
Wheel width Wheel width: 38 mm
Wheel/castor type Wheel/castor type: swivel castor braked
Offset Offset: 40 mm
Conductivity Conductivity: conductive
Bracket Bracket: steel
Shore hardness Shore hardness: 85 Shore A
Tread Tread: solid rubber
ESD ESD: yes
Weight Weight: 1449 g

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 379

Complete Catalog 2023 - 2024

Product Family

ESD Swivel castors with top plate - double stop

Electrically conductive castor with double stop
Our solid rubber series is characterized by its quiet running and vibration-damping properties

SGS-EC wheel series - wheel body made of sheet steel with roller bearings - tread made of odorless solid rubber tyres, black - electrically conductive version.
ILC housing series - Standard sheet steel housing in galvanized design - Fork head equipped with double ball bearing - Sealing with integrated ball spacer
Contact discoloration of the base may occur due to plasticizer diffusion, approx. 80-85° Shore A
