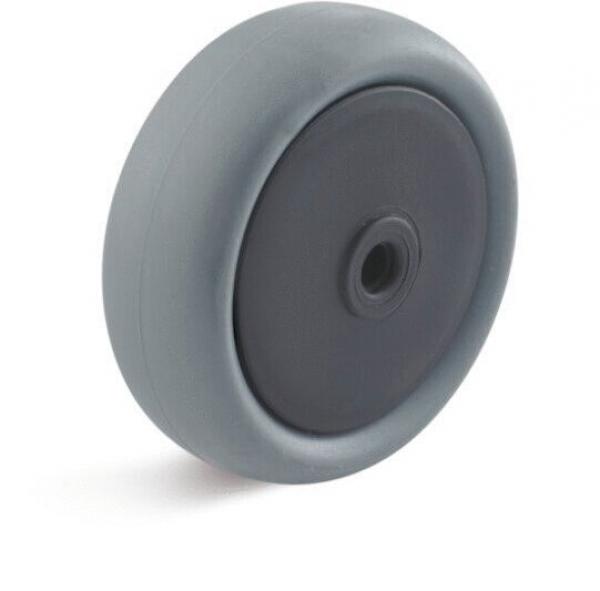

The image shows a single wheel. It has a gray, round outer ring made of rubber and a flat, black central axle. It appears sturdy and is suitable for use on hard surfaces.
ESD Light duty castor - series 550, load capacity 100 kg
(Product No.: 502.AK125.EL)
The image shows a single wheel. It has a gray, round outer ring made of rubber and a flat, black central axle. It appears sturdy and is suitable for use on hard surfaces.
Notice / Inquire

ESD Light duty castor - series 550, load capacity 100 kg

dpvlink:
10726
Load capacity (static):
100 kg
Wheel Ø:
125 mm
Wheel width:
32 mm
axle hole:
8 mm
Hub length:
36 mm
Properties:
Further product information

chevron-down
available available
17,35 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD Light duty castor - series 550, load capacity 100 kg

The ESD caster wheel of the 550 series features a high load capacity of 100 kg and is specifically designed for use in ESD-sensitive environments. The wheel has a diameter of 125 mm and a width of 32 mm. The wheel body is made of polypropylene and is equipped with a ball bearing, while the tread is made of black, electrically conductive rubber. The hub length is 36 mm and the axle hole has a diameter of 8 mm.
The caster conforms to the ESD standard DIN EN 61340-5-1 and offers a Shore hardness of about 85 Shore A, providing an optimal balance between hardness and flexibility. However, it should be noted that plasticizer migration may cause discoloration of the floor. These characteristics make the caster ideal for applications where both mobility and protection against electrostatic discharge are required.
Load capacity (static)
Load capacity (static)
100 kg
Wheel Ø
Wheel Ø
125 mm
Wheel width
Wheel width
32 mm
axle hole
axle hole
8 mm
Hub length
Hub length
36 mm
Wheel/castor type
Wheel/castor type
wheel
Color
Color
black
Conductivity
Conductivity
conductive
Shore hardness
Shore hardness
85 Shore A
Tread
Tread
rubber
ESD
ESD
yes
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 377
Complete Catalog 2023 - 2024

Product Family

ESD Light duty castor

Wheel: wheel body made of polypropylene (polyamide = AK series) with ball bearing; rubber tread, black, electrically conductive

A  a disoloration of the floor, hardness approx. 80° - 85° Shore A

In compliance with ESD standard DIN EN 61340-5-1


Article image
Article description
Load capacity (static)
Wheel Ø
Wheel width
axle hole
Hub length
Price
Compare
502.050.EL - ESD Light duty castor - series 550, load capacity 40 kg
502.050.EL
ESD Light duty castor - series 550, load capacity 40 kg
40 kg
50 mm
18 mm
6 mm
22 mm
6,05 EUR
502.075.EL - ESD Light duty castor - series 550, load capacity 50 kg
502.075.EL
ESD Light duty castor - series 550, load capacity 50 kg
50 kg
75 mm
23 mm
6 mm
29 mm
6,40 EUR
502.100.EL - ESD Light duty castor - series 550, load capacity 65 kg
502.100.EL
ESD Light duty castor - series 550, load capacity 65 kg
65 kg
100 mm
25 mm
8 mm
29 mm
12,40 EUR
502.AK100.EL - ESD Light duty castor - series 550, load capacity 80 kg
502.AK100.EL
ESD Light duty castor - series 550, load capacity 80 kg
80 kg
80 mm
30 mm
8 mm
40 mm
12,35 EUR
502.AK125.EL - ESD Light duty castor - series 550, load capacity 100 kg
502.AK125.EL
ESD Light duty castor - series 550, load capacity 100 kg
100 kg
125 mm
32 mm
8 mm
36 mm
17,35 EUR
