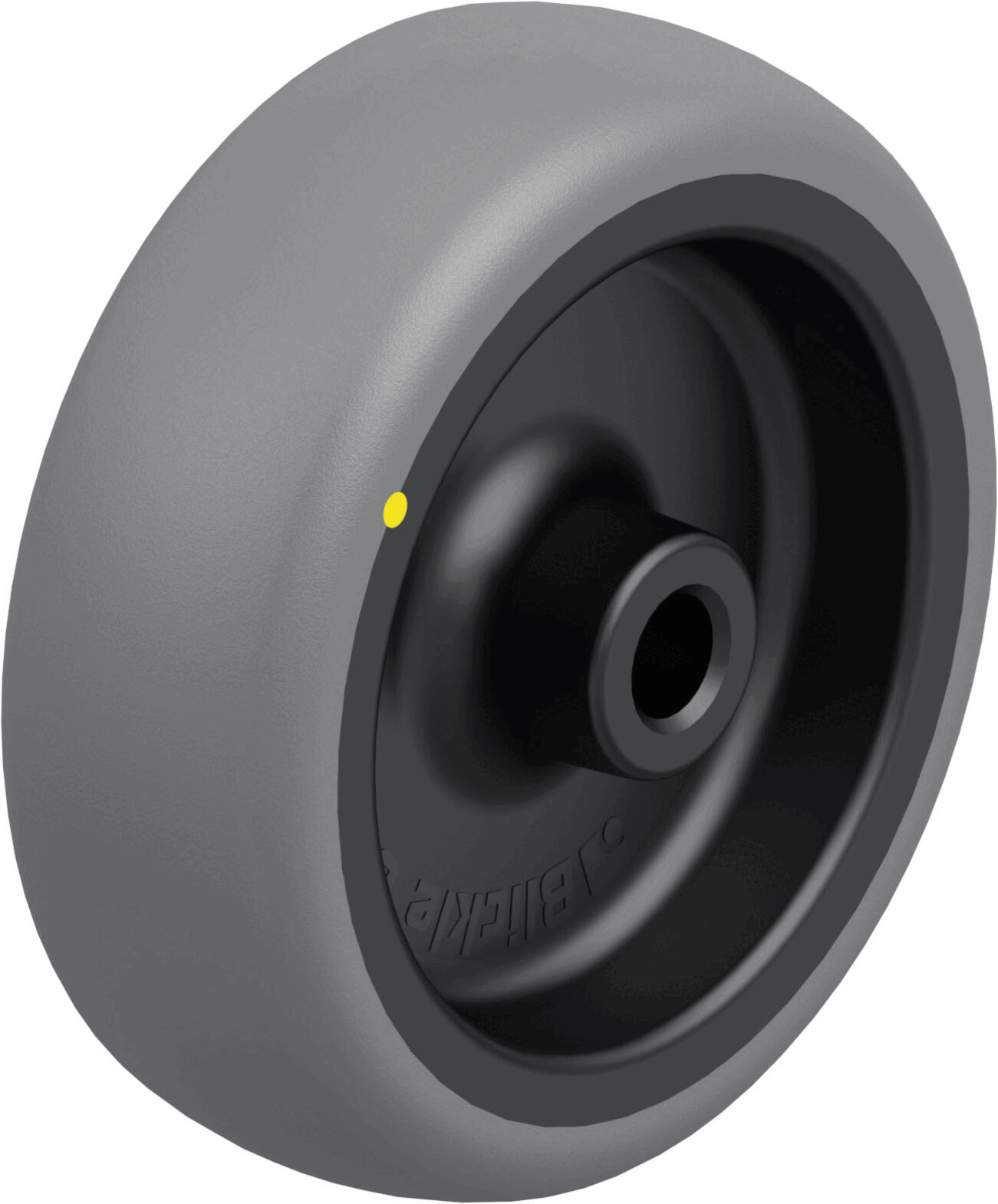

ESD Light duty castor with thermoplastic rubber tread 650, load capacity 125 kg
ESD Equipment Caster with Thermoplastic Rubber Tread 650, Load Capacity 125 kg
This ESD equipment caster with a thermoplastic rubber tread from the 650 series offers a load capacity of 125 kg and is specifically designed for use in ESD-sensitive areas. The tread is made of a high-quality thermoplastic rubber elastomer (TPE) with a hardness of 85 Shore A, which has low rolling and swiveling resistance and is non-marking gray. The wheel body is made of break-resistant polypropylene and is black. This caster is distinguished by its high chemical resistance to many aggressive substances and a temperature resistance from -20 °C to +60 °C, although the load capacity is reduced above +30 °C. It complies with the ESD standard DIN EN 61340-5-1. Technical Data: - Wheel Ø: 75 mm
- Wheel width: 25 mm
- Axle hole: 8 mm
- Hub length: 29.5 mm
- Weight: 100 g
- Wheel/Caster type: Wheel
- Wheel bearing: Plain bearing
- Conductivity: Conductive
- Temperature resistance: -20 to +60 °C
- Load capacity (static): 125 kg
- Load capacity in motion: 50 kg
Item number: 602.075.ELS
This ESD equipment caster with a thermoplastic rubber tread from the 650 series offers a load capacity of 125 kg and is specifically designed for use in ESD-sensitive areas. The tread is made of a high-quality thermoplastic rubber elastomer (TPE) with a hardness of 85 Shore A, which has low rolling and swiveling resistance and is non-marking gray. The wheel body is made of break-resistant polypropylene and is black. This caster is distinguished by its high chemical resistance to many aggressive substances and a temperature resistance from -20 °C to +60 °C, although the load capacity is reduced above +30 °C. It complies with the ESD standard DIN EN 61340-5-1. Technical Data: - Wheel Ø: 75 mm
- Wheel width: 25 mm
- Axle hole: 8 mm
- Hub length: 29.5 mm
- Weight: 100 g
- Wheel/Caster type: Wheel
- Wheel bearing: Plain bearing
- Conductivity: Conductive
- Temperature resistance: -20 to +60 °C
- Load capacity (static): 125 kg
- Load capacity in motion: 50 kg
Item number: 602.075.ELS
Details
- Wheel Ø Wheel Ø
- 75 mm
- Wheel width Wheel width
- 25 mm
- axle hole axle hole
- 8 mm
- Hub length Hub length
- 29.5 mm
- Wheel bearing Wheel bearing
- plain bearing
- Wheel/castor type Wheel/castor type
- wheel
- Conductivity Conductivity
- conductive
- Load capacity (static) Load capacity (static)
- 125 kg
- Load capacity when moving Load capacity when moving
- 50 kg
- Shore hardness Shore hardness
- 85 Shore A
- ESD ESD
- yes
- Temperature resistance Temperature resistance
- -20 - 60 °C
- Weight [g] Weight [g]
- 100
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Wheel Ø | Wheel width | axle hole | Hub length | Price | Compare |
|---|---|---|---|---|---|---|---|
|
602.100.ELS ESD Light duty castor with thermoplastic rubber tread 650, load capacity 150 kg | 100 mm | 25 mm | 8 mm | 29.5 mm | 5,20 EUR | |
|
602.075.ELS ESD Light duty castor with thermoplastic rubber tread 650, load capacity 125 kg | 75 mm | 25 mm | 8 mm | 29.5 mm | 4,00 EUR | |
|
602.050.ELS ESD Light duty castor with thermoplastic rubber tread 650, load capacity 75 kg | 50 mm | 19 mm | 8 mm | 22 mm | 1,95 EUR | |
