ESD Light duty fixed castor with top plate 550, load capacity 65 kg

(Product No.: 505.100.EL)

ESD Light duty fixed castor with top plate 550, load capacity 65 kg

Name: ESD Light duty fixed castor with top plate 550, load capacity 65 kg
SKU: 505.100.EL
Price: 13.85 EUR
Availability: InStock

ArticleNo: 505.100.EL

ESD Light duty fixed castor with top plate 550, load capacity 65 kg

dpvlink:

10741

Load capacity (static):

65 kg

Wheel Ø:

100 mm

Properties:

Further product information

Name:

Availability: available

available

13,85 EUR

excl. 19% tax

1 PCE

Compare

Notice

Product Info

ESD Light duty fixed castor with top plate 550, load capacity 65 kg

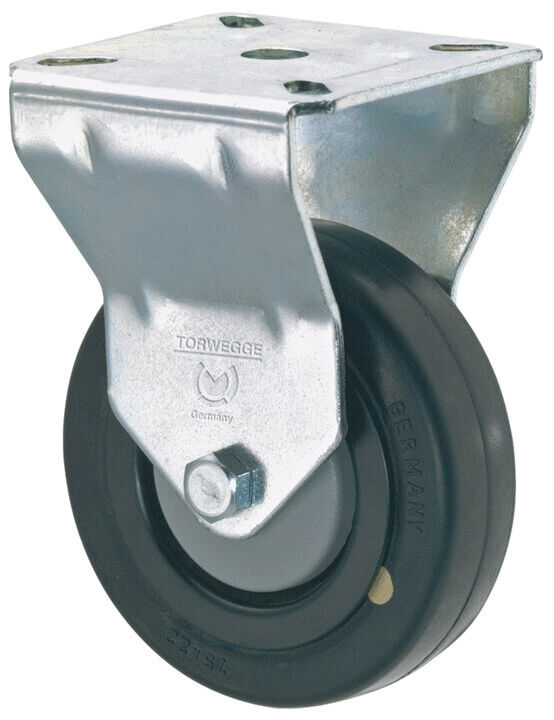

The ESD appliance caster with mounting plate 550 is characterized by a robust construction and a high load capacity of 65 kg. The housing is made of lightweight, pressed steel sheet, which is galvanized for additional durability. The fork head design includes a double ball bearing, which ensures improved maneuverability. The mounting plate measures 60 x 60 mm and offers flexible mounting options with hole spacing of 38 x 46 mm and a hole diameter of 6.2 mm.
The wheel has a diameter of 100 mm and is made of polypropylene, while the tread is made of black rubber and is electrically conductive, making it ideal for use in ESD-protected areas. The hardness of the tread is about 85 Shore A, which provides a good balance between hardness and elasticity. Note that plasticizer diffusion can cause discoloration of the floor. This product complies with the ESD standard DIN EN 61340-5-1, underscoring its suitability for sensitive electronic environments.
