ESD Light duty swivel castor with bolt hole 550 - double stop, load capacity 40 kg

(Product No.: 503.050.DS.EL)

ESD Light duty swivel castor with bolt hole 550 - double stop, load capacity 40 kg

Name: ESD Light duty swivel castor with bolt hole 550 - double stop, load capacity 40 kg
SKU: 503.050.DS.EL
Price: 8.75 EUR
Availability: InStock

ArticleNo: 503.050.DS.EL

ESD Light duty swivel castor with bolt hole 550 - double stop, load capacity 40 kg

dpvlink:

12216

Load capacity (static):

40 kg

Wheel Ø:

50 mm

Properties:

Further product information

Wheel Ø / Load capacity (static):

Availability: Delivery time!

Delivery time!

8,75 EUR

excl. 19% tax

1 PCE

Compare

Notice

Product Info

ESD Light duty swivel castor with bolt hole 550 - double stop, load capacity 40 kg

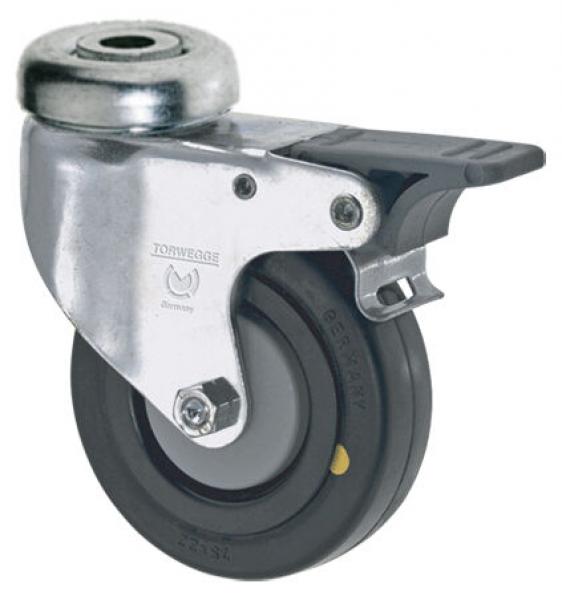

This ESD device caster wheel from the Series 550 offers a load capacity of 40 kg and is specifically designed for use in ESD-sensitive environments. The housing is made of lightweight, pressed, and galvanized sheet steel and features double ball bearings in the swivel head as well as an effective double stop/brake. The wheel, with a diameter of 50 mm and a width of 18 mm, is made of polypropylene and is equipped with a black, electrically conductive rubber coating, which has a Shore hardness of about 85 Shore A.
The caster complies with the ESD standard DIN EN 61340-5-1 and is therefore ideal for use in areas where electrostatic discharge can be critical. The mounting hole in the back has a diameter of 10.2 mm. Note that plasticizer migration can cause discoloration of the floor. This model combines functionality with reliability and offers a robust solution for your mobile devices.
