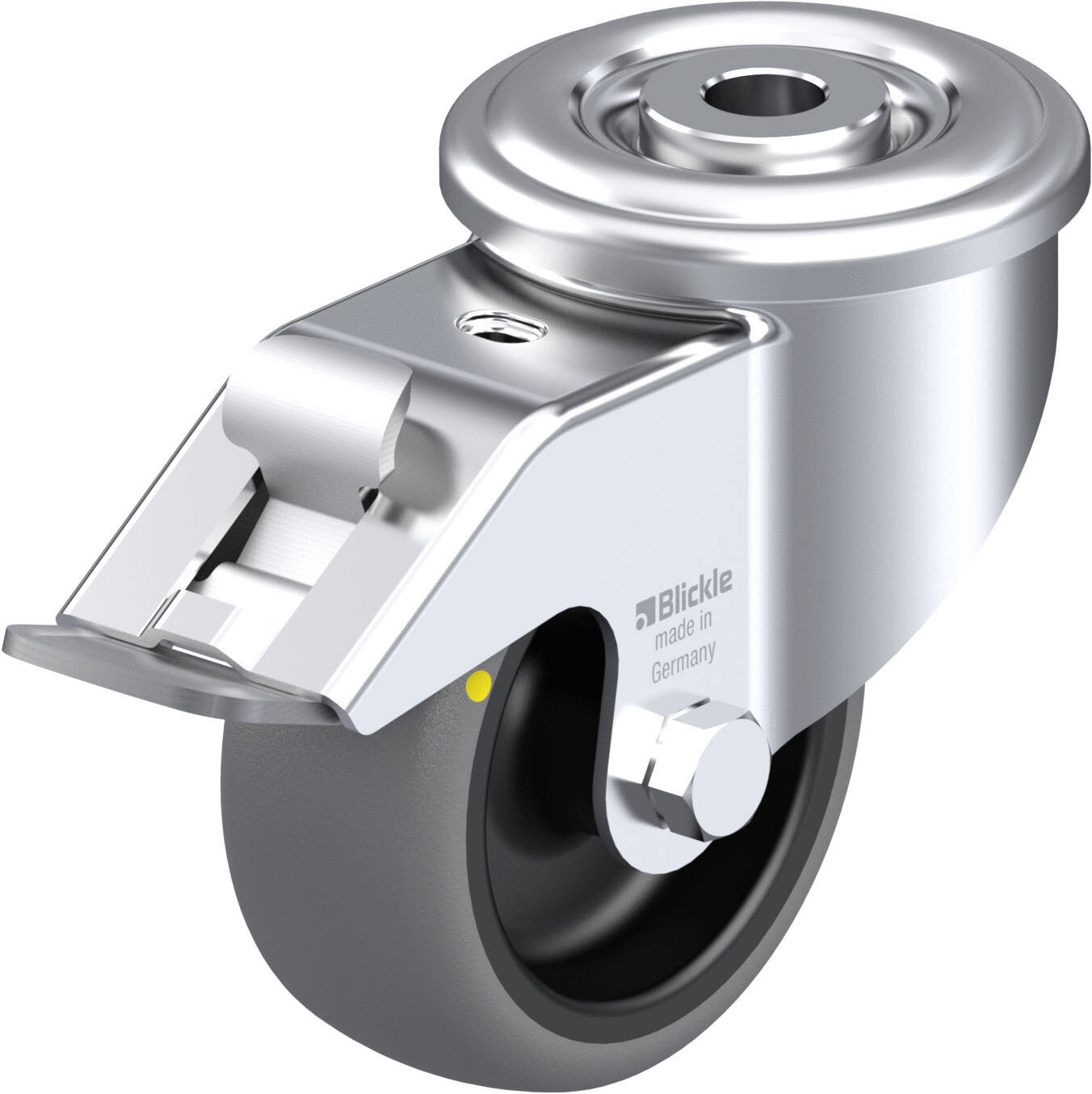

ESD Swivel castor with bolt hole - "stop-fix" 600, load capacity 165 kg
ESD Swivel Casters with Back Hole - "stop-fix" 600, Load Capacity 165 kg
This ESD swivel caster from the "stop-fix" 600 series is characterized by its high load capacity of 165 kg and a robust construction. The housing of the LER series is made of galvanically zinc-coated sheet steel, is blue passivated and Cr6-free. A double ball bearing in the swivel head and a stable central bolt ensure smooth running and a long service life through the special dynamic Blickle riveting. The wheel of the TPA series has a tread made of thermoplastic rubber elastomer (TPE) with a hardness of 85 Shore A and is oil-containing and non-marking. The wheel body made of break-resistant polypropylene further increases stability.
Technical Data:
- Load capacity (static): 165 kg
- Wheel Ø: 80 mm
- Overall height: 102 mm
- Projection: 38 mm
- ESD: yes
- Conductivity: conductive
- Weight: 600 g
- Mounting type: Back hole
- Plate diameter: 70 mm
- Wheel/Caster type: Braked swivel caster
- Wheel width: 32 mm
- Wheel bearing: Plain bearing
- Back hole: 13 mm
- Temperature resistance: -20 °C to +60 °C
The caster meets the ESD standard DIN EN 61340-5-1 and offers high chemical resistance and reduced load capacity at temperatures above +30 °C. Ideal for use in ESD-sensitive areas.
Item number: 623.080.SF.ELS
This ESD swivel caster from the "stop-fix" 600 series is characterized by its high load capacity of 165 kg and a robust construction. The housing of the LER series is made of galvanically zinc-coated sheet steel, is blue passivated and Cr6-free. A double ball bearing in the swivel head and a stable central bolt ensure smooth running and a long service life through the special dynamic Blickle riveting. The wheel of the TPA series has a tread made of thermoplastic rubber elastomer (TPE) with a hardness of 85 Shore A and is oil-containing and non-marking. The wheel body made of break-resistant polypropylene further increases stability.
Technical Data:
- Load capacity (static): 165 kg
- Wheel Ø: 80 mm
- Overall height: 102 mm
- Projection: 38 mm
- ESD: yes
- Conductivity: conductive
- Weight: 600 g
- Mounting type: Back hole
- Plate diameter: 70 mm
- Wheel/Caster type: Braked swivel caster
- Wheel width: 32 mm
- Wheel bearing: Plain bearing
- Back hole: 13 mm
- Temperature resistance: -20 °C to +60 °C
The caster meets the ESD standard DIN EN 61340-5-1 and offers high chemical resistance and reduced load capacity at temperatures above +30 °C. Ideal for use in ESD-sensitive areas.
Item number: 623.080.SF.ELS
Details
- Load capacity (static) Load capacity (static)
- 165 kg
- Wheel Ø Wheel Ø
- 80 mm
- Total height Total height
- 102 mm
- Bolt hole Bolt hole
- 13 mm
- Mounting typ Mounting typ
- bolt hole
- Plate diameter Plate diameter
- 70 mm
- Wheel bearing Wheel bearing
- plain bearing
- Wheel width Wheel width
- 32 mm
- Wheel/castor type Wheel/castor type
- swivel castor braked
- Offset Offset
- 38 mm
- Conductivity Conductivity
- conductive
- Load capacity when moving Load capacity when moving
- 65 kg
- Shore hardness Shore hardness
- 85 Shore A
- ESD ESD
- yes
- Temperature resistance Temperature resistance
- -20 - 60 °C
- Weight [g] Weight [g]
- 600
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Load capacity (static) | Wheel Ø | Total height | Price | Compare |
|---|---|---|---|---|---|---|
|
623.100.SF.ELS ESD Swivel castor with bolt hole - "stop-fix" 600, load capacity 175 kg | 175 kg | 100 mm | 125 mm | 24,50 EUR | |
|
623.080.SF.ELS ESD Swivel castor with bolt hole - "stop-fix" 600, load capacity 165 kg | 165 kg | 80 mm | 102 mm | 22,00 EUR | |
|
623.125.SF.ELS ESD Swivel castor with bolt hole - "stop-fix" 600, load capacity 200 kg | 200 kg | 125 mm | 150 mm | 24,20 EUR | |
