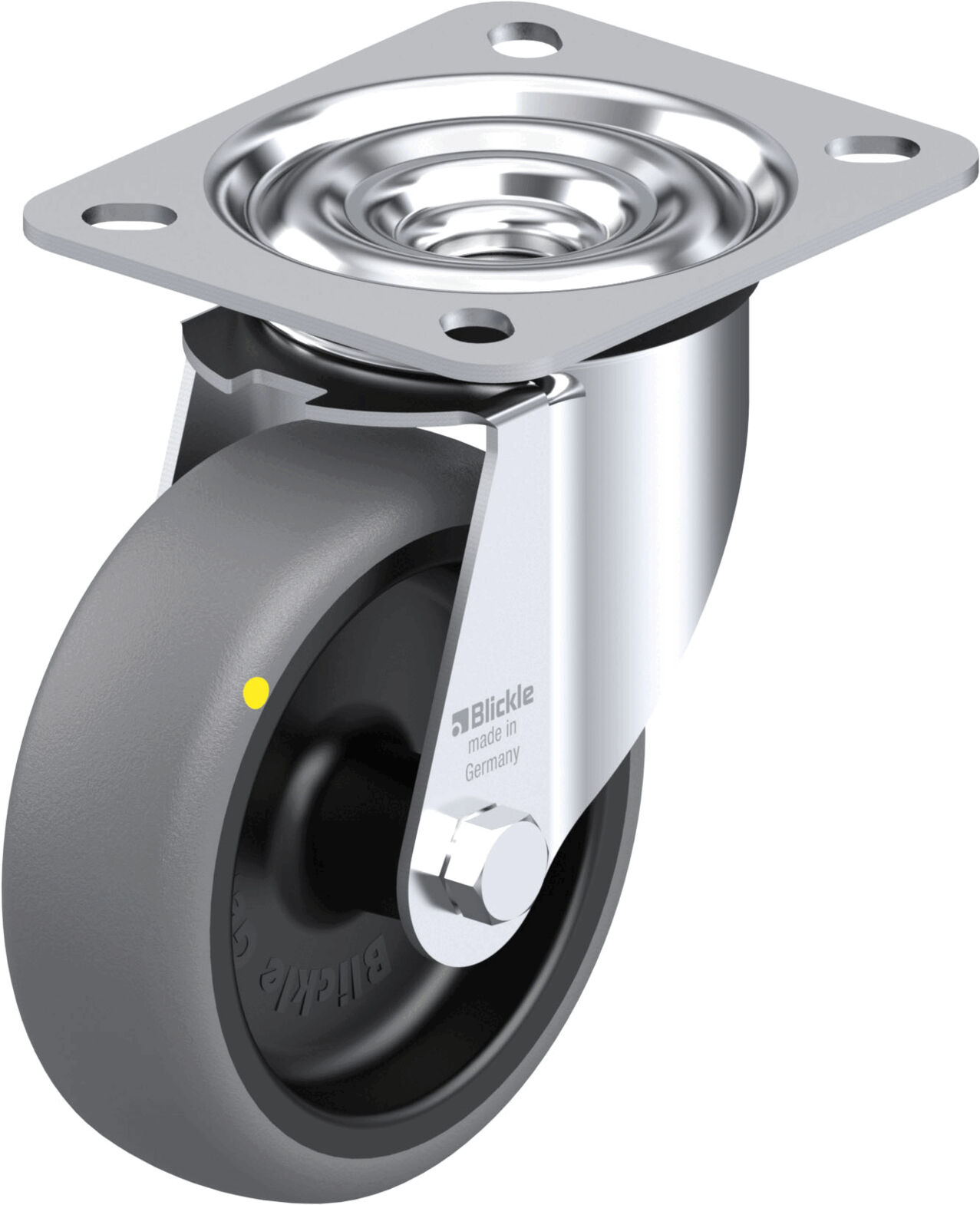

ESD Swivel castor with mounting plate 600, load capacity 200 kg
ESD Swivel Casters with Mounting Plate 600, Load Capacity 200 kg
The ESD swivel casters with mounting plate 600 from the LE series combine robust materials and advanced technology for optimal performance. The housing is made of galvanically galvanized steel sheet, which is blue passivated and Cr6-free, and features a double ball bearing in the swivel head as well as a swivel head seal. This design ensures minimal clearance in the swivel head, smooth running, and a long lifespan due to the special dynamic Blickle riveting. The TPA series wheels offer a tread made of high-quality thermoplastic rubber elastomer (TPE) with a hardness of 85 Shore A and are oil-containing, non-marking, and gray. The wheel body is made of break-resistant polypropylene and is black.
Technical Data:
- Load capacity (static): 200 kg
- Wheel Ø: 125 mm
- Overall height: 150 mm
- Offset: 38 mm
- ESD: yes
- Conductivity: conductive
- Weight: 700 g
- Mounting type: Mounting plate
- Plate dimensions: 100 x 85 mm
- Wheel/caster type: Unbraked swivel caster
- Wheel width: 32 mm
- Wheel bearing: Plain bearing
- Bolt hole: 9 mm
- Bolt hole spacing: 80 x 60 mm
- Temperature resistance: -20 °C to +60 °C
- Load capacity in motion: 80 kg
The casters comply with the ESD standard DIN EN 61340-5-1 and offer high chemical resistance against many aggressive media.
Item number: 624.125.ELS
The ESD swivel casters with mounting plate 600 from the LE series combine robust materials and advanced technology for optimal performance. The housing is made of galvanically galvanized steel sheet, which is blue passivated and Cr6-free, and features a double ball bearing in the swivel head as well as a swivel head seal. This design ensures minimal clearance in the swivel head, smooth running, and a long lifespan due to the special dynamic Blickle riveting. The TPA series wheels offer a tread made of high-quality thermoplastic rubber elastomer (TPE) with a hardness of 85 Shore A and are oil-containing, non-marking, and gray. The wheel body is made of break-resistant polypropylene and is black.
Technical Data:
- Load capacity (static): 200 kg
- Wheel Ø: 125 mm
- Overall height: 150 mm
- Offset: 38 mm
- ESD: yes
- Conductivity: conductive
- Weight: 700 g
- Mounting type: Mounting plate
- Plate dimensions: 100 x 85 mm
- Wheel/caster type: Unbraked swivel caster
- Wheel width: 32 mm
- Wheel bearing: Plain bearing
- Bolt hole: 9 mm
- Bolt hole spacing: 80 x 60 mm
- Temperature resistance: -20 °C to +60 °C
- Load capacity in motion: 80 kg
The casters comply with the ESD standard DIN EN 61340-5-1 and offer high chemical resistance against many aggressive media.
Item number: 624.125.ELS
Details
- Load capacity (static) Load capacity (static)
- 200 kg
- Wheel Ø Wheel Ø
- 125 mm
- Total height Total height
- 150 mm
- Bolt hole Bolt hole
- 9 mm
- Bolt hole spacing Bolt hole spacing
- 80 x 60 mm
- Mounting typ Mounting typ
- top plate
- Plate dimensions Plate dimensions
- 100 x 85 mm
- Wheel bearing Wheel bearing
- plain bearing
- Wheel width Wheel width
- 32 mm
- Wheel/castor type Wheel/castor type
- swivel castor unbraked
- Offset Offset
- 38 mm
- Conductivity Conductivity
- conductive
- Load capacity when moving Load capacity when moving
- 80 kg
- Shore hardness Shore hardness
- 85 Shore A
- ESD ESD
- yes
- Temperature resistance Temperature resistance
- -20 - 60 °C
- Weight [g] Weight [g]
- 700
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Load capacity (static) | Wheel Ø | Total height | Price | Compare |
|---|---|---|---|---|---|---|
|
624.100.ELS ESD Swivel castor with mounting plate 600, load capacity 175 kg | 175 kg | 100 mm | 125 mm | 13,70 EUR | |
|
|
624.125.ELS ESD Swivel castor with mounting plate 600, load capacity 200 kg | 200 kg | 125 mm | 150 mm | 19,40 EUR | |
|
624.080.ELS ESD Swivel castor with mounting plate 600, load capacity 165 kg | 165 kg | 80 mm | 102 mm | 14,35 EUR | |
| Show Compare List (0) | ||||||
