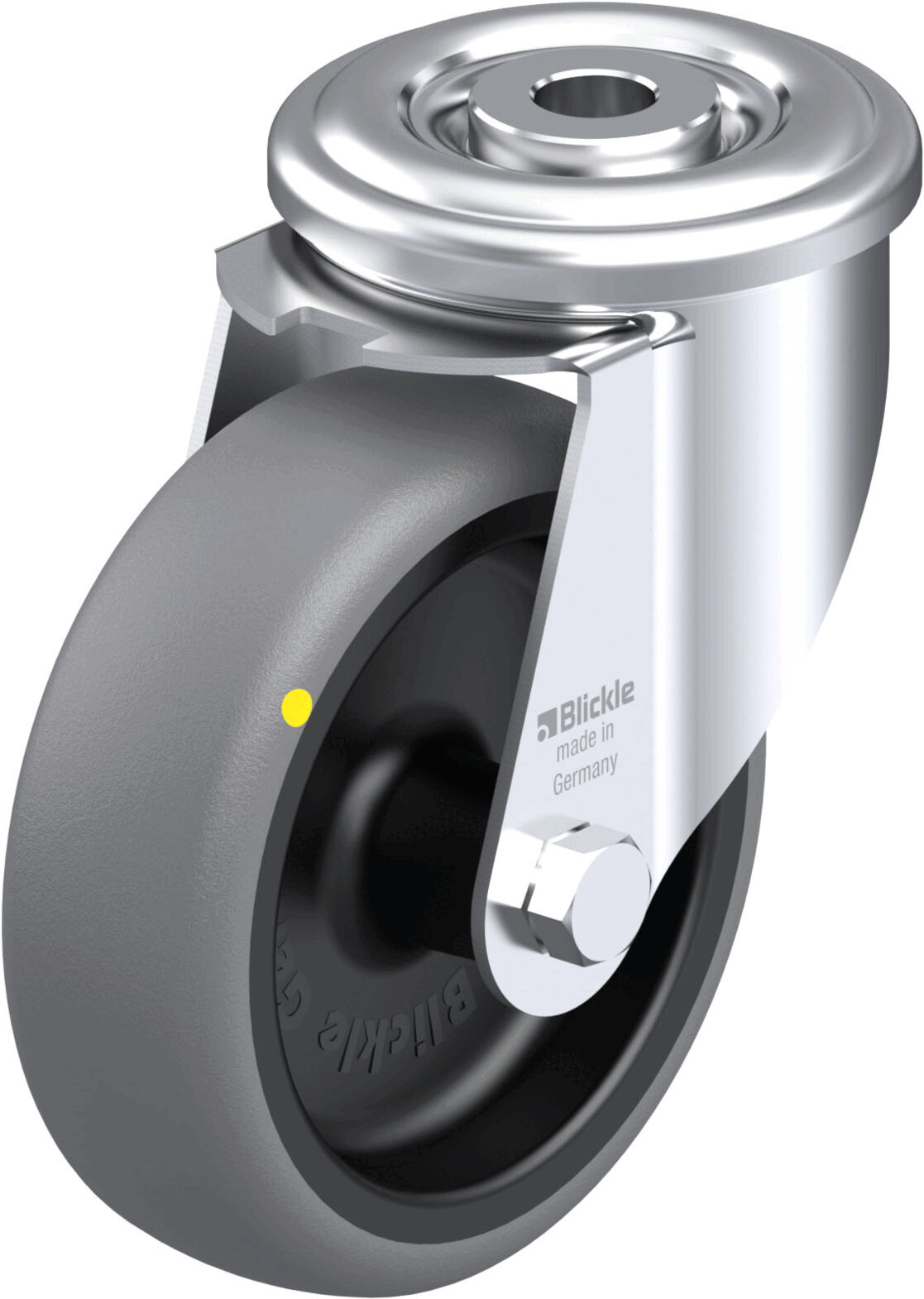

ESD Swivel castors with bolt hole 600, load capacity 175 kg

(Product No.: 623.100.ELS)

ESD Swivel castors with bolt hole 600, load capacity 175 kg

Name: ESD Swivel castors with bolt hole 600, load capacity 175 kg
SKU: 623.100.ELS
Price: 18.10 EUR
Availability: InStock

ArticleNo: 623.100.ELS

ESD Swivel castors with bolt hole 600, load capacity 175 kg

dpvlink:

8035

Load capacity :

100 kg

Load capacity (static):

175 kg

Wheel Ø:

100 mm

Total height:

125 mm

Properties:

Further product information

Name:

Availability: available

available

18,10 EUR

excl. 19% tax

1 PCE

Compare

Notice / Inquire

Product Info

ESD Swivel castors with bolt hole 600, load capacity 175 kg

The ESD swivel casters with back hole 600 from Blickle, with a static load capacity of 175 kg, are ideal for applications where robustness and electrostatic discharge safety are required. The housing of the LER series is made of galvanically zinc-plated steel sheet, which is blue passivated and Cr6-free, allowing for a long lifespan and minimal swivel bearing play. The dual ball bearing in the swivel head ensures smooth running.
The wheel of the TPA series is characterized by a tread made of high-quality thermoplastic rubber elastomer with a hardness of 85 Shore A and a wheel body made of impact-resistant polypropylene. The gray color of the tread leaves no marks and the wheels are oily.
These casters are highly resistant to chemicals and can withstand temperatures from -20 °C to +60 °C, although the load capacity is reduced at temperatures above +30 °C. They meet the ESD standard DIN EN 61340-5-1 and are thus conductive, making them suitable for sensitive environments such as electronic manufacturing rooms.
With a total height of 125 mm, a wheel diameter of 100 mm, and a wheel width of 32 mm, these unbraked swivel casters offer a reliable mobility solution.

Details

Load capacity Load capacity: 100 kg
Load capacity (static) Load capacity (static): 175 kg
Wheel Ø Wheel Ø: 100 mm
Total height Total height: 125 mm
Bolt hole Bolt hole: 13 mm
Mounting typ Mounting typ: bolt hole
Plate diameter Plate diameter: 70 mm
Wheel bearing Wheel bearing: plain bearing
Wheel width Wheel width: 32 mm
Wheel/castor type Wheel/castor type: swivel castor unbraked
Color Color: black
Offset Offset: 36 mm
Conductivity Conductivity: conductive
Load capacity when moving Load capacity when moving: 70 kg
Bracket Bracket: steel sheet
Shore hardness Shore hardness: 85 Shore A
Tread Tread: rubber, thermoplastic
ESD ESD: yes
Temperature resistance Temperature resistance: -20 - 60 °C
Weight Weight: 500 g

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 381

Complete Catalog 2023 - 2024

Product Family

ESD Swivel castors with bolt hole

Housing series LER

Sheet steel, electrogalvanized, blue passivated, Cr6-free
Double ball bearings in the swivel ring
Stable center pin
minimal swivel head play, smooth running, long service life thanks to special dynamic Blickle riveting

Wheel series TPA

Tread: high-quality thermoplastic rubber elastomer (TPE), hardness 85 Shore A, color grey, non-marking, oil-containing
Wheel body: high-quality polypropylene, unbreakable, color black

Other properties
